ADSS cable accessories 12'' cable storage assembly brackets

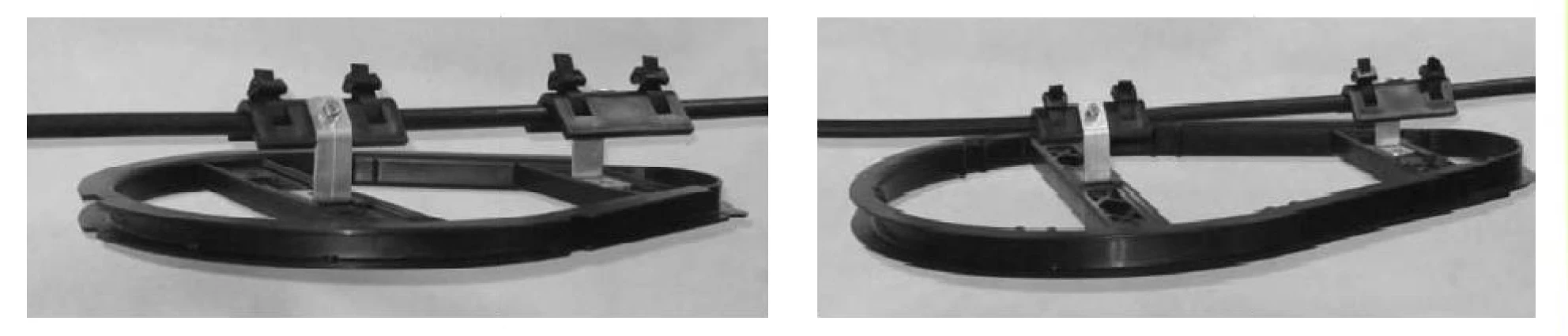

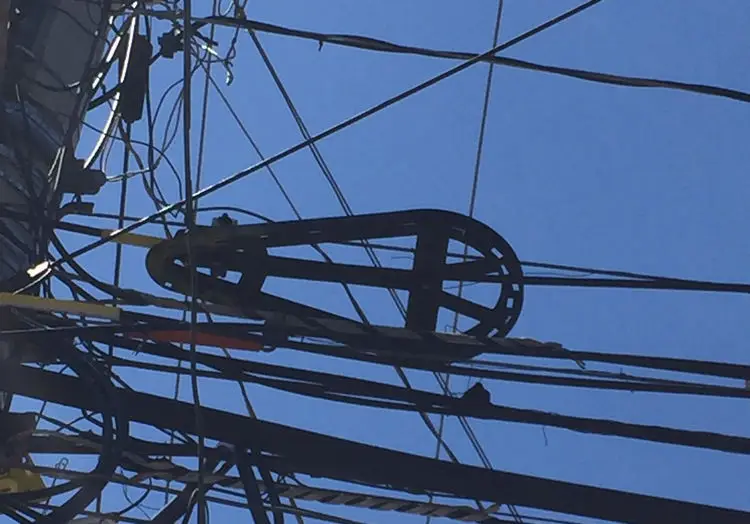

The snowshoe fiber storage clamp is an element for storing the cable reserve in the connections when aerial fiber optic installations are made. It can be placed directly on the ADSS cable without damaging it thanks to the included accessories. Made of high impact UV resistant thermoplastic resin.



Features:

1.Made of high impact thermoplastic resin

2.Not corrosive

3. Fully dielectric to incorporate reinforced thermoplastic clamps

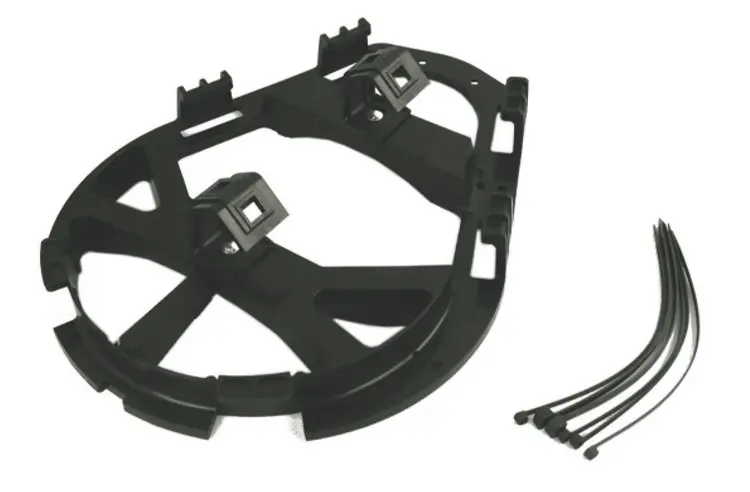

Component

2 pairs of plastic cable holders

10 plastic safety straps

4 screws with washer and lock nut

Material	Thermoplastic
Nominal storage diameter	12”(30.5cm)
Nominal dimension	482mm Length 373.5mm Width 48.5mm High
Operating temperature	-20° a 130°c
Modulus of elasticity	340Ksi
Dart Impact	565in/LB
Free fall impact	900in/lb
Deflection temperature	132°c
Rated voltage	833N
Nominal weight	580g
