Производитель поставка Cherry Mx синий переключатель механическая
- Категории: Клавиатуры для ноутбуков >>>
- Поставщик: Huizhou,Grandye,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
Products Description

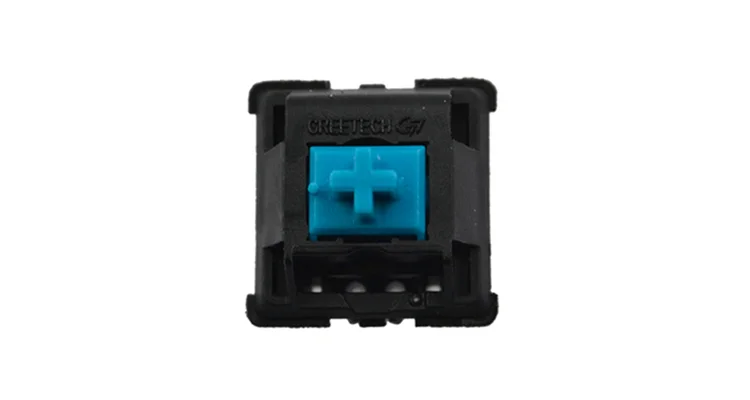

Replace for Cherry MX series switch

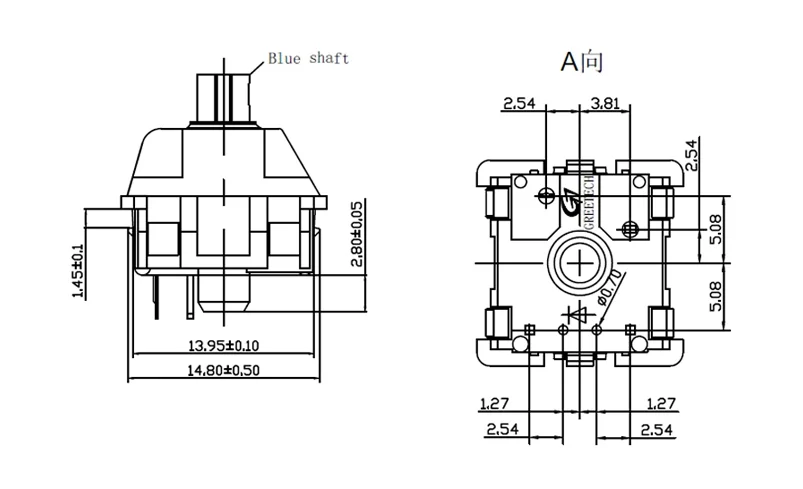

GT02 Mechanical Keyboard Switch Parameters
Electrical Characteristics | Rating | 12VDC/AC max. 10mA AC/DC max | ||||
Contact Resitance | 200MΩmax (25MΩtypical)(initial value) | |||||
Insulation Resistance | 100MΩMin | |||||
Voltage Resistence | AC 100V (50-60Hz) 1Minute | |||||
Eletrical life | Over 50,000,000 cycles (Load) | |||||
Bounce Time | 400mm/s 5msec (operation speed at 400mm/spec) | |||||
Parameters | Operating Force | See Detail Spec | ||||
Pre-travel | 2.0±0.6mm | |||||
Total Trave | 4.0±0.4mm | |||||
Mechanical Life | Over 80,000,000 cycles (No Load) | |||||
Operating Temperature Range | -40℃~ + 80℃ | |||||
Ambient Humidity | ≤85%RH max | |||||
GT02 Switch Features
1. 2mm PT which is perfect to replace for Cherry MX series switch, like the blue, black, brown, and red.
2. Long life and high reliability, the operation cycle can up to 80000000 cycles.
2. Long life and high reliability, the operation cycle can up to 80000000 cycles.

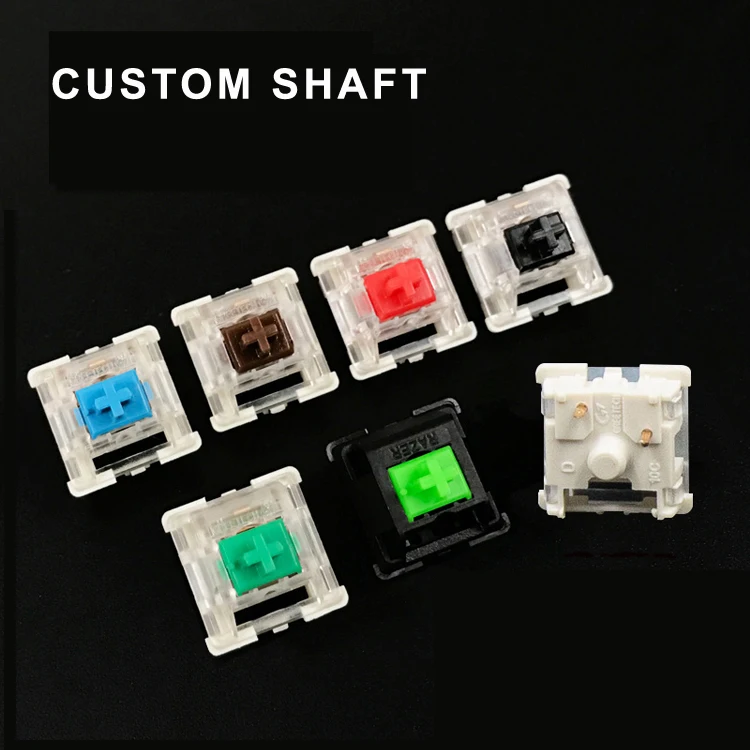

3. The linear Tactile, Soft Tactile, and Clicktactilefor options, buyer can according to your requirement to choose what you want.
4. PCB terminals which is perfect to install in the PCB plate.
5. Wide Range Temperature Grade from -40℃ to + 80℃
6. Singe Color, RGB, SMT LED diode for choices

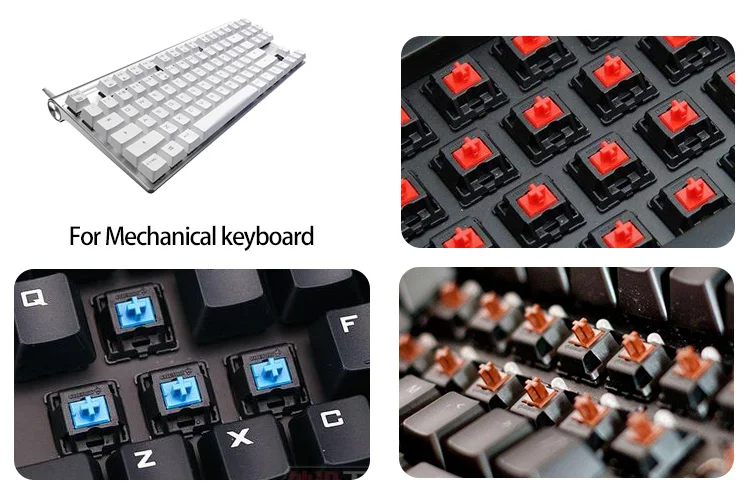

7. Variety Used in computer keyboards, cash registers, industrial equipment, and machine interface.
4. PCB terminals which is perfect to install in the PCB plate.
5. Wide Range Temperature Grade from -40℃ to + 80℃
6. Singe Color, RGB, SMT LED diode for choices
7. Variety Used in computer keyboards, cash registers, industrial equipment, and machine interface.
Application and Custom
Company Information
R&D Team
Production Line
Our Advantage
1.30 years manufacture experience
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
Package & Shipment
About Package:
1. Color box inside with foam and carton outside, which can protect goods;
2. Special package is available；
About Shipment:
1. By air, By sea, By land
2. By Express, like DHL, TNT, UPS, Fedx
3. By post or other carrier, this type of shipment will be slow but more cheaper
Certificates
ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
