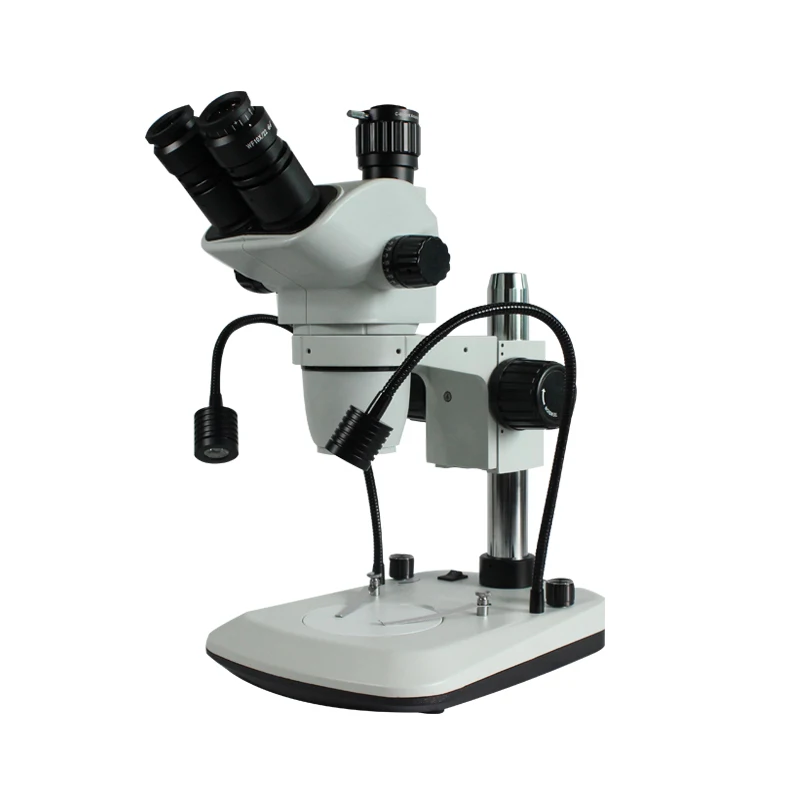

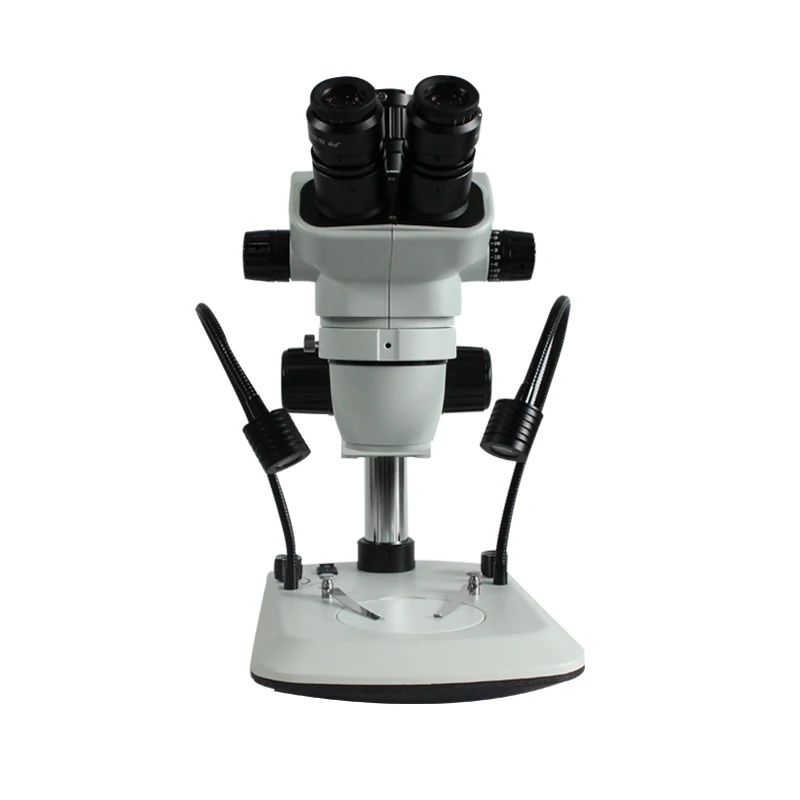

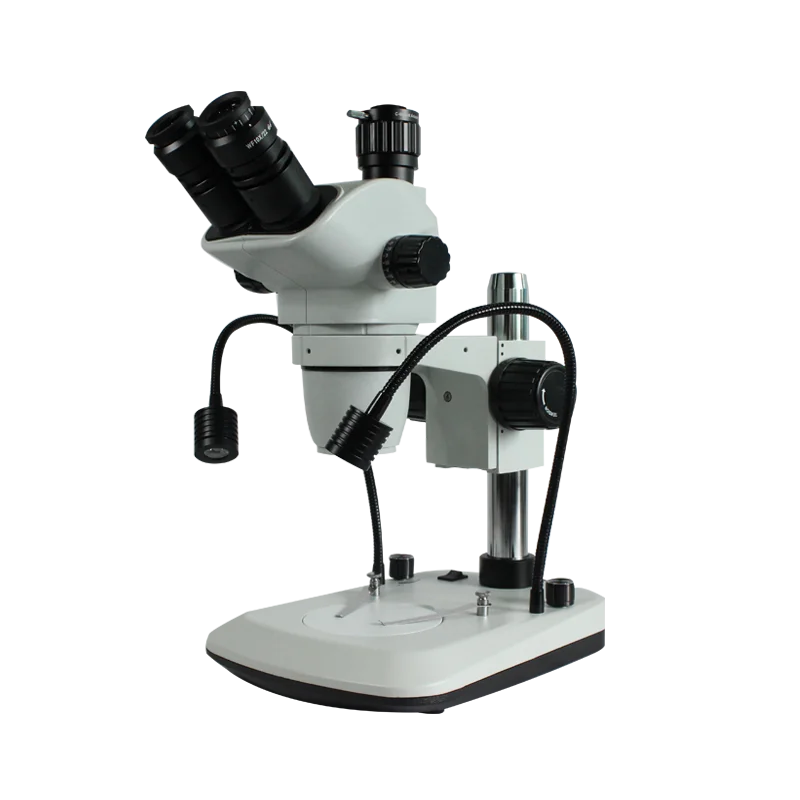

TZ6745 серия 0.67X ~ 4.5X тринокулярный микроскоп стерео электронный со светодиодной кольцевой
- Категории: Микроскопы >>>
- Поставщик: Suzhou,Jingtong,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
 | High Precision Super High Resolution Trinocular Stereo Microscope Brand-new Optical Design Best Reproduction & True Color Images |
Product Description
TZ6745 Series Stereo Zoom Microscope is fully coated optical system with super high resolution. It is characterized by brand-new optical design, the best reproduction and true color image.
It is ideally suited for industrial as well as for biological research where high precision, maximum working distance and large field coverage is required.
Features
---3.4X~270X Magnification/p>
---Great Flat & Clarity Images
---Super High Resolution
---Convenient for the Observers with Glasses
---Educational Teaching & Learning; Agricultural Research; Electronic Industrial Inspection & Research
 |  |
Specification
Specification for TZ6745 Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
W.D. 105mm | W.D. 177mm | W.D. 47mm | W.D. 26mm | |||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/22mm | 6.7X | 32.8mm | 3.4X | 65.7mm | 10.1X | 21.9mm | 13.4X | 16.4mm |
45.0X | 4.9mm | 22.5X | 9.8mm | 67.5X | 3.3mm | 90.0X | 2.4mm | |
15X/16mm | 10.1X | 23.9mm | 5.0X | 47.8mm | 15.1X | 15.9mm | 20.1X | 11.9mm |
67.5X | 3.6mm | 33.8X | 7.1mm | 101.3X | 2.4mm | 135.0X | 1.8mm | |
20X/12mm | 13.4X | 17.9mm | 6.7X | 38.5mm | 20.1X | 11.9mm | 26.8X | 9.0mm |
90.0X | 2.7mm | 45.0X | 5.3mm | 135.0X | 1.8mm | 180.0X | 1.3mm | |
25X/9mm | 16.8X | 13.4mm | 8.4X | 26.9mm | 25.1X | 9.0mm | 33.5X | 6.7mm |
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
30X/8mm | 20.1X | 11.9mm | 10.1X | 23.8mm | 30.2X | 7.9mm | 40.2X | 6.0mm |
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
Magnification | 6.7X-45X, 3.4X-270X with optional eyepieces and objectives | |||||||

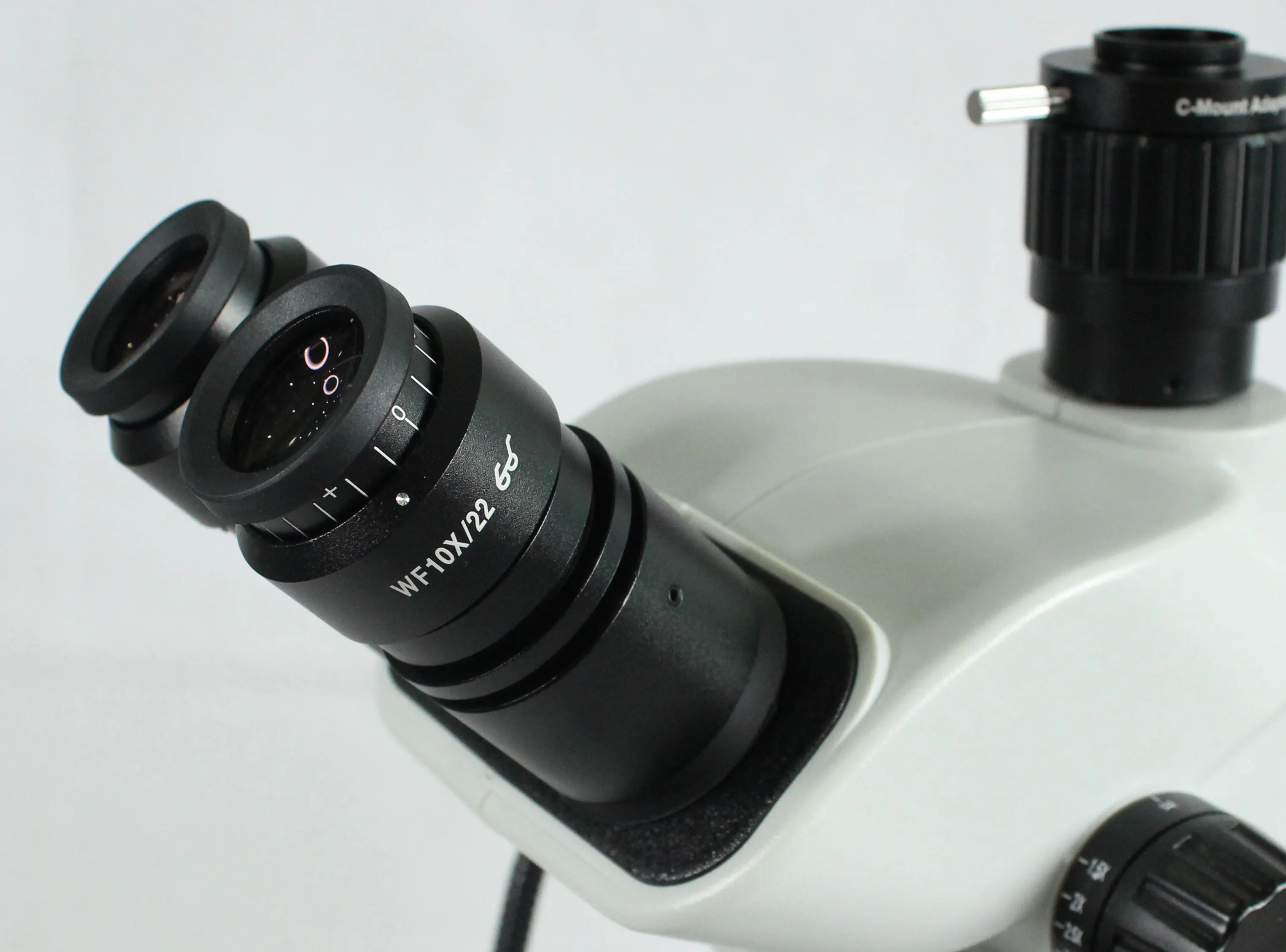

Eyepiece | WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1 | |||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
Product Details
 |
| Structure of TZ6745-PIGL |
 | Head Binocular/Trinocular Head, 45° inclined, 360° rotatable, can be locked in any position desired. WF10X/22mm High-eyepoint, Wide-field. |

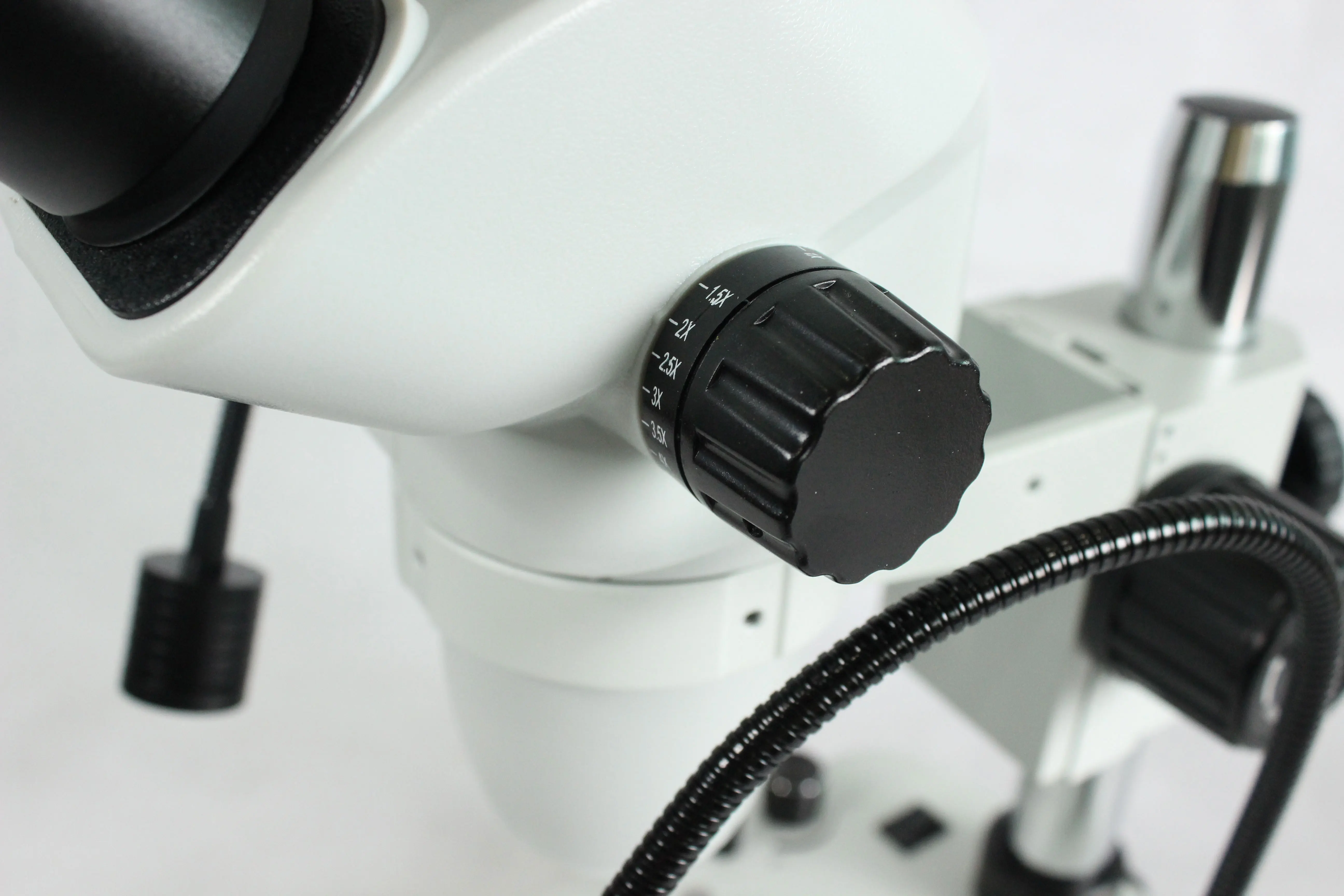

Focusing Knob 6.7X-45X, 3.4X-270X with optional eyepieces and objectives. |  |

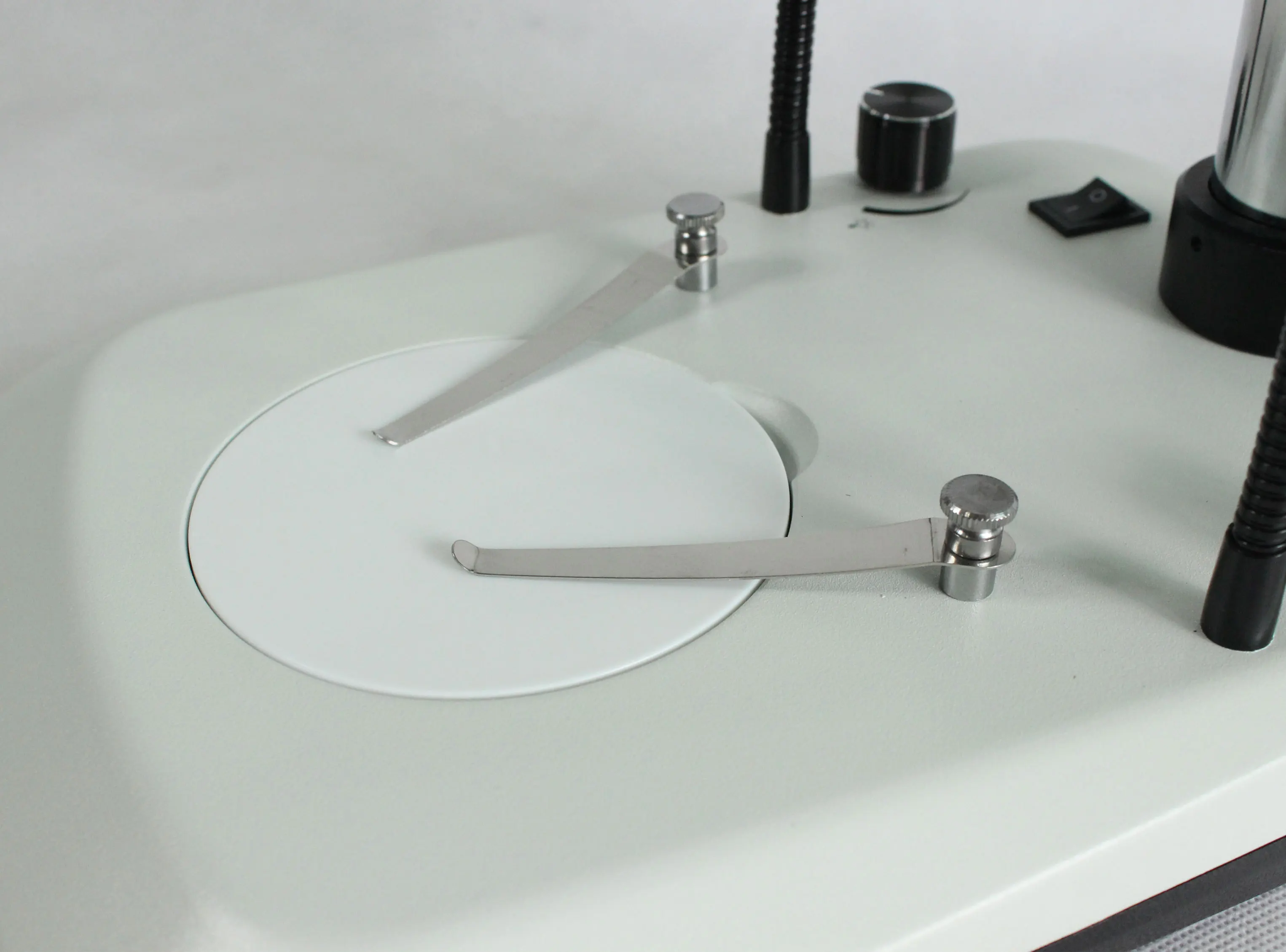

 | Working Stage Super Large Working Stage, Glass Frosted Stage. |
 |

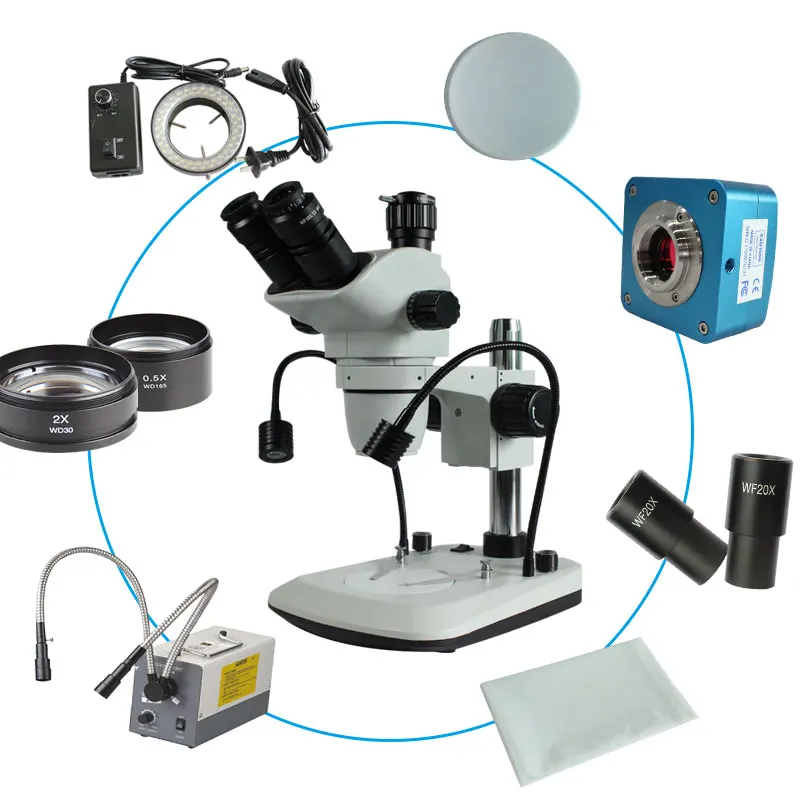

| Accessories of TZ6745 Series |
 |
 |
 |
 |

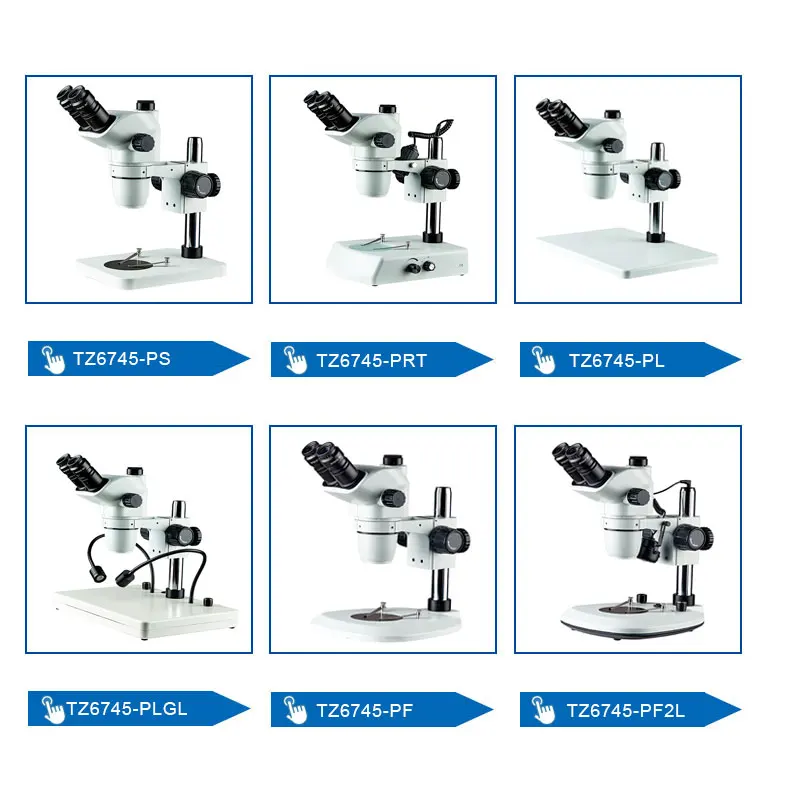

Item | Illumination |
|---|---|
TZ6745 -PS | Fluorescent lamp, LED ring light |
TZ6745 -PRT | Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination |
TZ6745 -PL | Fluorescent lamp, LED ring light |
TZ6745 -PLGL | Double gooseneck LED illumination with independent switches and adjustable intensity |

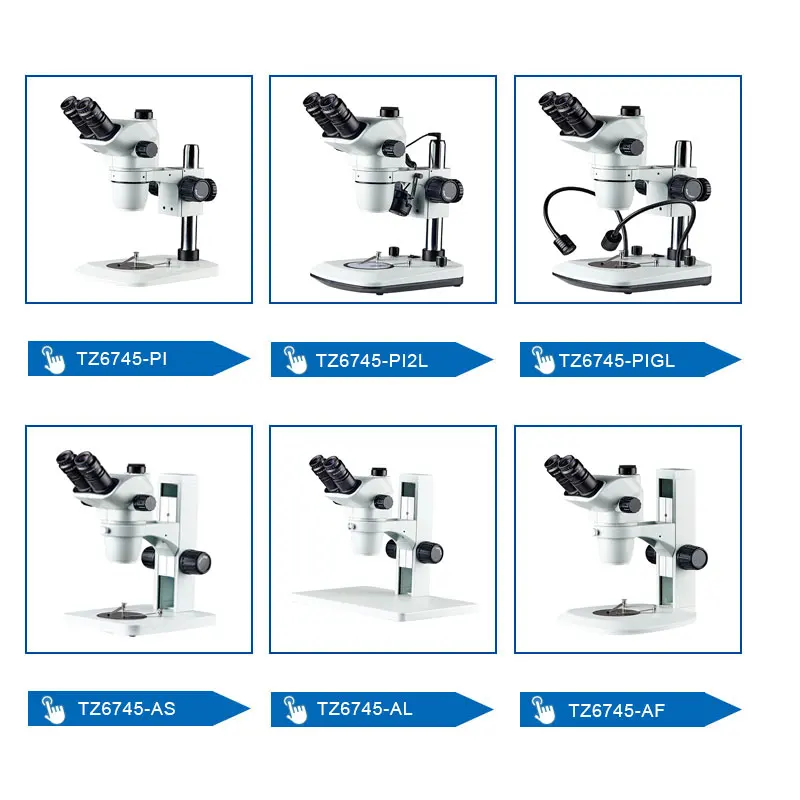

TZ6745 -PI | Fluorescent lamp, LED ring light |
TZ6745 -PI2L | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
TZ6745 -PIGL | Double gooseneck LED illumination with independent switches and adjustable intensity |
TZ6745 -PF | Fluorescent lamp, LED ring light |
TZ6745 -PF2L | Transmitted and reflected LED illumination with independent switches and adjustable intensity |

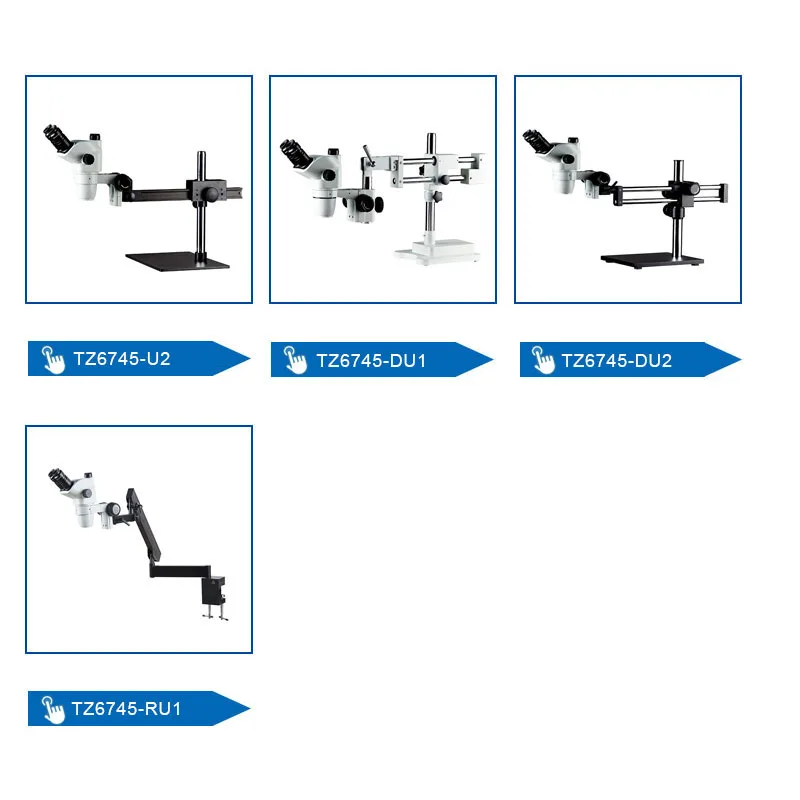

| TZ6745-U2 | Fluorescent lamp, LED ring light |
TZ6745-AS | Fluorescent lamp, LED ring light |
TZ6745-AL | Fluorescent lamp, LED ring light |
TZ6745-AI | Fluorescent lamp, LED ring light |

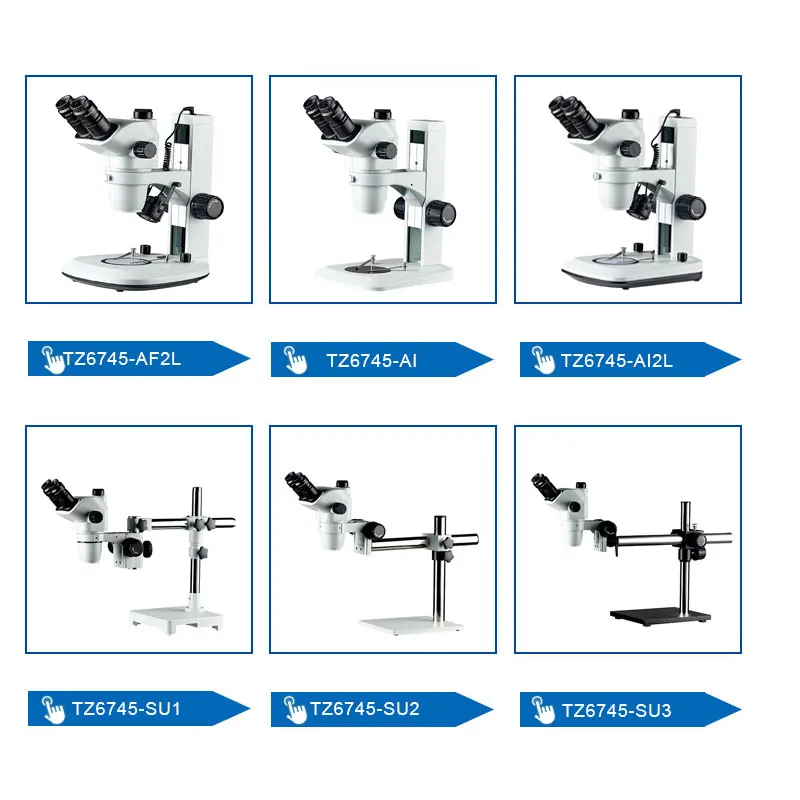

TZ6745-AI2L | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
TZ6745-AF | Fluorescent lamp, LED ring light |
TZ6745-AF2L | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
TZ6745-SU1 | Fluorescent lamp, LED ring light |
TZ6745-SU2 | Fluorescent lamp, LED ring light |
TZ6745-SU3 | Fluorescent lamp, LED ring light |
TZ6745-DU1 | Fluorescent lamp, LED ring light |
TZ6745-DU2 | Fluorescent lamp, LED ring light |
TZ6745-RU1 | Fluorescent lamp, LED ring light |
