AMBOHR CDP-300 300g модуль генератора озона для очистки
- Категории: Environmental Machinery >>>
- Поставщик: Ambohr,Electric,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Test Drive This Product
Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>

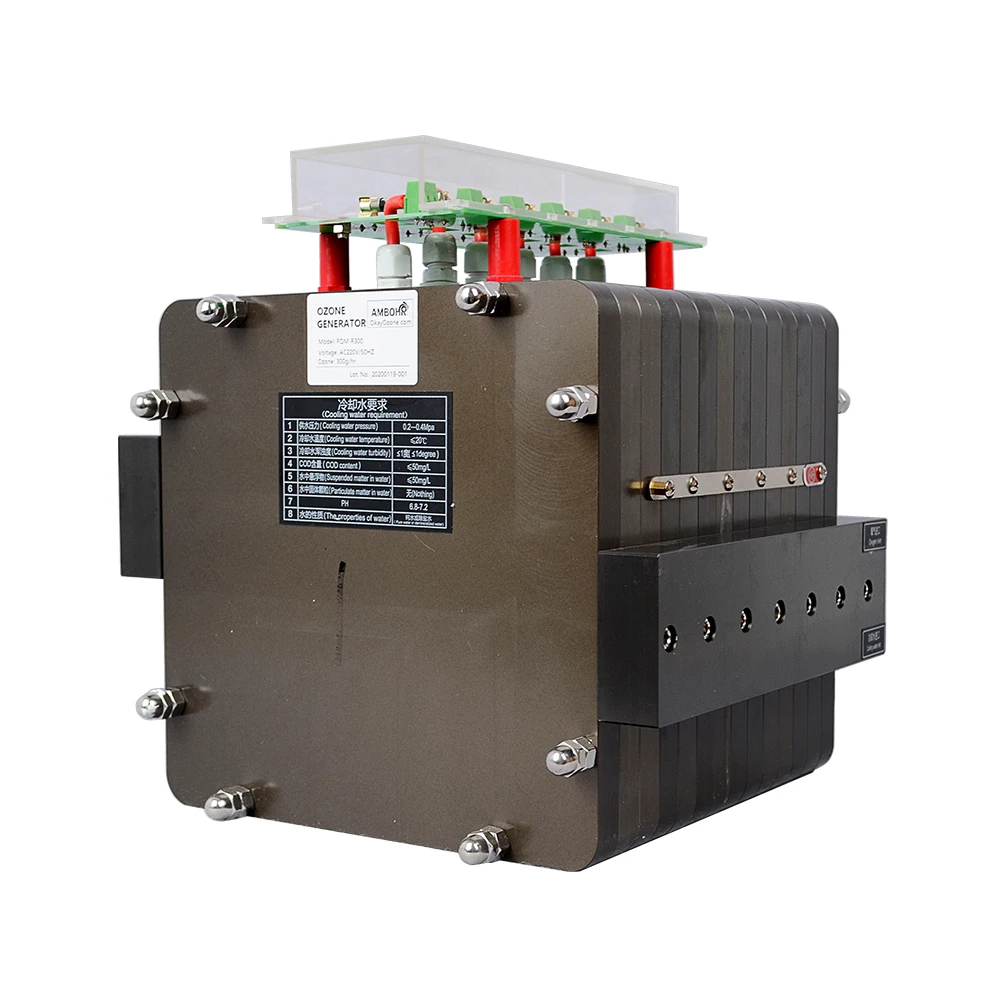

Ultra clean, high concentration, high flow Ozone Generator Module
The CDP family is the most innovative and versatile ozone generator Module developed by AMBOHR® . Ultra clean, high concentration, high flow ozone is produced by this generator's novel architecture and cell design, converting oxygen to 120-200mg/L or 240-260mg/L of high concentration ozone.
Model | CDP 50 | CDP 100 | CDP 150 | CDP 200 | CDP 250 | CDP 300 | CDP 400 | CDP 500 | CDP 600 | ||||||||
Ozone output(g/hr) | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | ||||||||
Oxygen consumption (m3/h) | 0.3 | 0.6 | 0.9 | 1.2 | 1.6 | 2.0 | 3 | 3.5 | 4.5 | ||||||||
Ozone concentration | 120-200mg/L (200-240mg/L, 240-260mg/L) | ||||||||||||||||
Ozone inlet pressure (Mpa) | 0.1-0.2 | ||||||||||||||||
Ozone outlet pressure (Mpa) | 0.1 | ||||||||||||||||
Max. power (KW) | 0.5 | 1.251 | 1.5 | 1.5 | 1.75 | 2.5 | 3 | 4 | 5.5 | ||||||||
Voltahe | 110V, 220V, 380V 50/60Hz | 380V 50/60Hz | |||||||||||||||
Cooling | Water cooling & Water temperature 18-20 ℃ | ||||||||||||||||
Cooling water (L/min) | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | ||||||||
Discharge Material | Ceramic | ||||||||||||||||
Ozone Control | 50-100% Variable | ||||||||||||||||
Outlet joint | 10mm Stainless steel lock joint | ||||||||||||||||
Product Description
Features
● Patented ceramic plate ozone discharge body / discharge plate structure.
● The high-pressure seal is made of fluorine-containing material, and the ozone is leak-free. The air pressure can be up to 0.4mpa without leakage.
● Extremely high ozone concentration , converting oxygen to 120-200mg/L of high concentration ozone. The extremely high concentration version can reach 240-260mg/L.
● The failure rate is 80% lower than the traditional corona discharge ozone generator.
● The high-pressure seal is made of fluorine-containing material, and the ozone is leak-free. The air pressure can be up to 0.4mpa without leakage.
● Extremely high ozone concentration , converting oxygen to 120-200mg/L of high concentration ozone. The extremely high concentration version can reach 240-260mg/L.
● The failure rate is 80% lower than the traditional corona discharge ozone generator.
● The small size is 1/5-1/2 of the traditional ozone generator.
● Designed for Reliability. Reliability tested to >100,000 hours.
● Designed for Reliability. Reliability tested to >100,000 hours.
Benefits & Dimension
● Clean, Safe Alternative to Conventional Chemical Processing
● High efficient broad-spectrum sterilization
● High redox potential
● High redox potential
● Can be generated at the point of use
● Good dispersion
● Without ozone residual and secondary pollution, Green chemical, easily converted back to oxygen.
● Without ozone residual and secondary pollution, Green chemical, easily converted back to oxygen.
● Oxygen consumption is half that of traditional ozone generators.
Dimension(LxWxH): 238*238*238mm
Designed for Reliability
● Long working life
● High efficiency
● High concentration
● Water cooling inside
● Good cooling condition
● Overheat protection
● 50~100% variable ozone output control
● High efficiency
● High concentration
● Water cooling inside
● Good cooling condition
● Overheat protection
● 50~100% variable ozone output control
Application
Food processing industry, Beverage processing, Cold storage, Pharmaceutical industry, Drinking water, Fruit and vegetable processing, Swimming pool, Germ-free room, Waste water treatment, Rinse factory, Paper mill, Jeans faded, Vegetable processing, Silks and satins bleaching, Alcohol production, Cosmetic workshop, GMP workshop, Commercial kitchen, Production workshop, Fish farming, Agriculture, Ozone production...
