Bafang ultra drive system M620 G510 48V 1000W для электрического
- Категории: Запчасти для электровелосипедов >>>
- Поставщик: Changzhou,Cnebikes,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Bafang M620 DRIVE SYSTEM
The mid-drive motor constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive. The resulting data on crank torque, vehicle speed and the speed of rotation of the pedals is made available to the controller, ensuring precise control of the vehicle while achieving the highest possible efficiency. The Max Drive System puts the rider in complete control. In spite of a generous power output and a maximum torque of more than 160N.m, the motor operates in virtual silence. The modular motor design and integrated controller make disassembly easier and improve service responsiveness. This motor can be black.
Pls. note
two options for G510 motor kit-Mountain bike version & Snow bike version, please check the difference from pictures.
two options for G510 motor kit-Mountain bike version & Snow bike version, please check the difference from pictures.
MTB Version
Snow bike version

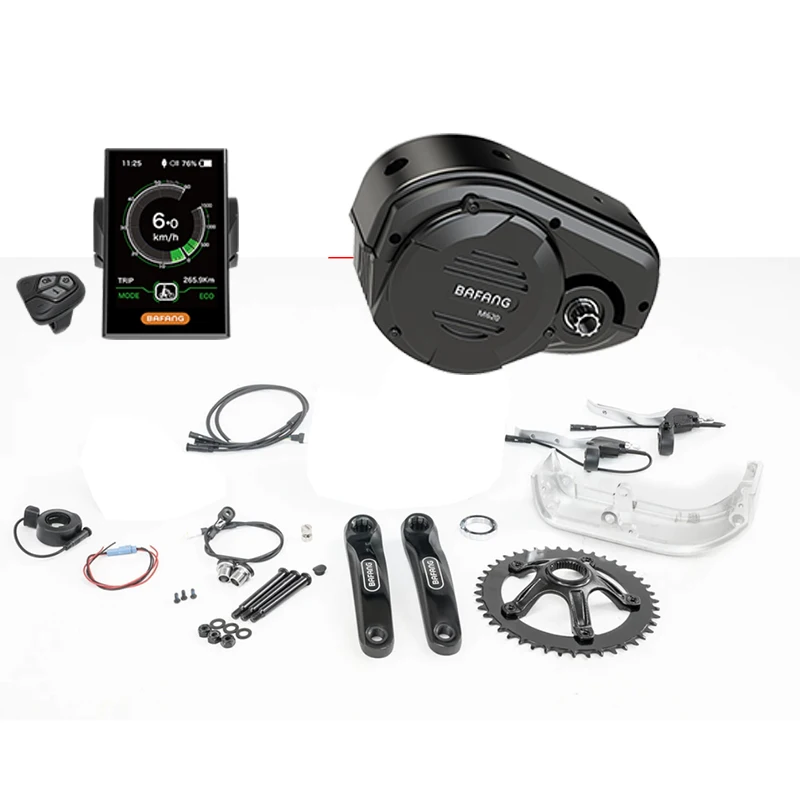

Complete kit:
1x Mid Motor (Integrates Controller)
1x DP C18.UART LCD Display
1x 44T Chain Wheel
1x Aluminum mounting plate
1xSpeed Sensor and Magnet
1x Screws
2x Crank
1xThumb throttle
2x Brake levers
Details Images

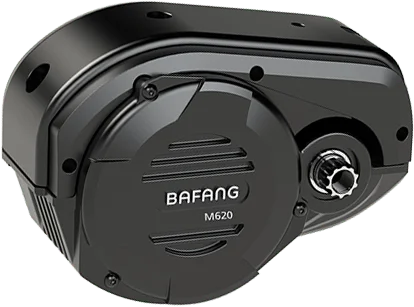

48v 1000w ultra motor
Bafang's powerhouse! With maximum torque of 160Nm and 750 or even 1000W rated power output, the M620 is predestined for eTandems,
eCargo bikes and high-end eMTBs – it will definitely get the heaviest loads accelerated on even the steepest incline. Due to the
system's dual sensor design, the rider has full control at all times and enjoys extremely sensitive responsiveness. In use with
logistics companies across the globe.
eCargo bikes and high-end eMTBs – it will definitely get the heaviest loads accelerated on even the steepest incline. Due to the
system's dual sensor design, the rider has full control at all times and enjoys extremely sensitive responsiveness. In use with
logistics companies across the globe.
DP C18.UART DISPLAY
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Speed Sensor and Magnet
Aluminum mounting plate
pair of cranks
chain wheel 44T
Screws

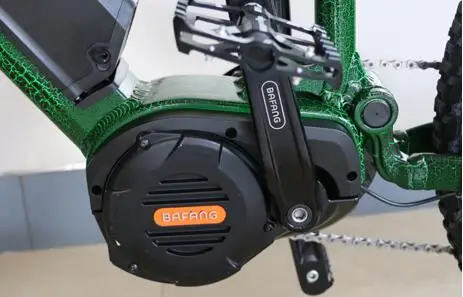

Peoduct Effect
Product Paramenters
Position | Mid motor | Efficiency | ≥80% |
Construction | Gear drive | Wheel diameter | Optional |
Max torque | 160 N.m | Color | Black |
Rated power | 1000w | nT(Rpm) | 150/190 |
Rated voltage | 48v | E-brake | Yes |
Pedal sensor | Speed & torque sensor | Gearsensor fuction | Yes |
Bafang Ultra Mid Drive 1000w Ultra motors are designed for frame builders only.
The latest Bafang mid drive motor with increased power!
Includes latest DPC-18 colour display standard!
The latest Bafang mid drive motor with increased power!
This ultra motor was designed to have increased power with added robust components.
The torque sensor is built in rather than having a cadence sensor.

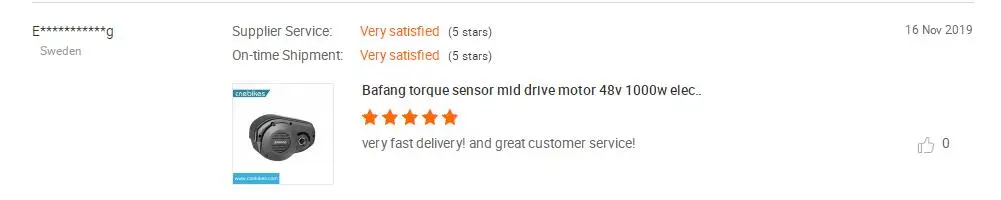

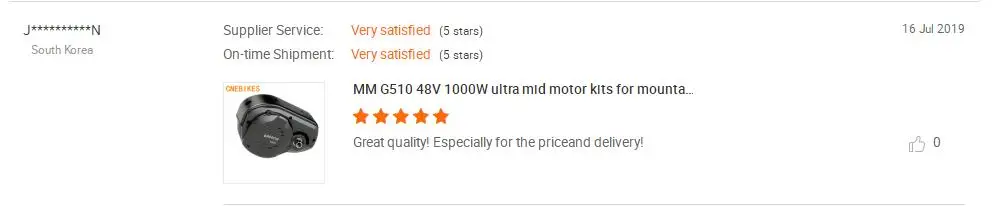

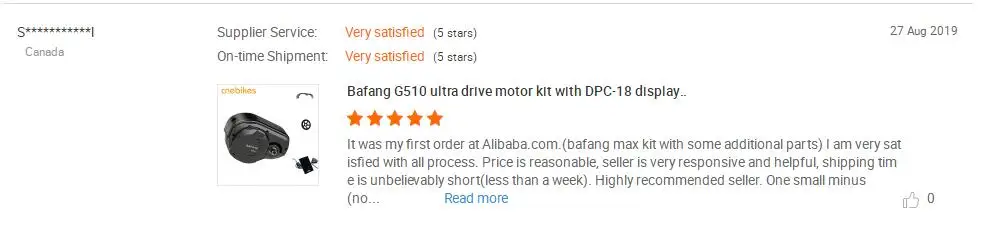

Customer's Comment
