Products Description
280hp water cooled screw chiller for cooling industry
Product Application
Dingyuan’s Industrial water cooled screw Chillers are widely used in many industries like plastic and rubber manufacturing, electronic productions, electroplating, medical chemistry, ultrasonic cooling and printing business, etc and they are also widely applicable to commercial site such as hotel, theatre, office building and shopping mall. They could provide accurately needed temperature and stronger cooling ability and higher power for modern industrial manufacturing and largely improve efficiency and product quality. They have a simple operation, reasonable design and superior quality which is the best choice for modern industries.
Model | FSQ-280W | ||
Voltage | 3PH 380V 50~60HZ | ||
Cooling Capacity | kacl/h | 853939.8 | |
kw | 991.8 | ||
Total Input power | kw | 190 | |
Max running current | A | 319 | |
Refrigerant | Type | R22(R407C) | |
Volume(kg) | 154 | ||
Control method | Outside the balanced thermal expansion valve | ||
Compressor | Type | Semi-hermetric screw | |
Power(kw) | 189.4 | ||
Starting Method | Y-△ | ||
Energy adjustment range | 0-25%-50%-75%-100% | ||
Running current | 318.6 | ||
Evaporator | Type | Dry-type shell-tube heat exchanger | |
Freezing water volume(m³/h) | 150 | ||
In/Ot pipe size (Inch) | 6 | ||
Condensor | Type | Shell and tube | |
Freezing water volume(m³/h) | 186 | ||
In/Ot pipe size (Inch) | 5*2 | ||
Dimensions | L*W*H(mm) | 4250*1320*2150 | |
Unit weight | kg | 4230 | |
Operating weight | kg | 4560 | |
Main Features
1. Screw type water chiller adopts imported screw compressor with high effciency, low noise, energy saving, durable service, reliable operation.
2. Use high quality and high efficiency copper tube as condenser, evaporator, increase heat exchange area, improve cooling ability.
3. Wide range of variable chilled water temperature to meet the industrial requirements.
4. Use PLC microcomputer control from LCD touch screen, easy to operate.
5. Safety Device：Compressor overheating protection,Overload protection,high and low pressure protection, antifreeze protection, flow protection, Phase sequence / phase loss protection.
2. Use high quality and high efficiency copper tube as condenser, evaporator, increase heat exchange area, improve cooling ability.
3. Wide range of variable chilled water temperature to meet the industrial requirements.
4. Use PLC microcomputer control from LCD touch screen, easy to operate.
5. Safety Device：Compressor overheating protection,Overload protection,high and low pressure protection, antifreeze protection, flow protection, Phase sequence / phase loss protection.

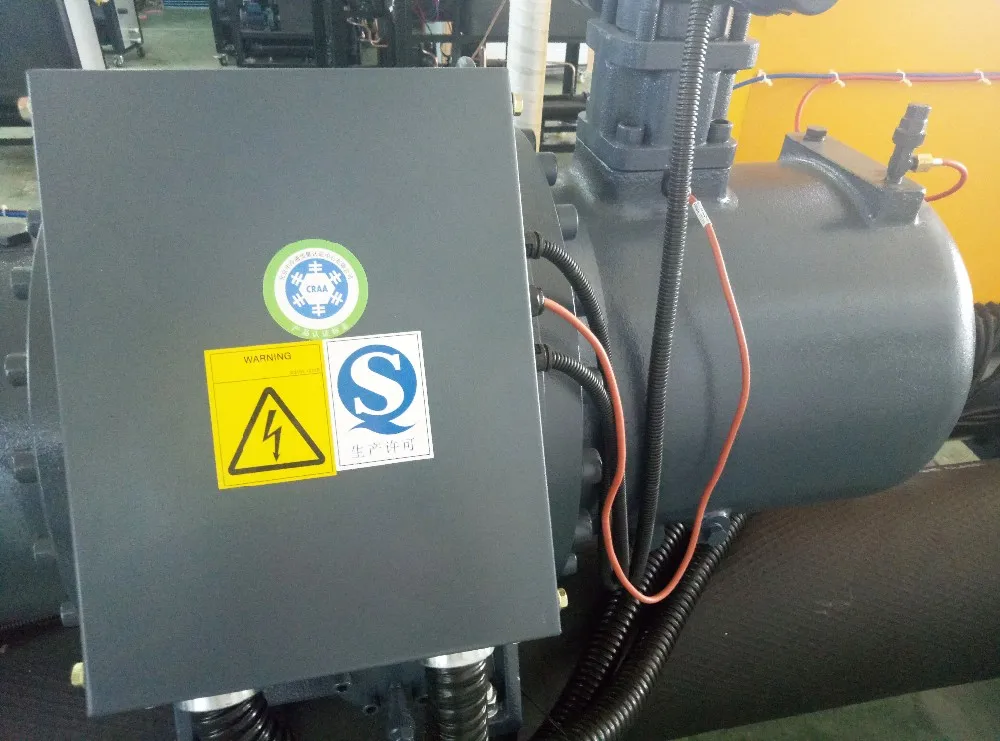

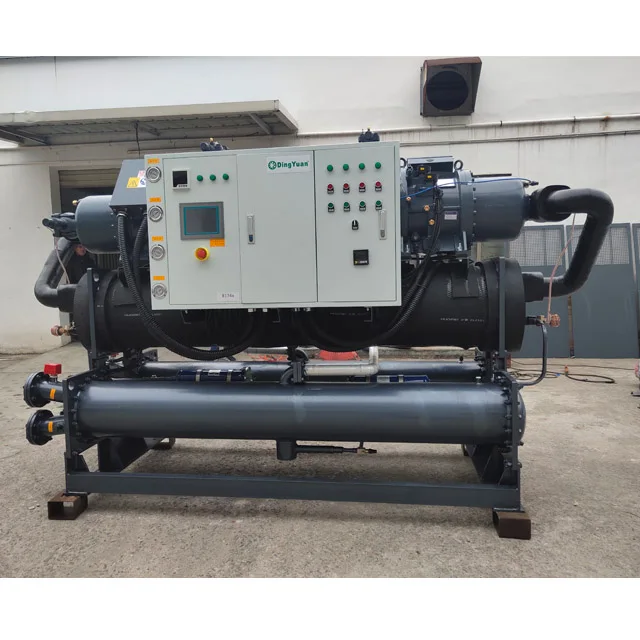

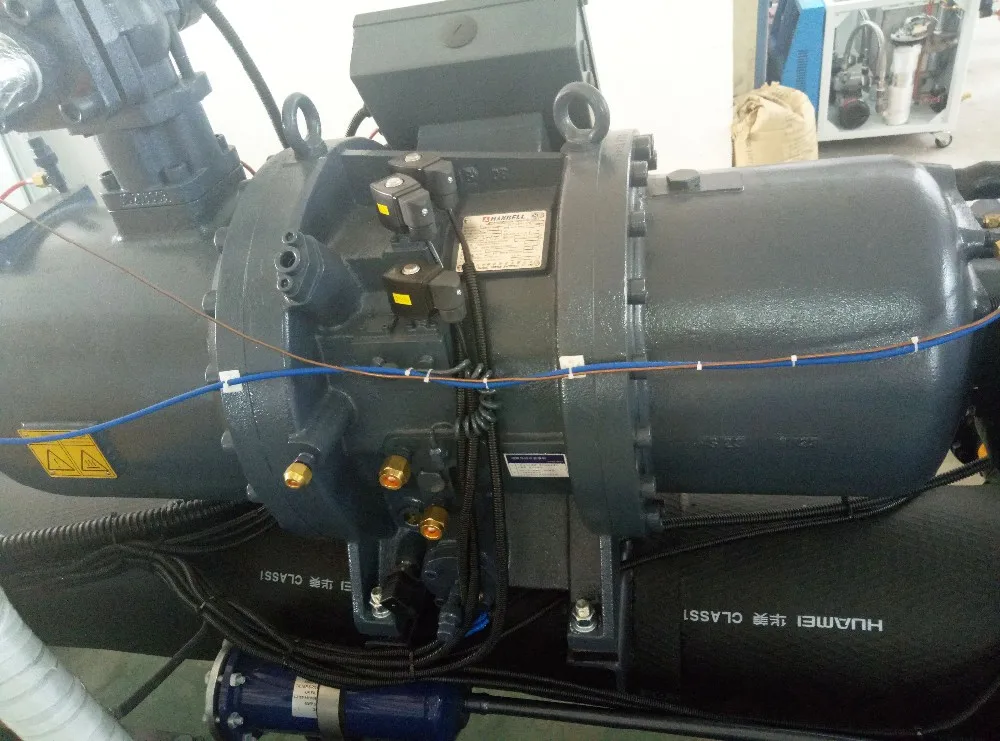

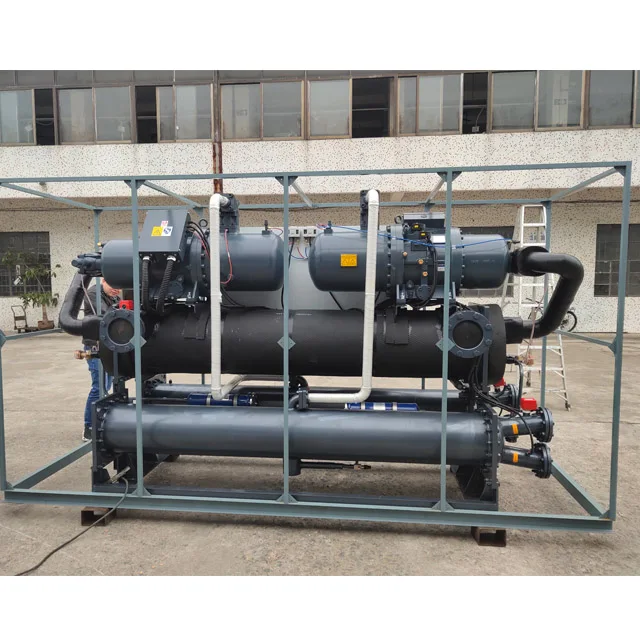

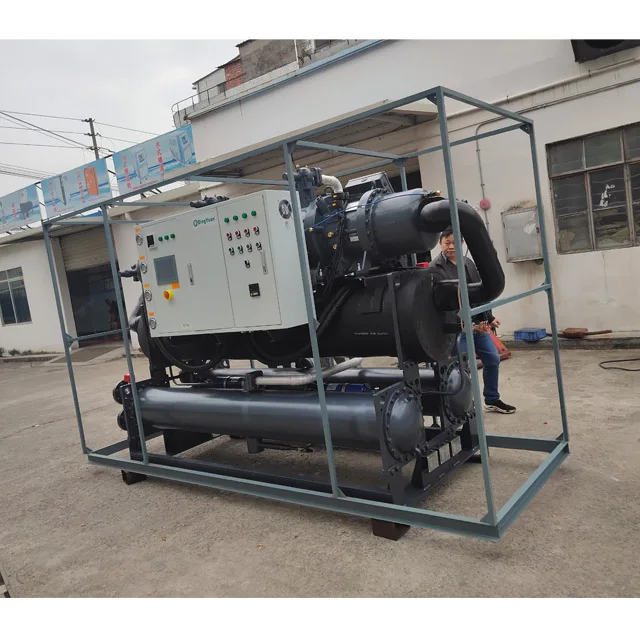

Product Shows
Factory Shows
Our Company
Dongguan Dingyuan Industrial Co.,Ltd
Dongguan Dingyuan Industrial Co.,Ltd is established in 1993, located in Dongguan Guangdang. It is a professional manufac-turer of produce chiller, dehumidifier and other auxiliary machines, show the world a high-technological enterprice combining construction budget, technical consultation, product design, manufacturing and debugging service. There are 9 series, over 130 kinds of products covering the whole cooling system series and many auxiliary series products. Widely serve the plastic, electroplating, laser, chemical, packaging, pharmaceutical and other industries.
Certificates
Package & Delivery
Package:
1. Multiple packing: proved by tests of the compression resistance, throwing. And highly secured.
2. Plywood case packing: High resistance of burst strength, ring crushing strength and tearing strength.
3. Wooden frame parking: Damp-proved and high resistance burst strength and ring crush strength.
1. Multiple packing: proved by tests of the compression resistance, throwing. And highly secured.
2. Plywood case packing: High resistance of burst strength, ring crushing strength and tearing strength.
3. Wooden frame parking: Damp-proved and high resistance burst strength and ring crush strength.
