Автоматический гидравлический пресс с сертификатом CE 400 тонны машина для производства меламиновых пластин

Описание и отзывы

Характеристики

YIHAO has specialized in manufacturing melamine plates making machine for over 15 years. From the source to the finished products, we can provide the whole melamine plates production line, including all the related equipment, mold, decal paper and raw material. The following are the detailed product information.



Machine specifications:

Clamping force: 400 ton

Platen size: 720*720mm/760*880mm/660*780mm

Stroke: 500mm

Maximum opening stroke: 700mm

Pump pressure: 210kg/cm2

Oil tank volume: 510L

Motor power:15hp(11kw)

Heating power: 11.4kw

Total wattage: 22.4kw

Machine dimension: 2.2*1.5*2.7m

Machine weight: 6.4ton



More options:



Machine features:

1. PLC control system, simple operation, low failure rate, easy maintenance.

2. High and low pressure loop system, the machine moves smoothly without noise, high and low speed free adjustment.

3. Adopting safety grating to ensure safety operation.

4. Suitable raw material: melamine, bamboo fiber, urea, bakelite, fiber and other thermosetting material.













1. we have over 15 years of experience in melamine coffee cup machine industry,

2. provide one-stop factory building services, make it easier, efficient, and cost effective for you to build the melamine production line.

3. the engineers team is always on standby to solve problems and follow up.

4. the machines have high production capacity.

5. the machine has good quality, not easy to break down.









1. for small problems, we offer online video technical support.

2. for big problems, we will send engineer to your factory to repair machines for you

3.for new machine installation and commissioning, we will send engineer to your factory.

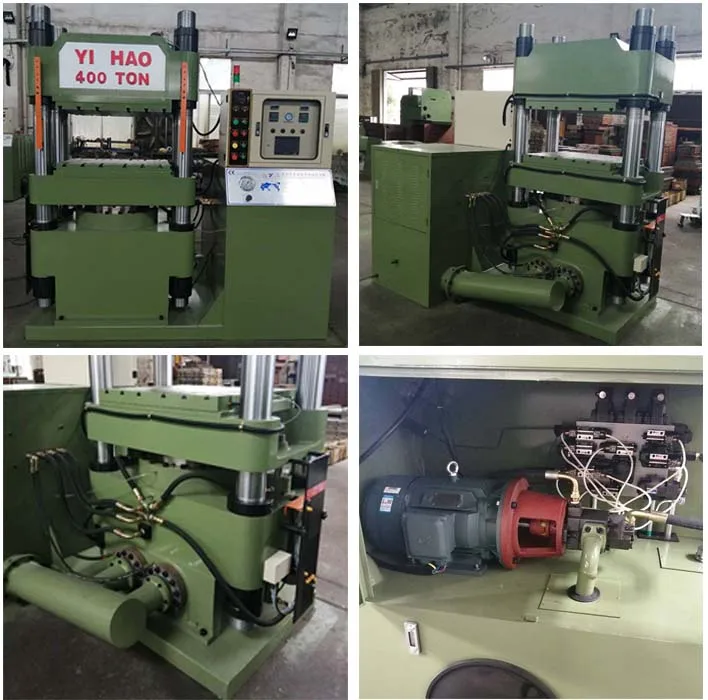

400 ton automatic hydraulic press melamine plates making machine
