Best price electric heating tank fat chocolate melting machine
Material
SS304 or SS316L
Volume
100L-2000L (Customized)
Pressure
Atmospheric Pressure
Tank type
Vertical type
Structure
inner layer+jacket+insulation
heating mode
electric heating
Agitator type
Scraped Wall Mixer
0-36RPM

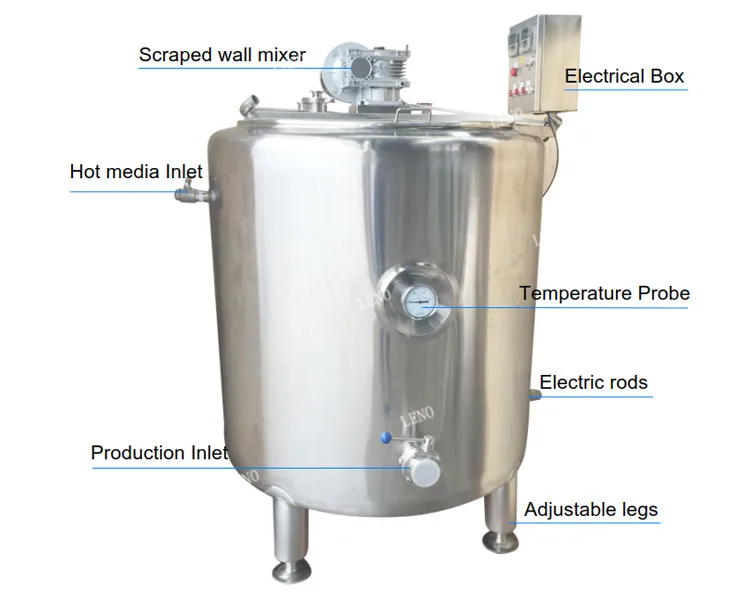

Parts details
1.Half Open Covers .
2.Various types of CIP cleaners
3.Sterile respirator
4.Adjustable Legs
5.Inlet and Outlet sanitary valve.
6.Thermometer (According to customer requirements ).
7.Scraped Wall Mixer .(According to customer requirements).
8.Temperature Control Box
Application: 1.Chocolate melting tank is in the chocolate production necessary equipment, mainly uses in after the correct grinding chocolate syrup heat preservation storing, satisfies the chocolate production the technological requirement, adapts to the continuous production request. 2.Chocolate melting tank besides has functions and so on temperature decrease, elevation of temperature, heat preservation, may carry on to the chocolate pulp does not stop stirs, but also has the degasification, the air sweetening, to dehydrate as well as to prevent functions and so on pulp fat separation.
Techanical Parameter
Technical Parameters
Model
Effective volume(L)
Dimension of tank(D*H)(mm)
Heating power(KW)
Motor power(kw)
Scraped Wall Speed(r/min)
LNT-100
100
550*500
2
0.55
0-36RPM
LNT-200
200
650*500
4
0.75
LNT-300
300
750*700
4
1.1
LNT-500
500
900*850
6
1.5
LNT-600
600
1000*1000
6
1.5
LNT-800
800
1100*1000
8
2.2
LNT-2000
1000
1200*1000
10
2.2
We can customize the equipment according to customer requirements.

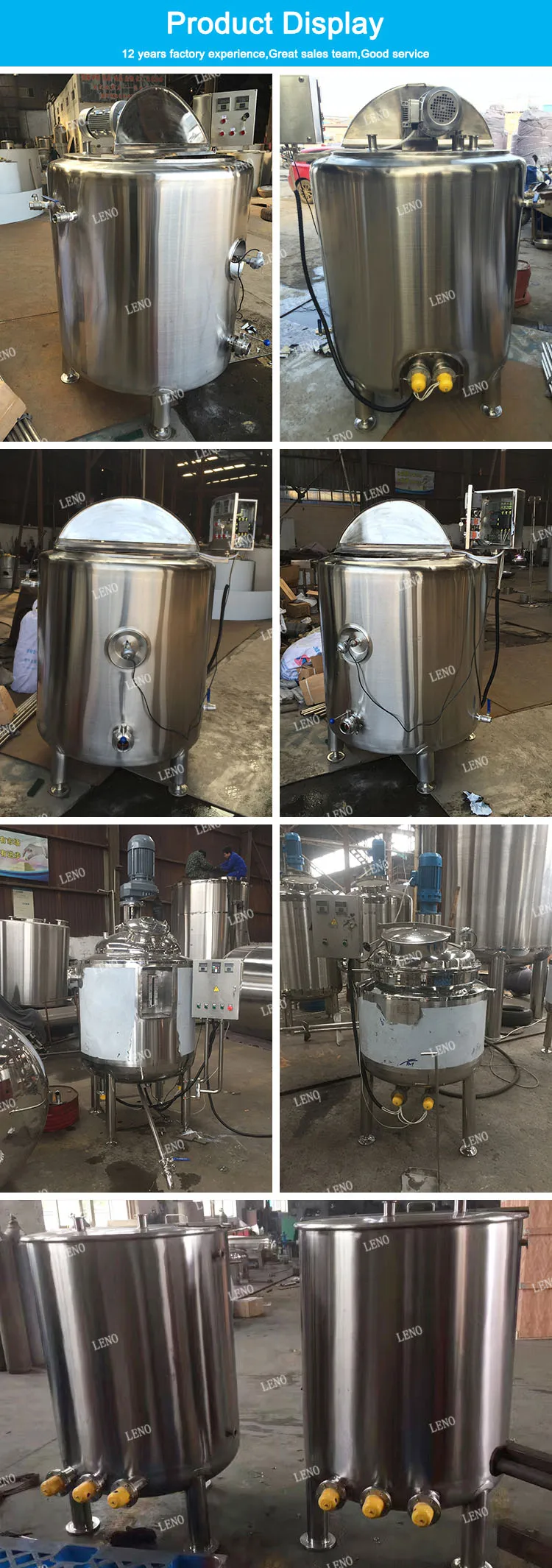

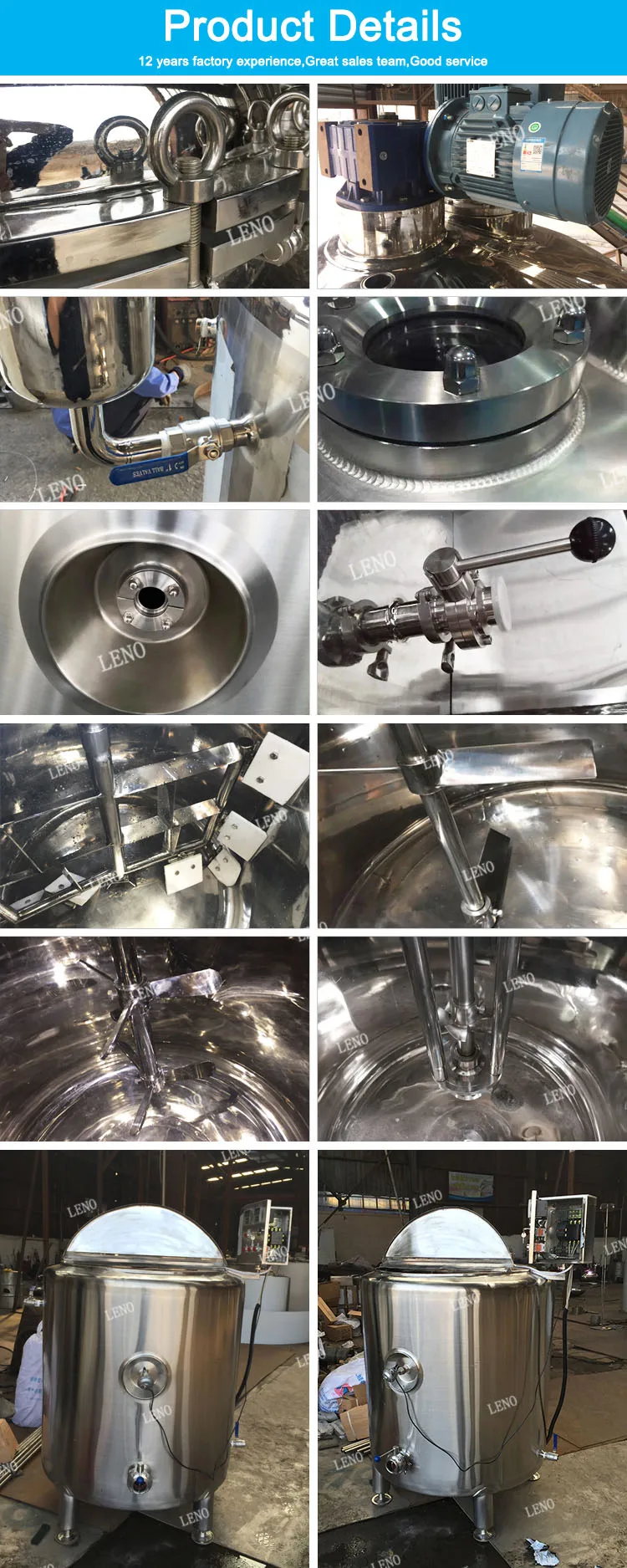

More Details Picture
Certifications
Buyer Feedback
Packaging & Shipping
FAQ
Q1
Are you trade or manufacturer?
A
We are a factory with an international sales company specialized in support for global distributors.
Q2
Can you provide instant technical consulting services?
A
We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days.
Q3
What's the difference between Ready-To-Ship and Customized products?
A
Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production.
Q4
What is the payment terms?
A
We accept Alibaba Trade Assurance Order, also can T/T and L/C.
Q5
How to choose the shipment way?
A
It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
Q6
How about the after-sales service?
A
Fast after-sales support. Our products have a one-year warranty and free permanent consulting services.
