TJ-40 машина для склеивания углов жесткой коробки
US $1300-$1400
Высокоскоростной Интеллектуальный аппарат для изготовления жестких косметических коробок новый
- Категории: Оборудование для производства бумажных изделий >>>
- Поставщик: Guangdong,Lishunyuan,Intelligent,Automation,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
It's widely suitable for all kinds of rigid boxes making, such as smartphone boxes, makeup boxes, jewelry boxes,etc.It's double-head forming, and the production speed is fast, greatly increase the production output, which meets the needs of customers.
Technical Parameters
W:95 - 600mm | |
L: 120-880mm | |
Paper thickness | 80-300g/m2 |
Max.paper stacking height | 800mm |
Cardboard thickness | 1-3mm |
L:45-350mm | |
W:45-250mm | |
H:15-120mm | |
Ear overlapping size | 15-120mm |
Folding size | 7-100mm |
Production speed | 35-45pcs/min |
Setting time | 10-15mins |
Precision | ±0.1mm |
Power Supply | 380V/50Hz |
Max power | 37kw |
Max power(with bubble pressing machine) | 43kw |
Air pressure | 0.5-0.7mpa/320NL/min |
Glue tank volume | 30kg |
Machine weight | 7500kg |
Machine weight (with bubble pressing machine) | 9100kg |
Machine size | L8000*W4000*H3300mm |
Machine size (with bubble pressing machine) | L11600*W4000*H3300mm |
Product features
Automatic & Informatization & Intelligentization & IOT functions
The World’s shortest Change-over-time, thereby saving precious machine time
Uses highly accurate Visual Robot arm positioning with German multiple camera system
Dual Forming stations for high output
Includes in-line Bubble pressing module
Production speed:35- 45pcs/min
Positioning accuracy ±0.1 mm
Fast for job changeover with memory function, Changeover time (job transfer time) of less than 10 Minutes

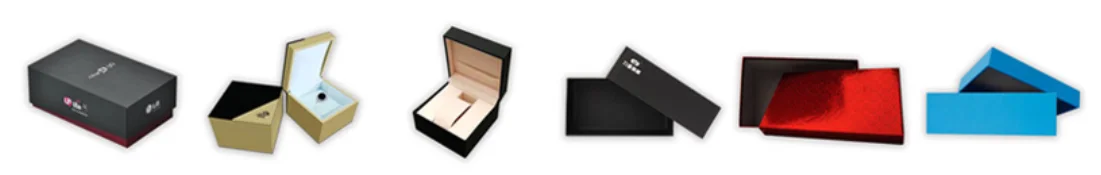

Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
Don’t need to change the blade and pressing board.
Easy operation , fast and convenience.
Dual Forming stations for high output
Includes in-line Bubble pressing module
Production speed:35- 45pcs/min
Positioning accuracy ±0.1 mm
Fast for job changeover with memory function, Changeover time (job transfer time) of less than 10 Minutes
Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
Don’t need to change the blade and pressing board.
Easy operation , fast and convenience.
Detailed Images

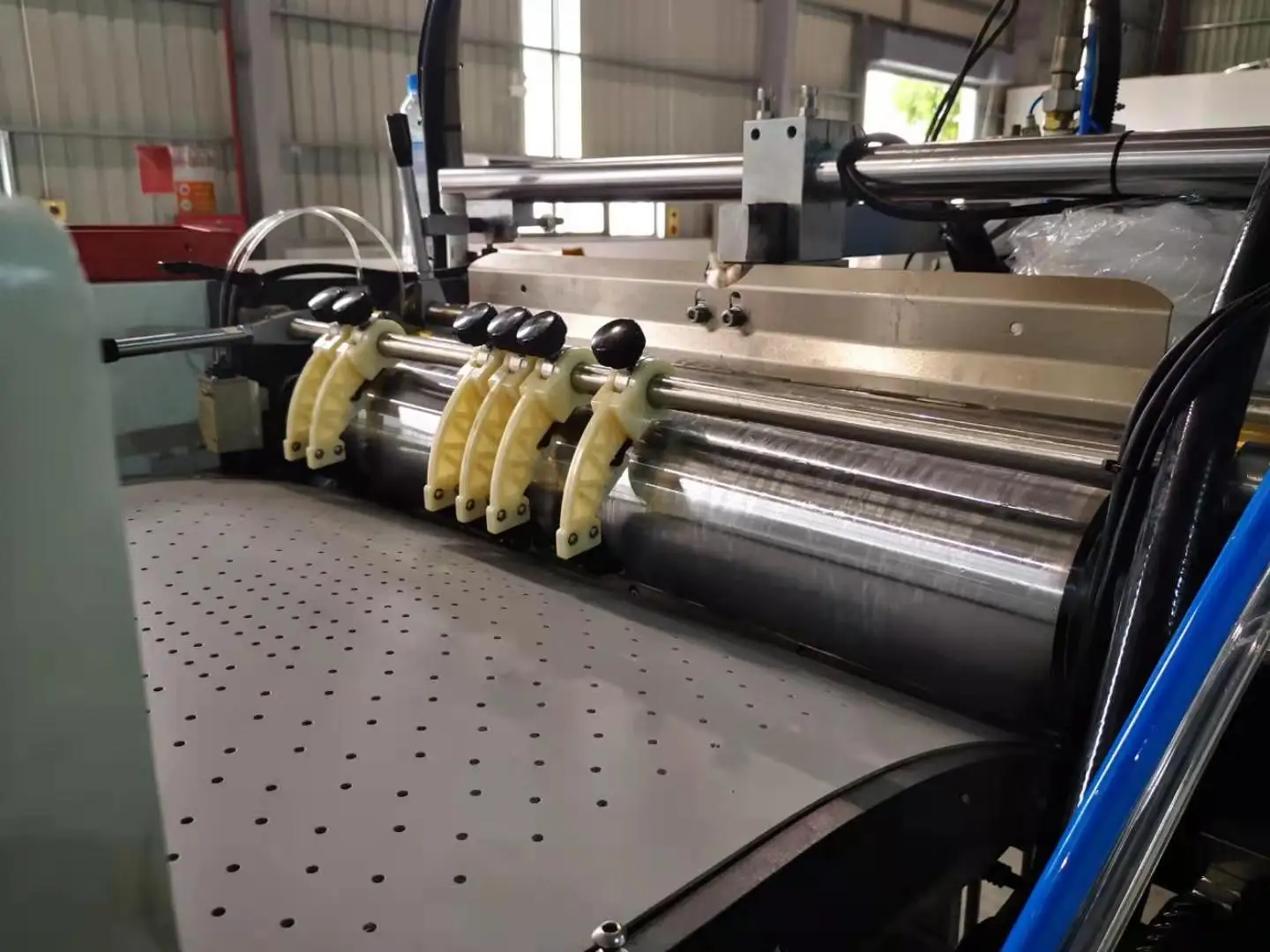

Feeder
1 . Feeder control by servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor

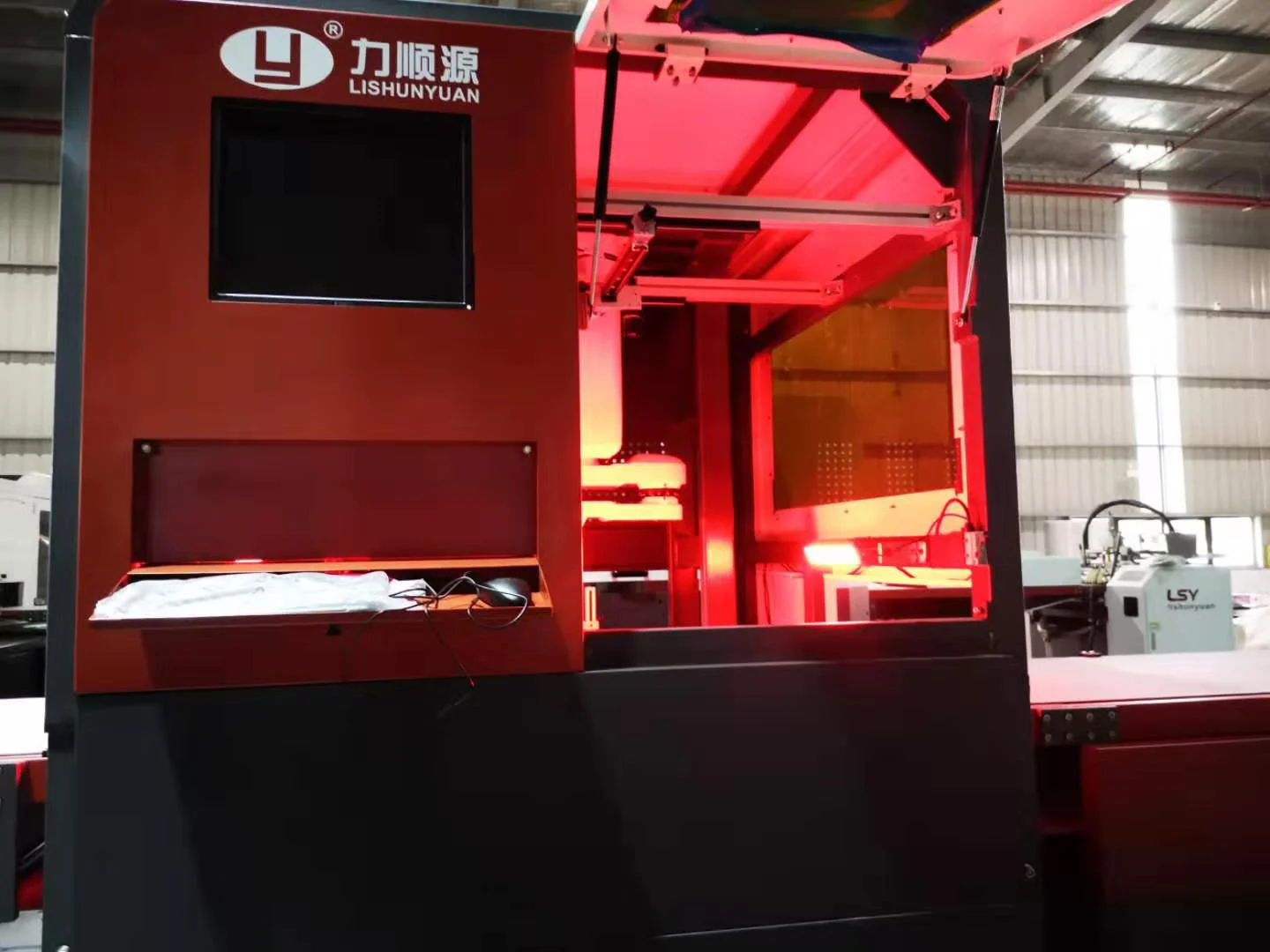

Positioning

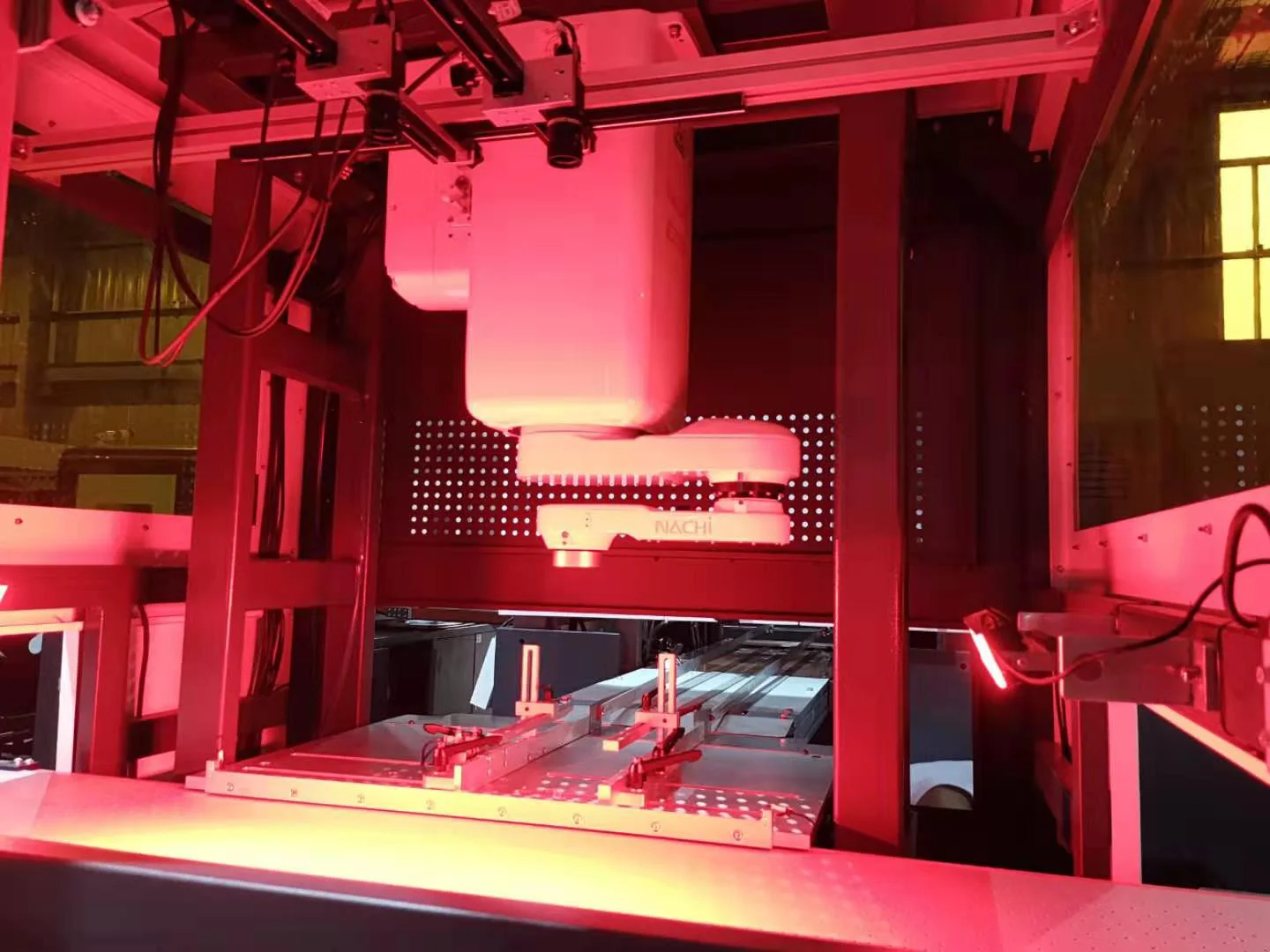

1 . SCARA (Selective Compliance Nachi Robot Arm) for spotting the grey board box
2. Germany Balser camera with Japan Kowa Lens in 10 million Pixel tracing system
3. Double Camera with XY Spool for positioning.
2. Germany Balser camera with Japan Kowa Lens in 10 million Pixel tracing system
3. Double Camera with XY Spool for positioning.

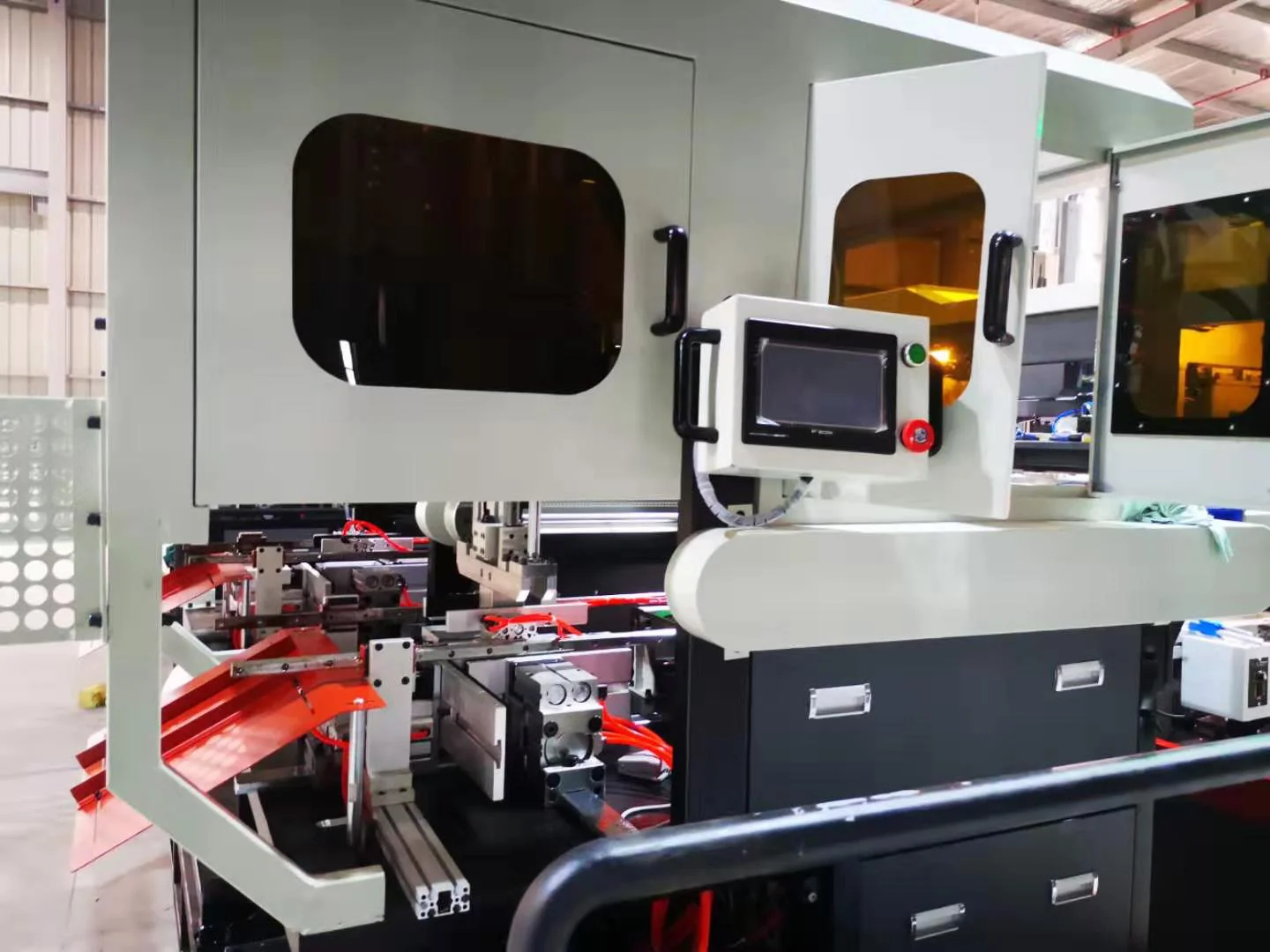

Forming Part & Bubble Pressing
1. Automatic Setting By servos.
2. Double wrapper increase production
3. Virtual cam servo driving system
4. Alarm device for colliding
5. Lift the box by holding the side of the box
6. Scratch resistant for the paper
2. Double wrapper increase production
3. Virtual cam servo driving system
4. Alarm device for colliding
5. Lift the box by holding the side of the box
6. Scratch resistant for the paper
7. Box-pressing down-side device
Workshop
Workshop office Area
Partial Install Area

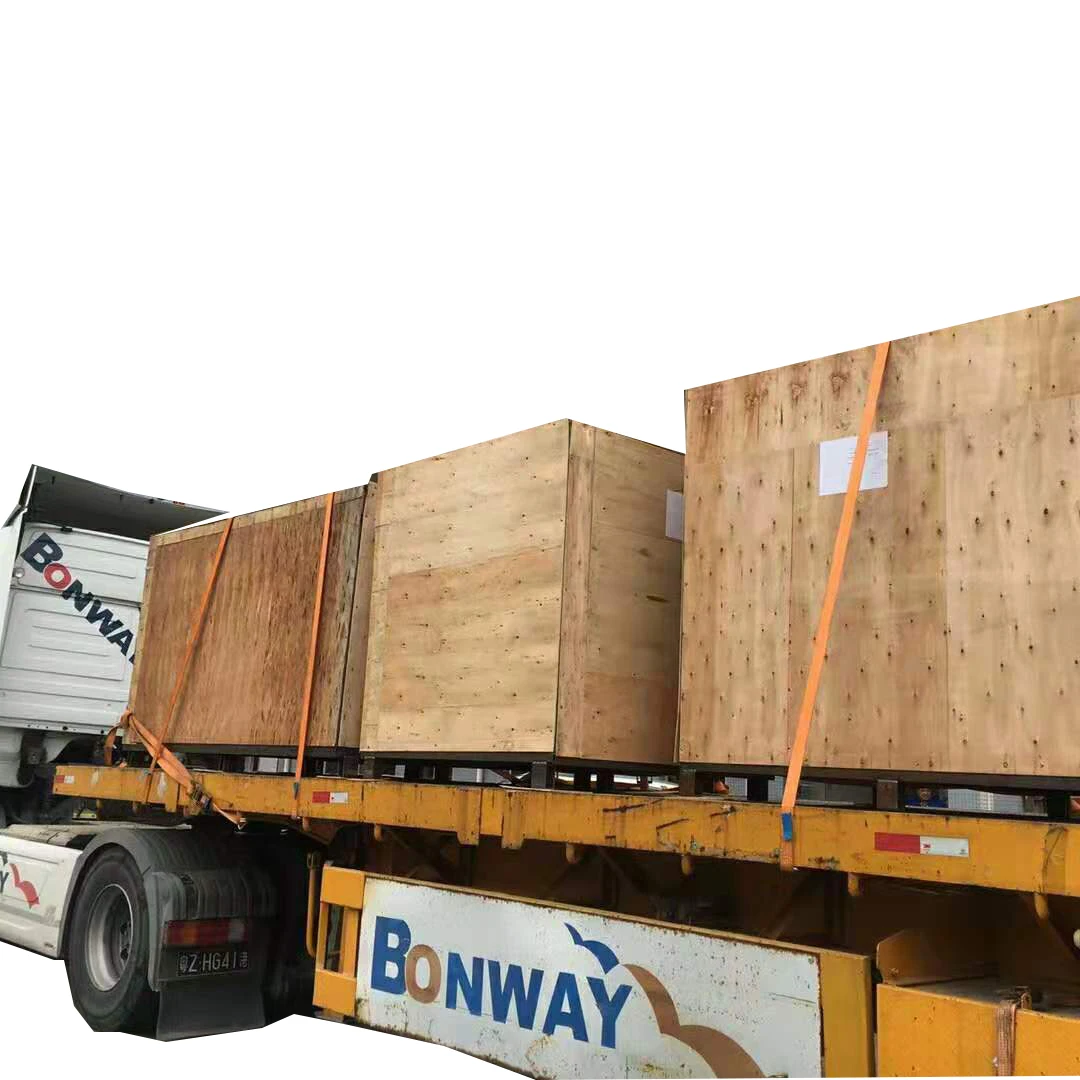

Packing&Shipping
Film and plywood crate.
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 17 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
Our Services & Strength
We have competitive machines, the quality team and the thoughtful service. Lishunyuan emphasizes on giving complete support to our customers, from consultation and development of the machine as per client requirements, to production of the box machine and providing extensive after sales service.Dedicated to providing the highest production rates, maximum accuracy and consistent pouch quality of boutique boxes as per each individual client’s requirements.
