DZ41 500C SW102 Bafang BBS01 BBS02 M500 M600 дисплей
US $25.00-$45.00
Greenpedel KT контроллер 36 в 48 22A 25A 500 Вт 9 Mosfet Squarewave Sinewave
- Категории: Other Electric Bicycle Parts >>>
- Поставщик: Changzhou,Green,Pedel,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Related Production
If this product does not meet you needs , we have other models and hope to be able to help you.
Products Description
ATTENTION
2, There is 2 versions . Compare with sinewave and squarewave .Sinewave means less noise , more smooth when riding .The sinewave controller is 3$ more .
Motor(Julet waterproof)-Other(SM)
Type : 36/48V 22A controller (Squarewave)
Brand : KT
Color : Silver

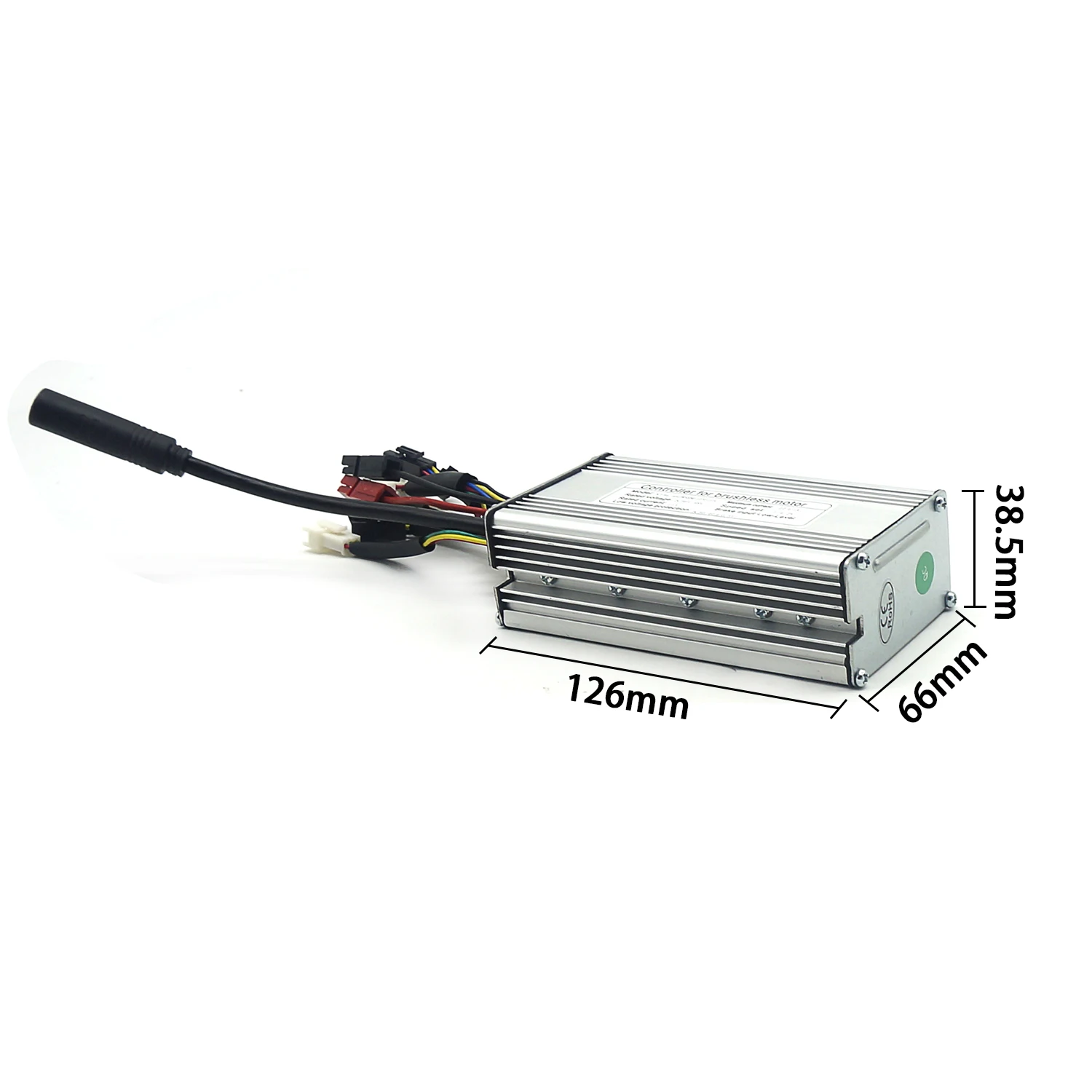

Dimension :125*65*36mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 11A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 13-15cm
Weight : 350g
Brand : KT
Color : Silver
Dimension :125*65*36mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 11A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 13-15cm
Weight : 350g

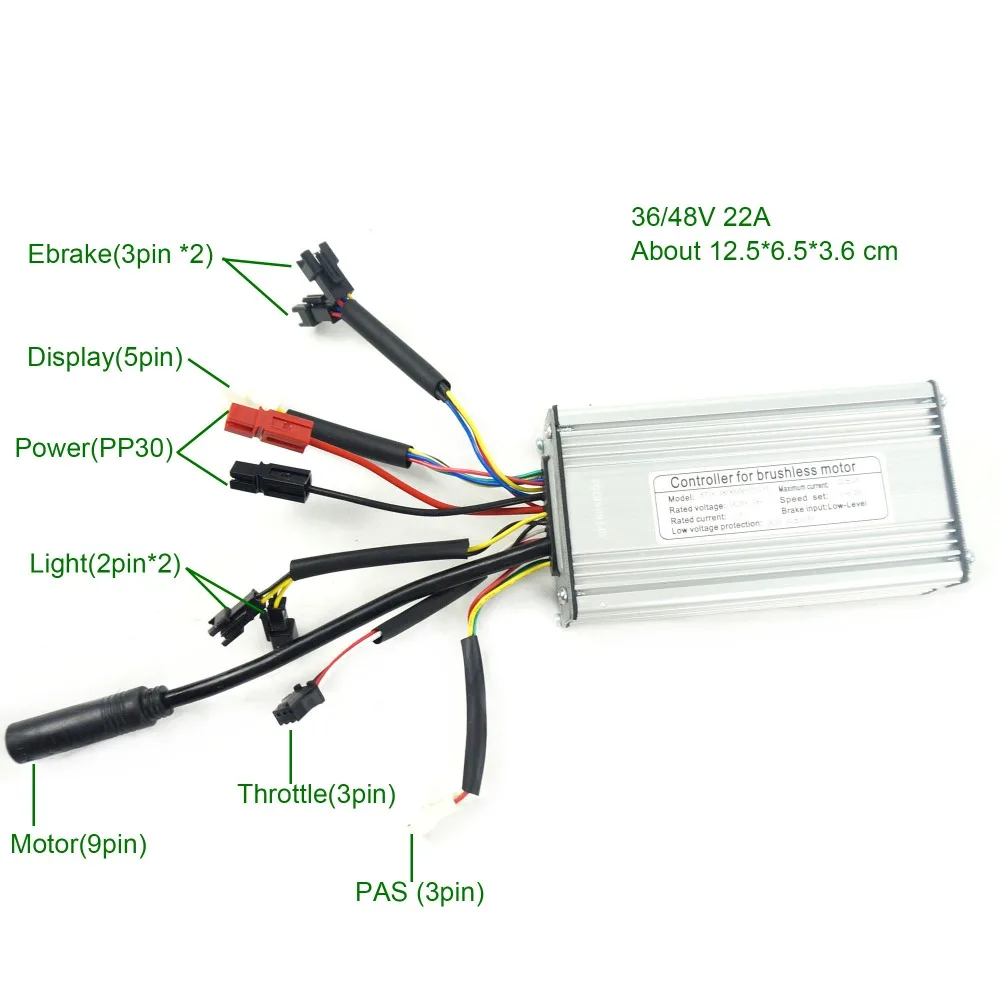

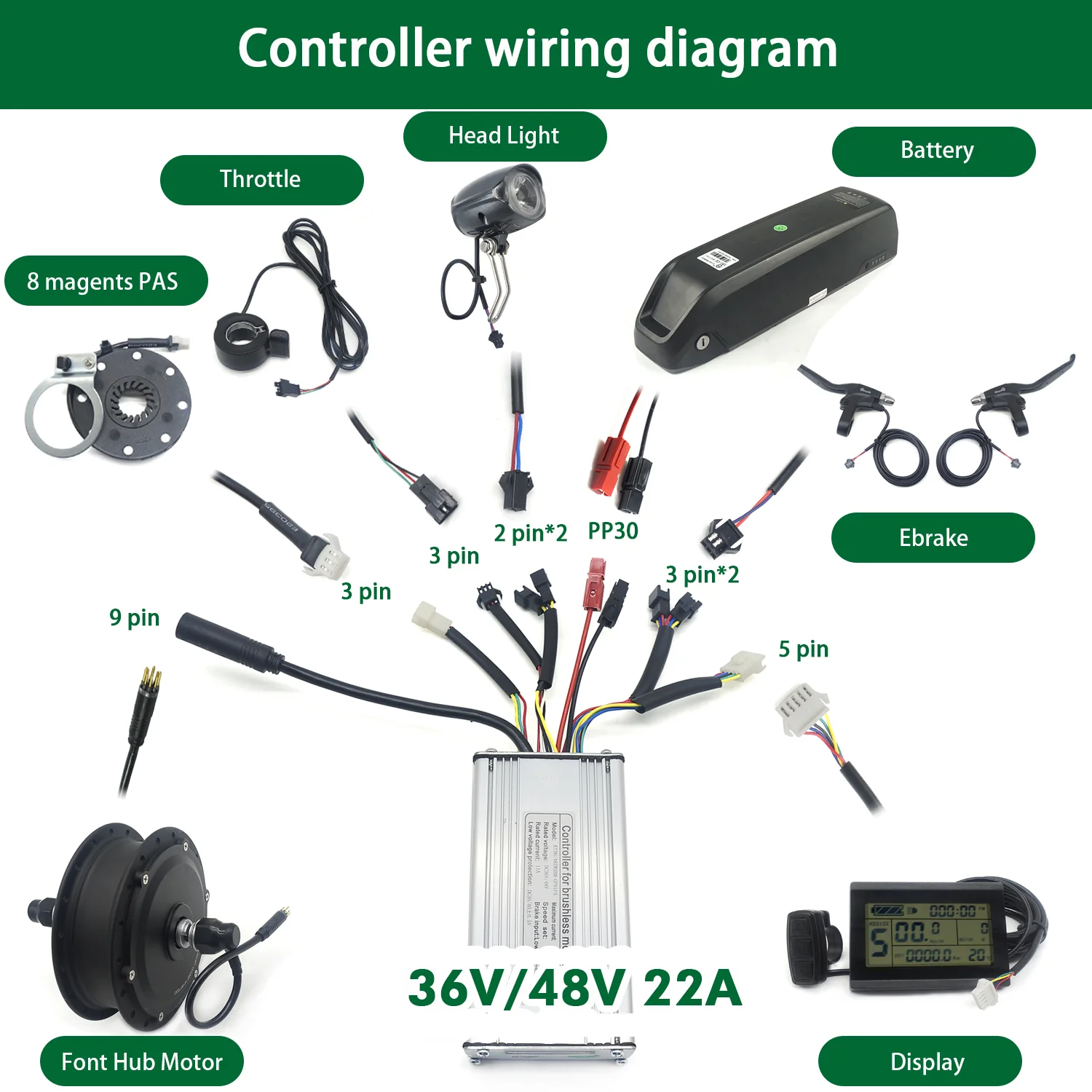

FUNCTION & PLUG
motor (9pin Julet waterproof plug )
power (red-black Anderson PP30 plug)
Display (5 pin SM plug)
Throttle (3pin SM plug)
Ebrake (3pin SM plug ) *2
PAS (3pin SM plug)
Light (2pin SM plug)
power (red-black Anderson PP30 plug)
Display (5 pin SM plug)
Throttle (3pin SM plug)
Ebrake (3pin SM plug ) *2
PAS (3pin SM plug)
Light (2pin SM plug)
All waterproof connector
Type : 36/48V 22A controller
Brand : KT
Color : Silver
Dimension :125*65*36mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 11A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 13-15cm
Weight : 350g
Brand : KT
Color : Silver
Dimension :125*65*36mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 11A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 13-15cm
Weight : 350g

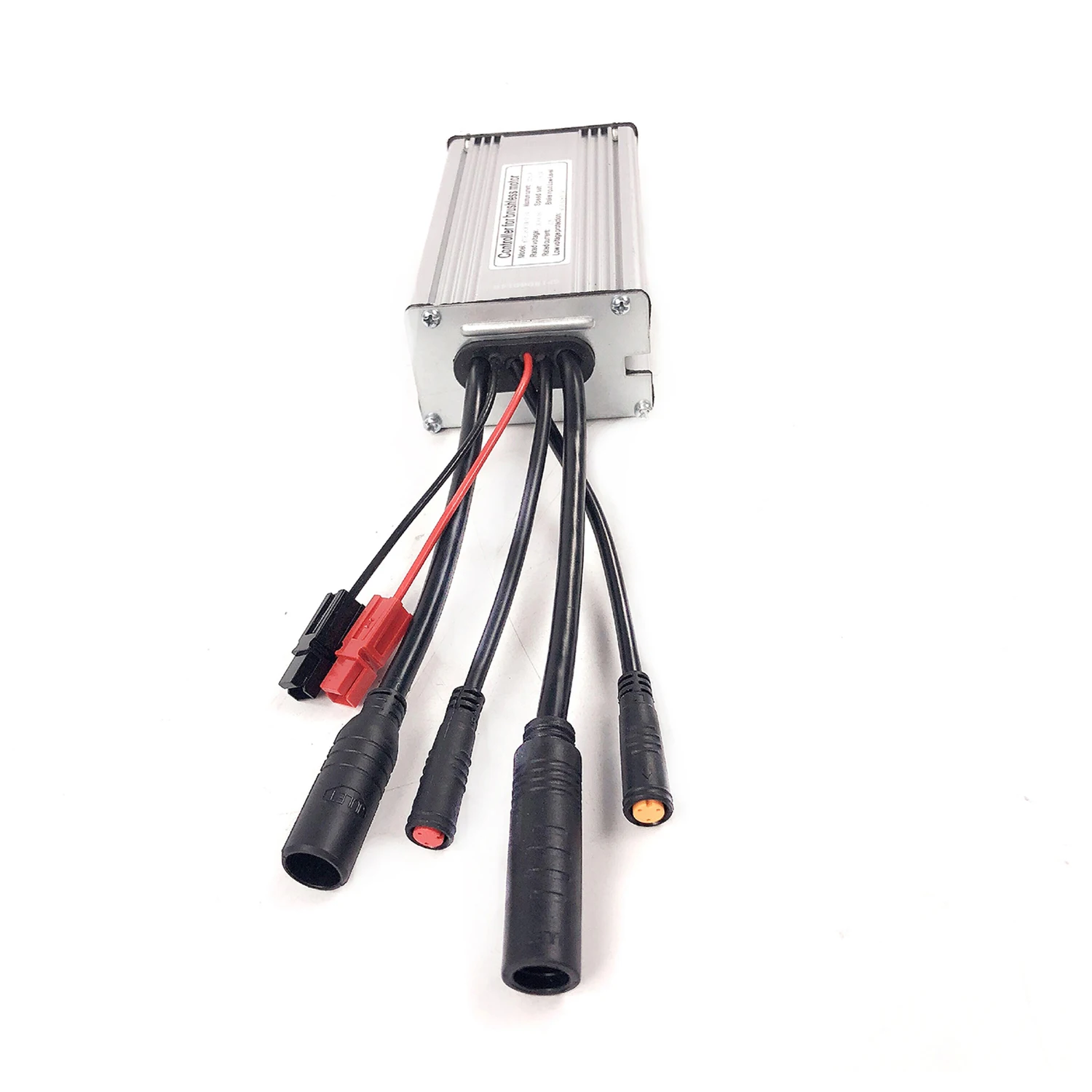

FUNCTION & PLUG
motor (9pin Julet waterproof plug )
power (red-black Anderson PP30 plug)

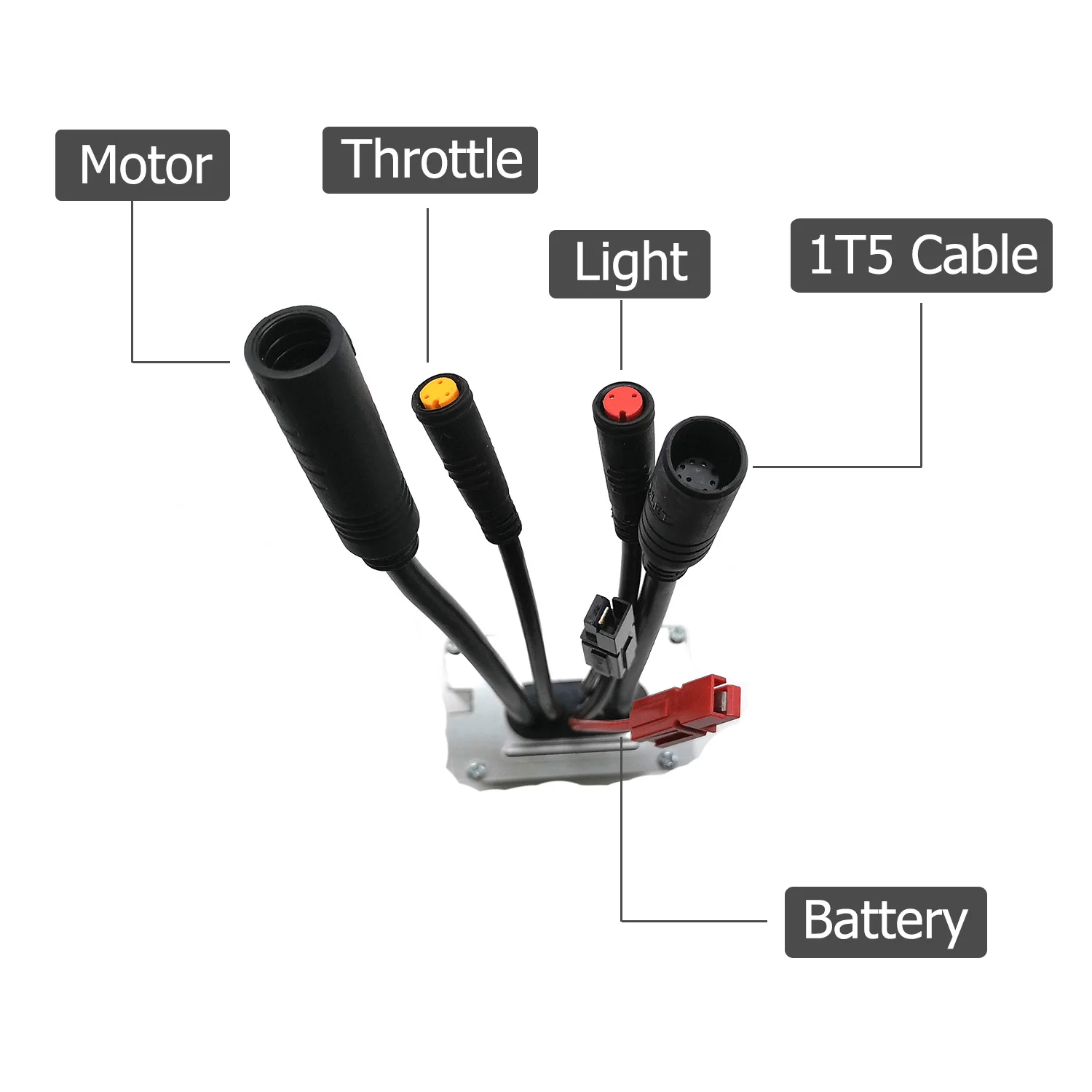

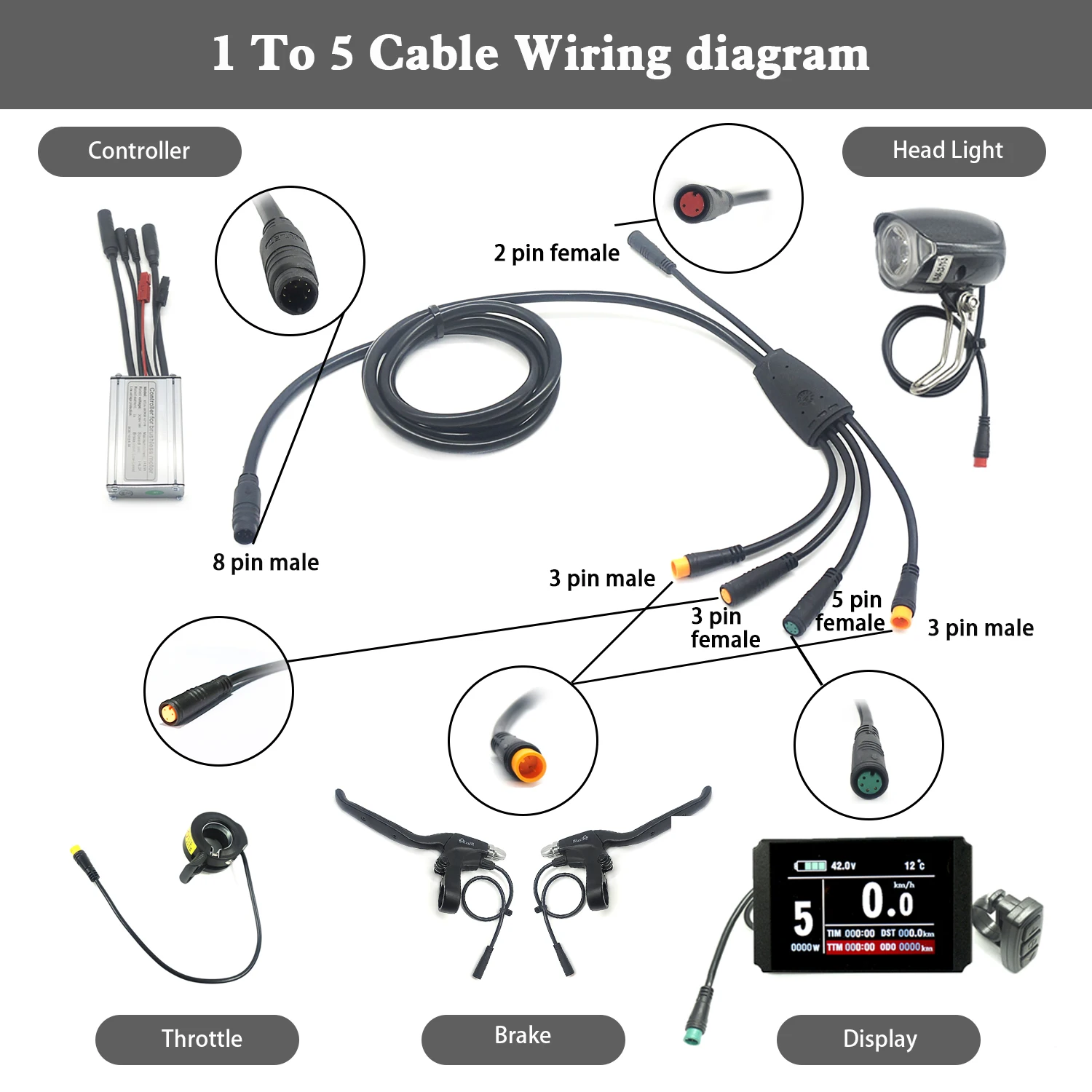

1T5 cable plug(9pin Julet waterproof plug-Throttle-Display-Ebrake*2-Light)
PAS (Yellow-3pin Julet waterproof plug)
Light (Red-2pin Julet waterproof plug)
power (red-black Anderson PP30 plug)
1T5 cable plug(9pin Julet waterproof plug-Throttle-Display-Ebrake*2-Light)
PAS (Yellow-3pin Julet waterproof plug)
Light (Red-2pin Julet waterproof plug)
Details Images
Certifications
Factory&Packing
Exhibition
