Product Description

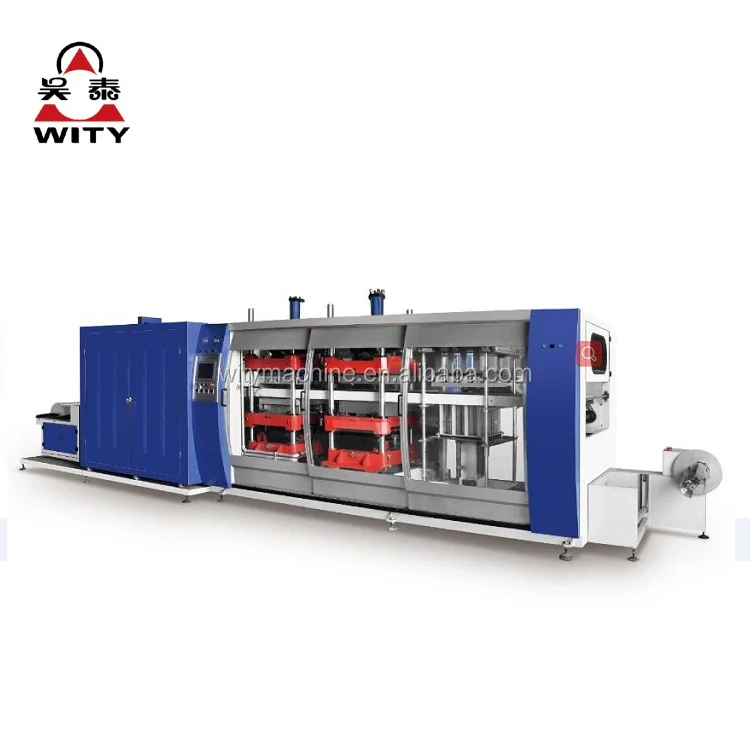

RHC-600/500 plastic thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components and the whole was controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting into one process.
Functions
It is suitable for forming HIPS, PS, PVC, PET, PP sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, mobile phone tray & other blister tray.
Technical Parameters
Max. Forming Area | 600*500mm |
Max. Forming Depth | 100mm |
Sheet Thickness Range | 0.15-1.5mm |
Max. Sheet Width | 680mm |
Air Pressure | 0.8Mpa |
Speed | 360-1200 cycles/h |
Heater Power | 38kw (Upper Heater) 29kw (Lower Heater) |
Punch Pressure | 20tons |
Upper Mold Table Stroke | 120mm |
Lower Mold Table Stroke | 120mm |
Max. Mold Depth | 140mm |
Power | 3 Phases 380V |
Max. Hydraulic Pump Pressure | 16Mpa |
Max. Cutting Length | 9550mm |
Machine Total Power | 88kw |
Overall Dimensions | 9500*2600*2700mm |
Weight | 8500kg |
Details Images
