FOSV TIW и Kelly член для верхнего нижнего предохранительного
- Категории: Oil Field Equipment >>>
- Поставщик: Dongying,Lianhui,Petroleum,Technology,Co.,Ltd.Dongying,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

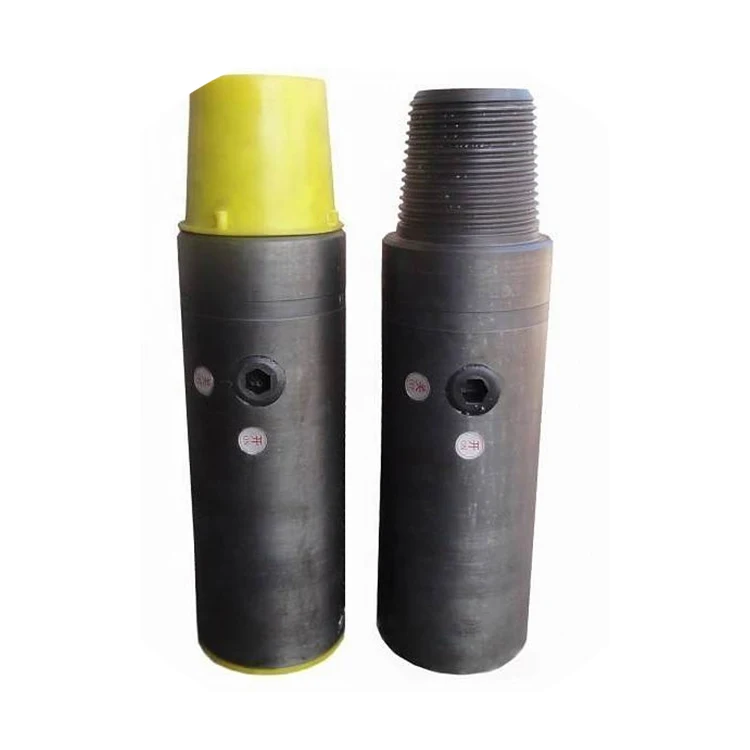

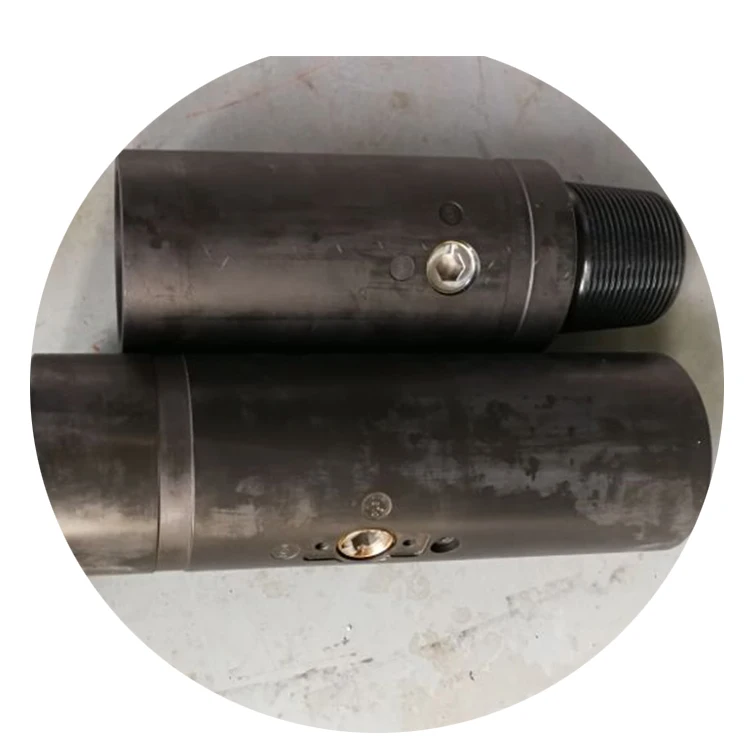

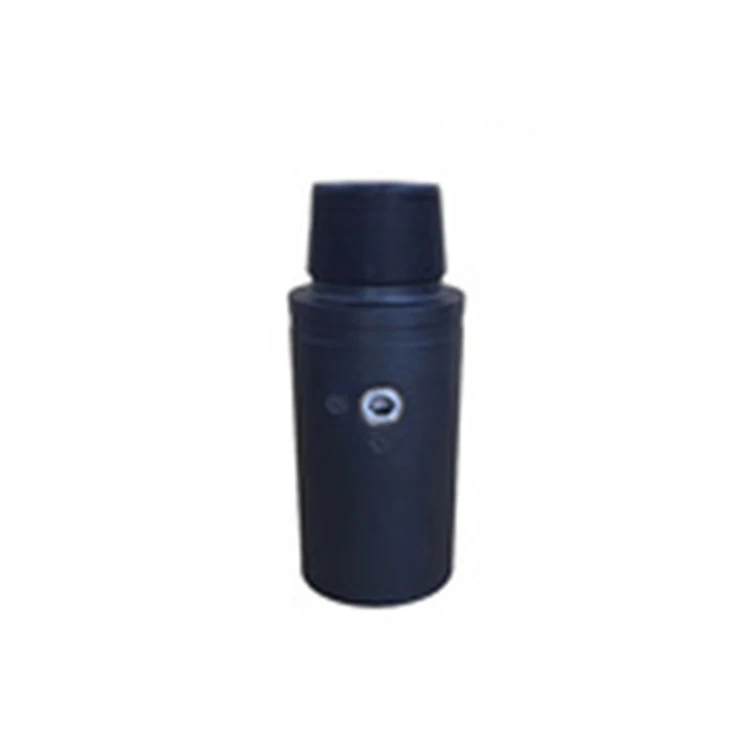

Top Drive Valve
Top drive valve is used for top drive drilling device. It can be divided two types: one is top drive upper valve; the other is top drive lower valve. They are used with the top drive system as the control valve, normally the two valves connected with the top drive drilling device. The valve can undergo the high pressure from the upward and downward. The working pressure is 10,000 or 15,000psi. All internal parts in the valve body are treated by corrosion and increase the run life.
Specifications
Type | O.D. mm(inch) | I.D. mm(inch) | Connection | Overall Length Mm(inch) |
DSS187 Upper IBOP | 187 (7-23/64) | 77.8 (3-1/16) | 6-5/8REG BOX 6-5/8REG BOX | 572 (22-1/2) |
DSS187 Lower IBOP | 6-5/8REG BOX 6-5/8REG PIN | 523 (20-19/32) | ||
DSS197 Upper IBOP | 197 (7-3/4) | 77.8 (3-1/16) | 6-5/8REG | 572 (22-1/2) |
DSS197 Lower IBOP | 6-5/8REG | 523 (20-19/32) | ||
DSS216 Upper IBOP | 216 (8-1/2) | 77.8 (3-1/16) | 7-5/8REG | 600 (25-5/8) |
DSS216 Lower IBOP | 7-5/8REG | 512 (20-5/32) |
Note: When ordering or requesting quotation, if size other than above specifications, please specify clearly.
Company Information
Our Customers
Payment&Package
1.How do you transport the goods?
We transport the goods by container. we possesses long term cooperation with ship agency which can provide you lowest shipping fee. For samples we can send by express.
2.Can you satisfy my special requirement?
Definitely! we have strong design capacity and R&D capacity!
3.Which shipment terms can you accept?
EXW FOB CNF CIF DDU DDP
