Переключатель кнопки управления открыванием запасных выходов с ключом EB-29


Поделиться:

Цена:6,90 $ - 7,90 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Please note : FREE shipping will be by EMS or China post or EUB.it takes 10-20 days based on different countries.

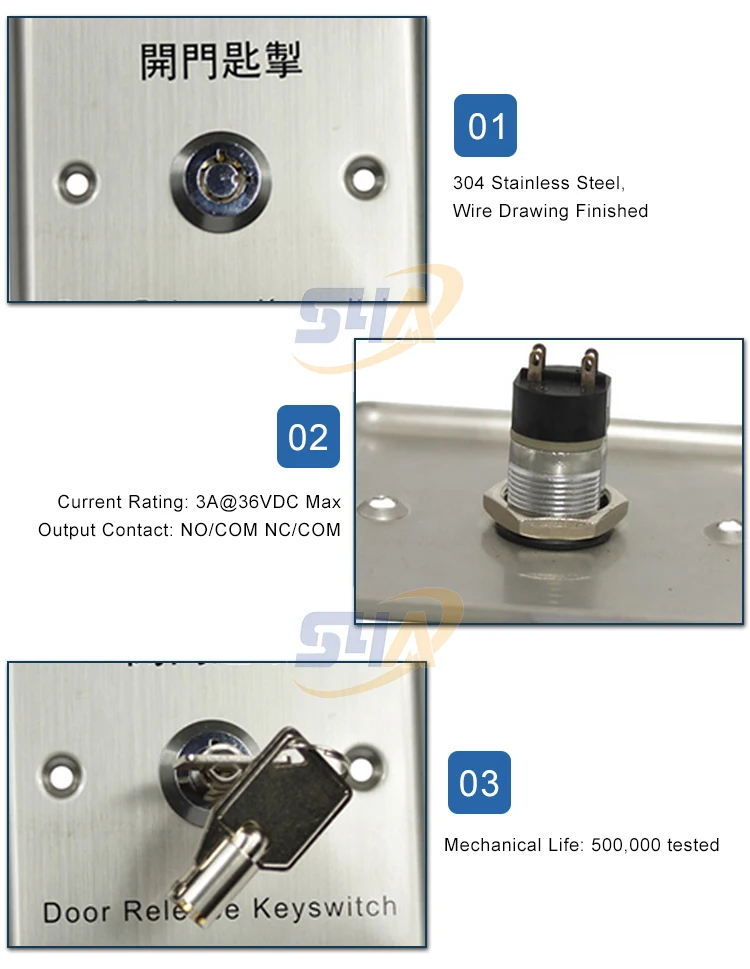

exit button switch with key EB-29 30B

Product Description

 EB-29B

Stainless Steel Exit Button
Dimensions: 86Lx86Wx38H(mm)



Dimension

86Lx86Wx38H(mm)

Standard Structure

Stainless Steel Panel, Steel Button

Panel Material

304 Stainless Steel, Wire Drawing Finished

Current

3A@36VDC Max

Output Contact

NO/COM and NC/COM

Optional Accessories

M86; M50; M70; M40

Mechanical Life

500,000 tested

Operating Temperature

-10℃ ~ 55°C (14°F-131°F)

Operating Humidity

0-95% (non-condensing)

Weight

0.15kg

Packing Quantity (PCS/CTN)

100pcs/ctn

Gross Weight

16kg

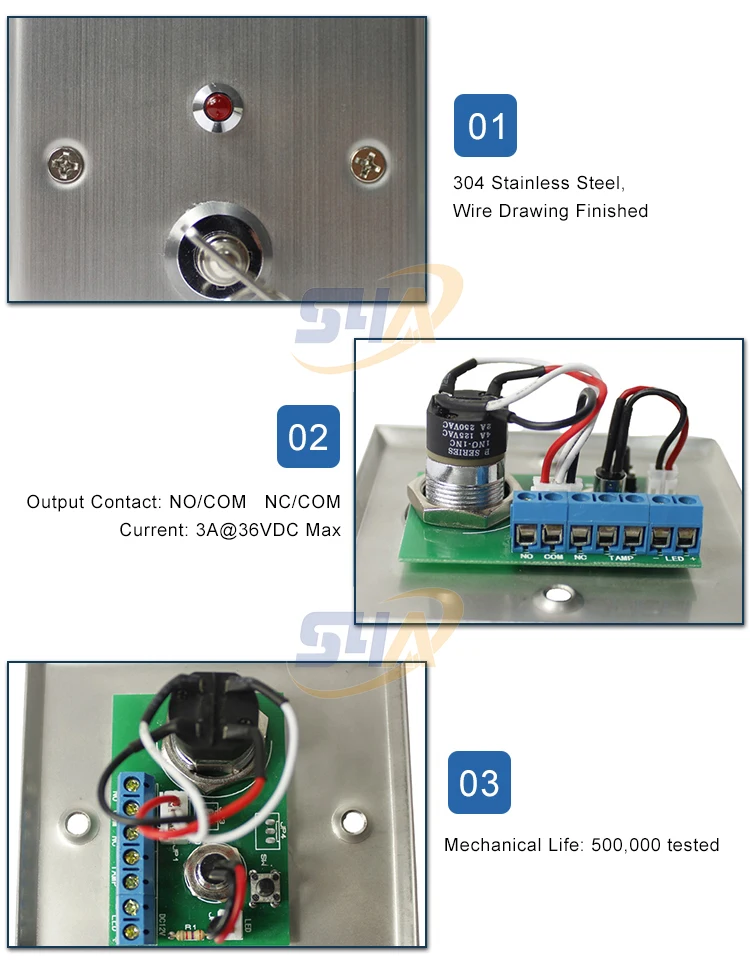

Door Release keyswitch (1).jpg  EB-30B

Stainless Steel Exit Button
Dimensions: 86Lx86Wx38H(mm)

Dimension

86Lx86Wx38H(mm)

Standard Structure

Stainless Steel Panel, Steel Button

Panel Material

304 Stainless Steel, Wire Drawing Finished

Current

3A@36VDC Max

Output Contact

NO/COM and NC/COM

Optional Accessories

M86; M50; M70; M40

Mechanical Life

500,000 tested

Operating Temperature

-10℃ ~ 55°C (14°F-131°F)

Operating Humidity

0-95% (non-condensing)

Weight

0.15kg

Packing Quantity (PCS/CTN)

100pcs/ctn

Gross Weight

16kg

Exit Push Button.jpg
