DN20 ~ DN300 RS485 Modbus расходомер воды высококачественный электромагнитный для сточных
- Категории: Flow Meters >>>
- Поставщик: Shanghai,Fmz,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Electromagnetic Flowmeters
Basic Functions
1. Sensor suitable:DN3~DN2800
2. Range of rate:0.01m/s~12m/s
3. Accuracy:Level 0.25
4. Low-frequency square wave or High-frequency Excitation
Excitation frequency:3.125Hz,6.25Hz,
2. Range of rate:0.01m/s~12m/s
3. Accuracy:Level 0.25
4. Low-frequency square wave or High-frequency Excitation
Excitation frequency:3.125Hz,6.25Hz,
12.5Hz,25Hz
5. Excitation Current:100mA ~500mA,Default 160mA or 250mA
6. Language:Display in Chinese,English and other customized
7. Power:86V~265VAC,18V~36VDC
8. Output Signal: 4-20mA ， Pulse ，
5. Excitation Current:100mA ~500mA,Default 160mA or 250mA
6. Language:Display in Chinese,English and other customized
7. Power:86V~265VAC,18V~36VDC
8. Output Signal: 4-20mA ， Pulse ，
Frequency ， High and Low Alarm or Relay
9.Communication:Modbus(RS485),HART,
9.Communication:Modbus(RS485),HART,
GPRS
10. Display:Instantaneous flow rate,Velocity,Positive accumulation,Negative accumulation,Net accumulation,Signal voltage value
10. Display:Instantaneous flow rate,Velocity,Positive accumulation,Negative accumulation,Net accumulation,Signal voltage value
Details Images
Electromagnetic Flowmeter
Dial front
Electromagnetic Flowmeter
Dial back
Electromagnetic Flowmeter
Bottom
Product specifications
Diameter | Package Demensions(mm) | Gross Weight (kg) |
DN15 | 305*275*415 | 7 |
DN20 | 305*275*415 | 8 |
DN25 | 305*275*415 | 9 |
DN32 | 305*275*415 | 10 |
DN40 | 305*275*415 | 11 |
DN50 | 305*275*415 | 12 |
DN65 | 310*295*500 | 15.5 |
DN80 | 310*295*500 | 16.5 |
DN100 | 310*295*500 | 18 |
DN125 | 350*320*550 | 23 |
DN150 | 350*320*550 | 28 |
DN200 | 360*600*360 | 42 |
DN250 | 430*670*470 | 55 |
DN300 | 480*670*520 | 88 |
Technical Index and Specification
Digital output connect relay
Commonly relay needs E as 12V or 24V. D is extend diode, now most middle relays has this diode inside. If not have, user can connect one outside.
Table of digital output parameter:
Commonly relay needs E as 12V or 24V. D is extend diode, now most middle relays has this diode inside. If not have, user can connect one outside.
Table of digital output parameter:
Parameter | Test condition | Mini | Typical | Max | Unit |
Voltage | IC=100 mA | 3 | 24 | 36 | V |
Current | Vol≤1.4V | 0 | 300 | 350 | mA |
Frequency | IC=100mA Vcc=24V | 0 | 5000 | 7500 | HZ |
High voltage | IC=100mA | Vcc | Vcc | Vcc | V |
Low voltage | IC=100mA | 0.9 | 1.0 | 1.4 | V |
FMZ electromagnetic flowmeter converter’s connection of current output:
FMZ three connection (power supply and current output are not insulated)

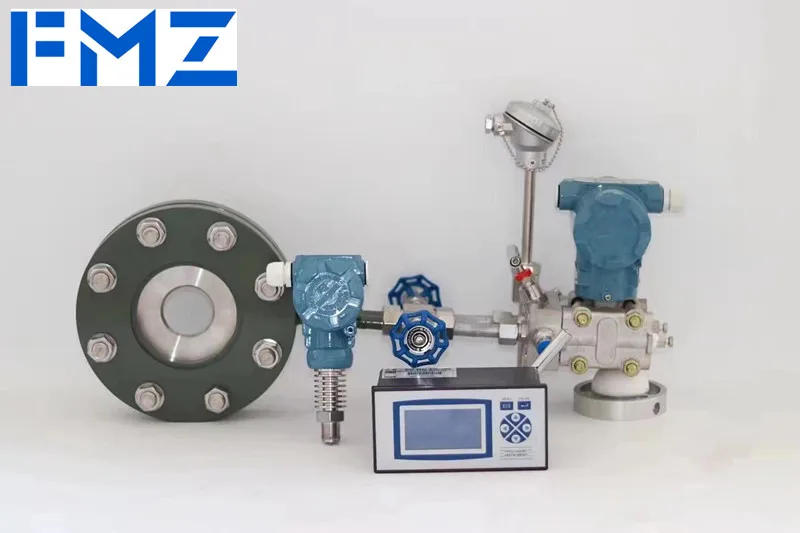

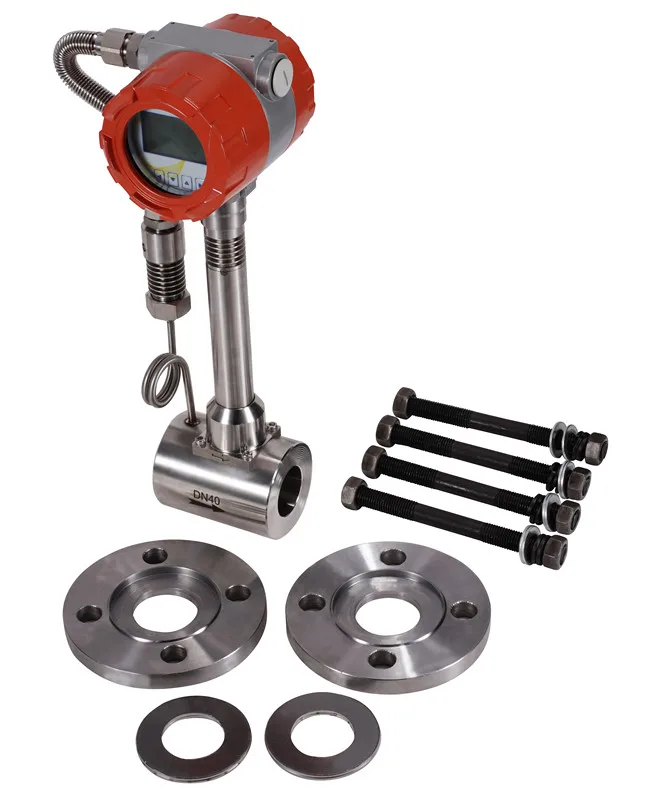

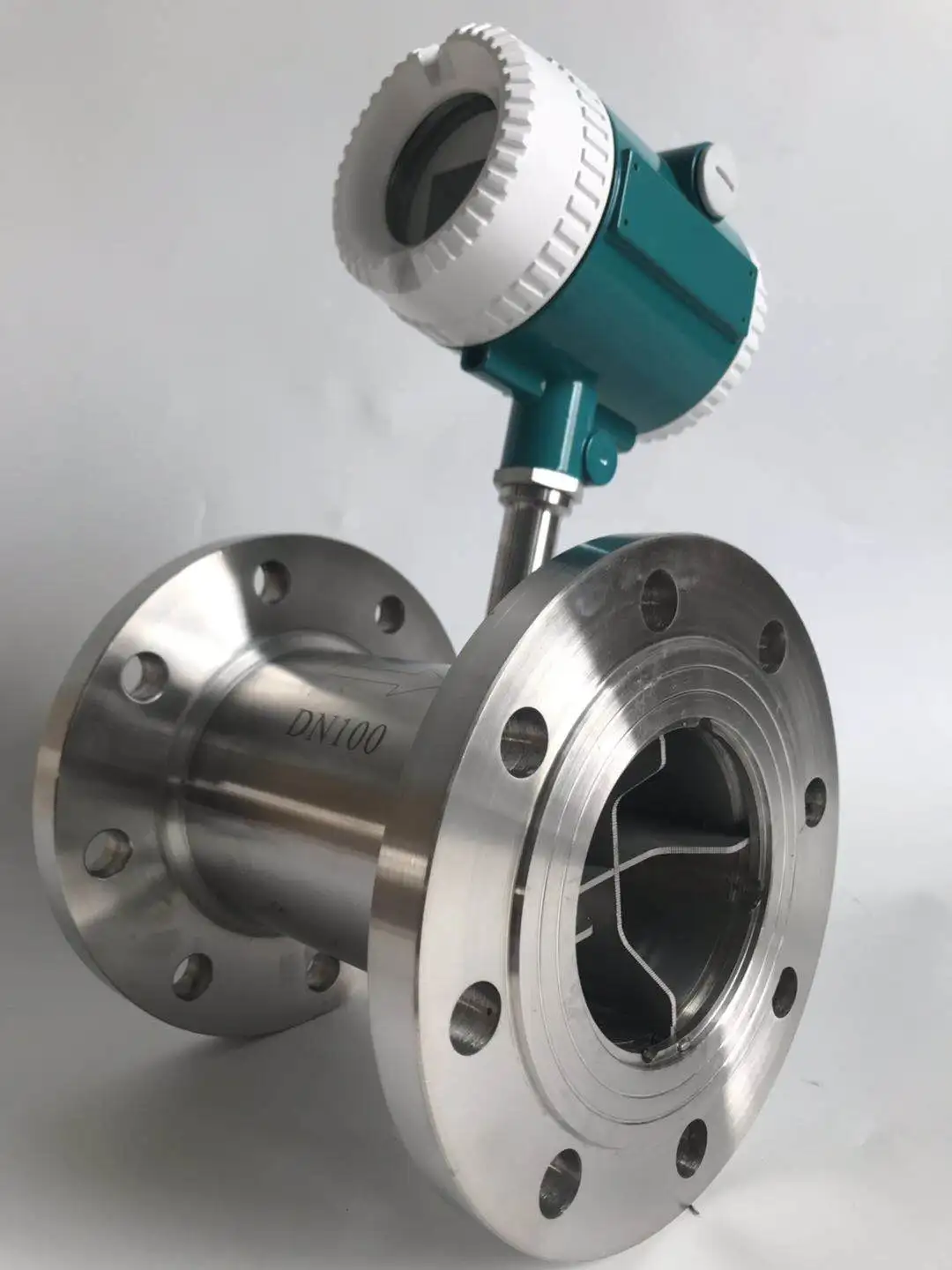

other products

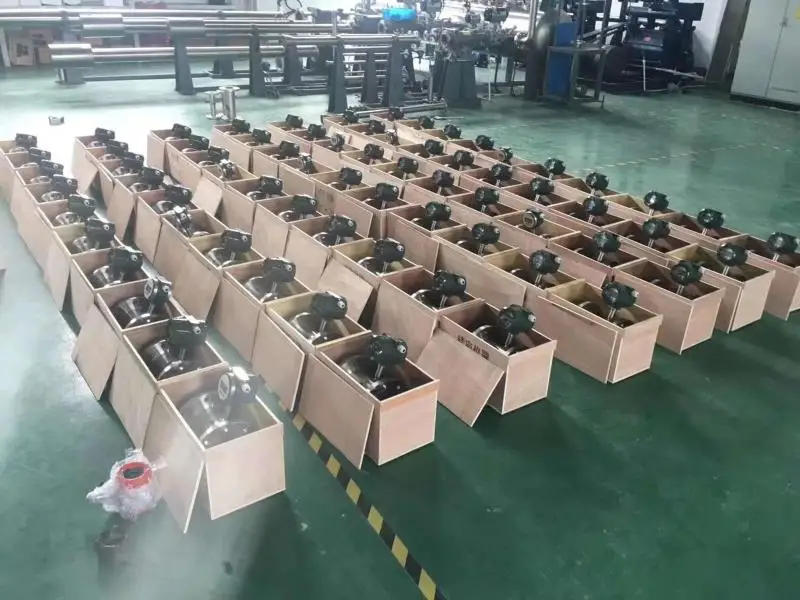

Product packaging

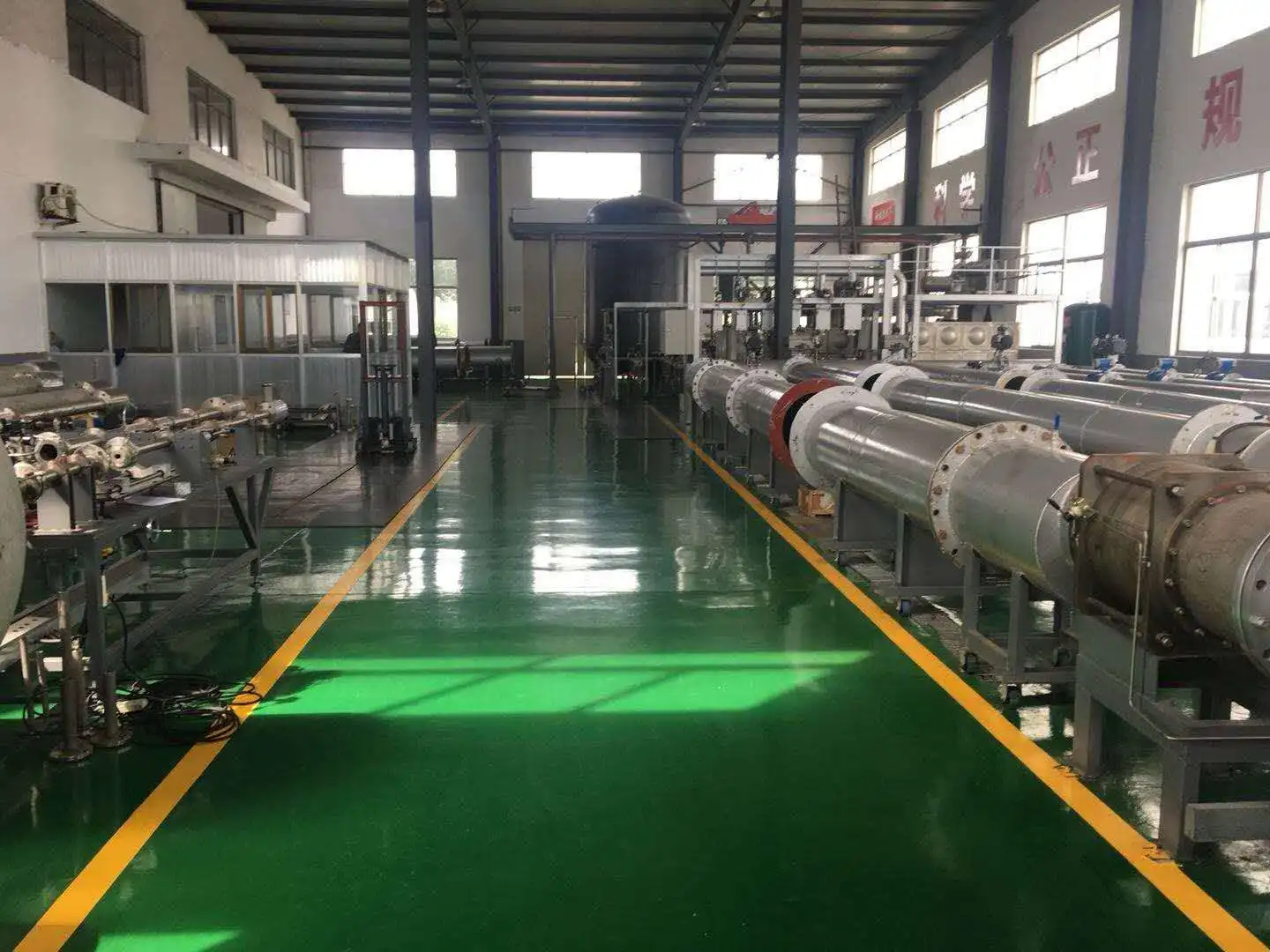

Company Profile
Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial
automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft
starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which
are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil,
plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt
customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more
comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help
analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning,
operation or problem shot and offer free training.
Our business philosophy is to ‘Always be with you and enjoy success together
automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft
starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which
are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil,
plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt
customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more
comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help
analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning,
operation or problem shot and offer free training.
Our business philosophy is to ‘Always be with you and enjoy success together
FAQ
1.Why do you order from the FMZ?
The FMZ company can provide you competitive price.
2.What about the delivery time?
Honestly, it depends on the order quantity and the season you place the order .for bulk order which production lead time is within 1~3 weeks.Generally speaking, small QTY are in stock
3.What is your payment method?
T/T, Western Union, Moneygram, Paypal are available for us
4.Can you make my logo on product?
Of course! we are factory,we supply OEM ,You only need provide us your original logo file or clear picture, so we can make it.
5. How to delivery ?
Shipped by express for sample order and small order, express include DHL, UPS, TNT, EMS, etc. Shipped by sea or by air for bulk order.
6.What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
The FMZ company can provide you competitive price.
2.What about the delivery time?
Honestly, it depends on the order quantity and the season you place the order .for bulk order which production lead time is within 1~3 weeks.Generally speaking, small QTY are in stock
3.What is your payment method?
T/T, Western Union, Moneygram, Paypal are available for us
4.Can you make my logo on product?
Of course! we are factory,we supply OEM ,You only need provide us your original logo file or clear picture, so we can make it.
5. How to delivery ?
Shipped by express for sample order and small order, express include DHL, UPS, TNT, EMS, etc. Shipped by sea or by air for bulk order.
6.What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
