Product Description
The expander is a machine that uses the principle of outputting mechanical work to reduce the temperature of the gas when the compressed gas is expanded and depressurized to obtain cold energy. Expanders are often used in cryogenic equipment. Expanders are classified into piston expanders and turbo expanders according to their motion form and structure. Piston expanders are mainly suitable for medium and small high and medium pressure deep and low temperature equipment with high pressure ratio and small flow.
Specification
S.N | Item | Technical parameter | Remark |
1 | Expander Type | Vertical | Top built hydraulic cylinder expander |
2 | Tube Material | Soft Copper tube | or soft Aluminum |
3 | Max. length of effective expanding tube mm mm | 200-2000 | |
4 | Guide Column No. | Two | 4 for optional |
5 | Max. expand tube layout size mm mm Standard size | 90×960 132×960 | 170×960 215×960 |
6 | Max. expand tube layout size mm mm Wide type | 90×1060 132×1060 | 170×1060 215×1060 |
7 | Max. expand tube layout size mm Special wide type | 90×1260 132×1260 | 170×1260 215×1260 |
8 | Max. expand tube layout size mm Super wide type | 90×1560 132×1560 | 170×1560 215×1560 |
9 | Tube Dia. mm | Φ5-Φ10 | |
24 | Hydraulic cylinder diameter mm | Φ150 | Φ180,Φ200,Φ220 |
25 | Hydraulic station motor power kw | 15 | 15,22,22 |
26 | Pressure of Hydraulic station | ≥14Mpa | |
27 | Expanding speed | About 5.5m/min | |
28 | Power supply | AC380V,50HZ, 3ph | Or tailor made |
29 | Expander rod protection device | Optional | Non Standard |
Recommend Products
Company Profile
Our Service
Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA
COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Cell phone: +201223960211
Contact: Ahmed Refaat
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
Packing & Delivery
We choose the best packaging, the most excellent logistics services, to ensure that your goods faster and safer to reach the destination.
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".

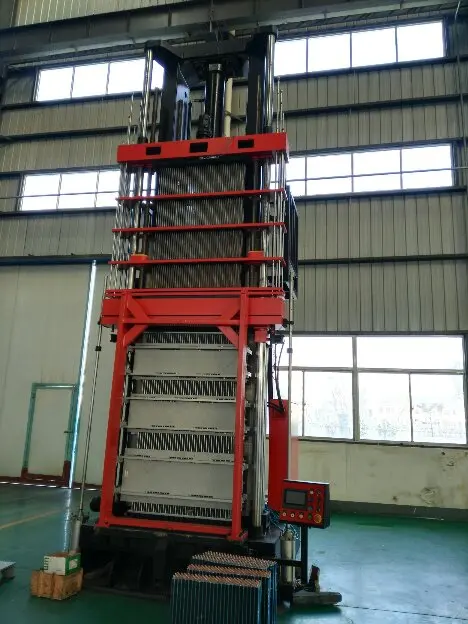

Heat exchange Copper tube Heat evaporator vertical Air condition expander machine
