Product Description

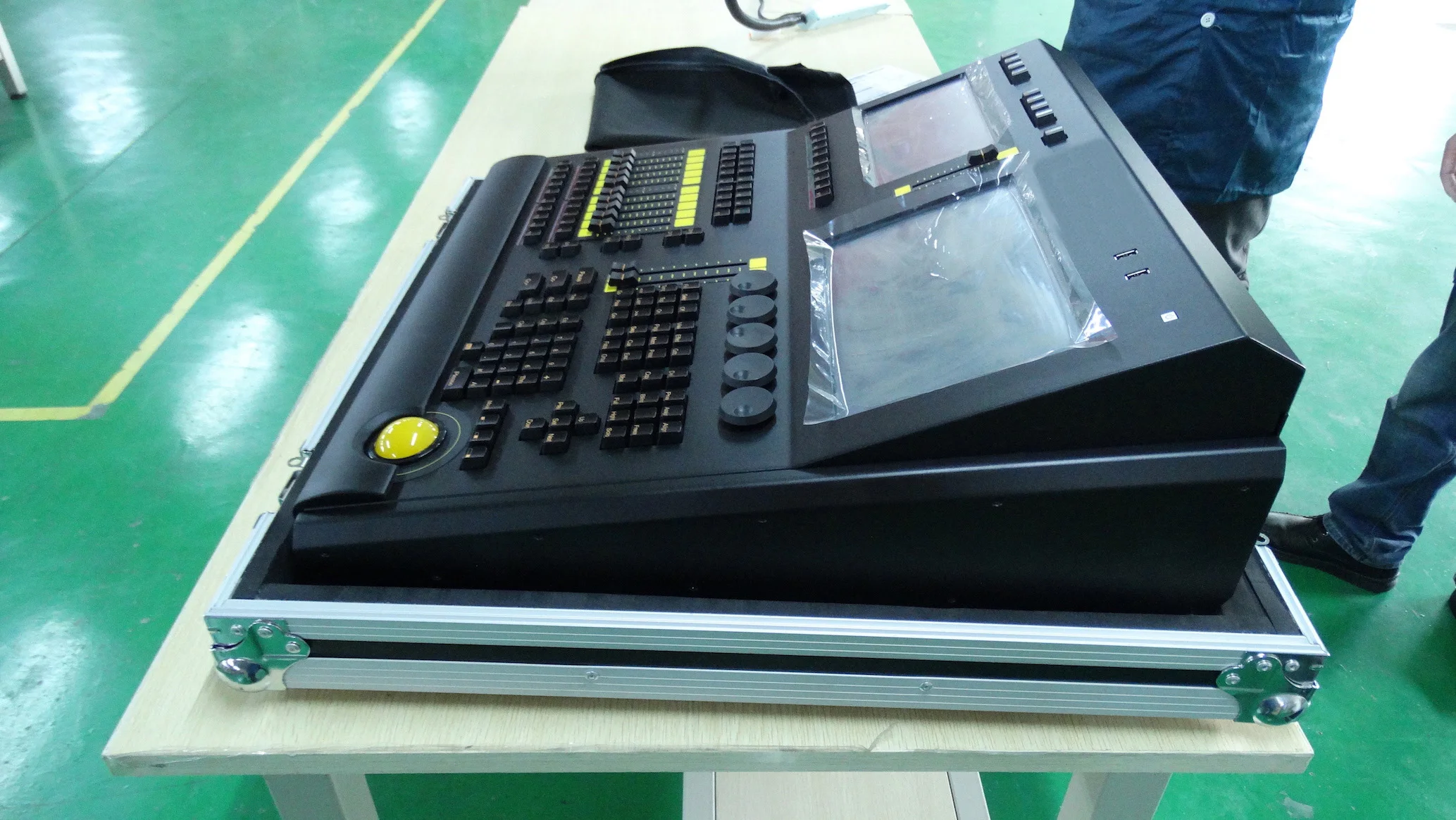

MA lighting console
This is a high performance stage lighting console, compact but powerful.
It is the perfect tool to control all kinds of lighting fixture like conventional light, moving lights, LEDs, video and media and supplies an intuitive and fast control of all connected fixtures and channels. It can handle an almost infinite number of presets, cues, pages, sequences and effects.
Product Features
Hardware Specification:
* Real-time control for up to 65,536 parameters per session in connection with NPU (equivalent to 256 DMX universes)
* 4,096 parameters

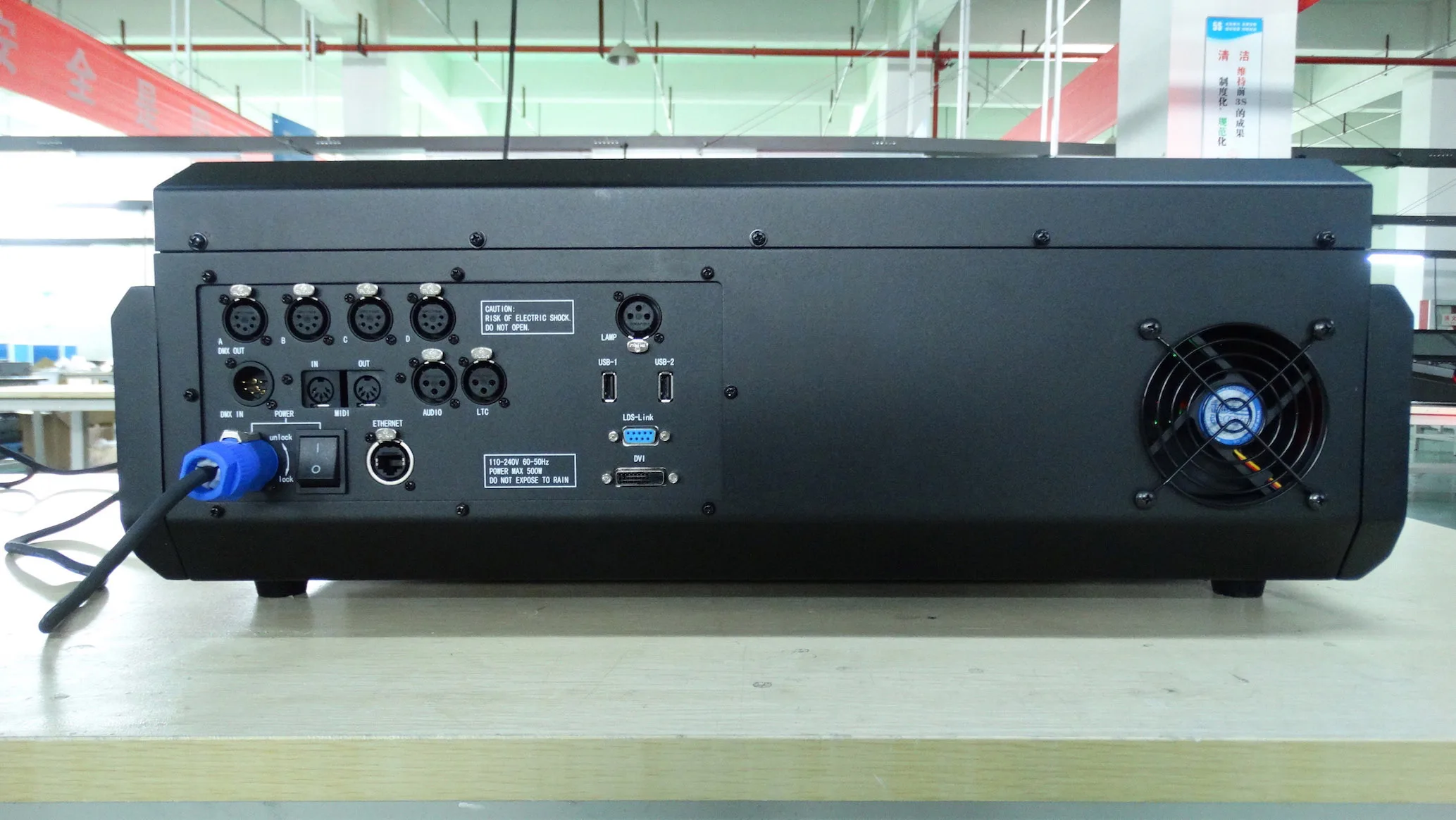

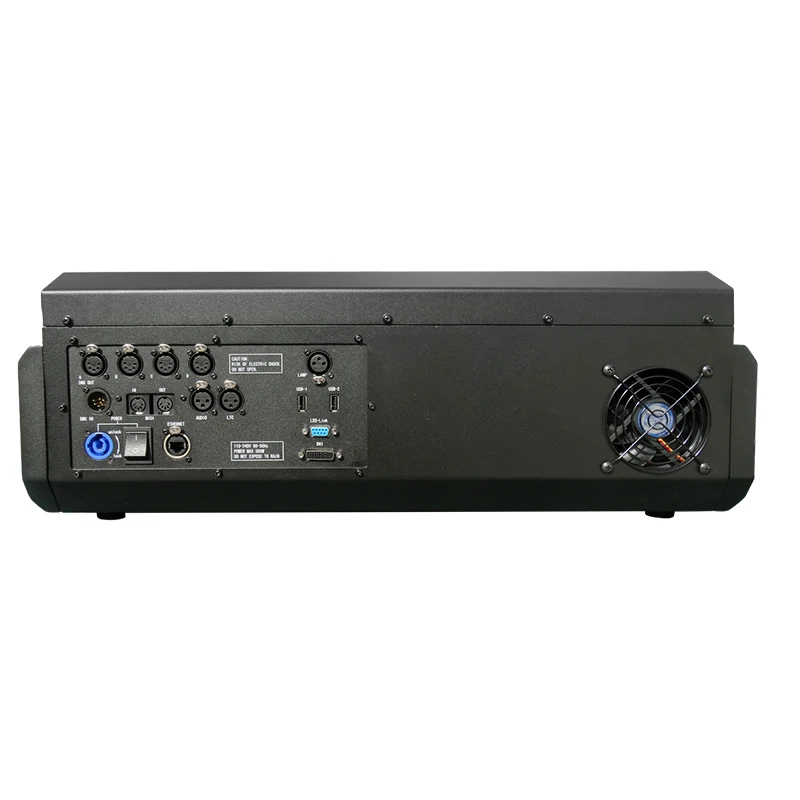

* 4 x DMX outputs + 1 x DMX input
* 1 x internal TFT wide mode touchscreens (12.1" WXGA)
* 1 x internal command screen (9" SVGA)
* 10 x motorized faders
* 2 x motorized A/B fader (100mm)
* 5 x encoders
* 1 x trackball
* 1 x gigabit Ethernet port
* 4 x USB2.0
* MIDI in and out
* LTC/SMPTE timecode
* AC power: 90-260VAC, 50/60Hz
Software Specification：
* Linux operation system
* Support ArtNet
* Support DMX512
* Support sACN protocol
* The system can be installed via USB flash
* Program data can be saved on hard disk or U disk
* Support multiple online backup
* Support wireless remote control with iPhone/iPad
* Support stage 3D effect simulation, real-time scene simulation
* Support RDM management
* Support WYSIWYG connection
* Support massive light library
* Support LTP and HTP
* Support MIDI time code and internal time code
* Powerful Layout management
* Support multi-user operation, and can set the user permissions
* Each kind of material such as color, gobo, beam, position can save 1000
* Support 10000 marshals, support 10000 effects
* Support 10000 programs, each program can contain 9999 scenarios
* Real-time control for up to 65,536 parameters per session in connection with NPU (equivalent to 256 DMX universes)
* 4,096 parameters
* 4 x DMX outputs + 1 x DMX input
* 1 x internal TFT wide mode touchscreens (12.1" WXGA)
* 1 x internal command screen (9" SVGA)
* 10 x motorized faders
* 2 x motorized A/B fader (100mm)
* 5 x encoders
* 1 x trackball
* 1 x gigabit Ethernet port
* 4 x USB2.0
* MIDI in and out
* LTC/SMPTE timecode
* AC power: 90-260VAC, 50/60Hz
Software Specification：
* Linux operation system
* Support ArtNet
* Support DMX512
* Support sACN protocol
* The system can be installed via USB flash
* Program data can be saved on hard disk or U disk
* Support multiple online backup
* Support wireless remote control with iPhone/iPad
* Support stage 3D effect simulation, real-time scene simulation
* Support RDM management
* Support WYSIWYG connection
* Support massive light library
* Support LTP and HTP
* Support MIDI time code and internal time code
* Powerful Layout management
* Support multi-user operation, and can set the user permissions
* Each kind of material such as color, gobo, beam, position can save 1000
* Support 10000 marshals, support 10000 effects
* Support 10000 programs, each program can contain 9999 scenarios

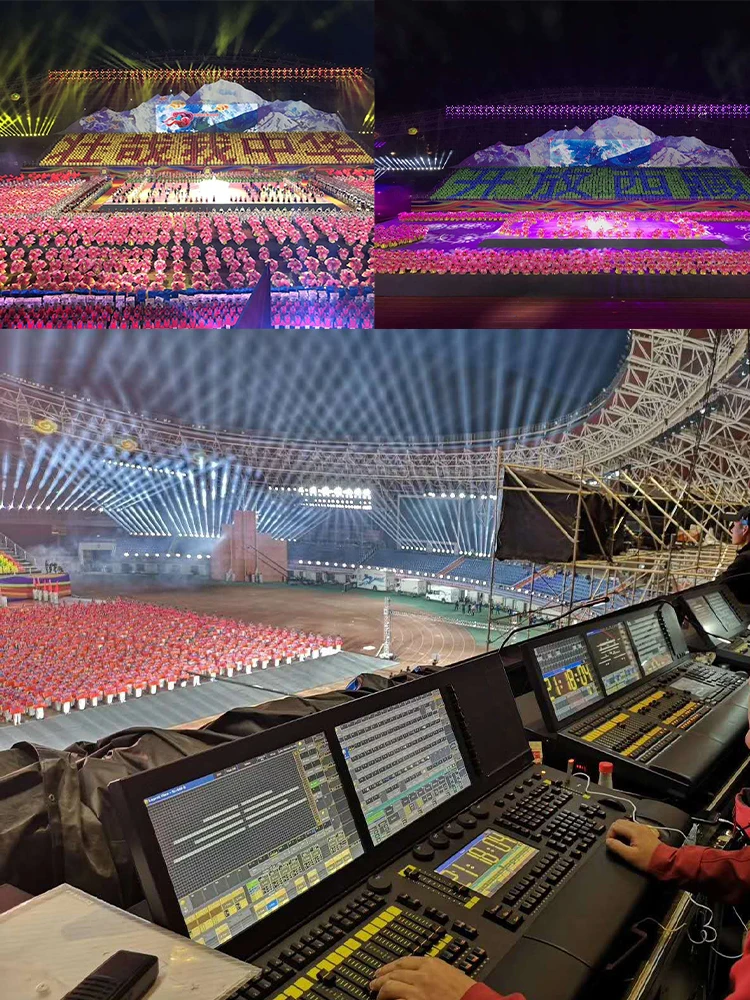

Lighting Cases
Training Courses
Packaging & Shipping

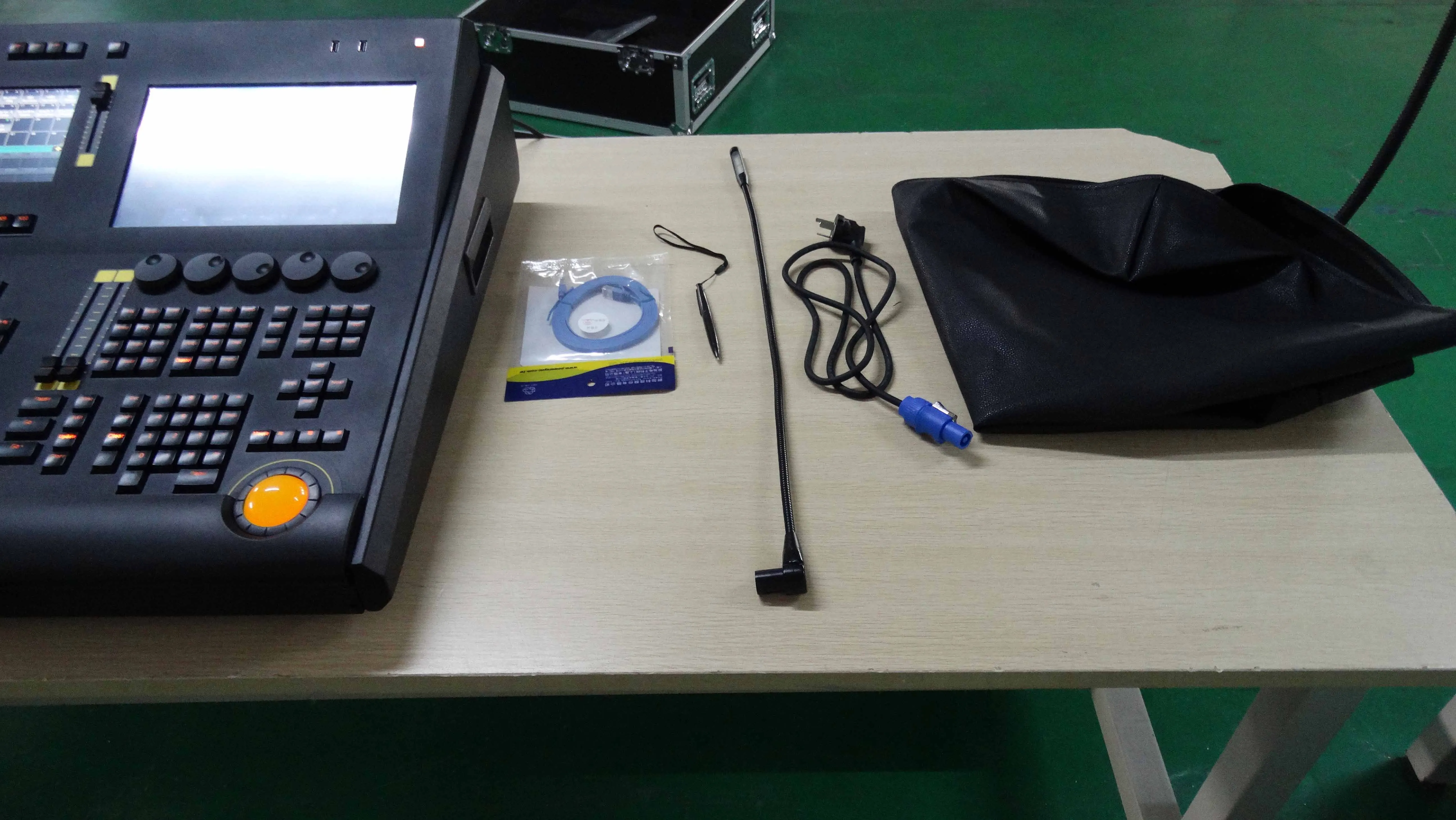

Accessssories | power cable * 1 | desk light * 1 | dust cover * 1 | flycase * 1 | ||
Net weight | 24kg | 53lbs | ||||
Gross weight | 44kg | 97lbs | ||||
Product dimensions | 630*620*234mm | 24.8*24.4* 9.2inch | ||||
Flycase dimensions | 700*310*710mm | 27.6*12.2* 28inch | ||||
FAQ
console lumiere ma lighting
Q: What is your status for your factory?A: Our factory has 12 years of rich experiences of lighting control system, only make DMX lighting console, network solution, and other control products.
Q: What accessories are included in the price of the DMX lighting board?
A: Including flycase, working lamp, dust cover and powercable.
Q: What is software and version of light controller?
A: Linux softwre and latest.
Q: How many days for free traning courses of the mixing desk?
A: 7 days.
Q: How many DMX universes or DMX channels for the stage lighting table?
A: Please consout us.
Q: What kind of lighting control protocol can be used in the console?
A: Artnet, MAnet, sACN,DMX512.....
