Шиповой соединитель
Shoot Фирменная деревообрабатывающая Автоматическая шлифовальная линия

Shoot Фирменная деревообрабатывающая Автоматическая шлифовальная линия

Категории: Шиповой соединитель >>>
Поставщик: Yantai,Shoot,CNC,Machine,Co.,Ltd

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

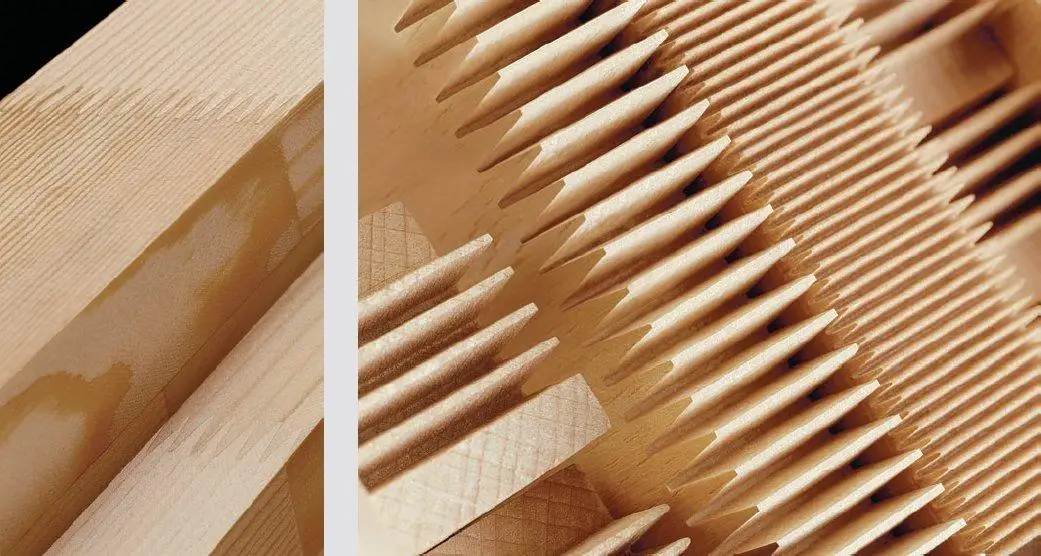

Auto Finger Jointing Shaper Line
Feature
The line including 2pcs machine and other accessories working feed table. (1# and 2#), #2 finger jointing with gluing function
Model	SHMB3515E
Maximum Processing Width	610mm
Maximum Processing Thickness	160mm
Maximum Processing Length	800mm
Main Shaft Speed	6300r/min
Scoring Saw Blade Motor Speed	2900r/min
Saw Blade Speed	2900r/min
Jointing Cutter Diameter	160mm
Spindle Diameter	50mm
Spindle Motor Power	15kw*2
Saw Blade Motor Power	4kw*2
Conveyor Belt Motor Power	0.55kw*2
Servo Motor Power	0.75kw*2
Air Consumption	0.6-0.8Mpa
Overall Dimensions	2400x1600x1500mm 2800x1600x1500mm
Total Power	43kw

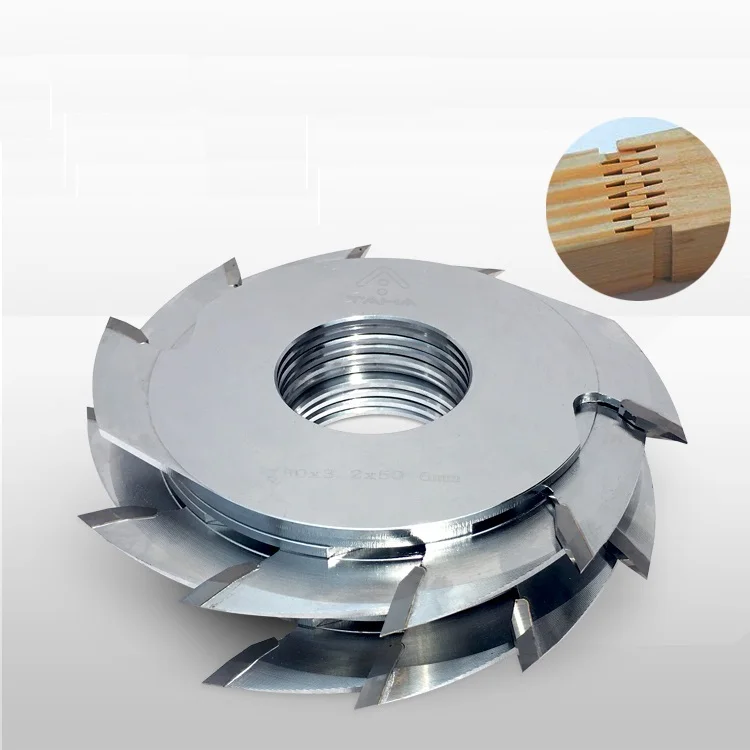

it have one set (21pcs) cutter and one set (7pcs) circular saw with machine

Packaging & Shipping

Packing: by Plywood Case or Plastic film

Shipping: Qingdao Port

Deliver time: 30days after receive payment

Company Information

SHOOT Logo-1.jpg

Yantai Shoot CNC Machine Co.,Ltd

Yantai Shoot Woodworking Machine Co.,Ltd

wechat: 0086 13906451612

whatsapp: 0086 13906451612

viber: 0086 13906451612

website: www.shootmachine.com

Photo & feature:
1.The fuselage uses the unique anti deformation design. Guide rail to the main shaft through the precision processing. Ensure the stability and precision of the machine.
2.Get more info can add Manufacturer skype litonmachinery. Spindle use the SKF bearing which from Switzerland, we will Force analysis basic on the Stress point use double bearing.Cutter install point will use the Dia. 50mm. make sure the spindle firm and stable during the High speed rotation
3.Using ABBA Precision Linear slide from TaiWan, Precision in 0.02mm.Middle pre-press Linear slide design. In that can improve its Stability & Durability. Liear slide with unique dust-proof design, extended life.

4.Feeding belt use the worm gear reducer transmission. Small volume can Resist big Torsion . Transmission high Efficient, with high range reduce speed .with special design reduce Noise.

5.Electric control Part:
1)OMRON PLC,with high operation speed.
2)The work table using the delta inverter motor drive. According to the characteristics of wood. Can flexibly control the running speed of the working table. Adapt to the production of different products.

3)Photoelectric sensor: use omron.with Infrared visible light, easy adjust .with the Background suppression function .collect Distinguish wooden colour and Wood scarring.

4)Control panel: TextArea Control. easy change the date input. PLC Monitor, Auto Error alert.
5)All Thermal relay are use delixi. AC contactor are use Shihlin. Proximity switch are use airtac.

6.Teech protect system:can avoid damage the last wood stick was processed finger joint cutter processing.
7.Glue coating system: use the profile teeth dip in type. make sure the glue can full of the wood.characteristic design make cleaning glue is easy and the time of cleaning is greatly saved.

8.Oil-water separator: make sure the air compressor dry.

9.Pressure sensor: make sure machine Work under safe condition. Avoid lack of pressure ,the wood can’t press well throw out.
