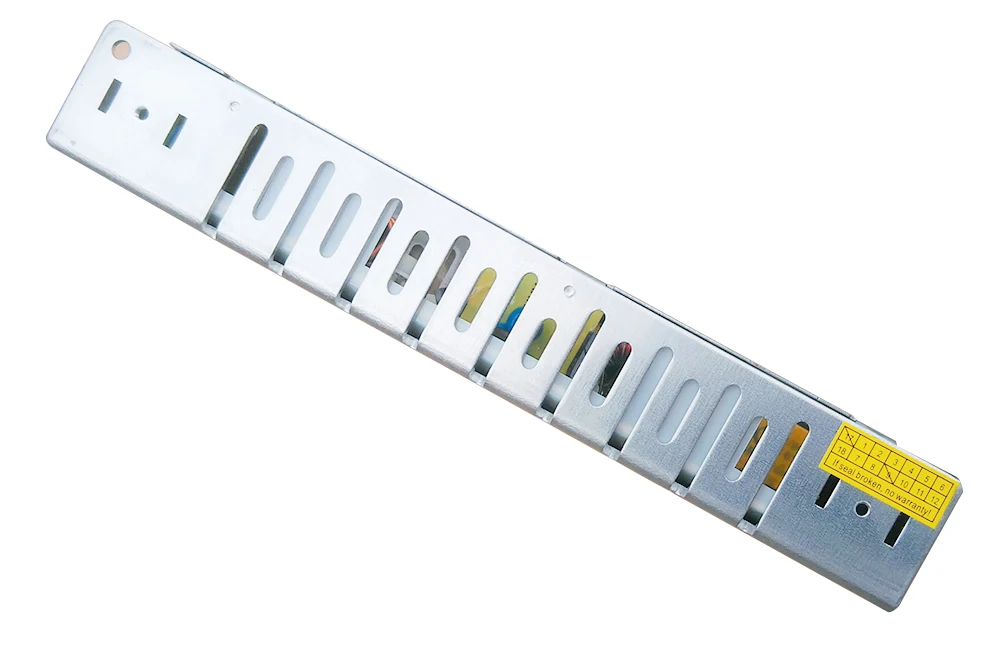

Блок питания G-energy 5V40A 200 вт для светодиодного дисплея p2 P3 P4 полноцветный рекламный большой экран супертонкий
- Категории: >>>
- Поставщик: Fujian,Huacai,Tronics,Limited
Поделиться:
Описание и отзывы
Характеристики
Full color power supply 5v 40a 10a 20a 30a 60a for P2.5,P3,P4,P5,P6,P8,P10 led display
Product Description
| Model | S-200-5V |
| DC Output Voltage | 5V |
| Input Voltage Error | ± 2% |
| Rated Output Current | 40A |
| Output Current Range | 0-40A |
| Tripple and Noise | 180 mVp-p |
| Iniet Stability | ± 0.5% |
| Tolerance Voltage | ± 1% |
| DC Output Power | 200W |
| Efficiency | 75% |
| Adjustable Range for DC Voltage | 4.5-5.6V |
| AC Input Voltage Range | 90~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
| Input Current | 4.5A/115V 2.5A/230V |
| AC Inrush Current | Cold-Start Current: 25A/115V, 50A/230V |
| Leakage Current | <3.5mA/240VAC |
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery |
| Over Voltage Protection | 5.75~ 6.75V |
| Protection type : Shut down o/p voltage, re-power on to recover | |
| High Temperature Protection | ≥90°c (RTH3) Detect on inside ambient temperature |
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) |
| Start, Rise, Hold time | 200ms, 100ms, 20ms |
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms |
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH |
| Storage Temperature and Humidity | -20°C~+85°C,10%~95%RH |
| Overall Dimension | 215*115*50 mm |
| Weight | 0.9Kgs |
| Safety Standards | CE |
| EMC Standards | Meet FCC Part 15J Conduction class B |
| Note: | 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. C3.4 must be knocked down |
Packaging & Shipping
| Cabinet: | 2pcs into a wooden case; polywood standard package, with polyform to protect |
| Led Module: | 40pcs/50pcs into a carton; international standard packaging,with polyform to protect |
| Delivery: | 3 to 10 days or depends on the quantity. |
Certification
Exhibition
Company Infor
FAQ
1.Q: Where is your nearest Sea Port?
A: Our nearest sea port is at Xiamen,Fujian Provice
2.Q: What's your payment term?
A: T/T,Western Union,Alibaba trade assurance
3.Q: What's the brand of your diode chip?
A: Our led lamps are by Silan,Epistar,Cree ect.
4.Q: Could you alow a trial order?
A: Yes.We are alowing to a trial order. This would enable you to see the high quality of product and give you the opportunity to test it's superiority.
5. Q: what's the delivery time ?
A: 5-10 days after receving the payment.
