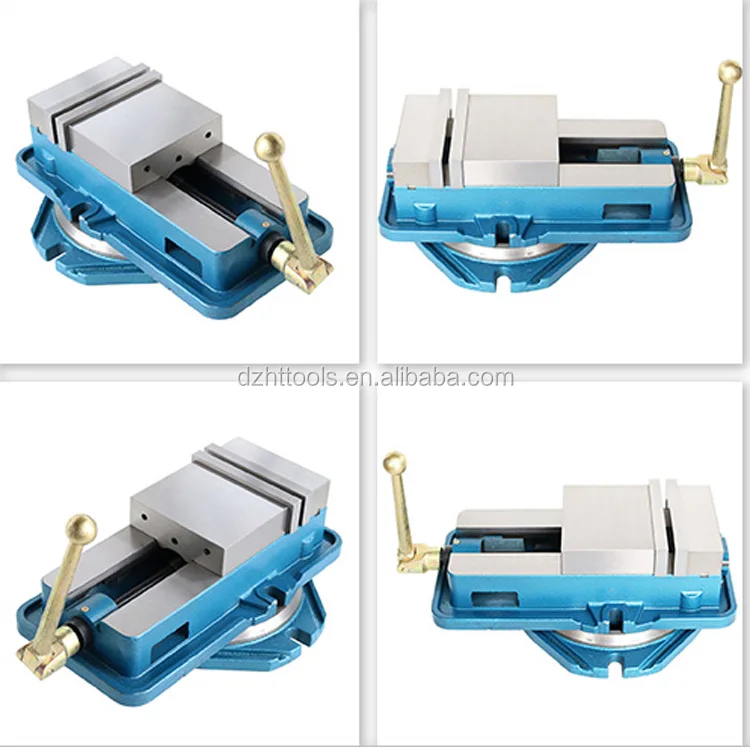

Accu-lock Machine Vice milling Machine Vise QM16100/QM16160/QM16200 vise



1.It is main attchments to precision millings grinders CNCmachines it is particularly suitable for the finishing of precision parts

2.Parallelism 0.025mm/100mm,squareness 0.025mm

3.The precial segment inthe movable jaw forces the vertical ressure dwnward when thehorizontal pressure works,so that this jaw does not lift the workpiece

4.For positions allow extra capacity to change opening of jaw

5.As the thrust component of the screw is equipped  with thrust needle bearing if can be easily operated.



Model	Width of jaw(mm)	Height of jaw(mm)	Max.opening(mm)	G.W/N.W(kg)	Packing(L*W*H)(cm)
QM16100	100	32	100	17/16	38*25*18
QM16160	160	45	140	40/38	49*32*23
QM16200	200	50	190	75/69	62.5*41*25.5

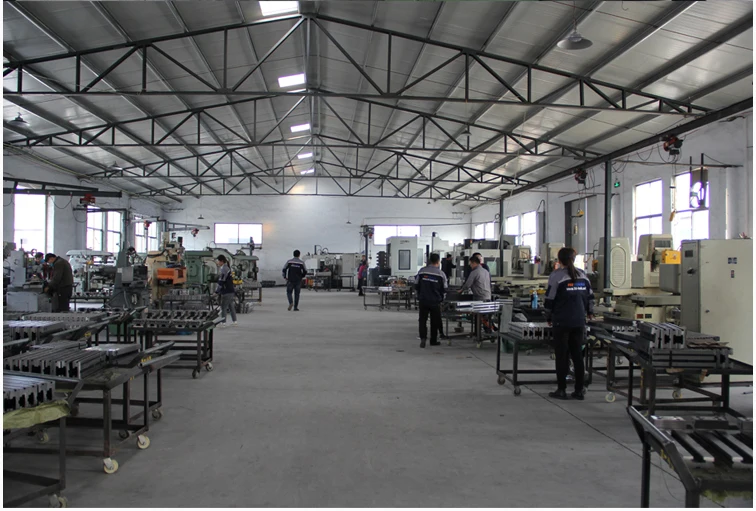

WORKSHOP















 SHIPPING

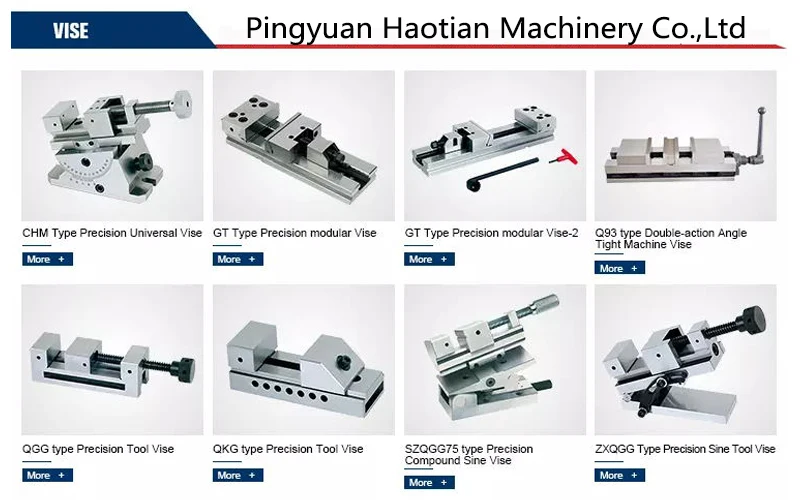

Our products







 GT Type precision vise ,
GT Type precision modular vise ,
QGG Type precision vise ,
QKG Type precision tool vise ,

ZXQGG Type precision compound sine vise ,
ZXQKG Type Precision sine tool vise,
QW universal tilting vise,
QM accu-lock precision machine vise,
QH machine vise ,
QHK Declinable machine vises,
ZQ80 precision horizontal vertical vises....
Kinds of Bench vises



TEAM SHOW







 ADVANTAGE



OEM service



Quick responce in 24 hours



Big capacity



Short delievery time.



COMPANY PROFILE



 We have our own factory. We have 160 workers and 8 inspectors. Our old engineers have about 30 years experience in these area.



We established an independent commercial company in 2003. We have 12 sales.



Our products have been approved by many countries including German, Turkey, Brazil,Italy, England, American, India and so on.



CONTACT







 FAQ



1 Are you factory or Trade Company?
 We are Industry and trade integration.



2 Could you supply samples?
Yes, we can supply.



3 Where do you export?
The whole world.



4 Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.



5 What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.



6. What are the shipping ways?
By international express, by air, by sea are all ok.



7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.



8. What’s your payment way?
T/T, Pay pal, Western Union and so on.



9. What’s your delivery time?
5-20 days after order confirmed



10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
