2pt 3pt 23 8 стальное лезвие режущее правило для автоматической машины производства

Описание и отзывы

Характеристики

                                                                                Cutting and Creasing Rule
1. Application
Steel cutting rule for die makers, die shops, die cutting, die making and carton box factory For Pintting Die Cutting Industry.

2. Types available
Cutting rule, creasing rule, perforating rules, wave rules, cut and creasing rule.

3. Specifications
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC)  Edge Angle (42/52)
Shape-----center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
Bevel: center bevel or long center bevel

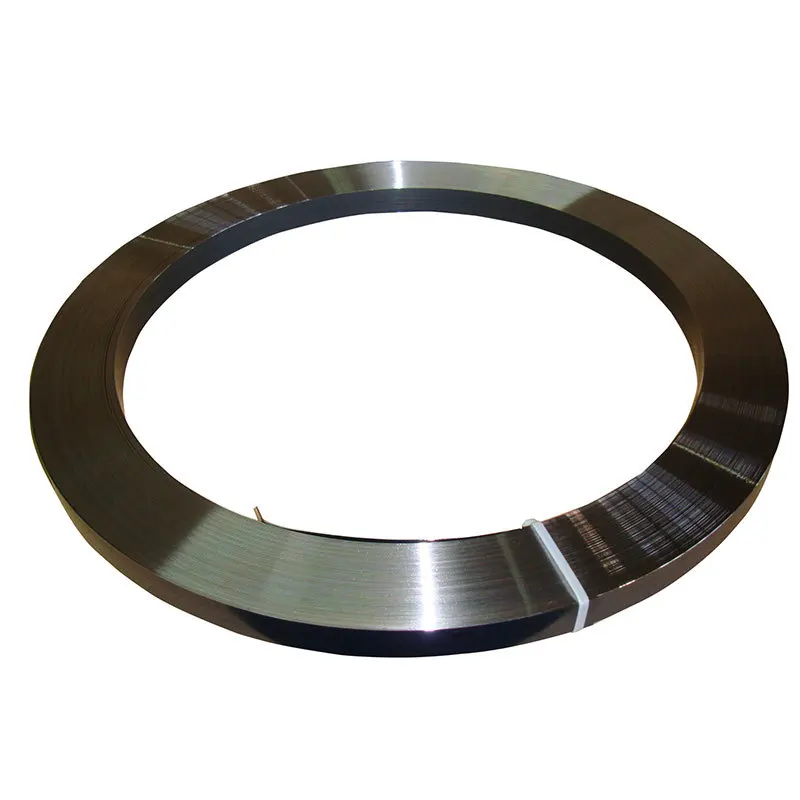

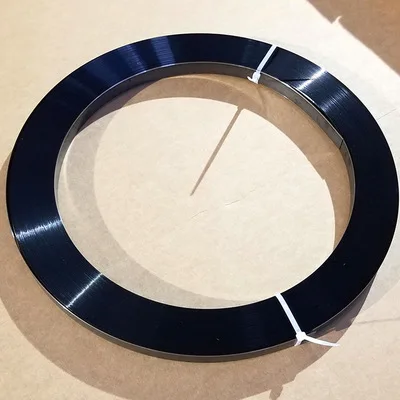

Packing: Coil or strip packing for clockwise or anti clockwise
High frequency quenching



Name	Thickness	Height/length (mm/mm)	Package (pcs/m/box)	Body hardness	Edge angle
Cutting rule	0.45	23~23.80/1000	150	38HRC-54HRC	42°\\52°
	0.53	23~23.80/1000	125
	0.71	23~23.80/1000	100
	1.05	23~23.80/1000	70
	1.42	23~23.80/1000	50
Creasing rule	0.53	22.00~23.80/1000	125	38HRC-54HRC
	0.71	22~23.8/1000	100
	1.05	22~23.8/1000	70
	1.42	22~23.8/1000	50
Wave rule	0.71	23~23.80/1000	100	38HRC-54HRC
Perforating rule	0.71	23~23.80/10001*1~10*10	100	38HRC-54HRC	42°\\52°
	1.05	23~23.80/10001*1~10*10	70

4. Application Samples


5. Bended Shapes samples


6. Stuitable Machines  & Related Product
Auto Steel Rule Bending Machine & Manual Bending Machines For Die Making


7. Our Services

1. QC System:100% inspection before shipment.

2. Free Samples Available Before Order

3. SeaWorthy Packaging: Standard package / Pallet or container / As per customized specifications

4. Customer Design Hardness thickness Height Of Cutting Rule is Available

5. OEM Agent Mark Logo Printted in Rule  is acceptable.

8. Shipment  & Packing

DHL, UPS, EMS, TNT, Fedex, sea transportation are available

9. Trade terms

EXW, FOB, CIF preferred
