S7200 SMT BGA рентгеновский аппарат для осмотра CSP QFN

Описание и отзывы

Характеристики

S7200 SMT BGA x ray inspection machine for CSP BGA QFN LED voids inspecting machine



Item	S-7200
Panel Detector	Pixel Pitch	85um
	Inspection area	600mmx600mm
	Detector Tile Angle	70 Degree
X-Ray Optical Tube	Optical Tube Style	Sealed tube
	Optical Tube voltage	90KV,100KV,130KV (optional)
	Optical Tube current	250UA
	Optical Tube focus size	5um
	Optical Tube Power	8W
	System Magnification	1200X
	Geometric Magnification	125X
Sample Table	X-axis	520mm
	Y-axis	520mm
	Z1-axis	380mm
	Z2-axis	380mm
	Platform Deadweight	10KG
Software Function	Size Detection	Point to point&Line to line angle measure
	Bubble Detection	BGA, semiconductor irregular area, casting solder joint bubble can be measured and inspected for cracks
Power	Power supply mode	AC110-230VAC, 50/60Hz
Computer	Brand	Dell
	Operation System	Windows10
	Display	24”LCD
	CPU	Intel i5 6500
Radiation                    Safety Standard	< 1uSv/hr(International standard)	Radiation leakage dose<1µSv/h.(GB15208.1~2005)
X-Ray Dimensions	Dimension	1500mmX1300mmX1800mm
	Weight	1500KG
Warranty	Two years	Two years warranty



X-Ray Description

1. Closed Tube from HAMAMATSU Japan.
2. Imported Detector from Korea.
3. Micro-focus
4. Spot size down to 5µ
5. 5″ x 5″ or 4″ x 3″ high resolution and ultra-resolution CMOS digital panel detectors
6. 70° camera tilt for oblique angle viewing
7. 22″ x 18″ Inspection Stage with 350° Rotation
8. Color mapping camera with zoom window provides easy location and identification of faults
9. Z axis movement of the x-ray tube and detector
10. Computer controlled kV and mA settings
11. Computer controlled variable speed X-Y stage (and rotate)
12. Simple point and click, intuitive GUI provides access to create advanced inspection routines

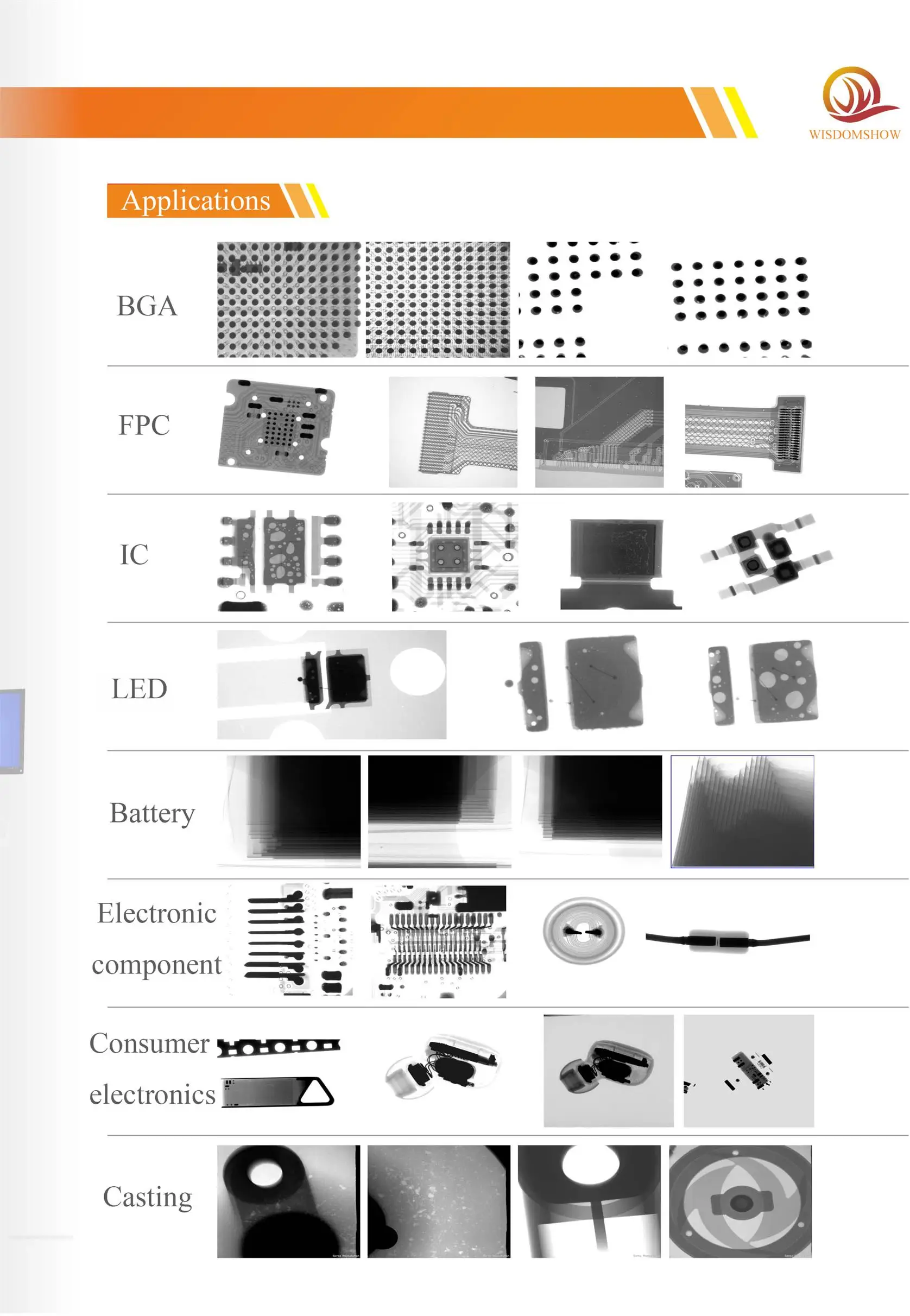

13. All s/w tools standard including (but not limited to)
14. BGA Void detection and automatic calculations
15. Mobile Flex Cable FPC x-ray inspection
16. SMT Mounting and PCB X-ray inspection
17. Easy macro recording for intuitive step and repeat programming
18. Various measuring tools for TH, radius, area, perimeter, etc.
19. Industrial PC with Windows 7, 24″ LCD flat panel display

Standard configuration



1. Adjust the speed of the stage through the space bar: slow, constant, fast

2.Keyboard control x, y, Z1 Z2 four axis movement

3.The user can control the speed of the stage by programming





Fully automatic BGA detection program



1.Simple mouse click programming to automatically detect each BGA on the component without operator intervention

2.Automatic BGA detection program can accurately check BGA diameter, cavity proportion area and roundness

3.Automatic BGA detection program has high repeatability of detection results for process control

4.The test results will be displayed on the screen and can be output to excel for review and archiving



CNC programming



1. Simple mouse click operation to operate detection program

2. Sample table can be positioned in X, Y direction; X-ray optical tube and detector can be positioned in Z direction.

3. Software set voltage and current.

4. Image settings: brightness, contrast, auto adjustment and exposure.

5. Users can set the pause time for program switching.

6. Anti-collision system can meet the maximum tilt and observation.
