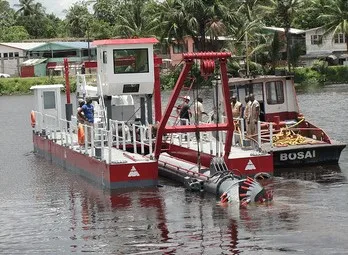

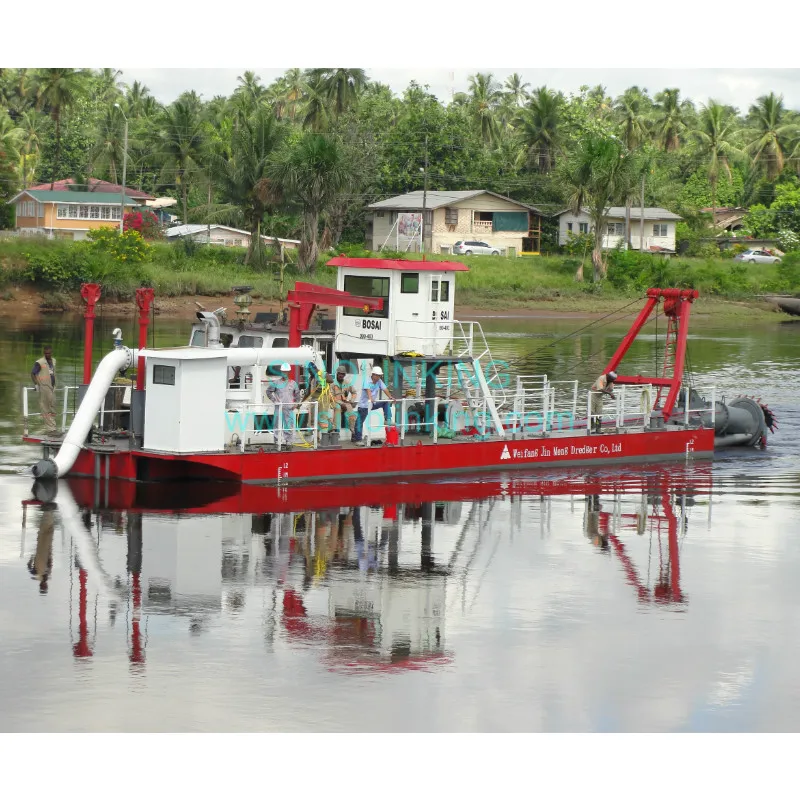

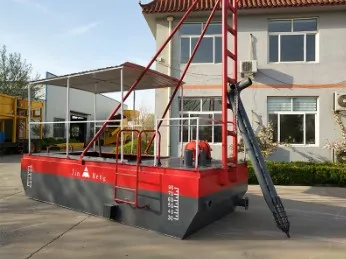

Sinolinking песка 12 дюймов свайно-папильонажный земснаряд с роторным разрыхлителем сосуд для добычи

Sinolinking песка 12 дюймов свайно-папильонажный земснаряд с роторным разрыхлителем сосуд для добычи

Категории: Земснаряд >>>
Поставщик: Shandong,Sinolinking,Import,And,Export,Co.,Ltd.

Цена:64 000,00 $ - 66 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Description

Features of our Sand Dredger

1) The SLK-CSD series sand dredgers are designed according to your specific mining conditions and requirements.

2) Dredging depth could be min 5 meters and max 30 meters.

3) Processing capacity could be 100-5000m3/h.

4) Big power and long working life dredging pump.

5) Powering system with Cummins/Weichai diesel generator with all batteries, cables and wires.

6) Easy for installation, operation and maintaining.
7) One-Stop sand dredging solutions from A to Z.

Specifications of Sand Dredger
Model	CSD100	CSD200	CSD300
Parameters
Dredging depth	Dredging depth	Dredging depth	Dredging depth
Pump Flow	200 m3/h	800 m3/h	2000 m3/h
Power	100 kw	250 kw	600kw
Dregging depth	5-10m	10-20m	10-30m
Discharge distance	50-100m	100-500m	100-2000m
Sand output	40-60m3/h	160-250m3/h	400-600m3/h
Average Draught	0.6m	0.8m	1.4m
Pump Size	6 inch	8 inch	12 inch
LOA	16m	23m	33m
Application	River Pond Lake Sea	River Pond Lake Sea	River Pond Lake Sea

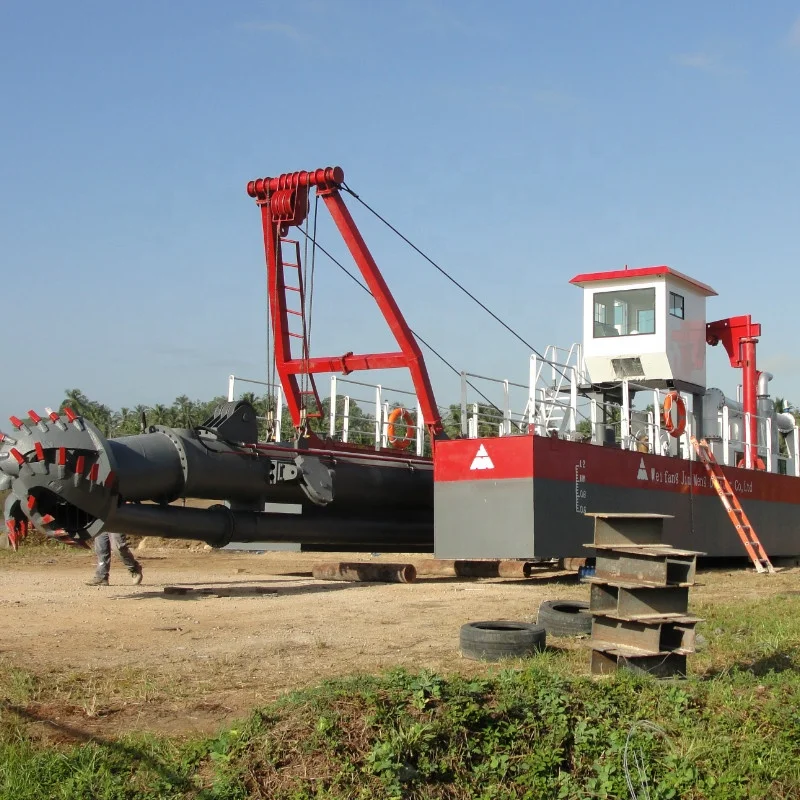

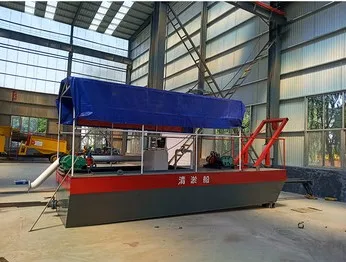

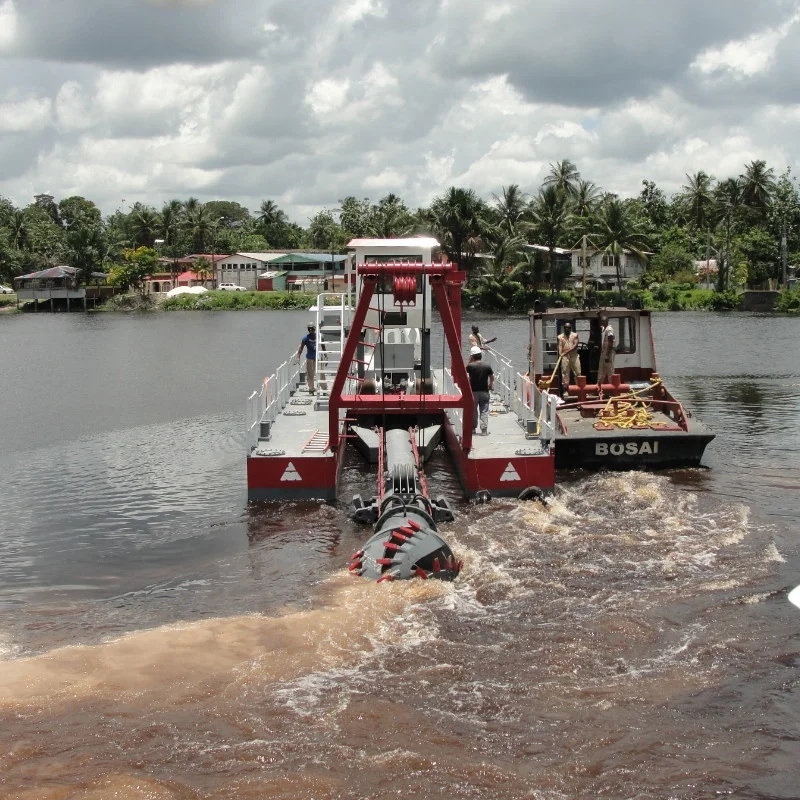

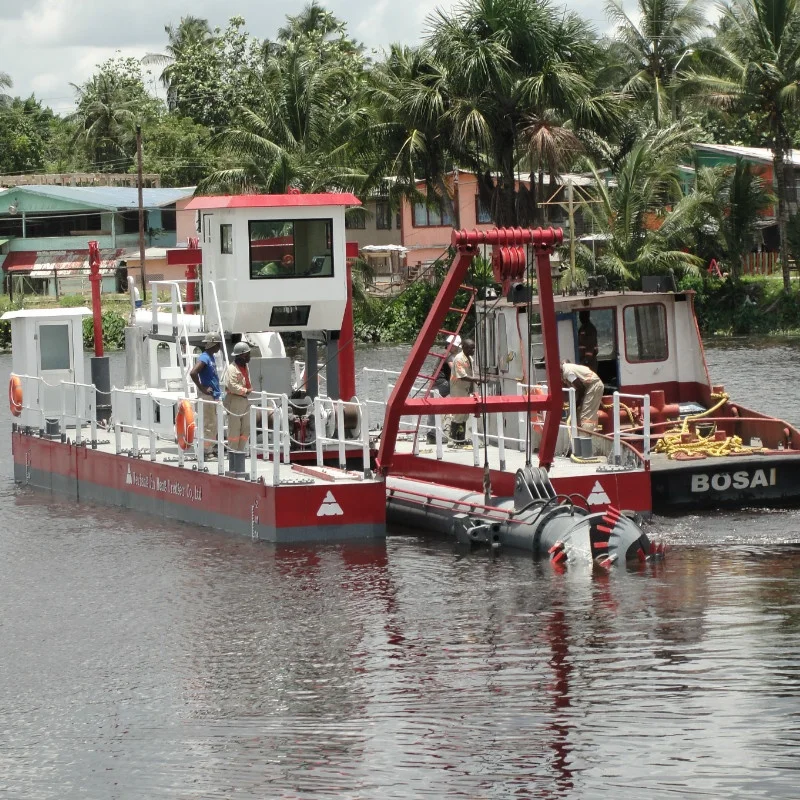

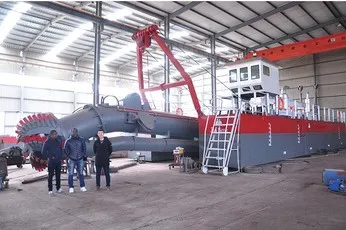

Detailed Images

Technical Details

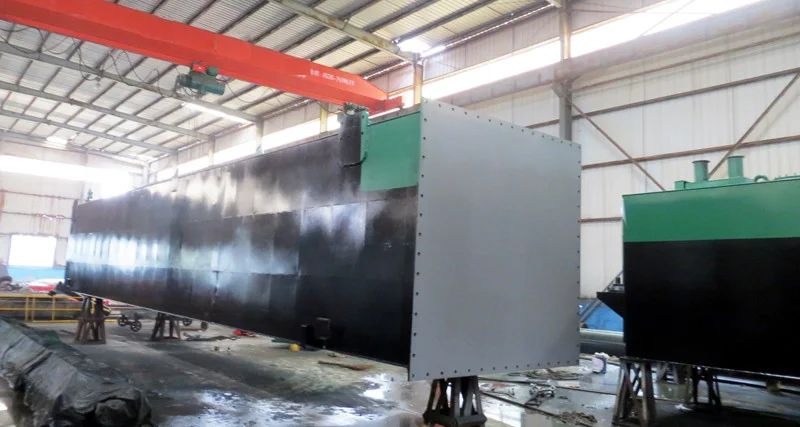

Dredger Photon

Name: dredger phonton
Photon material: Ship steel plate
Structure: Can be dismantle and assemble at working site

Photon quantity: two side photons and one main photon

Power System

Name: Diesel Engine
Brand: World famous CUMMINS brand

Weichai brand or as required
Power: 60-2000Kw
Function: Supply power to the dredger

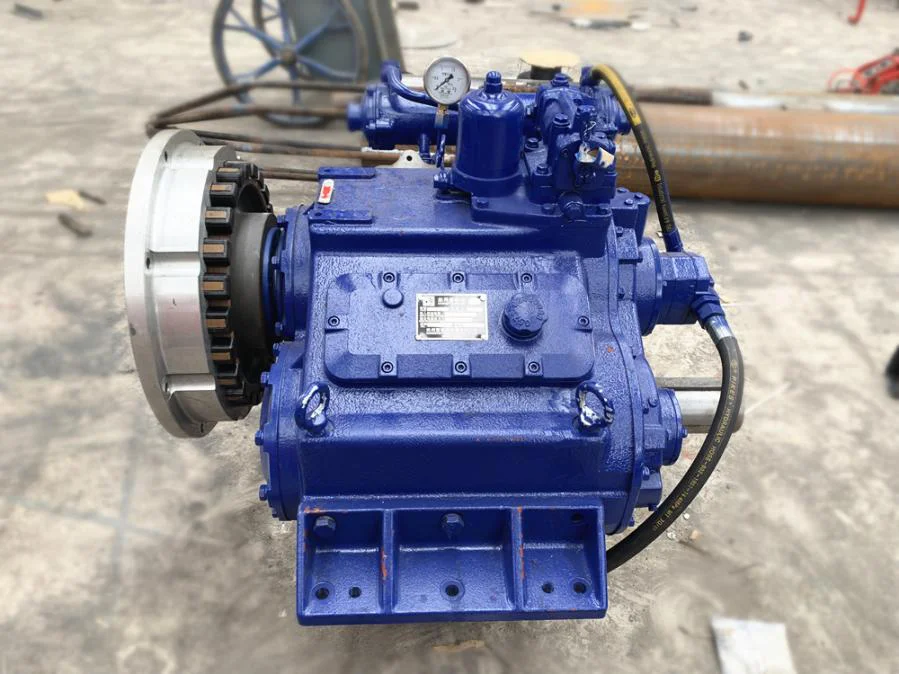

Marine Gear Box

Brand: China famous brand made in HangZhou

Guarantee:International Warranty Services

Speed Ratio: 2:1 2.5:1

Control way: Push-and-pull flexible shaft, electrically, pneumatically

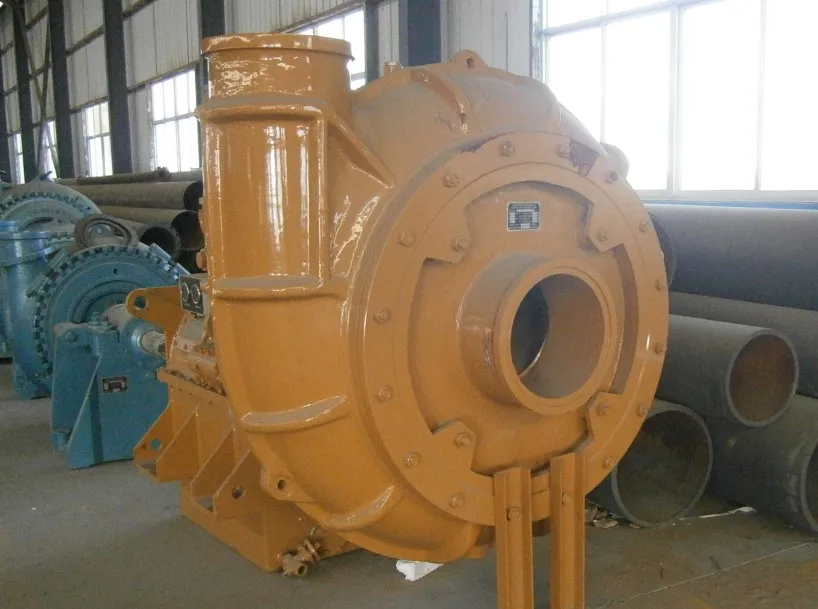

Sand Dredging Pump

Pump Flow: 100-5000m3/h

Sand output: 40-1500m3/h

Material: High chromium alloy
Super wearing-resistant

Discharge Distance: 100-2000m

Pump Sealing: Packing seal

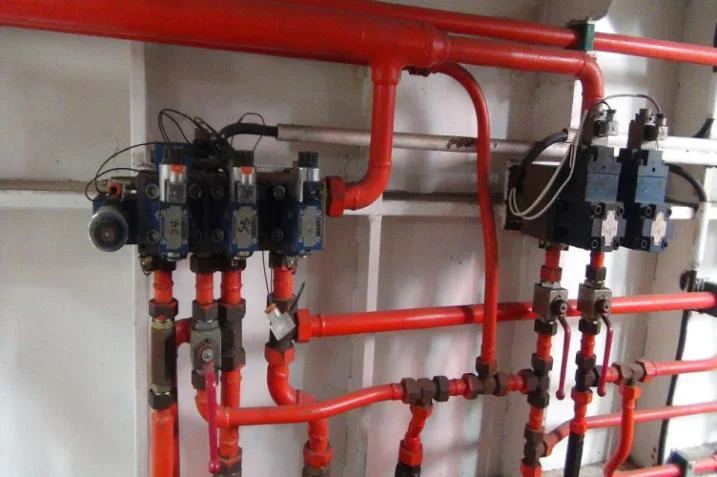

Hydraulic System

Cutter head hydraulic system

Spud hydraulic system

Winch hydraulic system

Hydraulic pump

Hydraulic oil tank and pipes

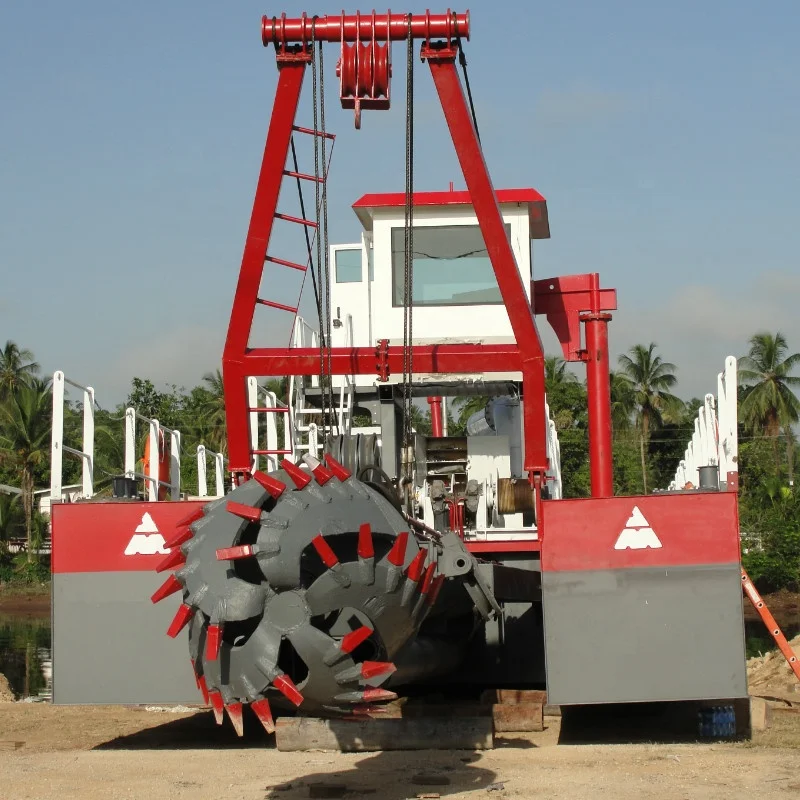

Cutter Head

Drive type: Hydraulic drive
Teeth type: Replaceable alloy teeth
Cutter teeth material: K10.40Cr wear-resisting

Cutter blade material: 16Mn

Cutter teeth quantity: Multi teeth

Spud system

Drive type: Hydraulic drive

Quantity: 4 sets

Steel Thickness: +16mm

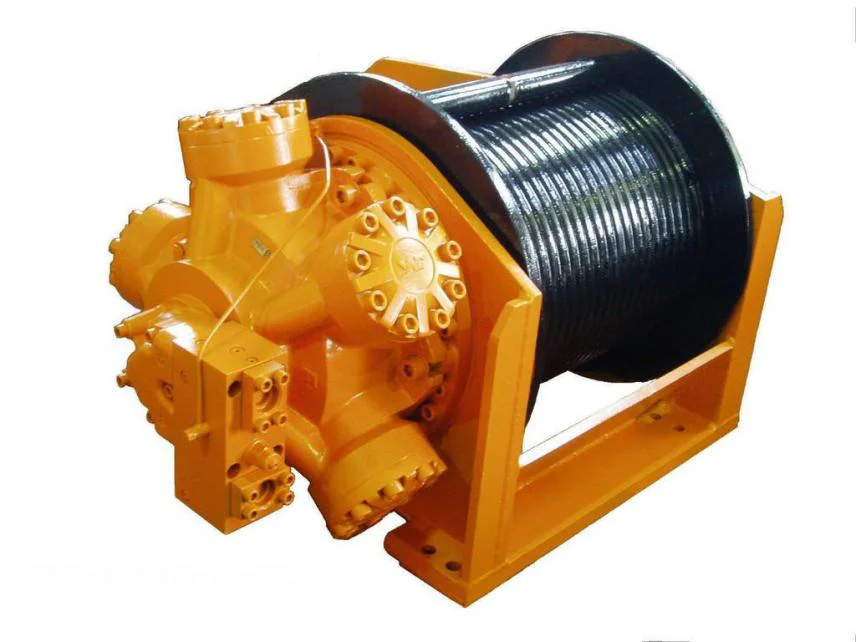

Hydraulic winch

Drive type: Hydraulic drive
Hydraulic bridge winch
Hydraulic Side winch
With wire rope and fix anchor

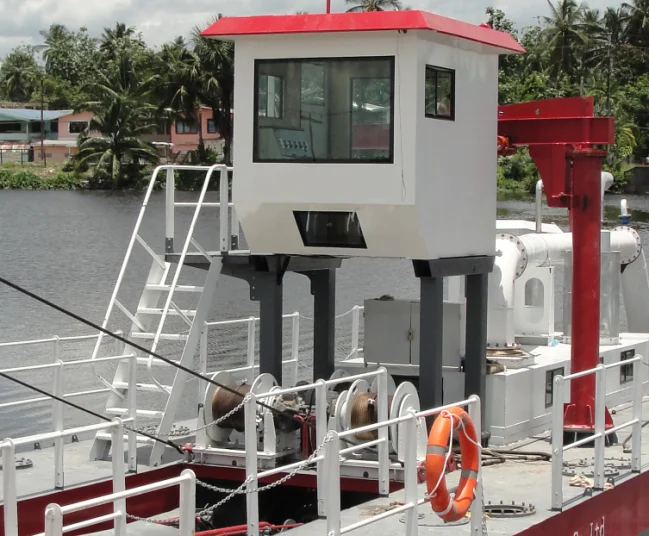

Controlling system

Working cabin with controlling system

Control desk: Integrated control
Delixi electrical accessories
Working chair 1 set

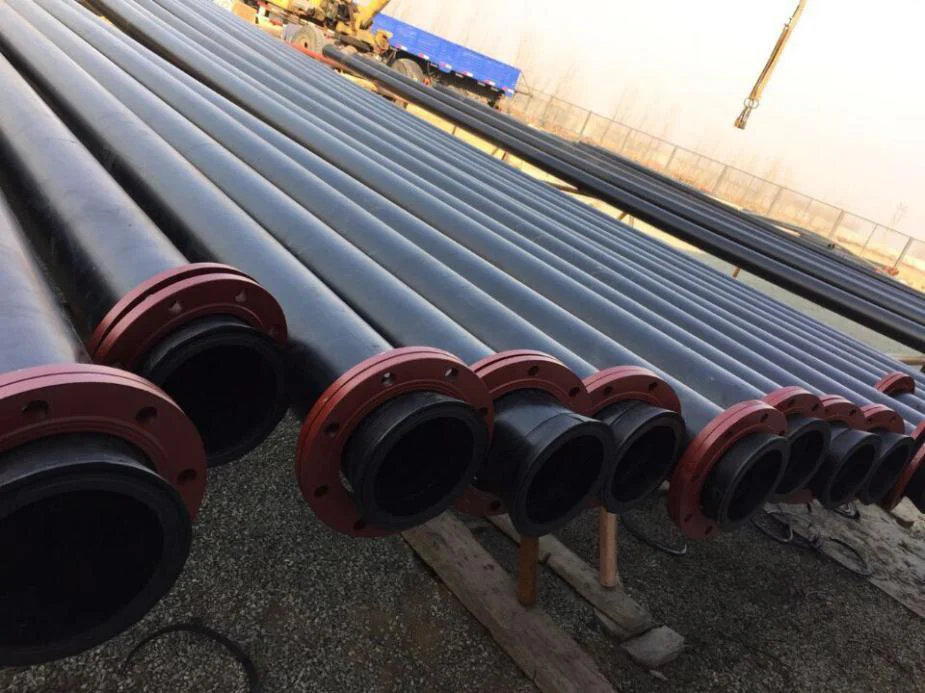

Discharge system

HDPE pipes with floaters

Connection rubber hose

Discharge distance customized

Realted Products

Our Service

Pre-Sales Service After-Sales Service

* Receiving clients inquiry * Design outlet with 3D drawing photo
* Studying clients mining conditions * Producing according to the design

* Introducing our machinery * Inspection and testing before delivery
* Propose the most suitable solution * Engineers installation and training service overseas

Packing & Delivery

Packaging of Gold Washing Dredger with Dredger Sluice Equipment
Container type	20'GP, 40'HQ
Container qty	1-6 pcs
Delivery time	10-30 days
Price items	EXW, FOB, CIF
Spare parts	Free spare parts avaiable
1: How long takes for installation ? -Normally within 7-10 days if everything is ready. 2: What are the oversea service charge ? -Airline tickets, visa fees and salary
