Новый стиль H-образный режущий станок воздушно-плазменный

Описание и отзывы

Характеристики

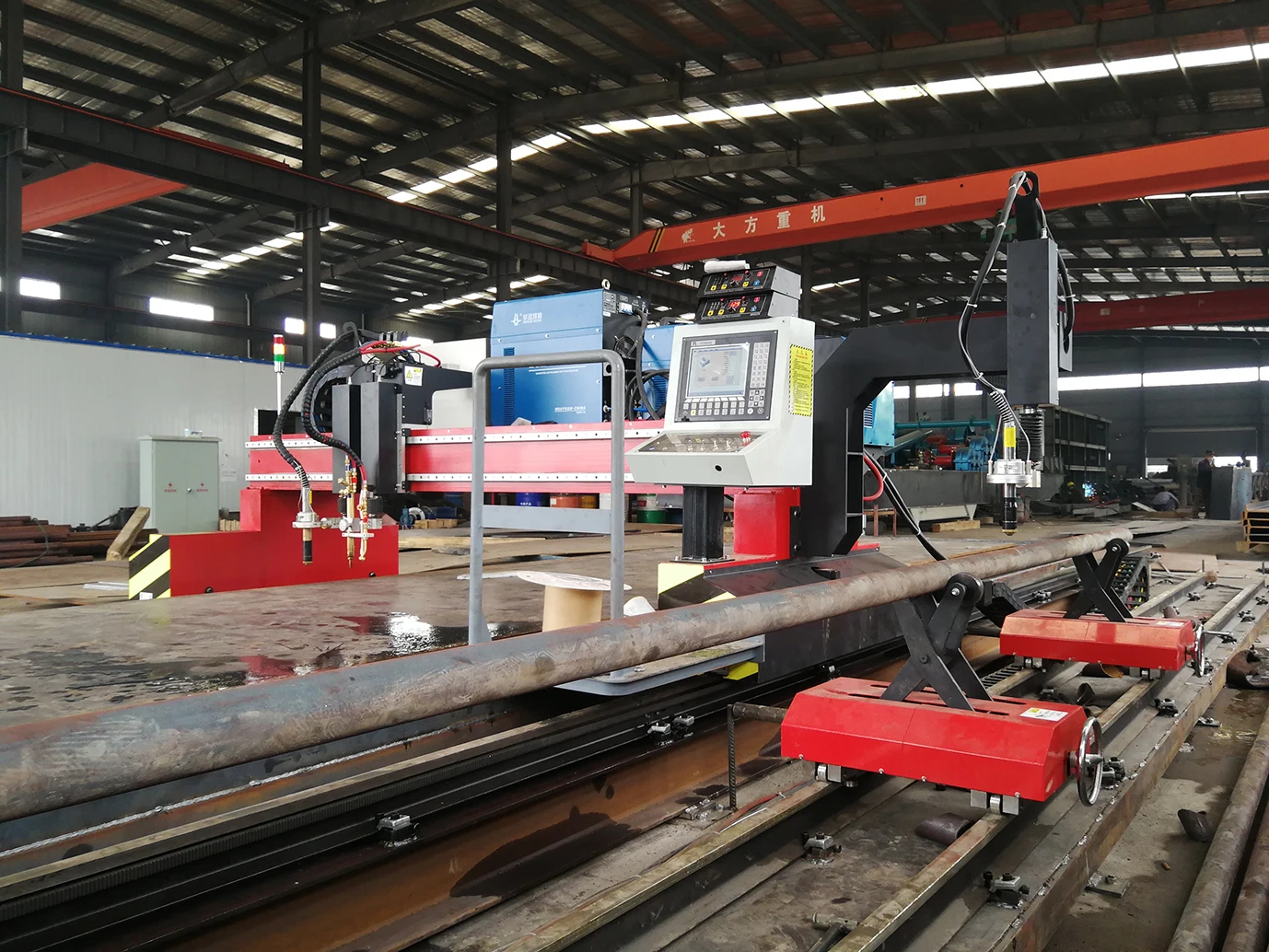

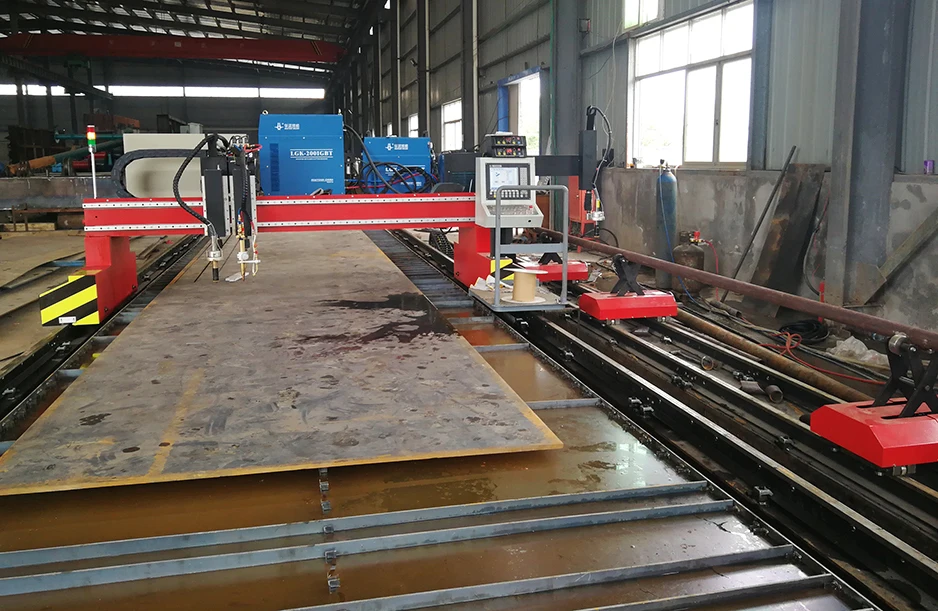

Gantry type tube sheet dual-purpose CNC cutting machine

Gantry Flame and Plasma CNC cutting machine is mainly used in all kinds of metal plates (such as: carbon

steel, stainless steel, aluminum, low alloy steel, aluminum alloy), but also in the complex pattern of the

above materials Processing.

Technical Specification
Product Name	Gantry type tube sheet dual-purpose CNC cutting machine
Model	MS-4GB-4012
Control system	Fang Ling F2300A
Motor	Panasonic servo motor
Color	Red,Blue,Yellow.
Cutting Mode	Plasma Cutting+ Flame Cutting
Flame Cutting Gas	Oxygen with propane or acetylene
Plasma Torch Gas	Compressed air/N2/O2
Working Area	3000mm*12000mm
Cutting thickness	0-150mm
Cutting speed	0-8000mm/min
Operation precision	0.2mm/m



MS-4GB series CNC plasma cutting machine is one of Messer's most mature models. It adheres to the high-quality and excellence manufacturing process that Messer CNC has always had.The machine runs smoothly and has rich configuration functions. High cost performance. The whole machine is made by laser cutting of the national standard 8mm steel plate, and the top and bottom are bent to improve the rigidity. The moving front plate is processed by a gantry planer, which greatly improves the rigidity of the whole machine and prolongs its service life. The structure of the whole machine is reasonably designed according to the golden section ratio. It uses the conventional central electrical control cabinet and central centralized gas path control design. The cable and gas pipe layout is reasonable, and the machine has good grounding and anti-electromagnetic interference performance. The requirements are configured with different numbers of plasma flame cutting heads to meet the requirements of different customers.



Main Features:

1.CNC gantry flame cutting is mainly suitable for cutting carbon steel within 5-200mm, and steel plates above 200mm require specific air valves; air pipes; and flame torches.

2.Flame cutting can realize automatic ignition device; can greatly reduce the danger caused by industrial ignition and improve work efficiency.

3.Straight single cutting torch can cut high-precision cutting of 6-200mm carbon steel plate.

4.Flame cutting gas source uses oxygen + gas (acetylene, industrial propane liquefied gas)

5.The entire CNC frame is tempered; the main purpose of this is to heat treat the steel to a temperature at which a phase change or partial phase change occurs, and then slowly cool it after heat preservation. The purpose of annealing is to eliminate structural defects, improve the organization to homogenize the composition and refine the grains, improve the mechanical properties of steel, reduce residual stress; at the same time can reduce hardness, improve plasticity and toughness, and improve cutting performance.
