Products Description

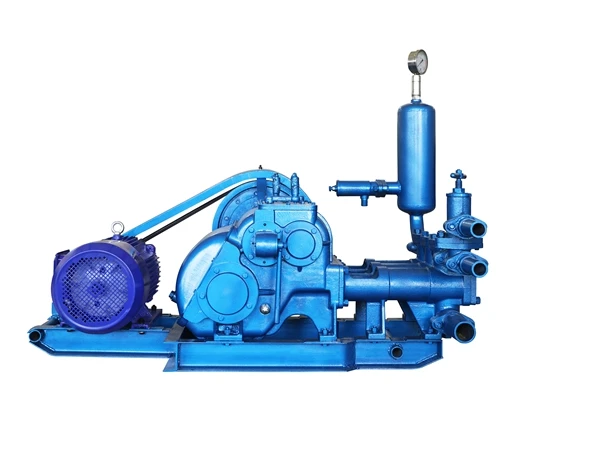

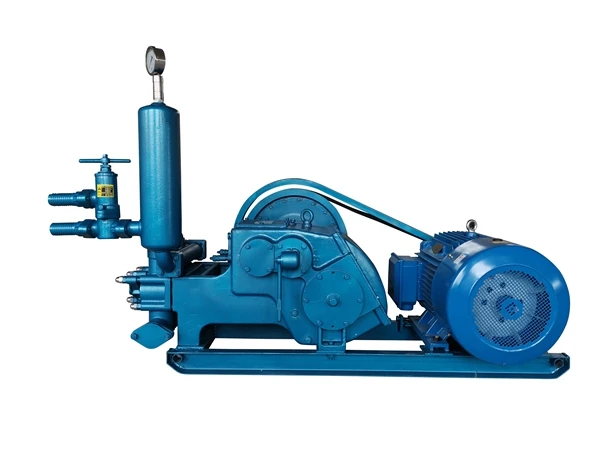

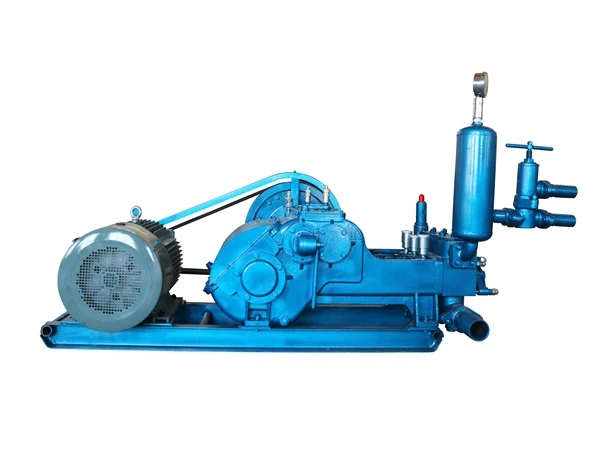

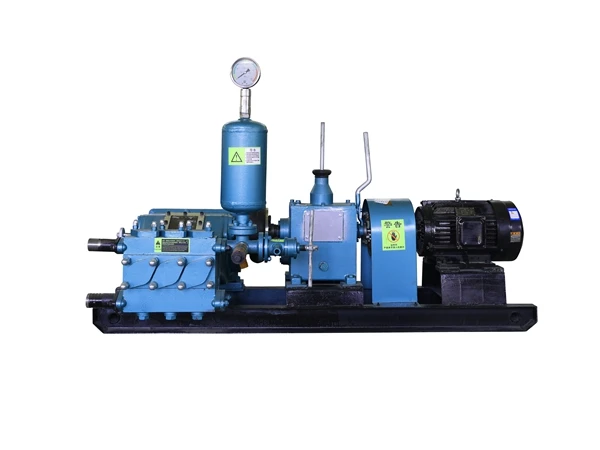

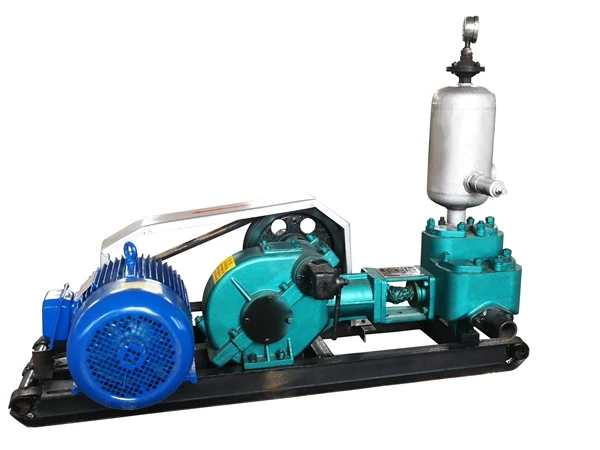

BW MUD PUMP :
1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor
power, It has simple operation, convenient, can achieve close range or remote control.
2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,
stable performance, good general and so on.
3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable
configuration parameters selection,The construction technology can satisfy different requirements.
4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy
geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.
1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor
power, It has simple operation, convenient, can achieve close range or remote control.
2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,
stable performance, good general and so on.
3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable
configuration parameters selection,The construction technology can satisfy different requirements.
4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy
geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.
Main Parameter of Horizontal Mud Pump
Model | BW150 | BW160 | BW250 | BW320 |
Max. Flow rate | 150L/min | 160L/min | 250L/min | 320L/min |
Max. pressure | 7Mpa | 10Mpa | 6Mpa | 8Mpa |
Power | 7.5kw | 11kw | 15kw | 30kw |
Inlet pipe diameter | 51mm | 51mm | 76mm | 76mm |
Outlet pipe diameter | 32mm | 32mm | 51mm | 51mm |
Weight | 560kg | 480kg | 760kg | 1000kg |
Model | BW450 | BW600 | BW850 |
Max. Flow rate | 450 L/min | 600L/Min | 600L/min |
Max. pressure | 2 Mpa | 6Mpa | 3Mpa |
Power | 18.5kw | 37kw | 45kw |
Inlet pipe diameter | 89mm | 100mm | 180mm |
Outlet pipe diameter | 51mm | 80mm | 150mm |
Weight | 540kg | 700kg | 1450kg |
Company Profile
Quzhou Jugong Machinery Co.,Ltd.specialized in machine R&D and manufacturing for 10 years. Our product cpvers air compressors,jack hammer,drill rig,drill rig,parts,booster,tunnel shotcreting machine and other machinery hardware product etc.
Our products are popular in more than 50 areas, such as Europe , South America, Southeast Asia, the middle East and etc.
We have advanced new design every year. We are always ready to provide quality products and good after-sales service for every customer. As Chinese professional machinery manufacturer and exporter, we sincerely hope to eastablish business relations with your esteemed corporations.
Our products are popular in more than 50 areas, such as Europe , South America, Southeast Asia, the middle East and etc.
We have advanced new design every year. We are always ready to provide quality products and good after-sales service for every customer. As Chinese professional machinery manufacturer and exporter, we sincerely hope to eastablish business relations with your esteemed corporations.
Certifications
Our Service
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products??Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products??Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Recommend Products
We can supply all series of drilling equipment and drilling tools
Our products use high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection.
Our products use high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection.
Product range covers:Down the hole hammer and bits(dth hammers and dth bits),drill pipes, threaded drilling bits, reverse circulation hammers and bits, shank adapters and coupling sleeves, drilling rig, air compressor and spare parts for drill equipment.
All products are interchangeable with various products manufactured by Atlas Copco.
