Products Description

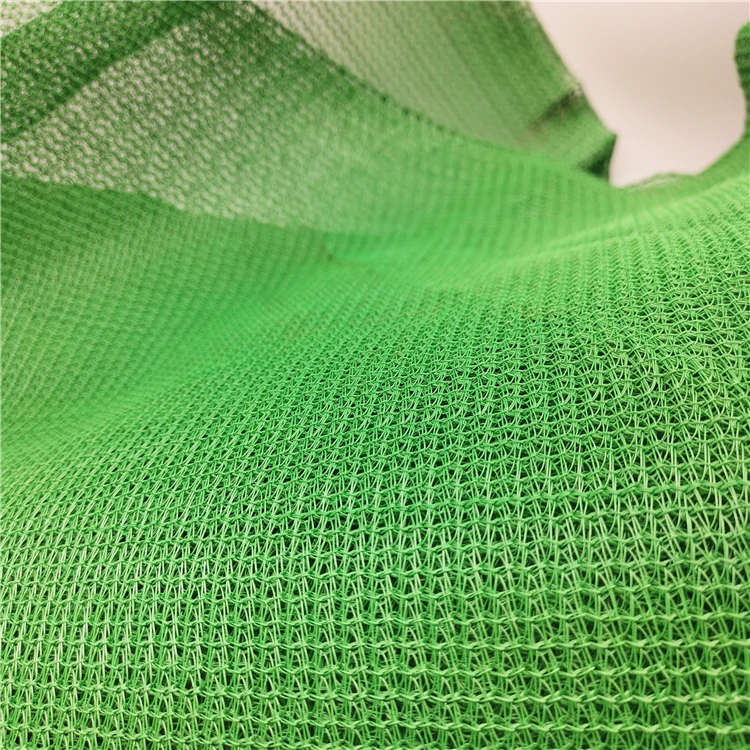

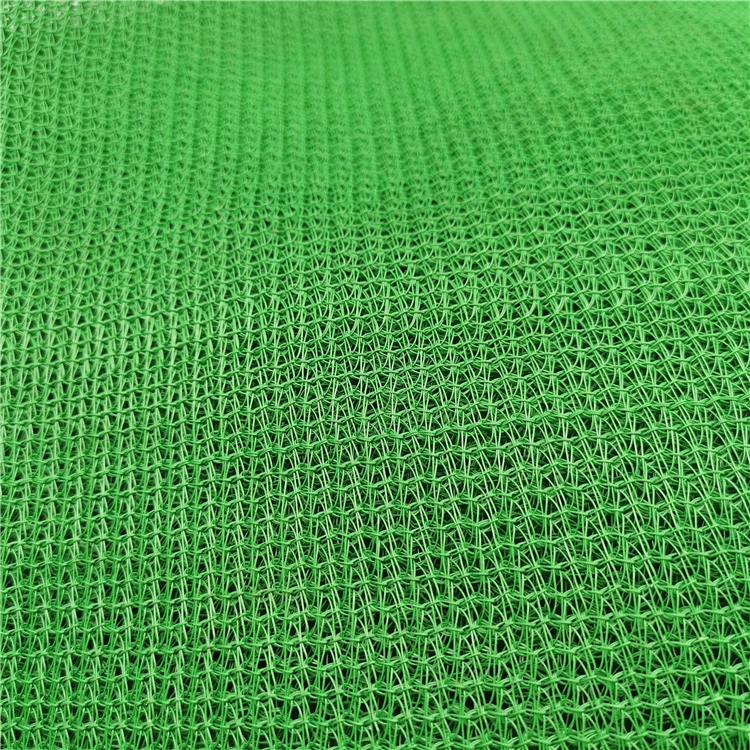

Flow media is a kind of resin drainage medium with low cost, which is widely used in vacuum infusion molding process. It can make resin permeate into any part of the products evenly and quickly. According to the different molding technology of products, it can be divided into two types: weaving type and extruding type. It has been proved that, extruding type can make workers easy to tile them without any curl. While regarding the weaving type, it is good for the flowing of air and resin because of its three-dimensional weaving structure. The demoulding effect is good and the cost is lower. Flow media mesh can be cut into any shapes. It is suitable for different shapes of products, with low consumption and good economic performance. It is widely applied to aerospace, wind-power blades, shipbuilding, racing, automotive, sports equipments and such composite manufacture industries.
Typical Types
Product No. | Gram Weight (g/㎡) | Color | Width（mm） | Temp. Resistant （℃） | Type |
SXFMW100 | 100 | Green、Black、White | 2000/4000 | ≤150 | weaving |
SXFMW160 | 160 | Green、Black、White | 2000/4000 | ≤150 | weaving |
SXFME100 | 100 | Green | 1200 | ≤150 | extruding |
SXFME200 | 200 | Green | 1200 | ≤150 | extruding |
SXFME230 | 230 | Green | 1200 | ≤150 | extruding |
Applications
With the continuous improvement of low viscosity, low exotherm, and thermosetting resin system on manufacturing technology, the core material with good diversion performance, the vacuum resin infusion processing is gradually widely used in composite materials production, so as to achieve the desire of improving FRP product quality, maintaining the integrity of its structure, reducing weight, and reducing overall costs becomes possible. This process has been successfully applied to large wind blades and nacelle covers, train head covers, safety helmets, yachts, ship, sports equipment, etc.

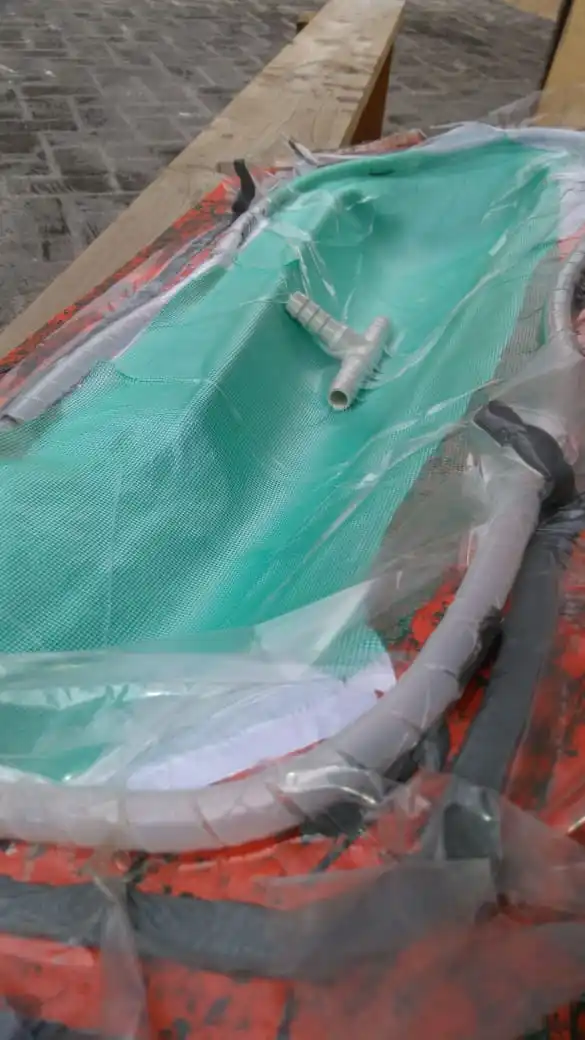

Vacuum Infusion processing is a new type of low-cost composite material large-scale forming technology, which eliminates the air of fiber reinforcement materials under vacuum, the use of auxiliary materials can help exhaust excess air, control the resin flow well, achieve impregnation to the fibers and fabrics, so that it can be cured successfully and perfectly.
Vacuum Infusion processing is a new type of low-cost composite material large-scale forming technology, which eliminates the air of fiber reinforcement materials under vacuum, the use of auxiliary materials can help exhaust excess air, control the resin flow well, achieve impregnation to the fibers and fabrics, so that it can be cured successfully and perfectly.
Packing and Shipping
PACKAGING

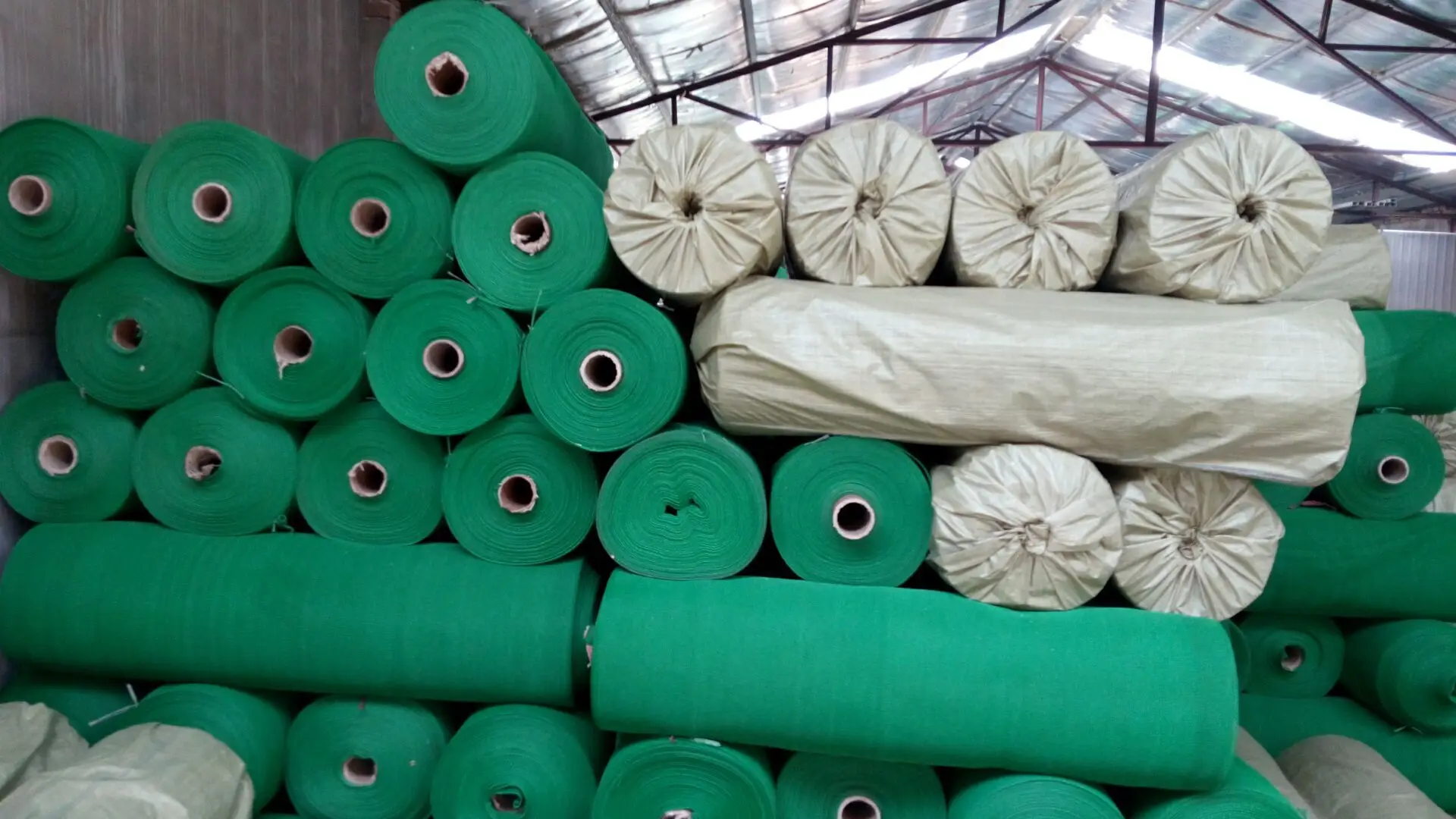

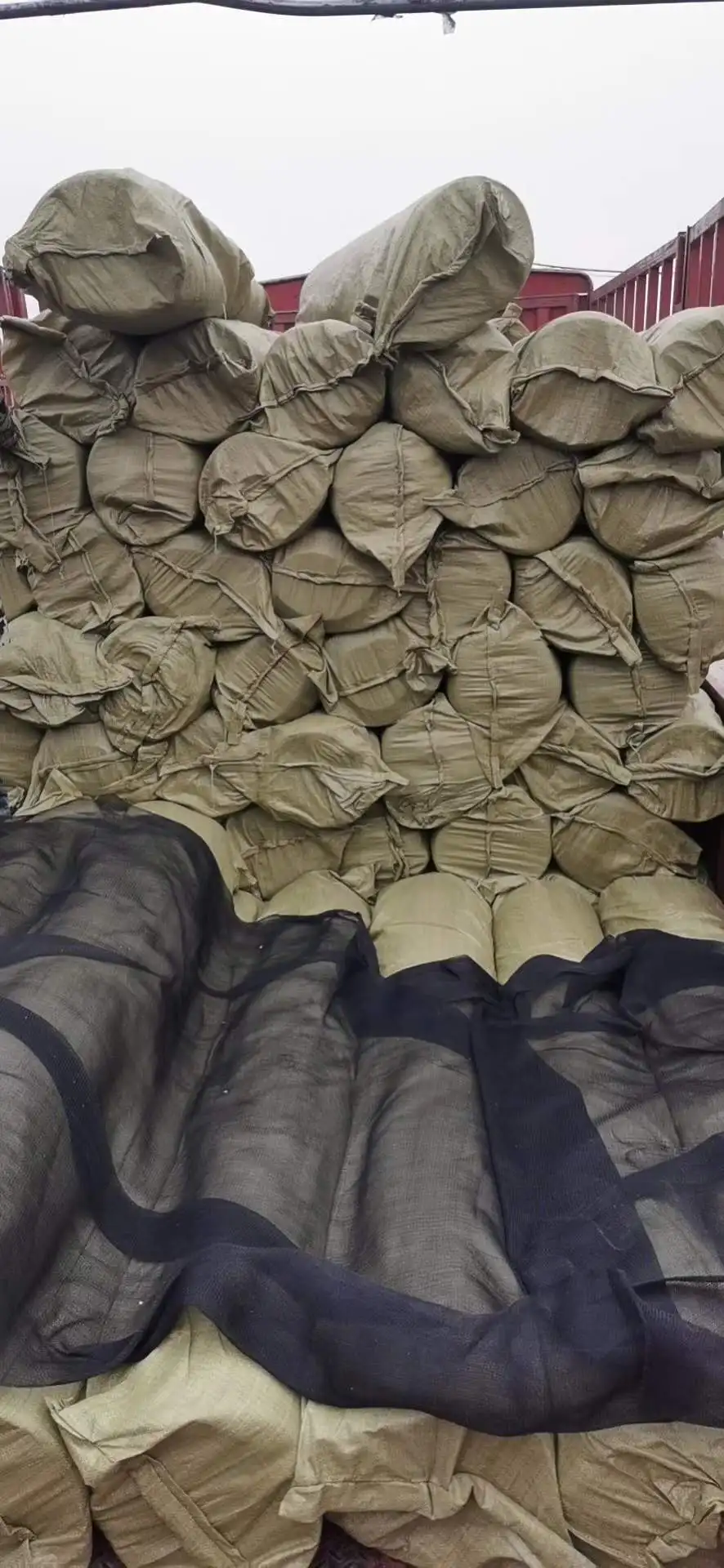

Product is manufactured in form of a roll wound on a paper tube. Each roll is packed in a plastic bag and placed within a cardboard carton. Positioned securely on to a pallet, strapped and covered.
Customized dimension and packaging also are welcome.
SHIPPING
For large cargo and not urgent needed, we recommend to ship by sea.
For urgent needed goods, by air is more suitable.
For samples, it is available to ship by DHL/Fedex/UPS/TNT/EMS or other way express
STORAGE
It is recommended that the product are stored in a cool and dry environment .
Recommended temperature range of storage is between 10-30℃ and relative humidity between 50-75%.
The product should remain in the packaging until just prior to use. Pallets should be stacked only one high.
Product is manufactured in form of a roll wound on a paper tube. Each roll is packed in a plastic bag and placed within a cardboard carton. Positioned securely on to a pallet, strapped and covered.
Customized dimension and packaging also are welcome.
SHIPPING
For large cargo and not urgent needed, we recommend to ship by sea.
For urgent needed goods, by air is more suitable.
For samples, it is available to ship by DHL/Fedex/UPS/TNT/EMS or other way express
STORAGE
It is recommended that the product are stored in a cool and dry environment .
Recommended temperature range of storage is between 10-30℃ and relative humidity between 50-75%.
The product should remain in the packaging until just prior to use. Pallets should be stacked only one high.
