 Cheap city mini patient transport ambulance









Technical specs of vehicle
Basic Specification	Wheelbase (mm)	2590
	Wheel tread (mm):	1450 / 1430 (front/rear)
	Minimum ground clearance (mm)	-
	Turning diameter (m):	11
	Approach Angle/Departure Angle(°)	-
	Overall dimensions (mm):	4950×1700×2420
	Dimension of Patient's compartment (mm):	2900×1540×1600
	Complete vehicle curb mass:(kg):	1,755
	GVW (kg):	2860
	Number of seats:	5,6,7 seats
	No. of Tires:	4
	Tire:	185R14C, 195/70R15C Meridian vacuum tyre
Engine	Engine:	V20
	Fuel type:	Petrol
	Working manner:	in-line, 4 cylinders, inter-cooling, direct injection, gasoline engine
	Displacement (ml.):	2020
	Emission standard:	GB18352.5-2013 China V
	Maximum power:	81kw
Gearbox	Gearbox:	5 speed, manual
Chassis	Brake System:	front disc / rear drum
	Chassis :	XML6502J65
	Front / Rear overhang:	1014/1027
	Service Brake:	Front disc rear disc
	Suspension System:	McPherson independent front suspension, plate spring non-independent rear suspension
	Parking Brake:	Manual Mechanical
	Fuel tank capacity (L):	70
	Max. speed (Km/h):	156
Standard Configuration	1. Electric side mirrors  2. Power window  3. Vehicle-mounted radio  4. Central control door lock (remote key is optional)  5. Hand-free Intercom system between driver's cab and patient's compartment  6. 2 seats in driver's cab  7. Upward open rear door
Options	1. LHD + Petrol Engine  2. RHD + Petrol Engine  3. RHD + Diesel Engine

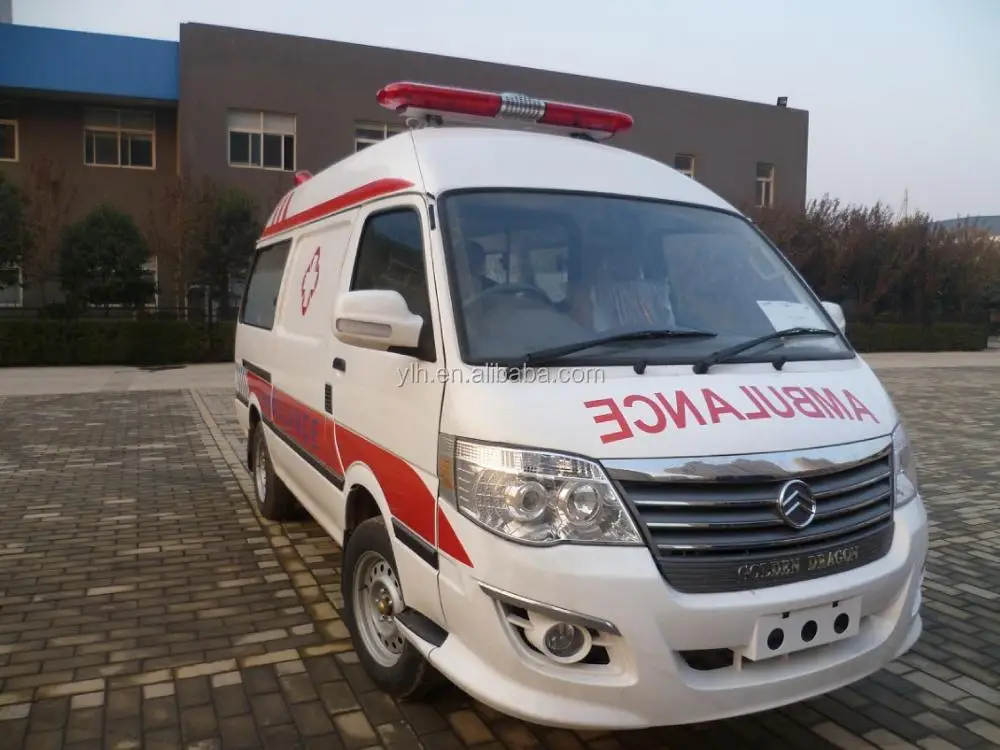

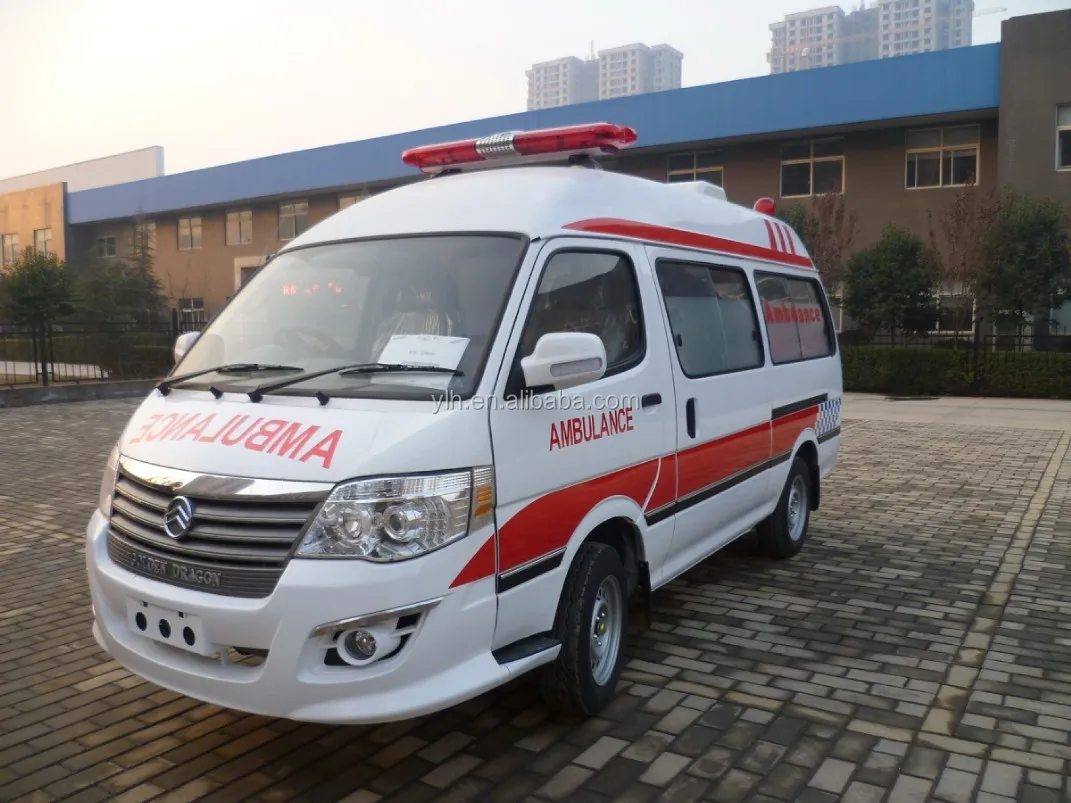

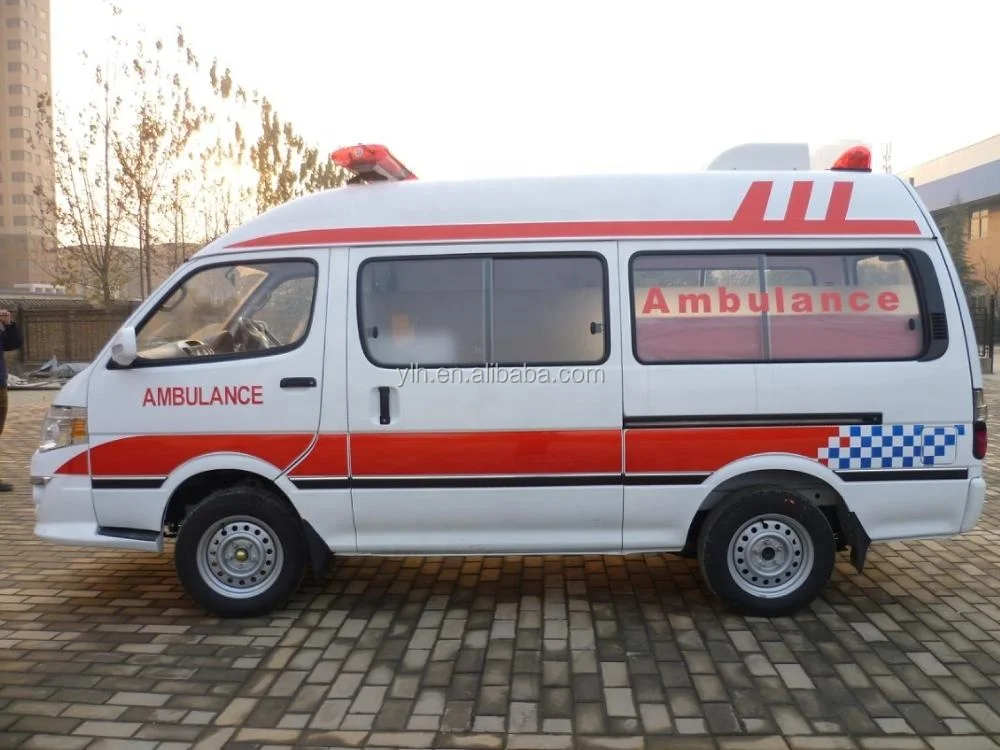

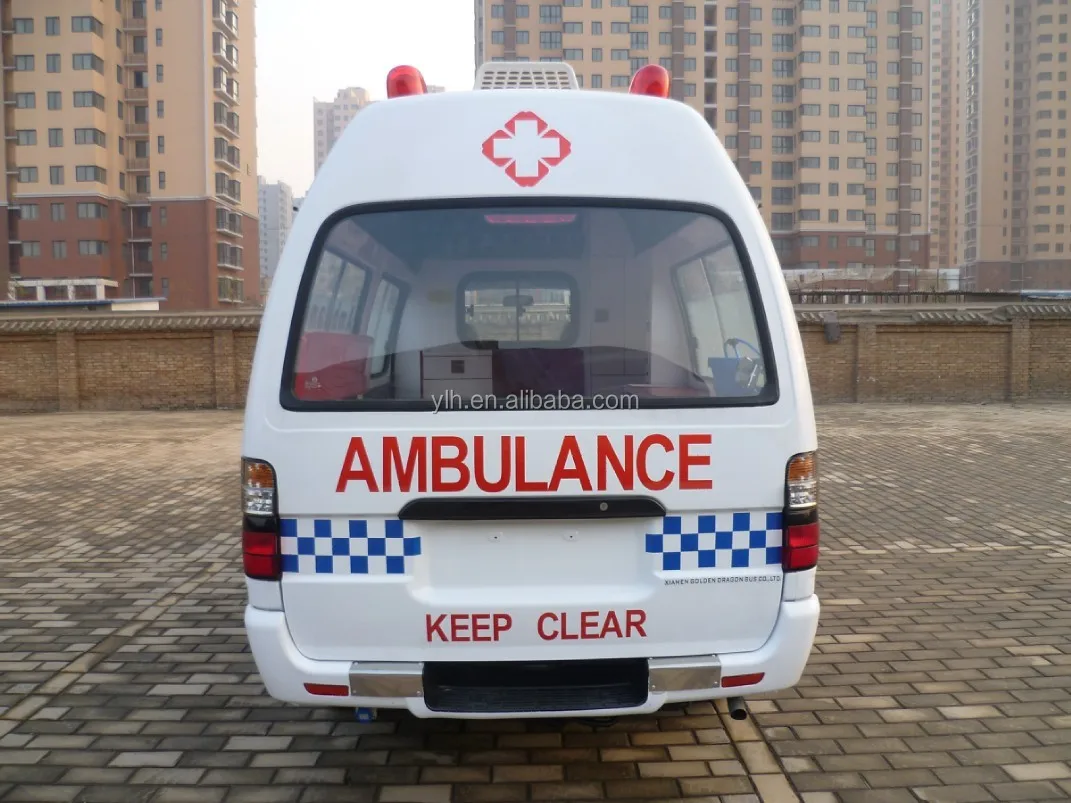

Overall View Of The Ambulance















1.   This ambulance has good driving quality and plenty of power.

2.   This ambulance is suitable for hospitals to transfer patients.

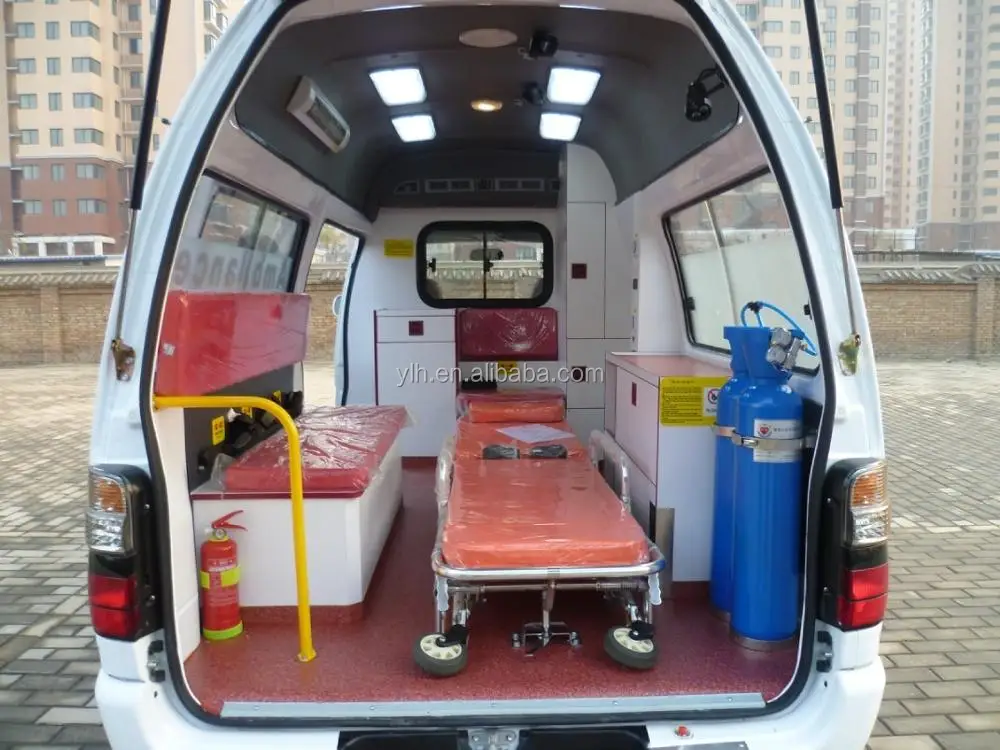

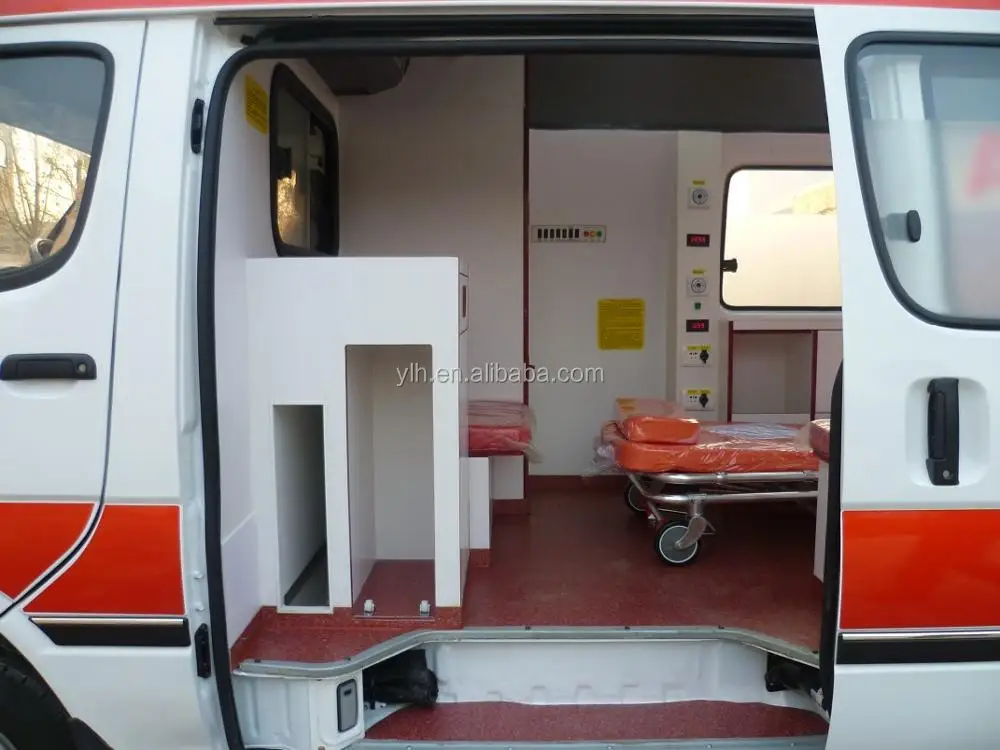

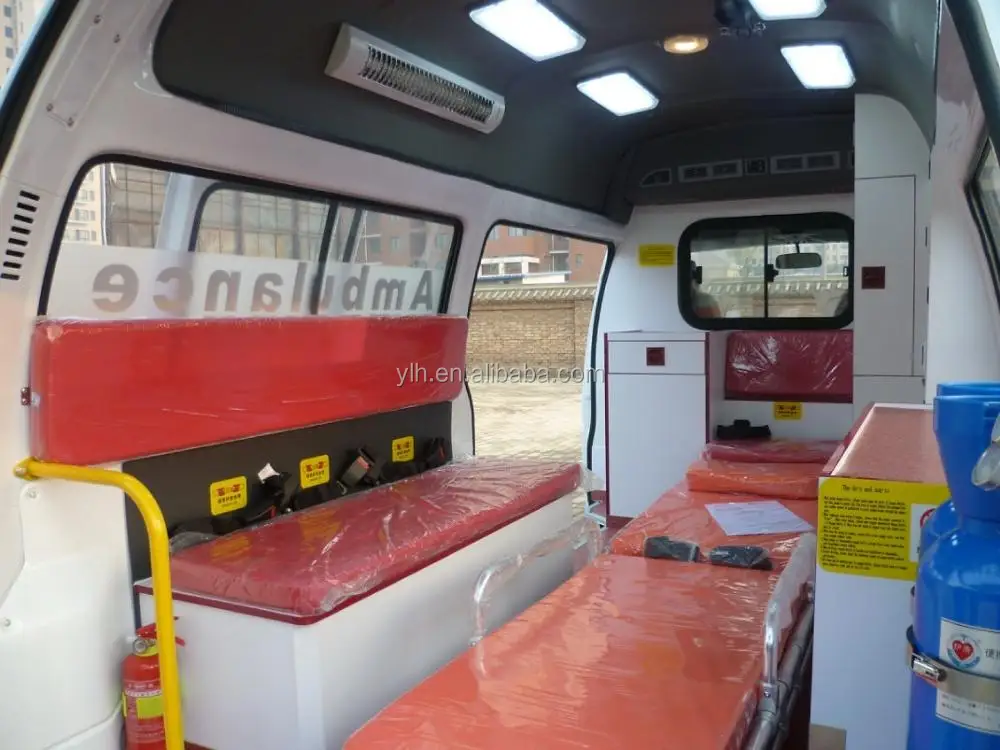

Internal View Of Equipments



















1.  The space designed reasonable fully equipped with medical equipment.

2.  The size of the vehicle is small, and it can satisfy the entry of vehicles in small areas and narrow roads.

3.   The vehicle is suitable for long-distance transportation of non-critical patients or emergency treatment in areas with high population density.





Medical Devices (Standard Configuration)





Optional Devices And Accessories
