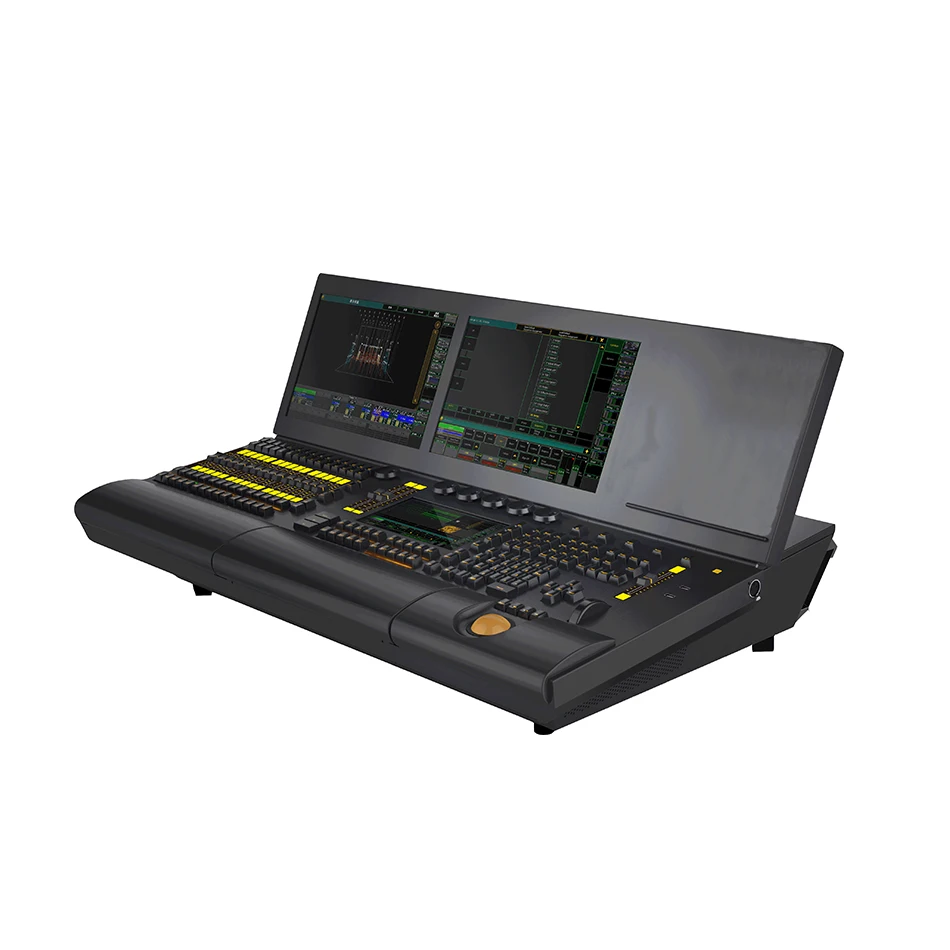

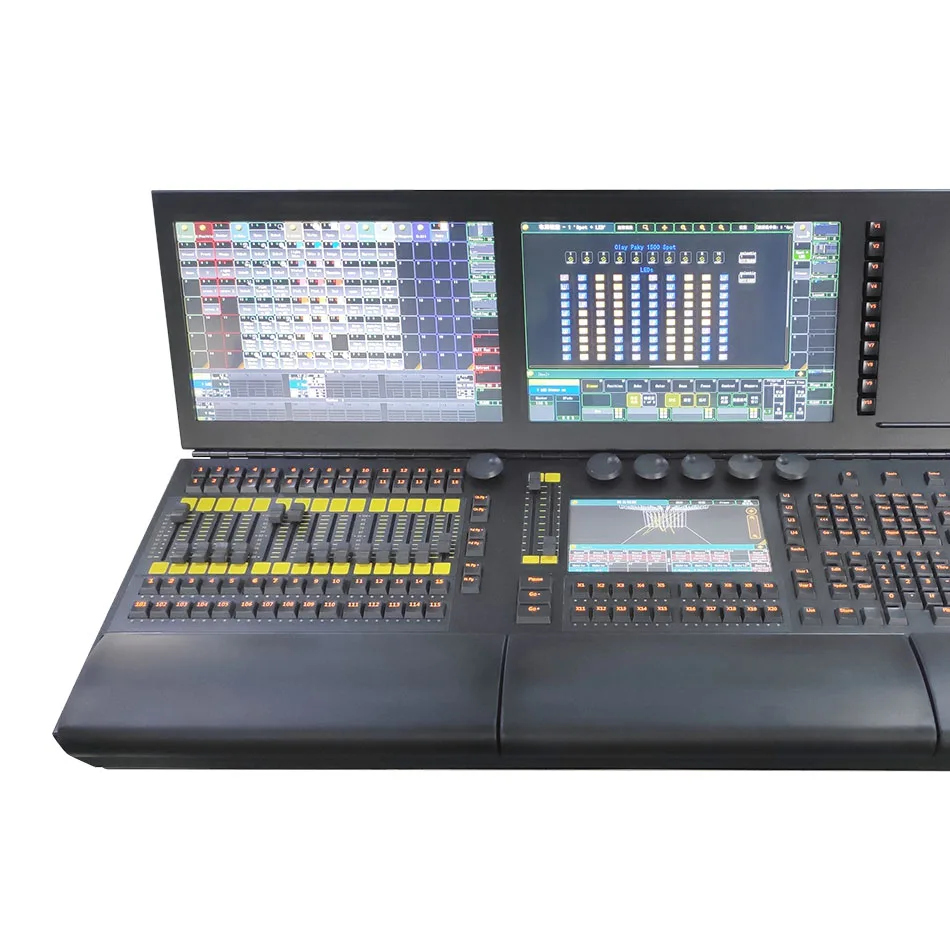

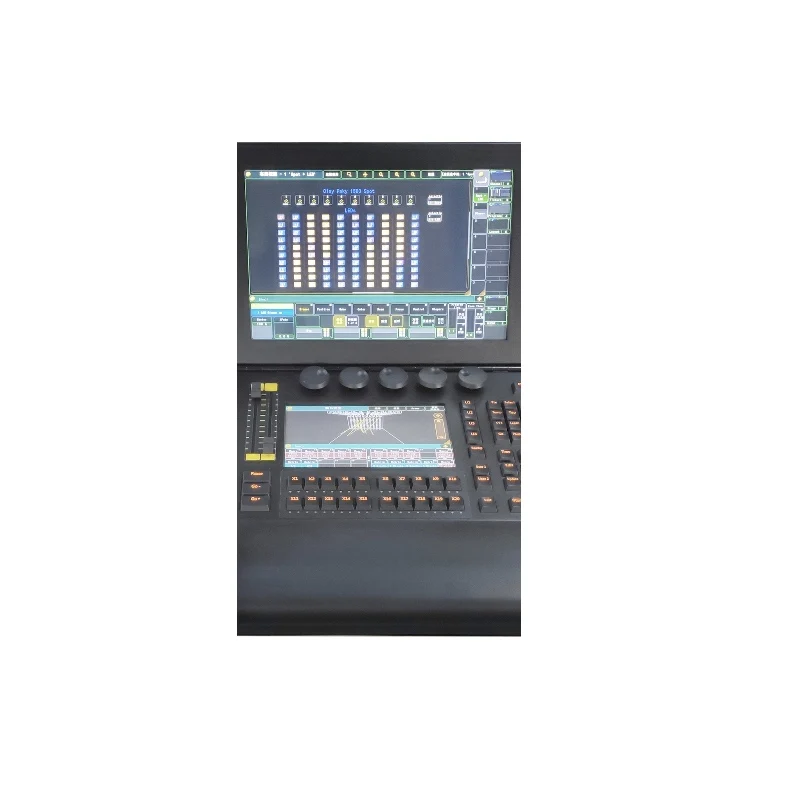

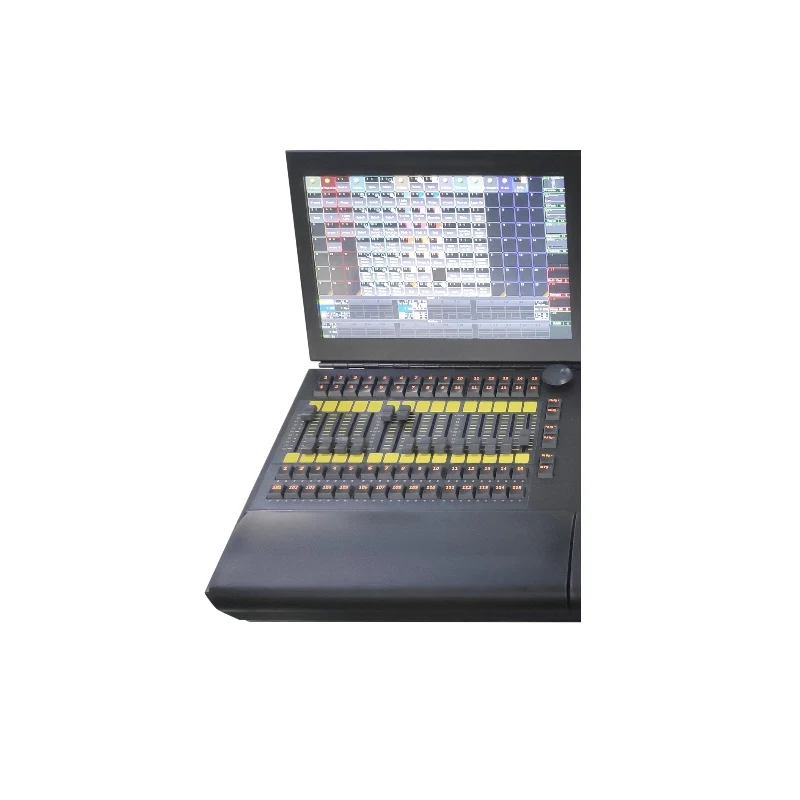

grand ma LED stage lighting console DMX 512 MA2 light controller
Console light is a popular lighting control desk for CERO Tech.
It is the perfect controller to control all kinds of lighting fixture like conventional light, moving lights, LEDs, video and media and supplies an intuitive and fast control of all connected fixtures and channels. It can handle an almost infinite number of presets, cues, pages, sequences and effects.
Product Features
MA2 light with Linux version:

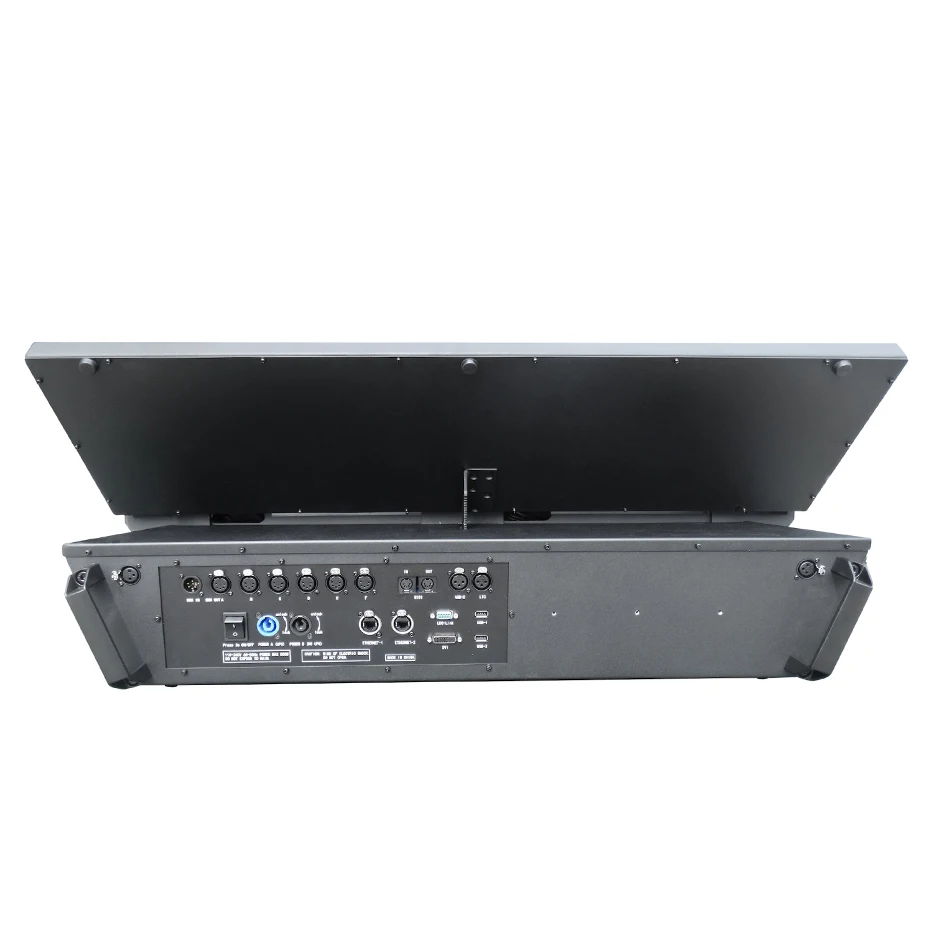

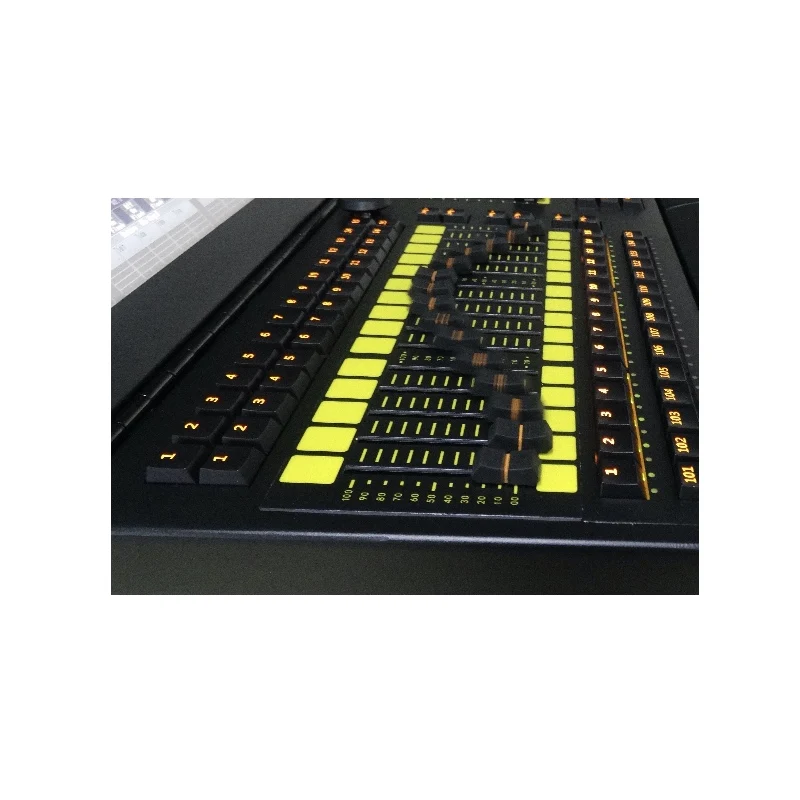

Hardware Specification: * Real-time control for up to 65,536 parameters per session in connection with NPU (equivalent to 256 DMX universes) * 4,096 parameters * 6 x DMX outputs+ 1 x DMX input * NEUTRIK connector, XLR, female, 3-pin or 5-pin are optional * 2 x internal TFT wide mode touchscreens (15.4" WXGA) * 1 x internal command screen (9" SVGA) * 15 x motorized executor faders * 2 x motorized A/B fader (100mm) * 1 x master motorized faders * 2 x Integrated keyboard drawer * 6 x encoders * 1 x trackball * 1 x dimming wheel * 1 x LDS-Link for fader wing * 1 x DVI for external touchscreen * 2 x gigabit Ethernet port * 4 x USB2.0 * MIDI in and out * LTC/SMPTE timecode * Motorized monitor wing * Built-in uninterruptible power supply (UPS) * AC power: 90-260VAC, 50/60Hz
Software Specification: * Linux operation system * Support ArtNet * Support DMX512 * Support sACN protocol * The system can be installed via USB flash * Program data can be saved on hard disk or U disk * Support multiple online backup * Support wireless remote control with iPhone/iPad * Support stage 3D effect simulation, real-time scene simulation * Support RDM management * Support WYSIWYG connection * Support massive light library * Support LTP and HTP * Support MIDI time code and internal time code * Powerful Layout management * Support multi-user operation, and can set the user permissions * Each kind of material such as color, gobo, beam, position can save 1000 * Support 10000 marshals, support 10000 effects * Support 10000 programs, each program can contain 9999 scenarios
MA2 lite with Windows version:
Hardware Specification: * Real-time control for up to 65,536 parameters (equivalent to 256 DMX universes) * Standard version: i5 CPU, 120G SSD, 8GB RAM, discrete graphics card Advanced version: i7 CPU, 120G SSD, 16GB RAM, discrete graphics card * 6 x DMX outputs+ 1 x DMX input * NEUTRIK connector, XLR, female, 3-pin or 5-pin are optional * 2 x internal 15.4" touchscreens * 1 x internal 9" command screen * 15 x manual faders * 2 x manual A/B faders * 1 x master manual faders * 1 x drawer * 1 x keybard drawer * 6 x encoders * 1 x trackball * 1 x dimming wheel * 1 x gigabit Ethernet port * 4 x USB2.0 * MIDI in and out * LTC timecode * Motorized monitor wing * Built-in uninterruptible power supply (UPS) * AC power: 90-260VAC, 50/60Hz
Software Specification: * Windows operation system * 4,096 parameters, up to 256 DMX universes with Art-Net * Support ArtNet * Support DMX512 * The system can be installed via USB flash * Program data can be saved on hard disk or U disk * Support multiple online backup * Support wireless remote control with iPhone/iPad * Support stage 3D effect simulation, real-time scene simulation * Support RDM management * Support MA3D、Madrix、Arkaos、Wysiwyg * Support massive light library * Support LTP and HTP * Support MIDI time code * Powerful Layout management * Support multi-user operation, and can set the user permissions * Each kind of material such as color, gobo, beam, position can save 1000 * Support 10000 marshals, support 10000 effects * Support 10000 programs, each program can contain 9999 scenarios

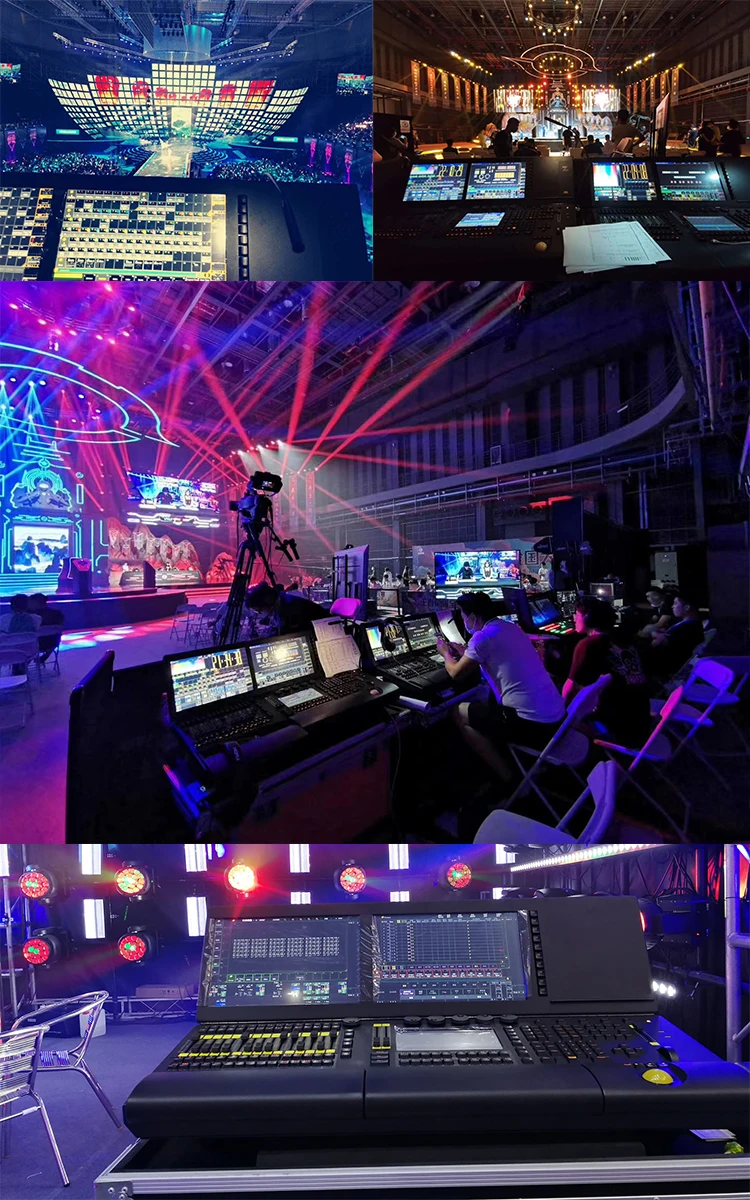

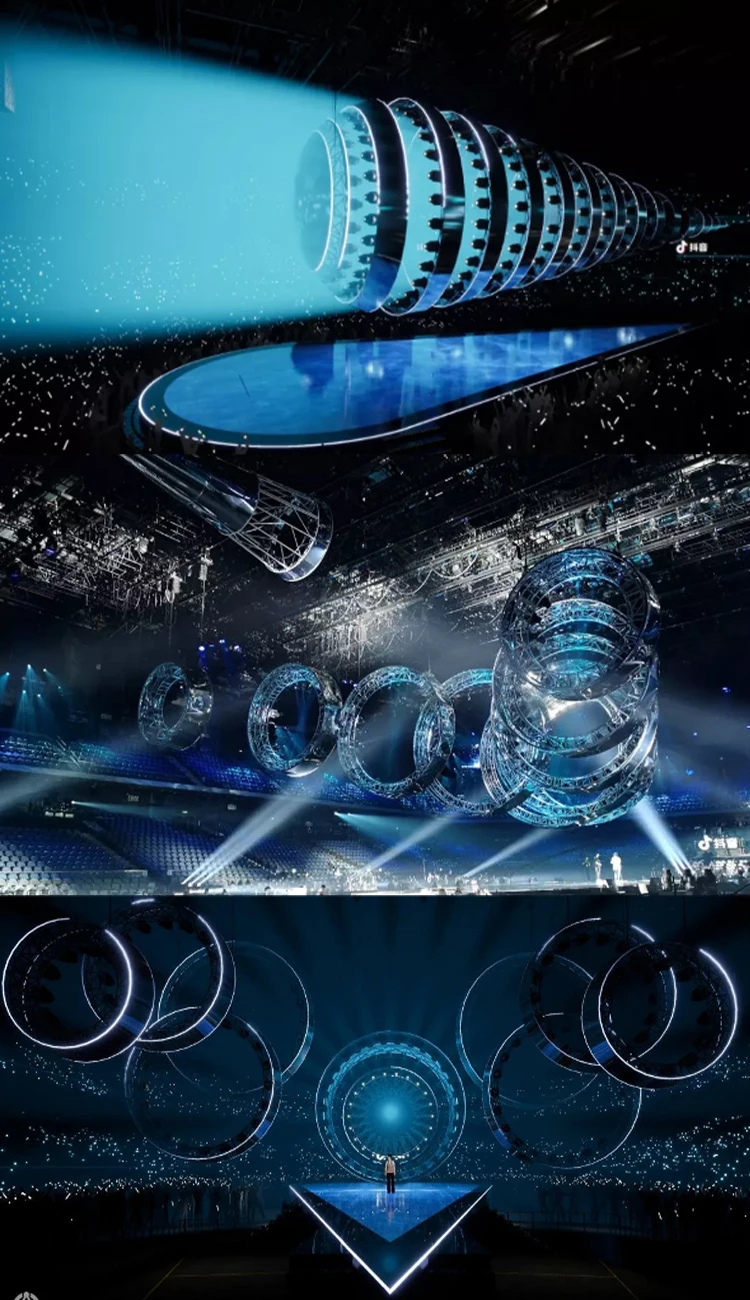

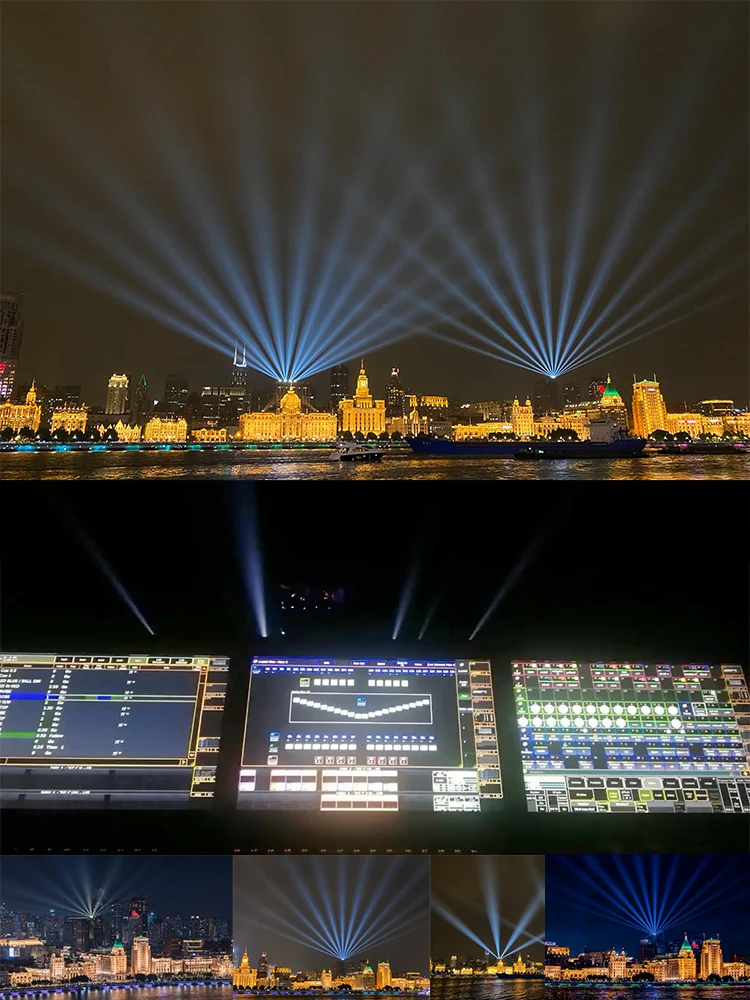

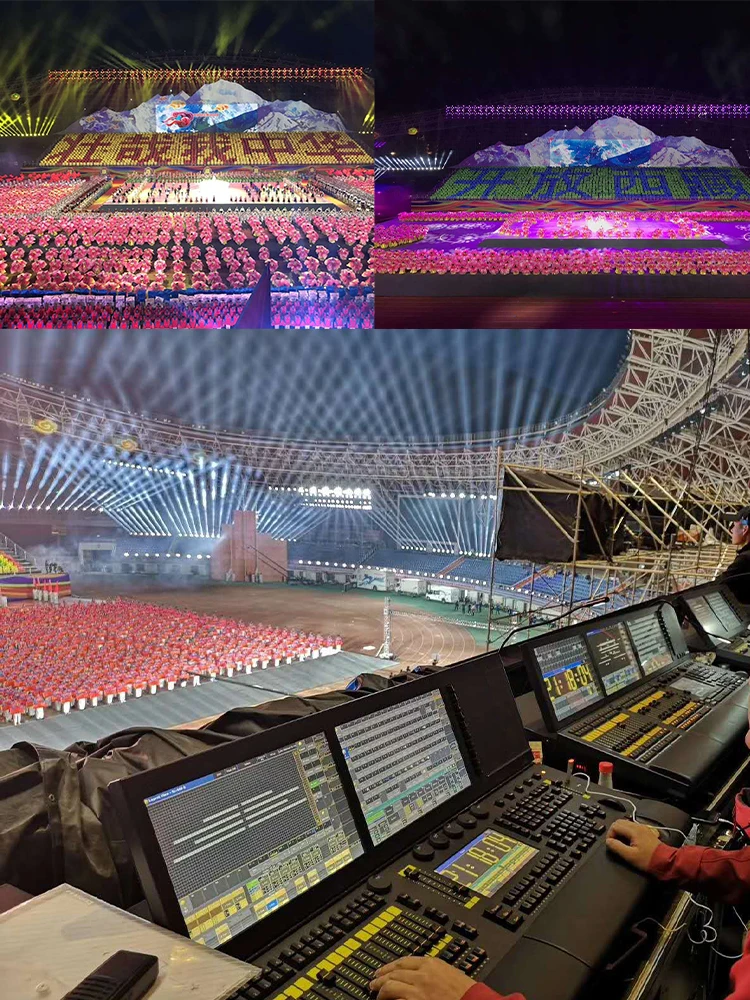

Lighting Cases
Training Courses

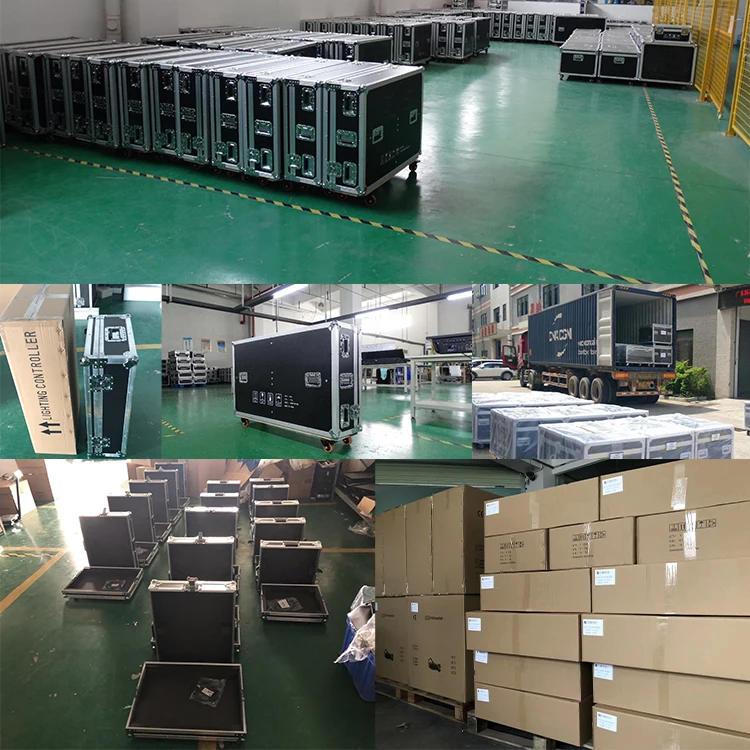

Packaging & Shipping
Accessssories
power cable * 1
desk light * 2

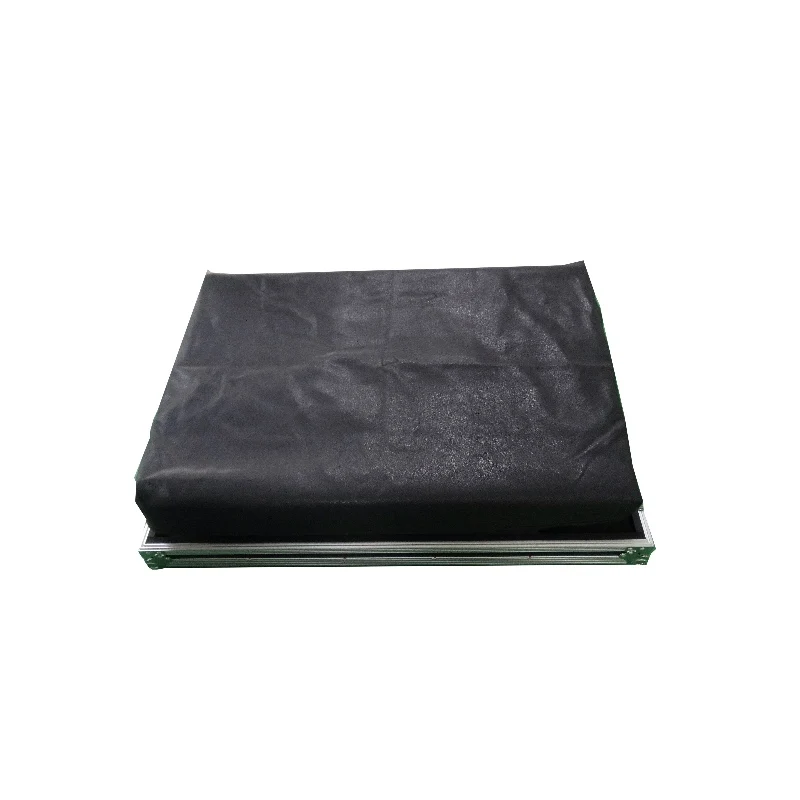

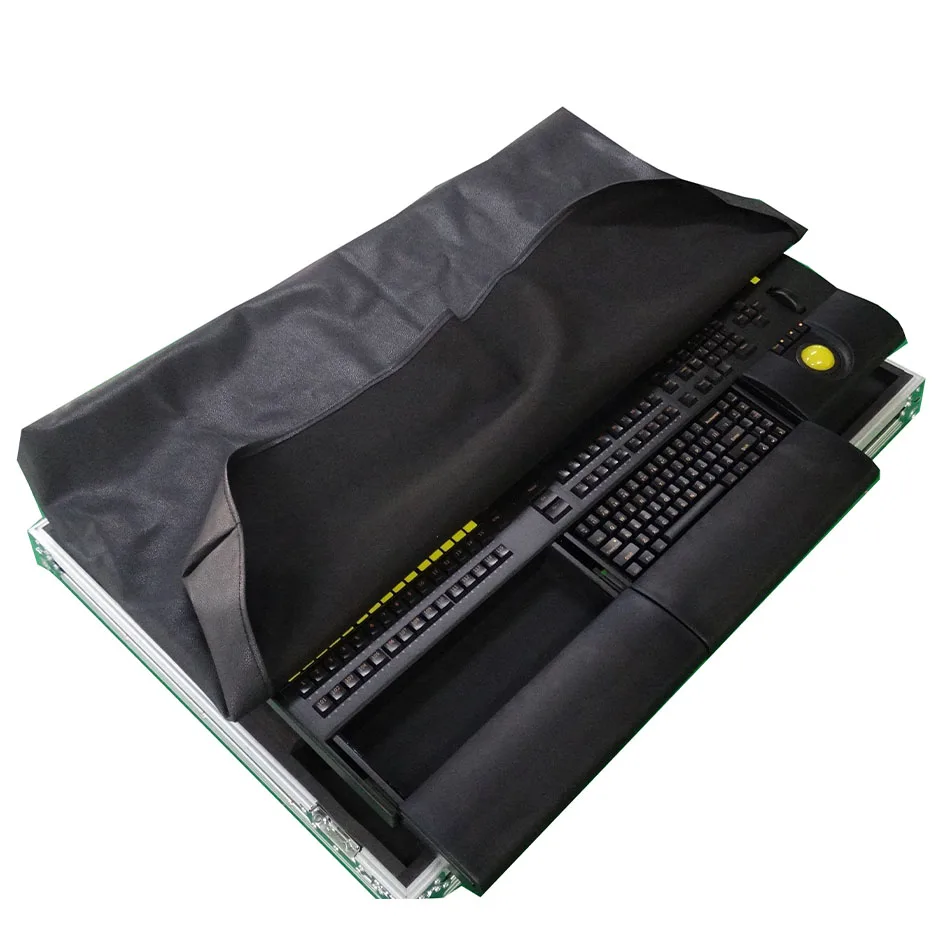

dust cover * 1

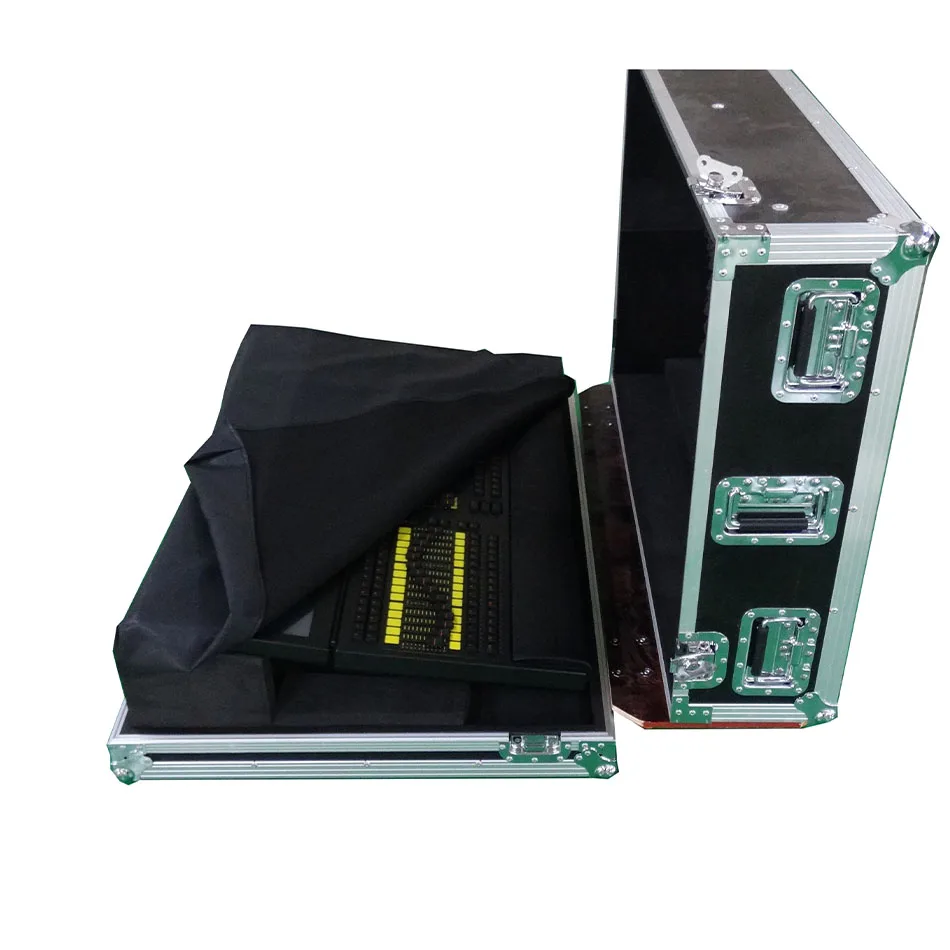

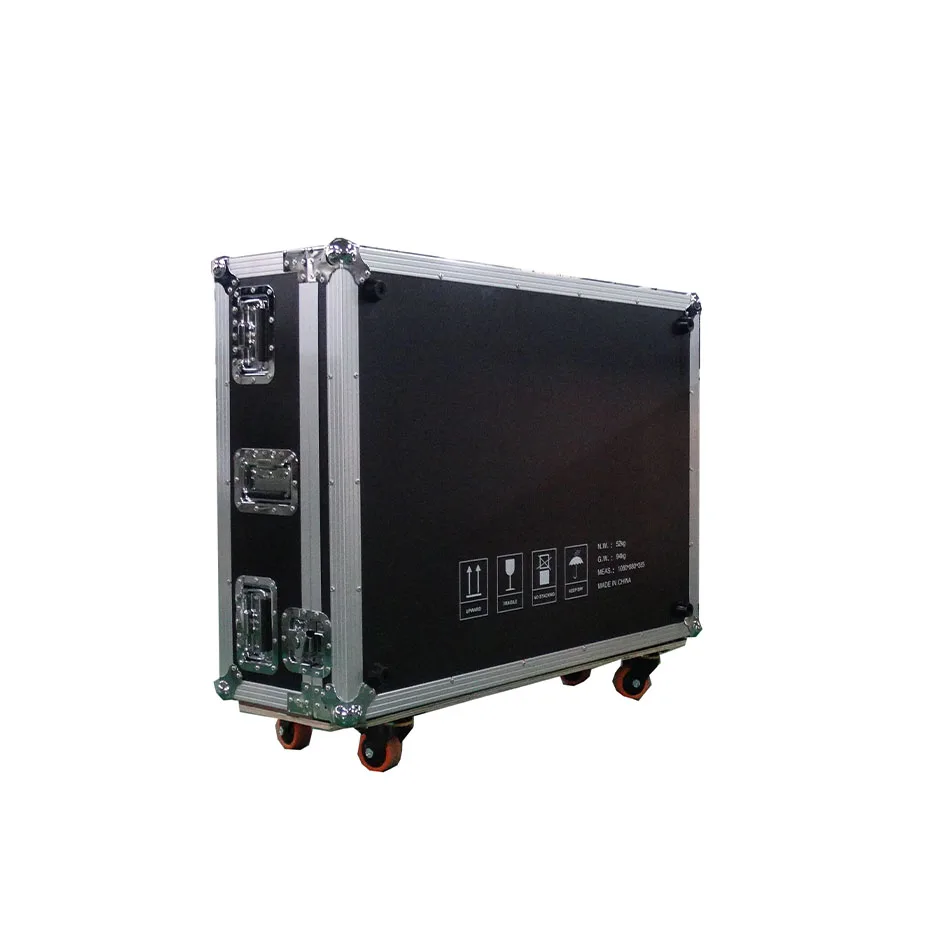

flycase * 1
Net weight
52kg
114.6lbs
Gross weight
94kg
207lbs
Product dimensions
986x650x218mm
38.8x25.6x8.6inch
Flycase dimensions
1080x880x355mm
42.5x34.6x14.0inch
FAQ
Q: What is your status for your factory?
A: Our factory has 12 years of rich experiences of lighting control system, only make professional DMX lighting console, network solution, and other control products.
Q: What accessories are included in the price of the lighting console dmx controller?
A: Including flycase, working lamp, dust cover and powercable.
Q: Is the flycase of lighting board with wheels?
A: Yes.
Q: How many DMX universes or DMX channels for the console lighting controller ?
A: Please consult us.
Q: What kind of lighting control protocol can be used in the lighting mixer?
A: Artnet,MAnet2, sACN,DMX512.....
Q: Is the faders motorized or manual of the lighting table?
