Оригинальный Fotek SC-3616 стиль
- Категории: Counters >>>
- Поставщик: Shanghai,Bendun,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Model | SC-341 | SC-361 | SC-3616 | ||
Input method | Single phase or two phase | Selectable | |||
Counting method | Increasement or decreasement counting | Increasement | |||
Output method | One relay | ||||
Power supply | 110V or 220VAC ± 20% , 50/60Hz , 5VA max. Selectable |
DC Power output | 60mA / 12VDC Max. |
Response frequance | Speed < A > <2.5K CPS , Low speed < B > < 60 CPS |
Memory method | EEPROM |
Output control | N/R/C Selectable |
Contact rated | 5A / 250VAC / Max. |
Output delay timer | Auto reset timer range : 0.01S~99.99S |
Divisor | Range : 1~9999 |
Multiplier | Range : 0.001~9.999 |
ESD strength | Over 8 KV |
Dielectric strength | Over 2.5 KV / 1 min , Between power and each terminal |
Isolation strength | Over 100MΩ / 500VDC , between power and each terminal |
Operation temp./hum. | -20℃ ~ + 80℃ ; 35%~85% RH |
Main Features
- *Multi-function
-Single or two phase input selectable - -Increasement or decreasement counting selectable
- -Decinmal point selectable
- -Preset value < SV2 > settable -Divisor range:1~9999
- -Multiplier rang:0.001~9.999
- -Output delay timer range:0.01~99.99s
- *Comply with CE certificate
- -EMC/EMI/ESD/LVD

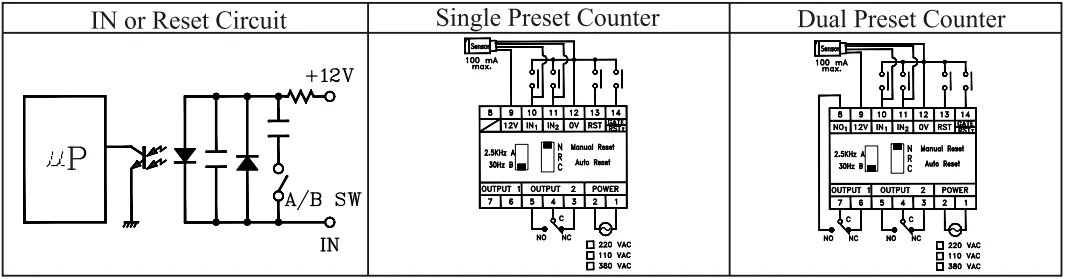

Interface Circuit & Connection Diagram

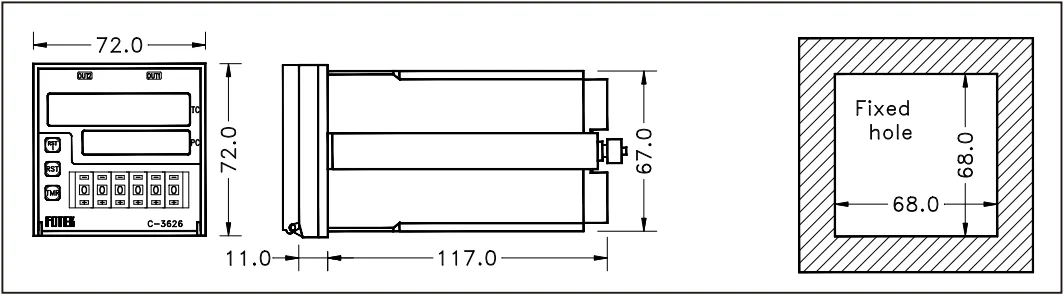

Outline Dimension & Fixed Hole
