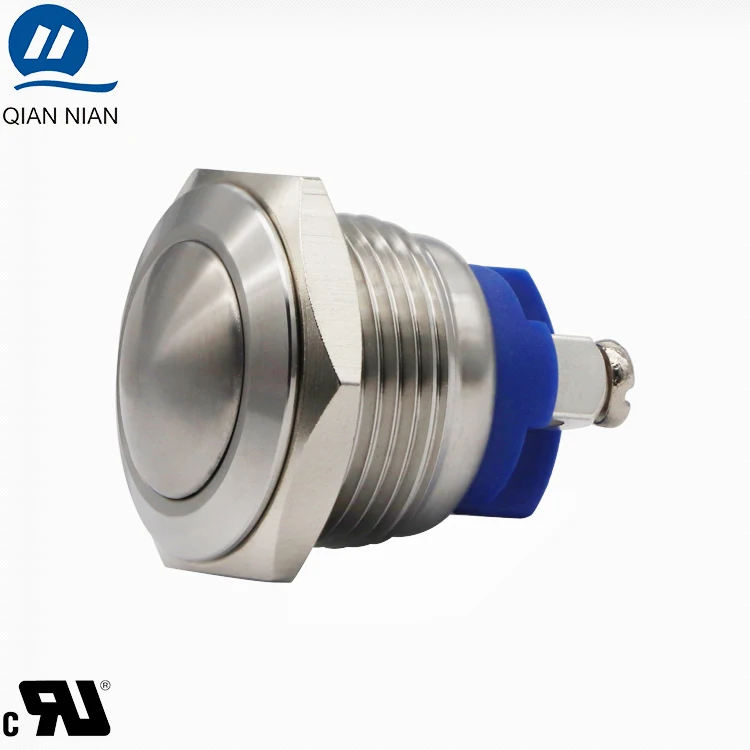

Металлический кольцевой кнопочный переключатель 16 мм 12 В 24 110 220 светодиодная лампа освещение водонепроницаемый

Металлический кольцевой кнопочный переключатель 16 мм 12 В 24 110 220 светодиодная лампа освещение водонепроницаемый

Цена:1,30 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

1.Product Name	Metal button switch
2. Product model	QN16-A2
3.Electrical parameters	3A/250VAC
4.Use temperature range	-20℃~+55℃
5. Switch combination	1NO
6.Operation Typ	Resetable
7.Protection grade	IP65, IK08
8.Led life	No light
Mechanical properties	project	Test conditions	specifications
	Operating limits	Press down the vertical direction of the switch head	2±0.1
	Operating force	Slowly apply the load along the vertical direction to the start	About 4 ~ 5 N
	Mechanical life	In the case of no load, at 30 times/min speed	Operation cycles up to 100,000 times
	weldability	Soldering temperature to 230 + 5 ℃ dipping time 3 + / - 0.5 S	The tin area is more than 90% of the dip range
	Heat resistance	Soldering temperature to 260 ± 5 ℃ dipping time 5 ± 1 s	No abnormal electrical and mechanical properties
Electrical properties	Contact resistance	3V.DC	≤50mΩ
	Insulation Resistance	500V.DC,For 1 min	≥100MΩ
	Voltage endurance test	The test conditions		requirements
	Micro disconnect		1000 vac / 50 hz, for 1 min	No flashover, no breakdown
	The basic insulation		1000 vac / 50 hz, for 1 min
	Endurance test	Overload test	3A/250VAC,6-10 / min,10000 +	Function is normal
	The temperature test	3A keep the power on for 1h until the temperature rises steadily. Connect Wire specification: 18AWG		Terminal temperature ≤55K

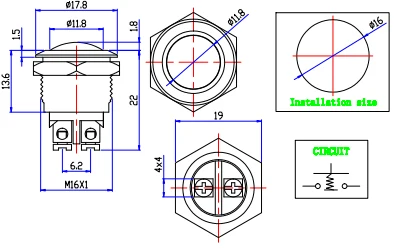

Product size
