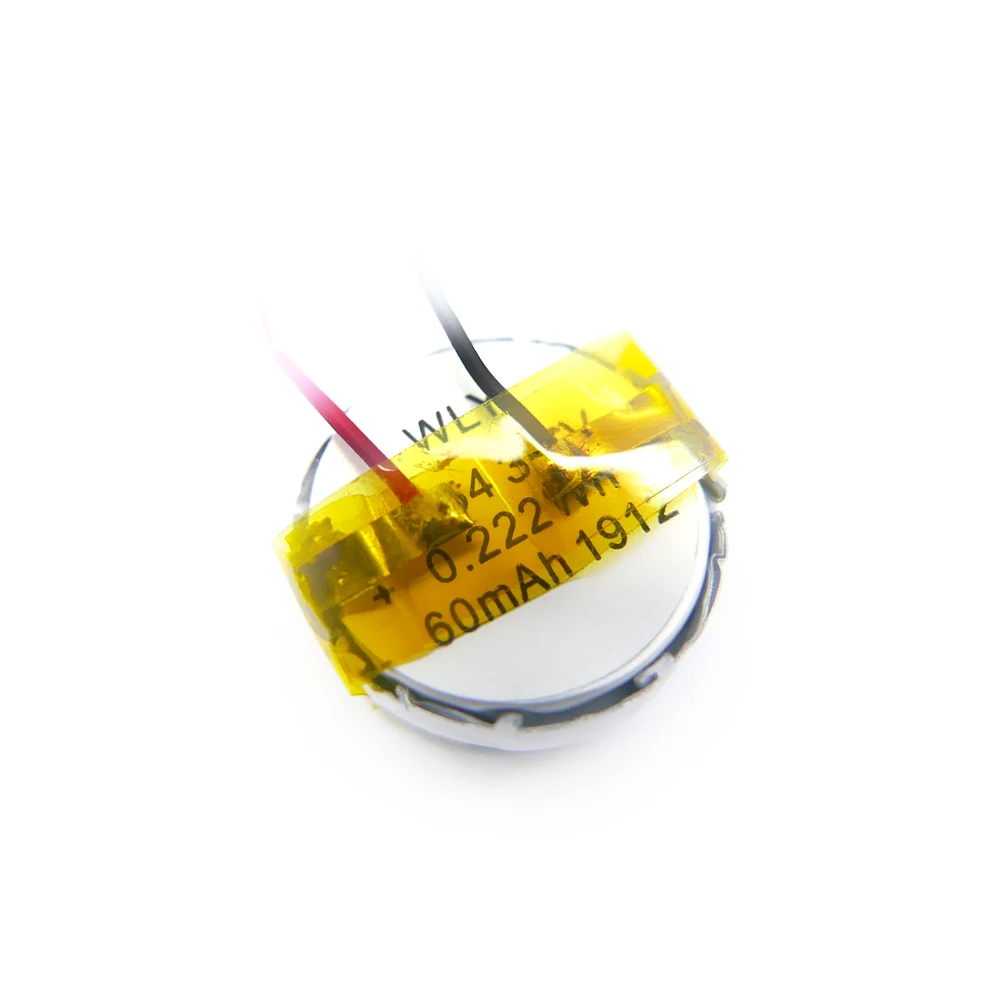

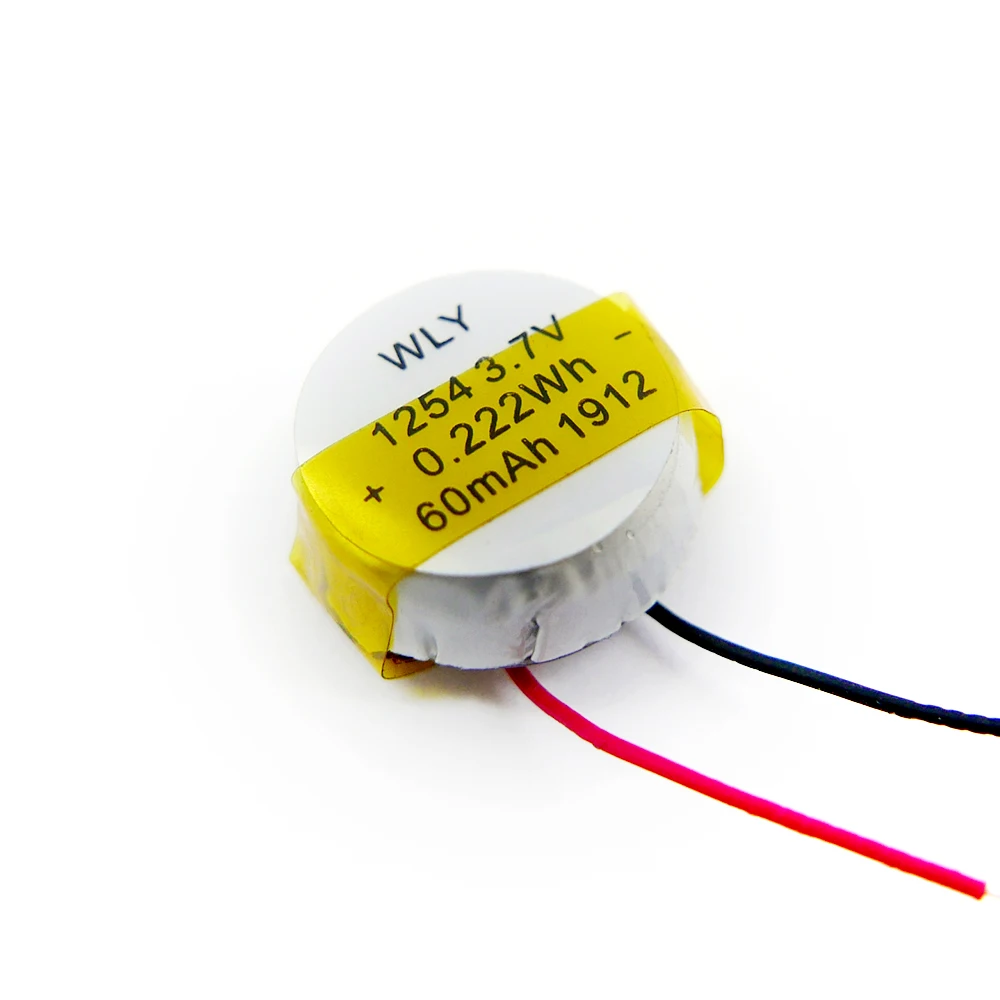

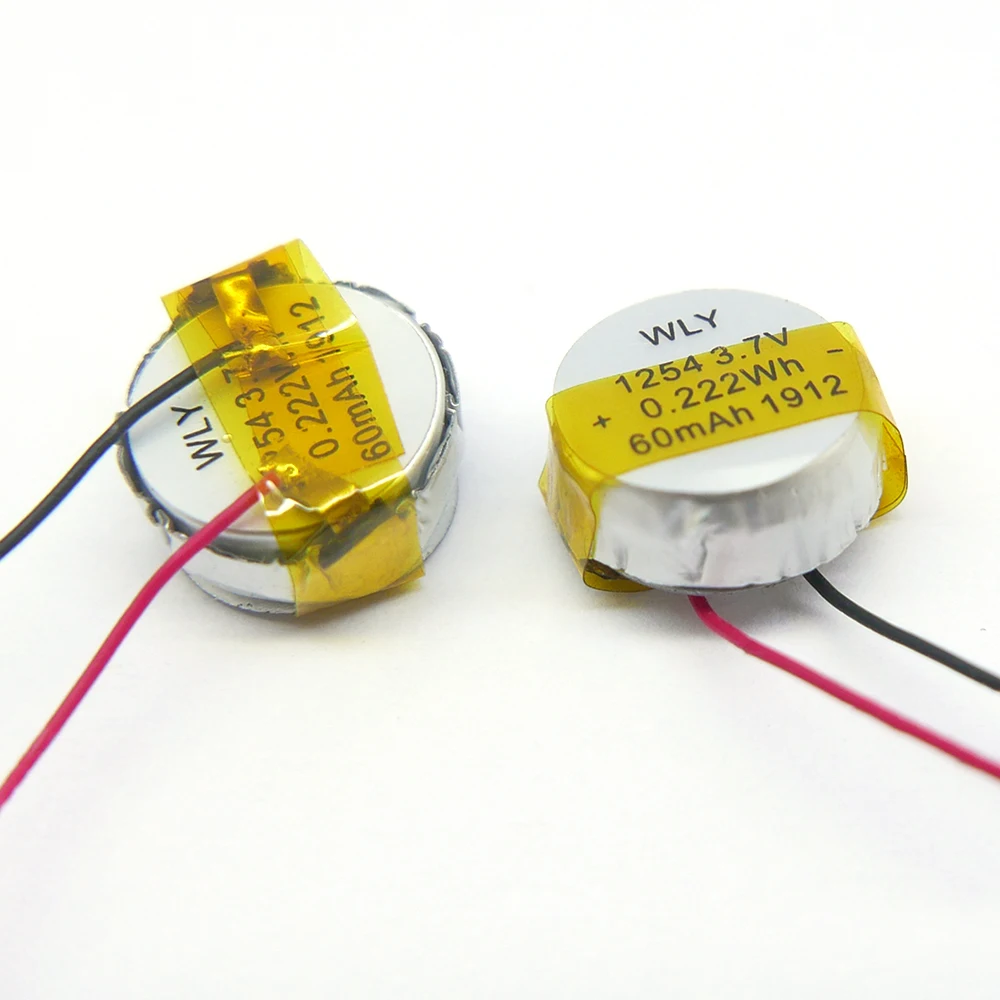

WLY 1254 60mAh mini Round rechargeable lithium polymer battery 3.7V Button Cell Battery
Product Description
| Items | Parameter |
| Cell model | WLY 1254 |
| Nominal voltage | 3.7V |
| Minimum capacity | 60mAh(0.2C discharge) |
| Typical capacity | 62mAh(0.2C discharge) |
| Charging voltage | 4.2V |
| Discharging cut-off voltage | 3.0V |
| Standard charging | 0.2C /4.2V |
| Max charging | 1.0C /4.2V |
| Standard discharging | 0.2C/3.0V |
| Continued discharging | 0.5C / 3.0V |
| Weight | Appr:1.3g |
| Shipment voltage | 3.85-4.15V |
| Cell Internal Resistance | ≤600 mΩ |
| Maximum charging current | 0°C~10°C 0.2C max |
| 10°C~20°C 0.5C max | |
| 20°C~45°C 1.0C max | |
| Maximum discharge current | -5°C~0°C 0.2C max |
| 0°C~25°C 0.5C max | |
| 25°C~60°C 1.0C max | |
| Operating temperature | Charging: 0°C ~ 45°C |
| Discharging: -5°C ~60°C | |
| Storage (Relationship between storage time and temperature at 50% capacity) | 0℃~25℃ (12 months, ≥80% ) |
| 0℃ ~45℃ (6 months, ≥80% ) | |
| 20±5℃ is the recommended storage temperature | |
| Visual Inspection | There should not be any remarkable scratches, cracks,bolts, cauterization, deformations, swelling , leakage and so on on the surface of the cell. |

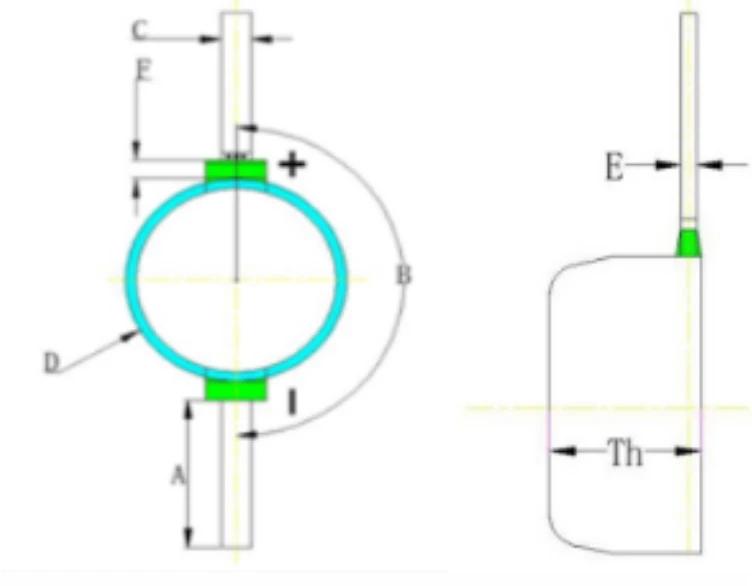

Cell Outline Drawing
| Mark | description | Dimensions |
| Th | thickness | ≤5.6mm |
| A | Pole ear length | 6±2 mm |
| B | Arc between the ears | 50±5.0° |
| C | Pole ear width | 1.5±0.2mm |
| D | diameter | ≤12.3 mm |
| E | Pole ear thickness | 0.1±0.01mm |
| F | Exposed length of pole ear glue | 0.2-2.0mm |
Main application are
More Product
Our Services
·We support the design of lithium battery products that meet your product requirements
· We have complete certifications and serve more than 600 companies worldwide
Company Information
We provide OEM and ODM service to many international brand. New technology, powerful channel partners, and empowered cus-tomers have made the competition highly intense. A skilled team of specialists design and develop products for a fast changing market with modern technology .Initial hand built samples enable the engineers to put the new products through their paces. The whole purpose and effort are to develop the ideal product with an optimum technology at the right price to satisfy customers.Wiliyoung with our commitment of providing high quality, reasönable price products and one-stop services, new business partners in sole agent or direct importation pattern are greeted with joy whatever your requirements, our friendly and knowledgeable staff members are committed to providina vou with a range of quality products or product development solutions supported by the highest standard of customer care. Our expertise is here for you to call on. We are never more than a phone call or email away. Call us today for all of your electrical accessory requirements and use ojur extensive knowledgeo make your job simplified, and achieve the. maximum result. Making Wiliyoung your first choice, we are aways advanced and safe. Your success is our success!
Packaging & Shipping
