Model List
Model | Slurry capacity | Dredging depth | Discharge distance | Total power |
CSD-200 | 500m³/h | 10m | 500m | 224kw |
CSD-250 | 800m³/h | 12m | 800m | 351kw |
CSD-300 | 1200m³/h | 12m | 1000m | 648kw |
CSD-400 | 2200m³/h | 15m | 1000m | 806kw |
CSD-450 | 3000m³/h | 15m | 1000m | 1007kw |
CSD-500 | 3500m³/h | 15m | 1500m | 1193kw |
CSD-550 | 5000m³/h | 15m | 1500m | 1640kw |
CSD-650 | 6000m³/h | 15m | 1500m | 2446kw |
Products Description
YLCSD-400
Parameter：
*Slurry capacity:2200m³/h
*Concentraction:15-20%
*Length: 36m
*Breadth:6.8m
*Height:1.8m
*Dredging depth:10-15m
*Discharge distance:0-1500m
*Total power:806kw(optional)
*Cutter shaft power:78kw
*Slurry capacity:2200m³/h
*Concentraction:15-20%
*Length: 36m
*Breadth:6.8m
*Height:1.8m
*Dredging depth:10-15m
*Discharge distance:0-1500m
*Total power:806kw(optional)
*Cutter shaft power:78kw
Remark：Can be customized according to customer requirements
Details Images
Cutter head
Diameter:1100mm
shaft power:78kw
RPM:0-30 r/min
Material:ZG30CrMn
Amont: 5 Pcs
Remark:cutter teeth can be replaced
Main engine
Maker: Cummins China
Model :KT38-M
Power:582KW
RPM :1800r/min
Model :KT38-M
Power:582KW
RPM :1800r/min
No. of cylinders: 12
Fuel consumption:106l/h
Remark: can be selected by customer's requirement
Dredging pump
Maker：Shijiazhuang
Model :14/12G-G
Water flow :2000m³/h
Solid capacity ：300-400m³/h
Diameter of suction：450mm
Diameter of Discharge：400mm
Solid capacity ：300-400m³/h
Diameter of suction：450mm
Diameter of Discharge：400mm
Remark: can be selected by customer's requirement
Winch
Diameter of drum ：480mm
Hydraulic motor maker ：Xinhong
Model ：S3C4
Wire rope speed ：0-20m/min
Dia. Of wire rope ：18mm
Wire rope length ：150m
Hydraulic motor maker ：Xinhong
Model ：S3C4
Wire rope speed ：0-20m/min
Dia. Of wire rope ：18mm
Wire rope length ：150m
Remark: can be selected by customer's requirement
Customer Photos

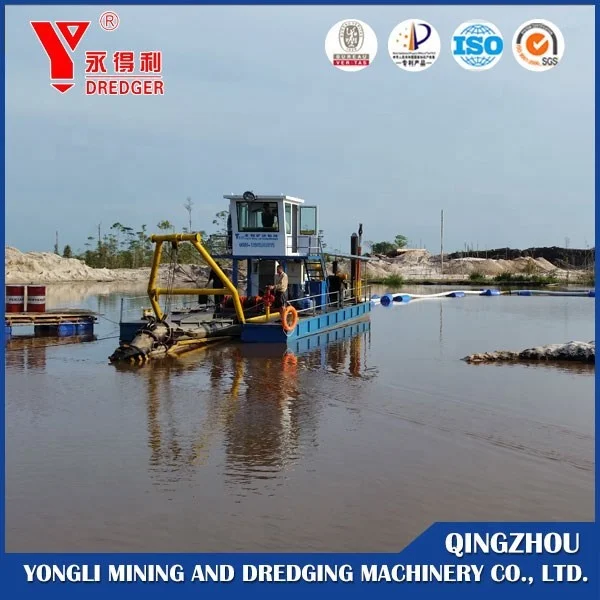

Working site
The above pictures are from the installation site in Bangladesh, this is 20 inch cutter suction dredger with 895kw cummins main engine, 373kw auxiliary engine, the dredging depth can be reached 15m, the discharege distance is about 1500m.
Certifications
Our Services
Yongli will do the best in the field and one of the most important things is providing after-sales service and support. We promise to provide every customer with the highest level of service and 24/7 support to make sure that every machinery will run properly and every customer will be fully satisfied.
The following service can be provided by our high-quality team:
------ Signing a long-term after-service agreement with customers;
------ rational and practical design according to clients' project needs and requirements;
------ Engineers will be sent for installation, testing and commissioning of new machine;
------ Operation service & maintenance guidance (Training of new operators);
------ Troubleshooting & diagnosis;
------ Replacement suggestions & spare parts with competitive price;
------ Life time after sales service for all customers.
The following service can be provided by our high-quality team:
------ Signing a long-term after-service agreement with customers;
------ rational and practical design according to clients' project needs and requirements;
------ Engineers will be sent for installation, testing and commissioning of new machine;
------ Operation service & maintenance guidance (Training of new operators);
------ Troubleshooting & diagnosis;
------ Replacement suggestions & spare parts with competitive price;
------ Life time after sales service for all customers.
