Китайская высокочастотная плазменная режущая горелка 200

Цена:265,00 $ - 350,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

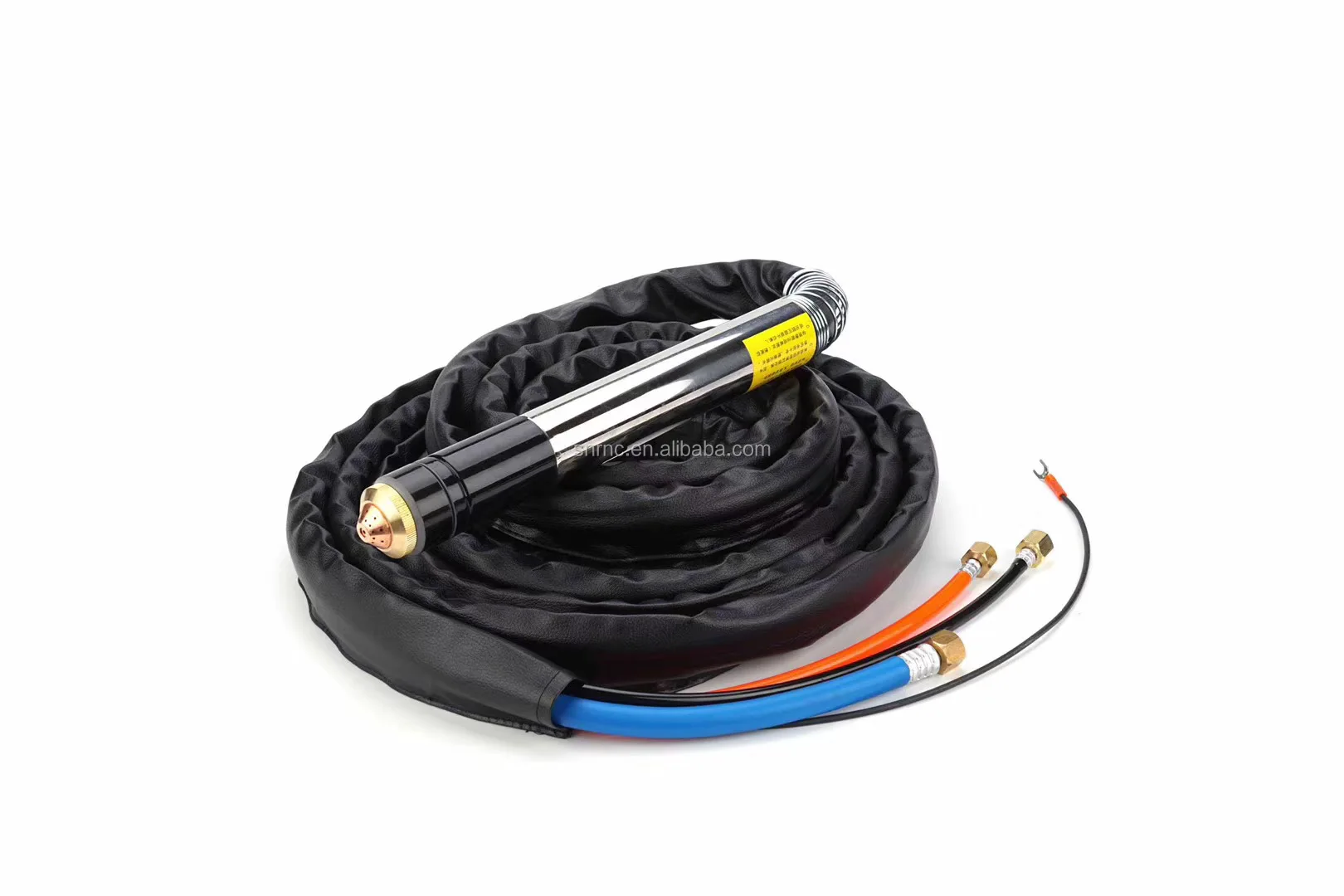

China brand 200A high frequency plasma cutting torch

1.To start arc with contact type high frequency makes it fast and convenient.

2.With swirling eddy of shunt,it ensures plasma arc is vertical.

3. Cable length:7.5M/10M (optional)

4. It can work well with HUAYUAN Plasma source LGK-200IGBT.

Cutting data

Cutting material	Thickness	Pierce Height	Cutting height	Current	Speed(mm/min)	Electrode No.	Nozzle No.
Carbon Steel	10mm	8mm	4mm	100A	1500	02201	02428
	15mm	10mm	5mm	160A	1200
	20mm	12mm	5mm	200A	1400
	25mm	12mm	6mm	200A	900
Note: work pressure 0.45-0.5Mpa Air flow 300L/min Max pierce thickness 25mm
