Металлический кабельный сальник M14 диапазон кабелей 5-10 мм
- Категории: Cable Glands >>>
- Поставщик: ZHEJIANG,HONGXIANG,CONNECTOR,CO.,LTD.
Поделиться:
Описание и отзывы
Характеристики

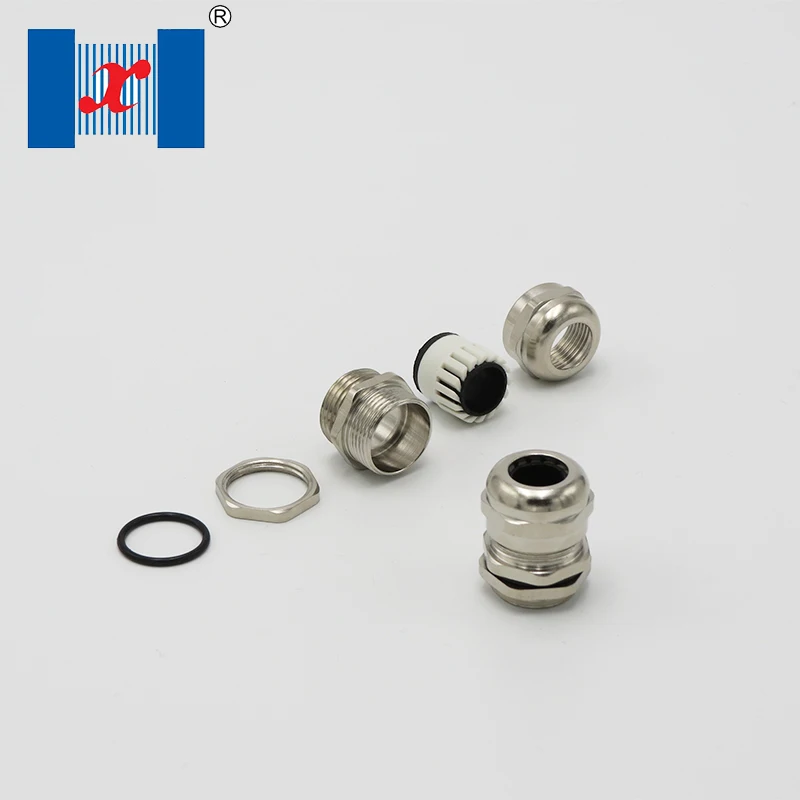

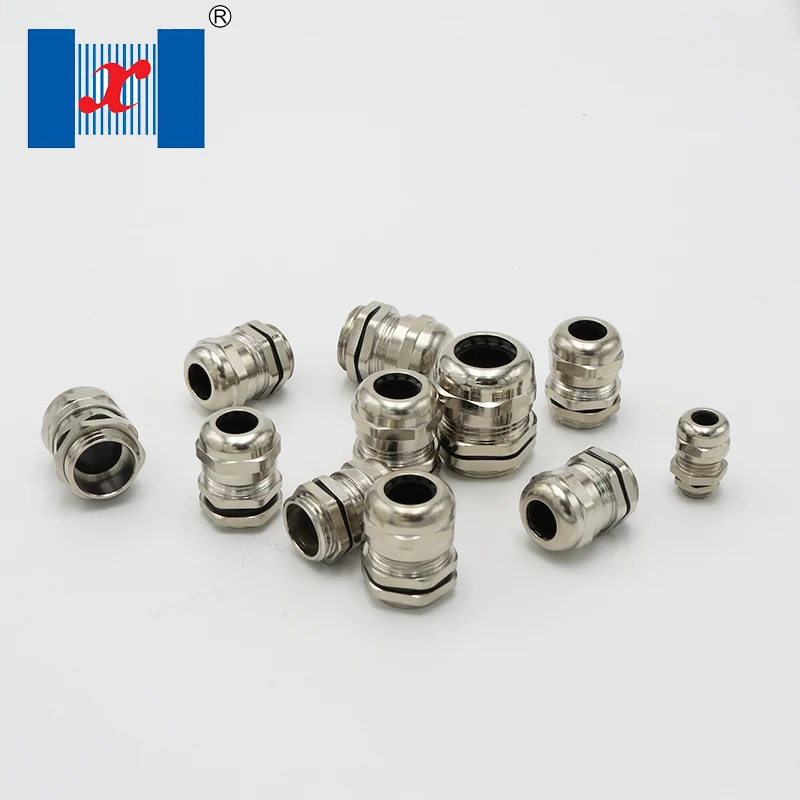

Metal Cable Gland M14 Cable Range 5-10mm Nickel Plated Brass
Product Description
Production Parameter

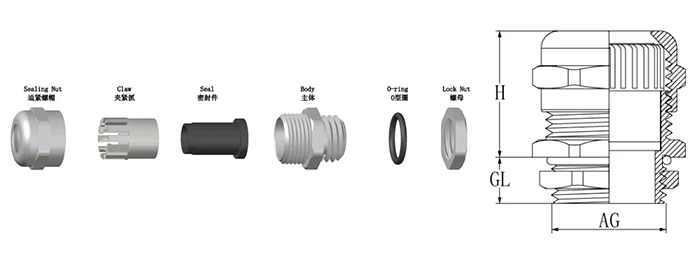

| Item | Range (mm) | GL Thread Length (mm) | AG Thread O.D. (mm) | H Joint Length (mm) | Spanner size (mm) | Code |
| M8×1 | 2-5 | 5 | 8.0 | 13.5 | 12 | HX-NPM8 |
| M10×1 | 3-6.5 | 6.5 | 10.0 | 17 | 14 | HX-NPM10 |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 17 | 14 | HX-NPM12 |
| M14×1.5 | 4-8 | 8 | 14.0 | 18 | 17 | HX-NPM14 |
| M14×1.5 | 5-10 | 8 | 14.0 | 20 | 20/17 | HX-NPM14 |
| M16×1.5 | 4-8 | 8 | 16.0 | 19 | 18 | HX-NPM16 |
| M18×1.5 | 5-10 | 8 | 18.0 | 20 | 20 | HX-NPM18 |
| M20×1.5 | 6-12 | 8 | 20.0 | 21 | 22 | HX-NPM20 |
| M22×1.5 | 10-14 | 8 | 22.0 | 22 | 24 | HX-NPM22 |
| M24×1.5 | 10-14 | 9 | 24.0 | 22 | 24/27 | HX-NPM24 |
| M25×1.5 | 10-14 | 9 | 25.0 | 22 | 24/27 | HX-NPM25-14 |
| M25×1.5 | 11-16 | 9 | 25.0 | 25 | 27 | HX-NPM25-16 |
| M25×1.5 | 13-18 | 9 | 25.0 | 27 | 30/27 | HX-NPM25-18 |
| M27×1.5 | 13-18 | 9 | 27.0 | 27 | 30 | HX-NPM27 |
| M30×2 | 13-18 | 9 | 30.0 | 27 | 30/32 | HX-NPM30 |
| M32×1.5 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NPM32 |
| M33×2 | 15-22 | 10 | 33.0 | 29 | 35/36 | HX-NPM33 |
| M36×1.5 | 18-25 | 10 | 36.0 | 31 | 40 | HX-NPM36 |
| M37×1.5 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NPM37 |
| M40×1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX-NPM40-25 |
| M40×1.5 | 22-30 | 11 | 40.0 | 35 | 45 | HX-NPM40-30 |
| M47×1.5 | 25-33 | 11 | 47.0 | 37 | 50 | HX-NPM47 |
| M50×1.5 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX-NPM50 |
| M60×1.5 | 37-44 | 14 | 60.0 | 38 | 64 | HX-NPM60 |
| M63×1.5 | 37-44 | 14 | 63.0 | 38 | 64/68 | HX-NPM63 |
Related Products
Company Information
Packaging & Shipping
FAQ
Q:Are you trading company or manufacturer?
A:We are the factory ,also we are export the goods by ourselves.
Q:How long is your delivery time?
A:Generally we can send out the goods with in 3-7days if the goods are in stock. or It should be 3-7days if the goods are not in stock, it is according to your order quantity.
Q:Do you provide samples? Is it free or not ?
A:Yes, we could offer the samples for free charge but don’t pay the cost of freight.
Q:What is your terms of payment ?
A: Payment <=1000USD,100% in advance. Payment >=1000USD, 30%T/T in advance.
Q: How about the after-sale service?
A: Any feedback or comment are welcomed. We will try to make the best assistant to let you maximum satisfaction.
