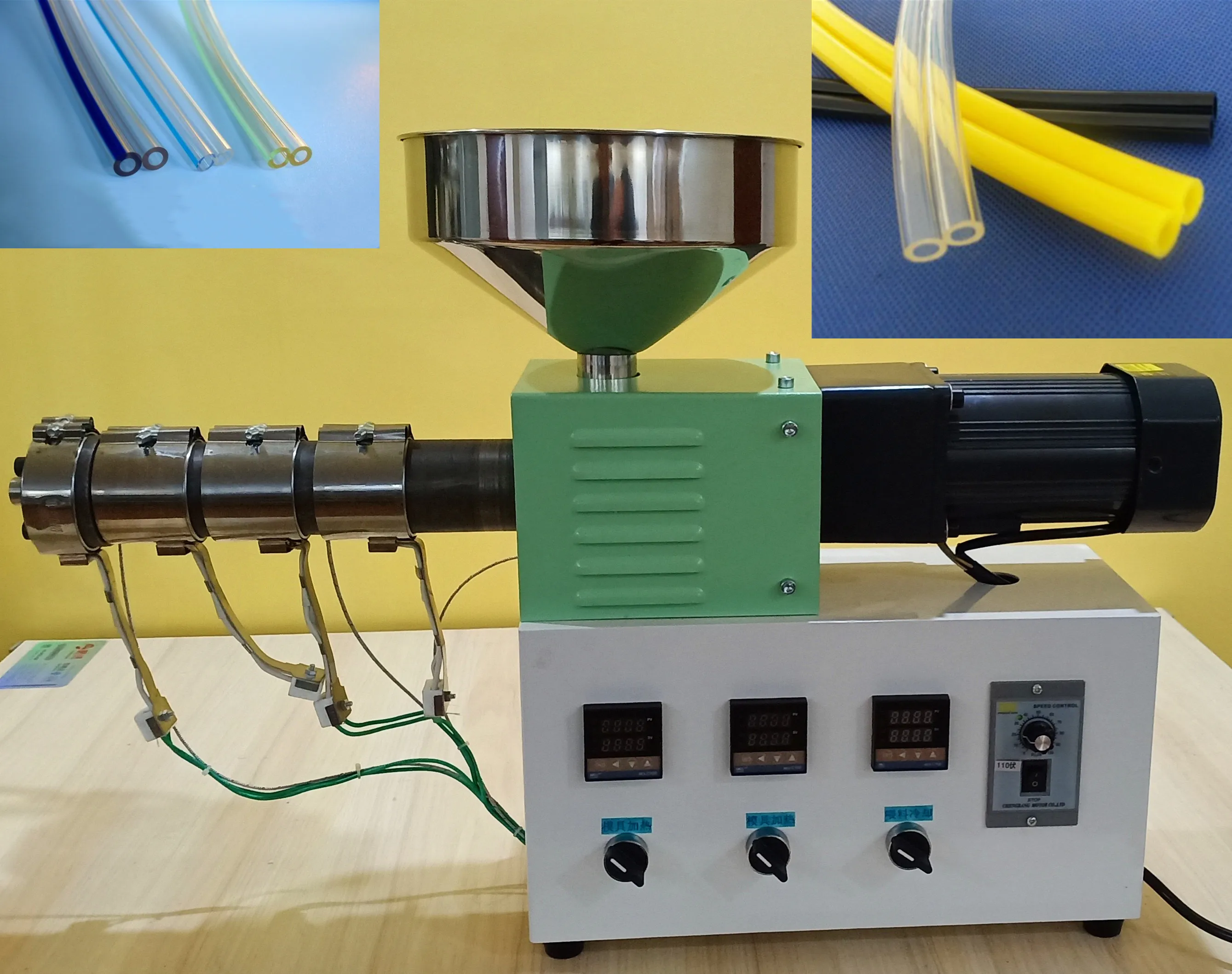

Лабораторная пластиковая трубчатая экструзионная линия медицинская машина для экструзии

Описание и отзывы

Характеристики

1, The basic performance parameters:
   1, Capacity: 0.1-5KG / hr
   2, ; screw rotation speed: max to 15r/min
   3, the production line center height: 300mm;
   5, line direction: left and right to close the discharge →
   6, the installation area: length×width*height = 0.75m * 0.2m * 0.5m
;  weight:  about 30KG
   7. Motor Power: 250W
   8. Voltage: 220V 110V, or customers can specify

Main extruder equipment configuration and performance parameters: For ABS/PLA/PCL/PETG/PC/PEEK/PE/PP/TPU/TPE...
Control System	Not PLC
Voltage	220/60 Hz,1phases
Raw Material	PE/PP/PVC/ PLA/PC/TPU/ABS/NYNONG...
Output	0 -3 kg/h
Main Motor Power	250W
Heating Power:	1000W
Screw	Single screw Extruder
Diameter	35 mm.
Screw L/D	12:1
Raw material	38CrMoAlA
surface treatment	Nitrogenization and polished
Inner surface treatment	Nitrogenization and polished
Max heating temperature	300℃
Barrel Material	38CrMoAlA
Inner surface treatment	Nitrogenization and polished
The nitride layer thickness	0.5~0.7 mm.
The surface hardness	HV850~940
Controlling system
Extruder total Power	1310W
Control Type	Single phase electronic speed governor control
The control system
Heating control zone	3

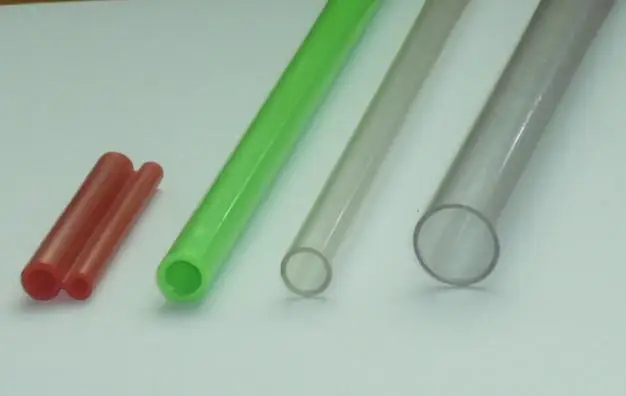

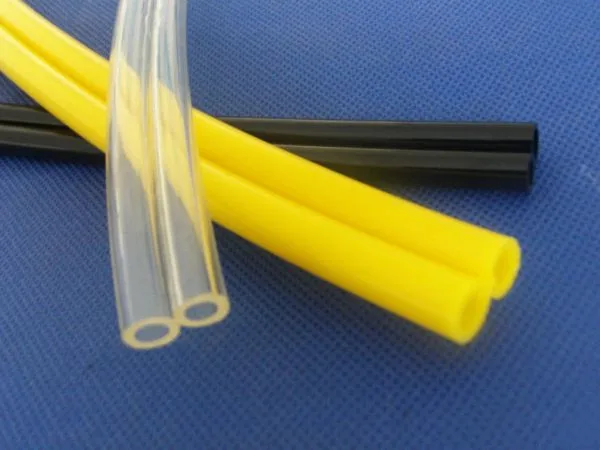

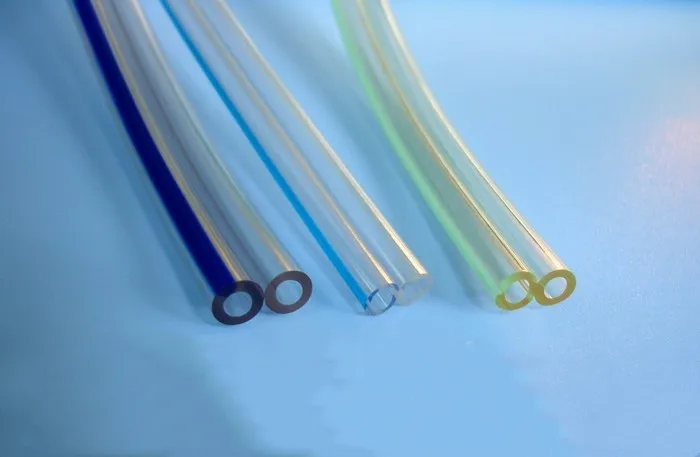

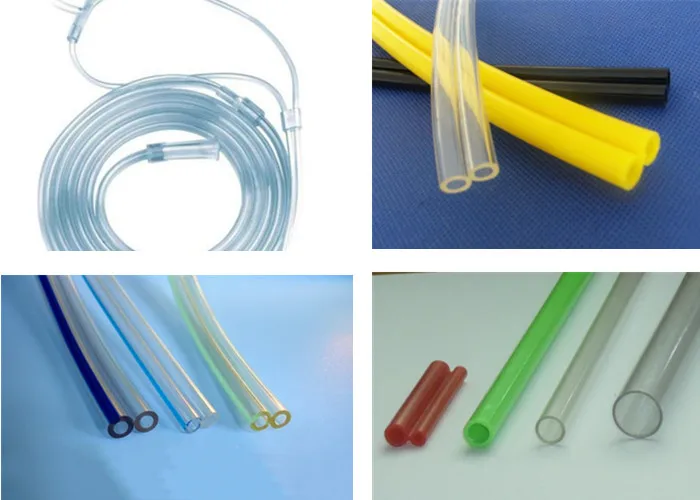

Side-by-side catheter extrusion type:

The double-row catheter is mainly composed of TPU material,and the product is mainly applied to the incision protector to turn the bottom tube. The  double row roundness tolerance can be controlled ± 0,1 mm ~ 0,2 mm. Multi-row extrusion can be customized as required.

Processing range: outer diameter 3,0mm~20mm

                                     wall thickness 0,5mm~3,0mm

Dimensional tolerance: 0,05 mm ~ 0,10 mm

Optional color: any color

Extended performance: overall development, development line
