High Pure Battery Electrode Microporous Filter Titanium Foam Ti Foam Material Metal Foam







Application area

Applicable to used as electrolytic electrode, it can maximum limit the increase of electrolytic area and increase the speed of gas evolution.

Features

1. Uniform structure, narrow pore size distribution and high separation efficiency.

2. High porosity, low filtration resistance and high permeability.

3. High temperature resistance, generally can be used below 280 degrees.

4. It has good chemical stability, acid and alkali corrosion resistance and antioxidant properties.

5. No particulate peeling, no secondary contamination of raw liquor, which meets the requirements of food hygiene and pharmaceutical GMP.

6. It has good mechanical properties, can be filtered by pressure and can be filtered by suction, and is easy to operate.

7. Low pressure difference, small area and large flow.

8. It has strong antimicrobial ability and does not interact with microorganisms.

9. The forming process is good. The whole length without welding can reach 1000 mm.

10. On-line regeneration, easy cleaning and long service life (usually several times as long as the membrane filter element)



Specifications

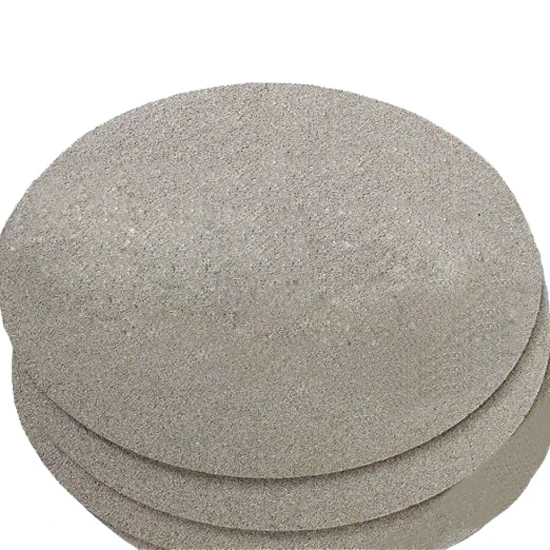

Foil Dimension	Diameter 100mm round sheet or customized as request
Temperature resistance	800℃
Color	Light grey
Excessive precision (The aperture)	20um-100um
Used in pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry and gas purification fields. Is one kind has broad prospects for development of new materials.



0.7mm*200mm*300mm	0.8mm*200mm*300mm	0.9mm*200mm*300mm
1mm*200mm*300mm	1.1mm*200mm*300mm	1.2mm*200mm*300mm
1.3mm*200mm*300mm	1.4mm*200mm*300mm	1.5mm*200mm*300mm
1.6mm*200mm*300mm	1.7mm*20mm*300mm	1.8mm*200mm*300mm
1.9mm*200mm*300mm	2 to 3mm*200mm*300mm	The size can be customized



Filtration accuracy: 0.45um-100um

Porosity: 28-50%

Transmittance rate: 0.02-20M3cm/m2h.mmH2O

Compressive strength: 0.5-1.5Mpa

Maximum working pressure range: 0.6Mpa

Precision: 0.22 µm 0.45 µm 1 µm 3 µm 5 µm 10 µm 20 µm 30µm  50 µm 80 µm 100 µm

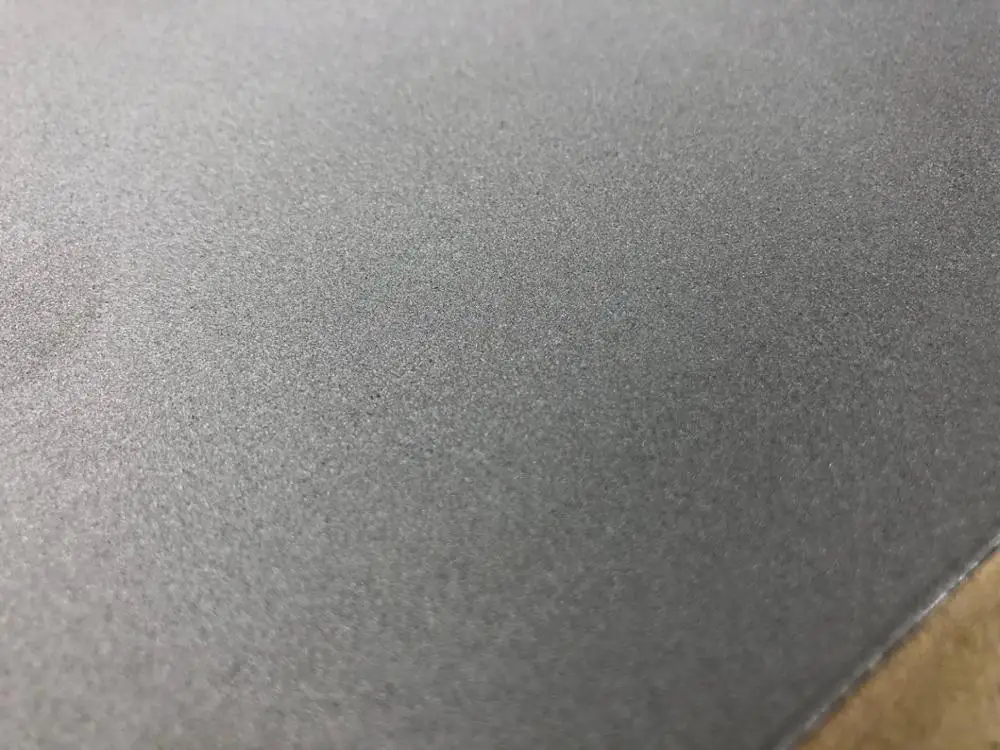

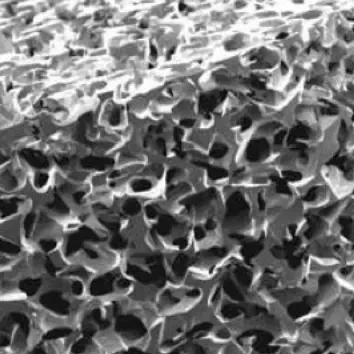

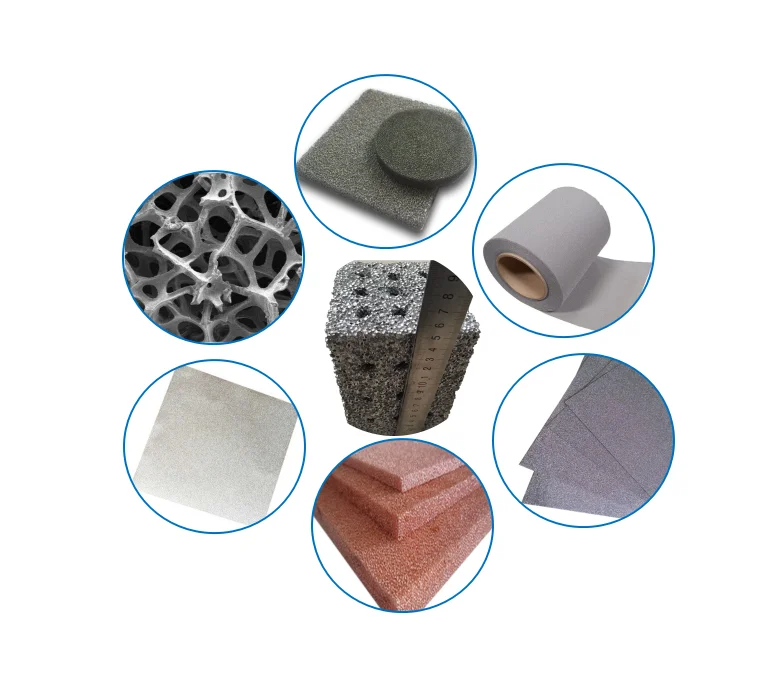

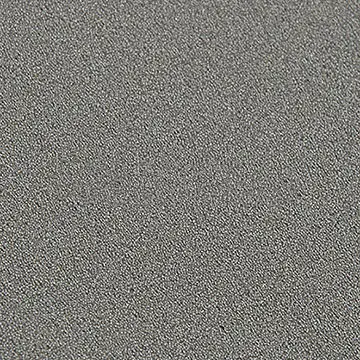

 Product Images

















1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
