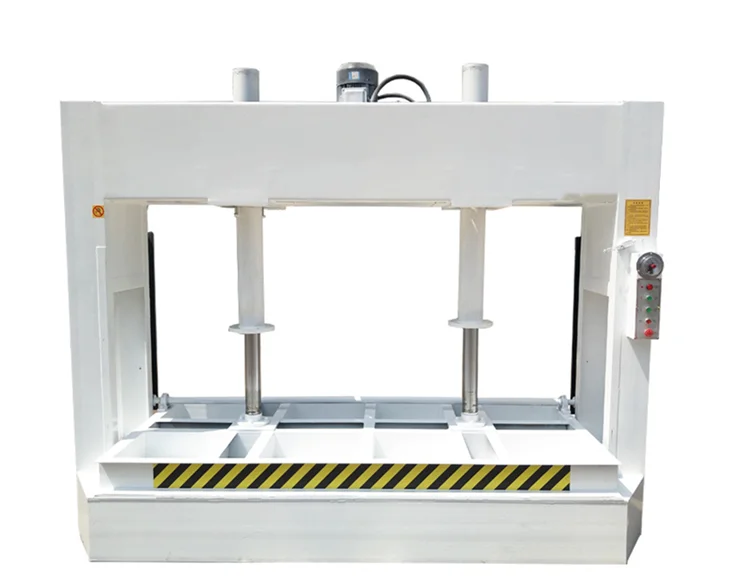

Products Description


Cold press series models are used to press furniture board pieces, wooden doors, various boards, as well as furniture leveling,finalize the design. Can make the board bonding between more solid.With advanced hydraulic lock and infrared control, the pressure is durable and stable. Working area dimensional, forming height and working pressure can be customized according to customer requirements.




Technicial Specifications
Nominal gross pressure
50 T
60 T
100 T
Direction of feeding plate
Horizontal
Horizontal
Horizontal
Dimension of Platens
1250x3000mm
1250×2500mm
1250x3000mm
Opening distance
1000 mm
1300mm
1000 mm
Numbers of Cylinder
2pcs
2pcs
2pcs
Diameter of Cylinder
Φ100 mm
Φ 90mm
Φ160mm
Stroke of Cylinder
1000 mm
1300mm
1000 mm
Pump
12L
24L
12L
Pump working pressure
16.5MP
16.5MP
16.5MP
Motor Power
4kw
5.5Kw
4kw
Overall Dimensions
3450*1250*2250 mm
2950*1250*2450 mm
3450*1250*2250 mm
Machine Weight
2000KG
2500Kg
2500KGS
Thickness of Upper And Lower Cross beams
380mm
550mm
550mm
Middle beam
200mm
200mm
200mm
Thickness of Steel Plate
12mm
12mm
12mm
Remark : Different  Pressure Machine Can be Customize


Product Details

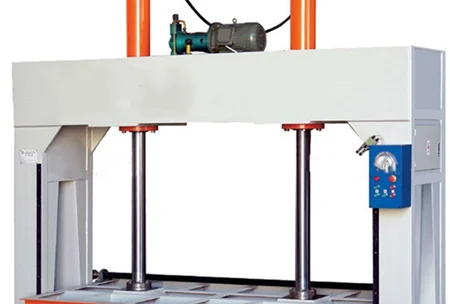

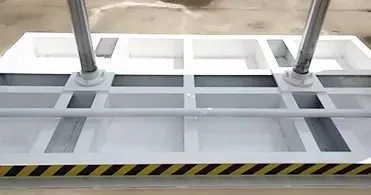

        Solid Structure
This table makes the pressure evenly distributed on the table surface, ensuring the flatness of the pressure surface for a long
time and improving the quality of processed products.






Integrated Oil Cylinder
The integrated oil cylinder can guarantee the long time use without oil leakage, so as to achieve good pressure protection effect

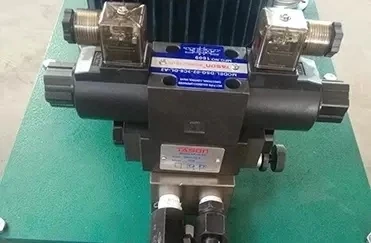

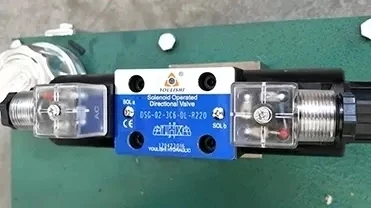

    High-level Check Value
Imported check valve, precise oil control system, ensure the stability of hydraulic oil in and out.





Perfect Pressure keeping                           System
When there is no oil, the machine will stop running to avoid motor damage and other phenomena

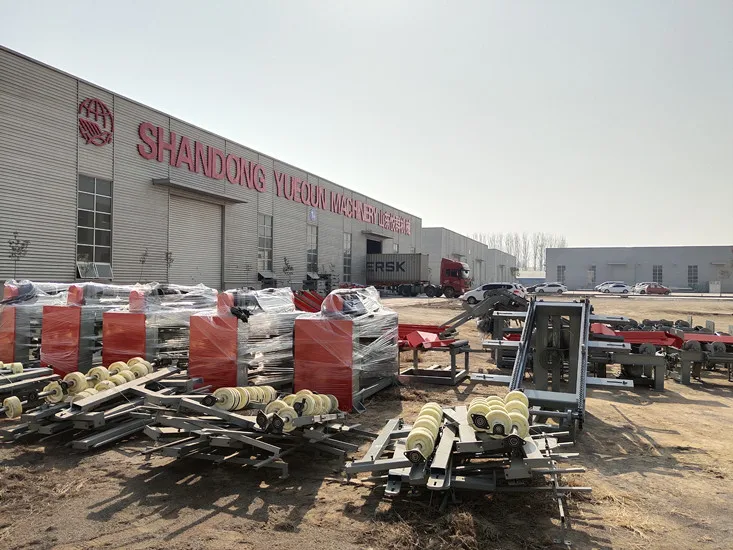

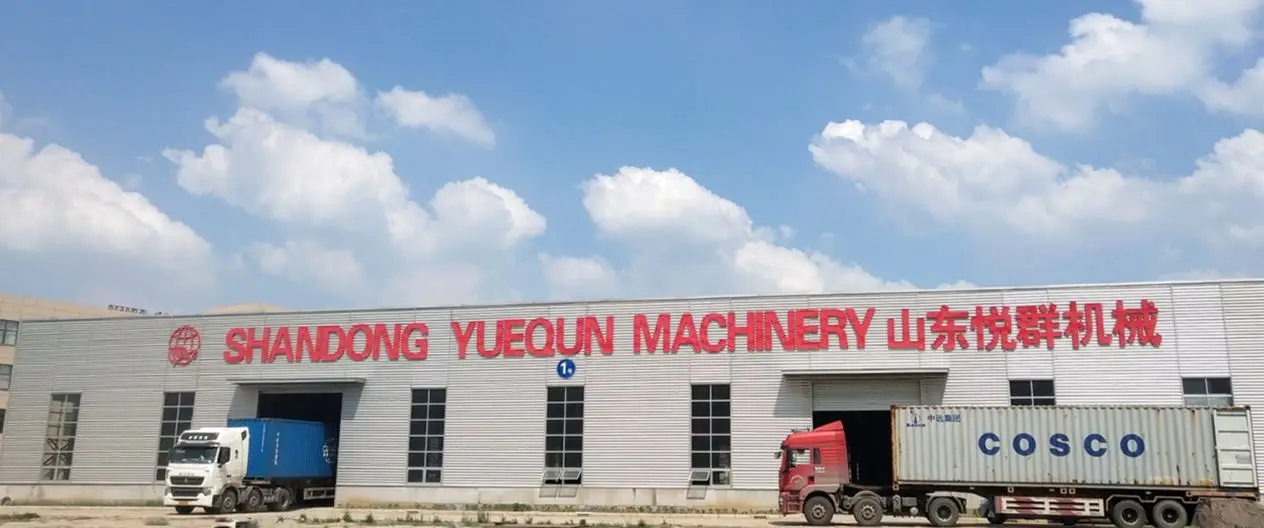

Company Profie






Shandong Yuequn Machinery established in 1994 , it's the biggest and professional plywood production machinery Manufacturer in Linyi city China .all the machine for exporting , over 50 countries .The complete plywood production line include : log debarker -veneer peeling machine - veneer dryer machine - veneer composer machine - glue spreader - cold press machine -hot press machine -plywood edge cutting saw - sanding machine and so on .




Our Certifications




Why Choose Us


Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory


Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator


After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging

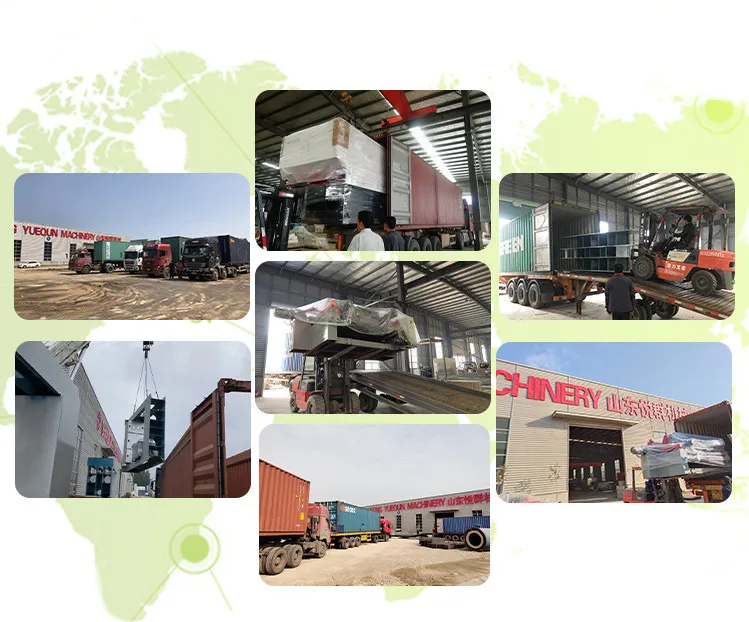

Packing&Delivery
