Лидер продаж, линия прорезьбовых катушек из листового металла
US $40000-$60000
Steel coil slitting machine line for
- Категории: Coil Slitting Machine >>>
- Поставщик: Cangzhou,Zhongde,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
I Description of Slitting Line Metal Coil Slitting Machine cut to length line for sale:
This is a slitting machine for slitting steel coils into narrow strips and recoiling them into coils again.
It is a complete machine line for slitting very narrow strips min. width 12mm.
The machine line speed can reach 50m/min.
II Main buildup of Slitting Line Metal Coil Slitting Machine cut to length line for sale:
2.1 Hydraulic loading car
2.2 Hydraulic expansion decoiler
2.3 Slitting machine (with scrape winding)
2.4 Tensioning device
2.5 Hydraulic expansion recoiler
2.6 Hydraulic unloading car
2.7 Control system
2.8 Hydraulic system
III Main technical parameter of Slitting Line Metal Coil Slitting Machine cut to length line for sale:
NO. | Name | Unit | Parameters |
1 | Materials |
| GI, PPGI, Aluminum alloy |
2 | Thickness | mm | 0.3-2.0 |
3 | Width | mm | 600-1500 |
4 | Coil I.D. | mm | 460-520 |
5 | Coil O.D. | mm | ≤1500 |
6 | Weight | T | 8 |
7 | Line speed | m/min | ≤10 |
8 | Power of slitting machine | KW | 3 |
9 | Quantity of strips (Max) | strip | as your need |
10 | Width tolerance |
| ≤±0.05 mm |
11 | Power |
| 380V/3Ph/50Hz( Customized) |
12 | Operation people |
| 1 technician and 2 general worker |
13 | Color |
| Customized |
Component | ||
1. Feeding trolley | 1 set | |
2. Hydraulic uncoiler | 1 set | |
3. Side guards & Slitting Machine | 1 set | |
4. Loop traversing crane | 1 Group | |
5. Separation device and the tension generator | 1 Group | |
6. Separation device & hydraulic recoiling machine | 1 Group | |
7. Discharge port trolley | 1 set | |
8. Hydraulic system | 1 set | |
9. Power control system | 1 set | |
Simple working chart
CAD Flowchart:

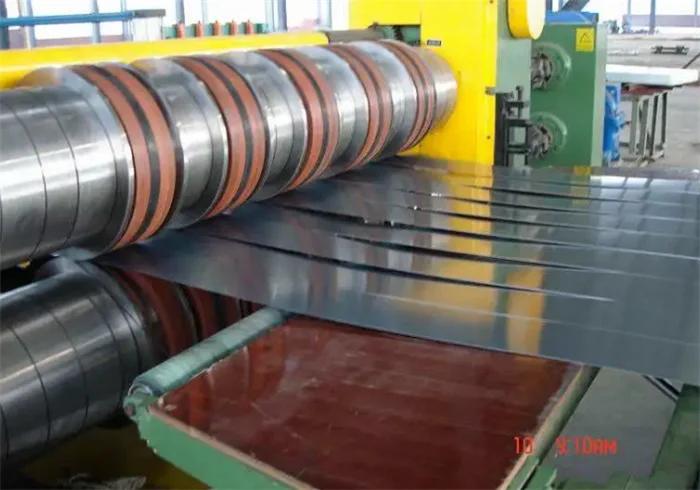

Pictures:

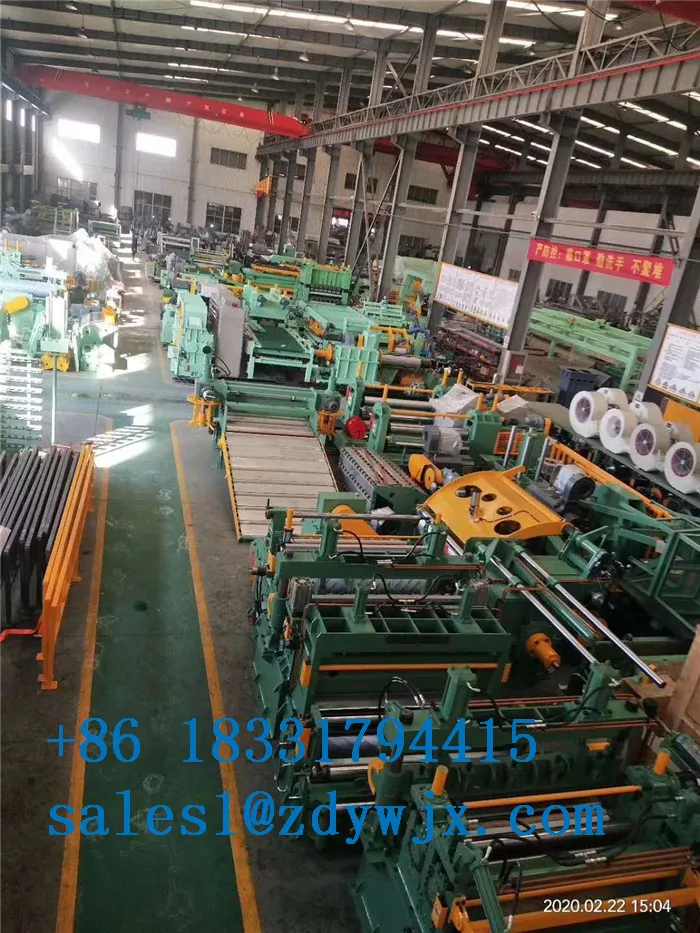

Company Introduction
Cangzhou Zhongde Roll Forming Machinery Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
