IFPD Description
Riotouch 100 Inch 4K touch screen monitor for Meeting and Conference
Riotouch 100 inch interactive flat panel (monitor 100 inch, instead of 98 inch touch monitor) is larger than 4 x 49 inch Splicing LCD screen
Riotouch 100 inch Interactive Flat Panel has a standard Ultra HD 4K (3840×2160) resolution. It provides brighter, clearer and sharper image quality. Customers can enjoy a more detailed image quality at any distance and angle.

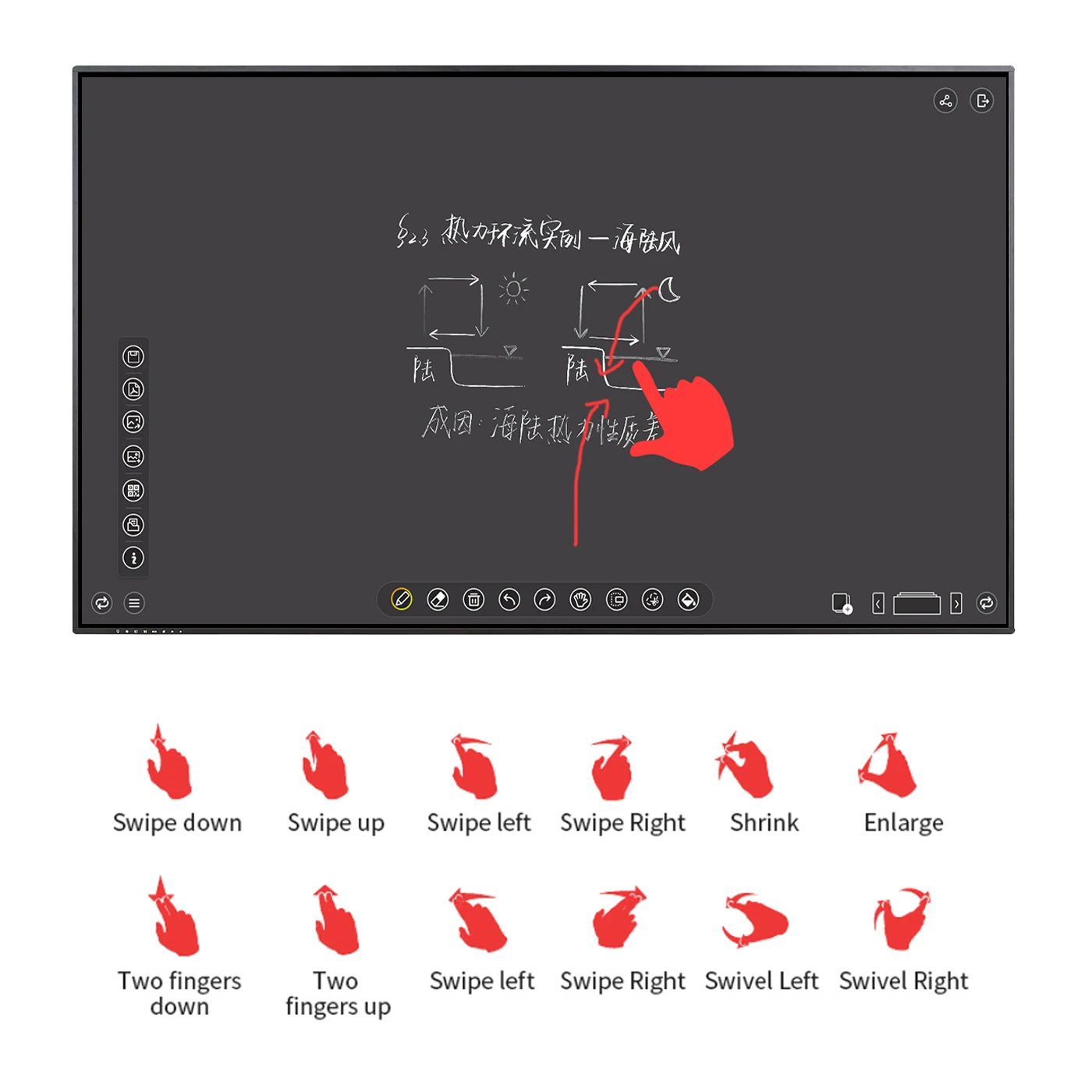

Riotouch interactive flat panel offers a true multi touch capabilities – up to 40 simultaneous points of touch, touch gesturerecognition – write with the pen and erase with your palm, fast touch response time, as well as easy to use and intuitive Android-based built-in software.
Riotouch interactive flat panel offers a true multi touch capabilities – up to 40 simultaneous points of touch, touch gesturerecognition – write with the pen and erase with your palm, fast touch response time, as well as easy to use and intuitive Android-based built-in software.
* Support 40 Point Touch
* Premium 4mm AG Tempered Glass MOHS Lv.7
* 100" larger size, larger than 4x49" panels
* Ultra-thin and slim design with 18mm

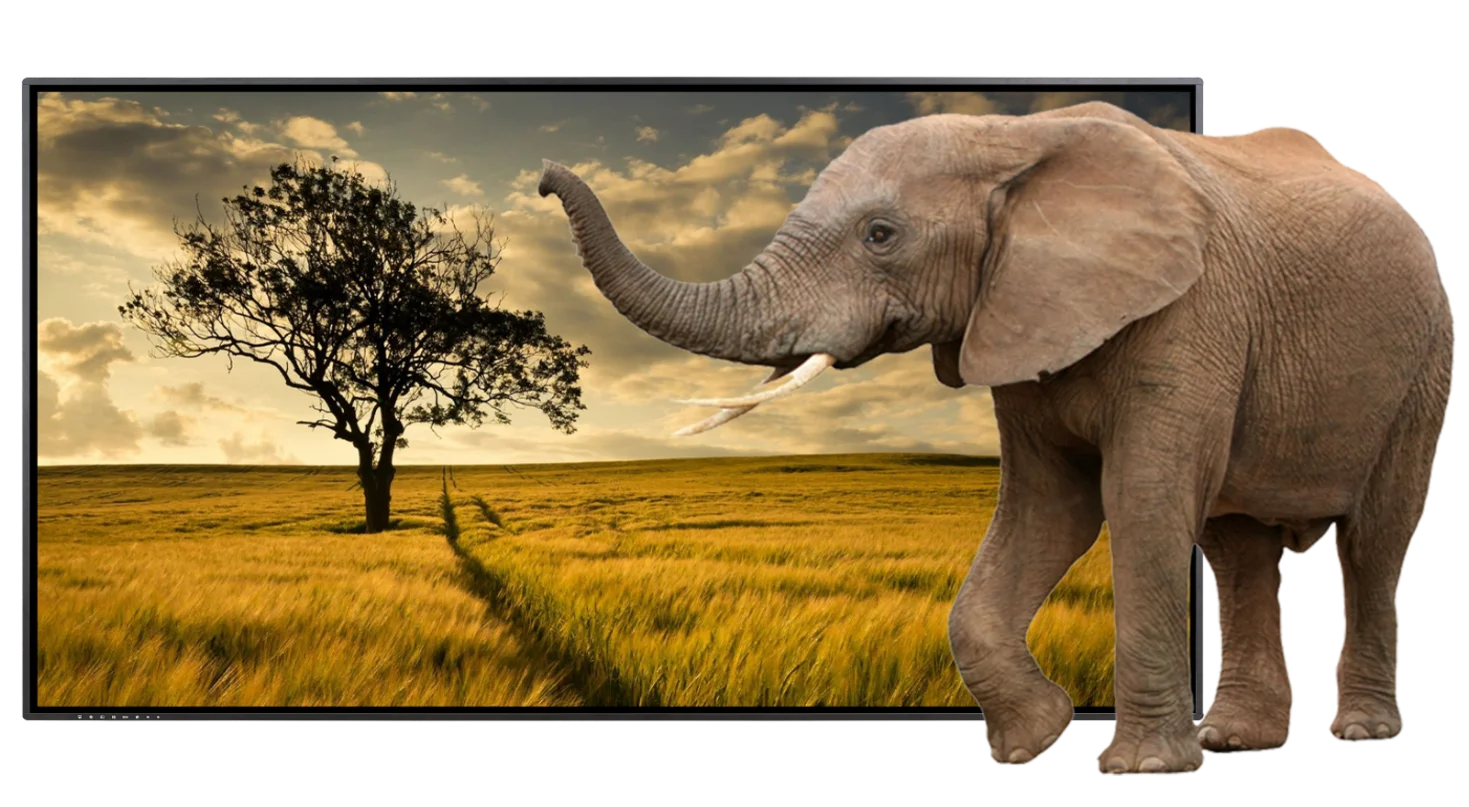

* Premium 4K UHD Display
* Latest Android 8.0 OS
* Type-C & USB 3.0 in the Display
* Dual OS support with OPS slot
* BYOD is available

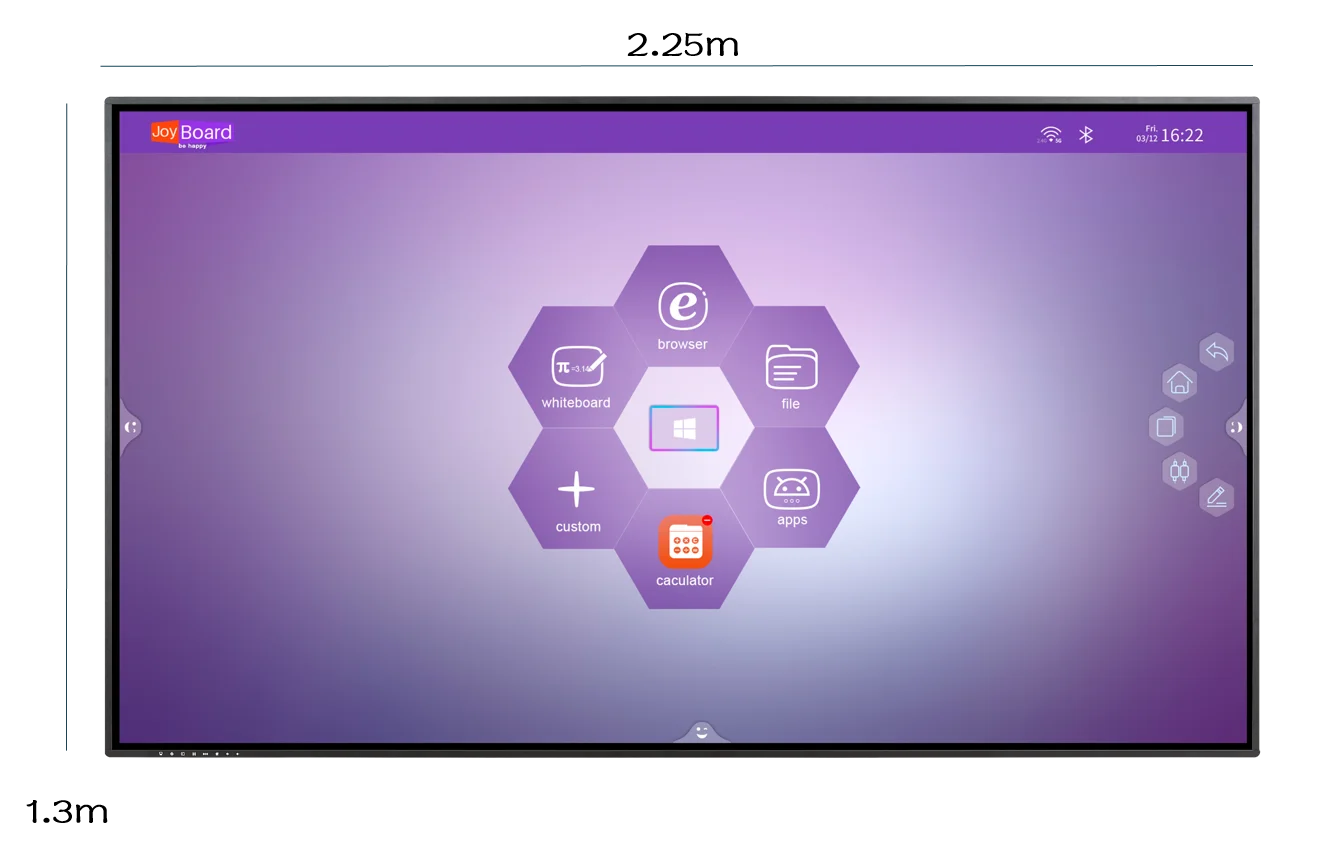

* User-friendly Interface

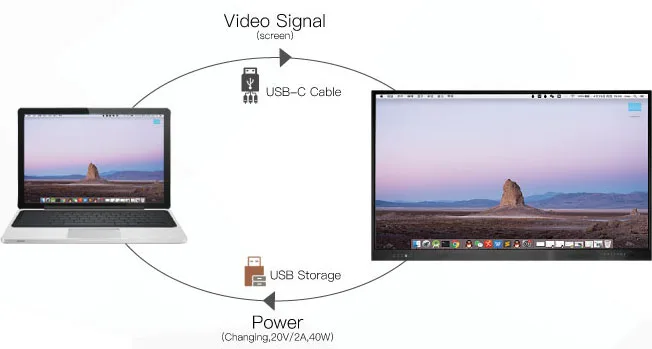

All in one USB-C type support with USB-A, USB-B, HDMI, power charge
Centrally manage all screens, Main screen to many screens wireless share content or broadcast, screens easy to join into the main
screens.Inspire idea & be more effective in the meeting or class
screens.Inspire idea & be more effective in the meeting or class

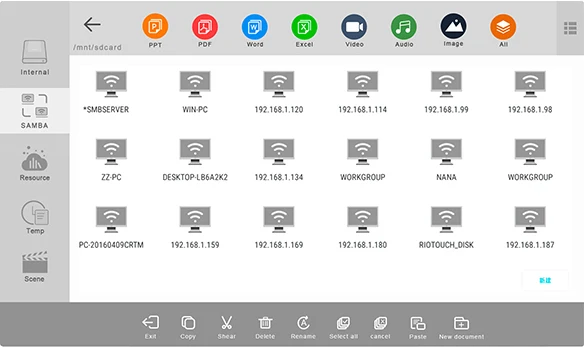

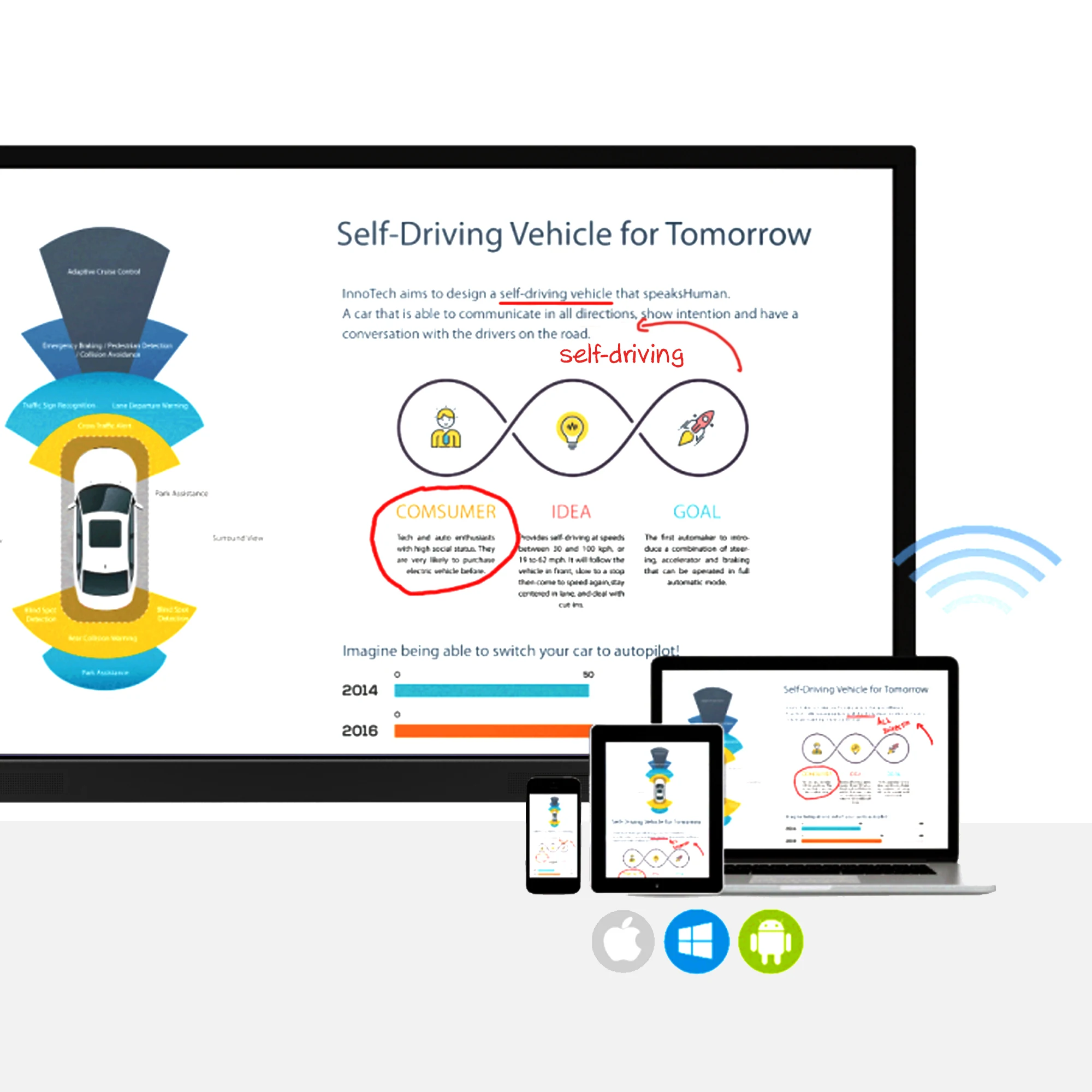

Screen & File Share
Riotouch 100 inch interactive flat panel using Riotouch software and present content from any device with single click, enjoy two-way collaboration from display or your device
Easily access your documents from the Cloud directly on the display

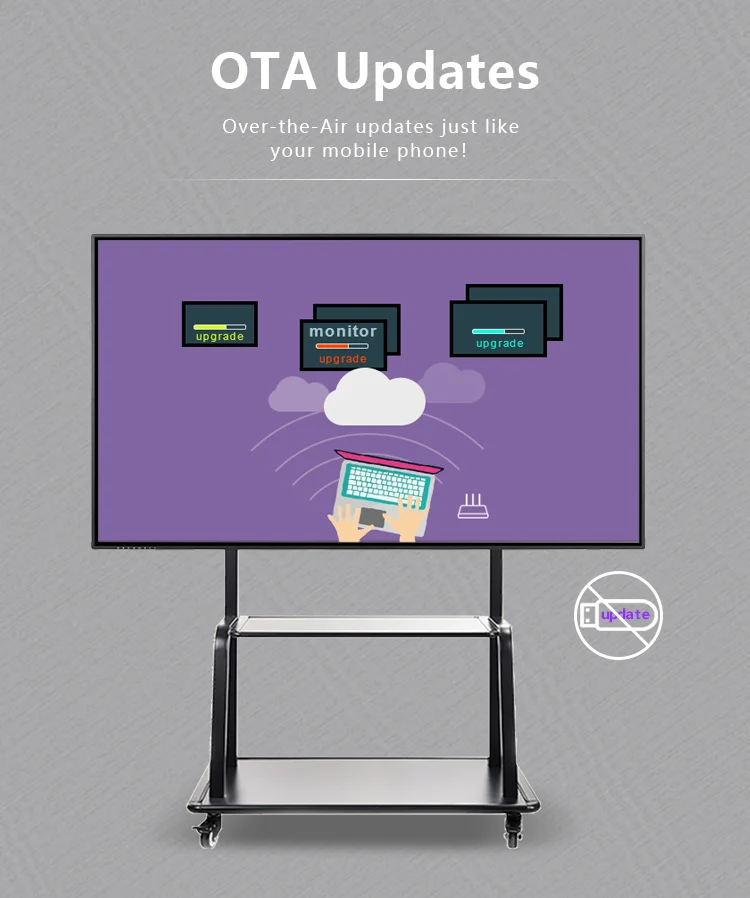

All Riotouch PCAP IFPD support OTA updates, Over-the-Air updates just like your mible phone

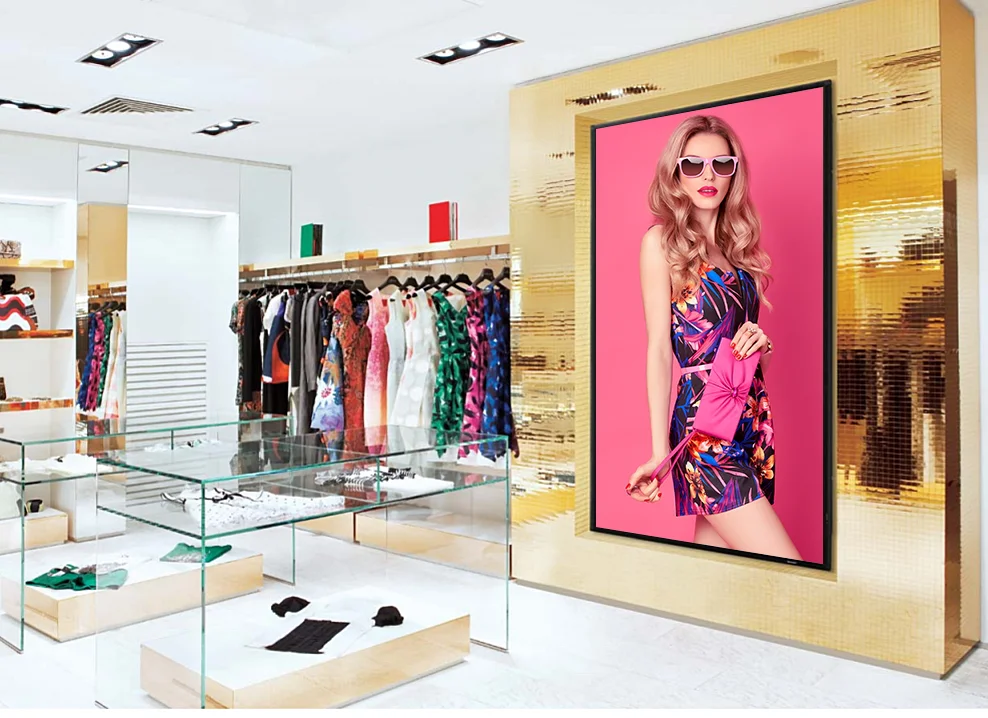

Product Application
Specifications
Screen | ||
Frame Color | Black | |
Size | 99.5" | |
Panel\\Backlight | Ultra HD DLED(OD28) | |
Display Size | 2204(H)*1240(V) | |
Black Border | 10mm | |
Resolution | 3,840 x 2,160 (Landscape)/2,160 x 3,840 (Portrait) | |
Glass | Anti-glare Tempered Glass | |
Glass Thickness | 4 mm / 0.16 inches | |
Glass Hardness | Mhos 7 | |
Aspect Ratio | 16:9 | |
Contrast | 4000:1 | |
Brightness | 350nit (without glass), 260nit (with glass) | |
Number of colors | 10 Bit (1.07B) | |
Viewing Angle | 178º:178º | |
Refresh rate | 120Hz | |
PC Module | ||
PC module slot | OPS slot | |
Touch | ||
Touch Technology | IR | |
Multi Touch | Yes (40points) | |
Multi-writing | Yes (10 points) | |
Auto calibration | Yes | |
Resistant to sunlight | Yes | |
Support OS | Windows 7, 8.1 & 10/Mac OS/Linux/Android and Chrome OS | |
Mainboard | ||
Model | ADV811 | |
Android OS | Android 8.0 64Bit | |
Chip | Hi3751ARBCV8110D0N | |
CPU | Dual-core A73 and dual-core A53 ，1.5GHz | |
GPU | Quad-core MaliG51 | |
RAM | 4GB DDR4 | |
Flash | 32GB (64GB optional) | |
Speaker | ||
Speaker | 15W*2 | |
Front Speaker | No | |
Sackbut | No | |
Dolby Sound | optional | |
Microphone | optional | |
Software feature | ||
U system | Center, Float icon, setting | |

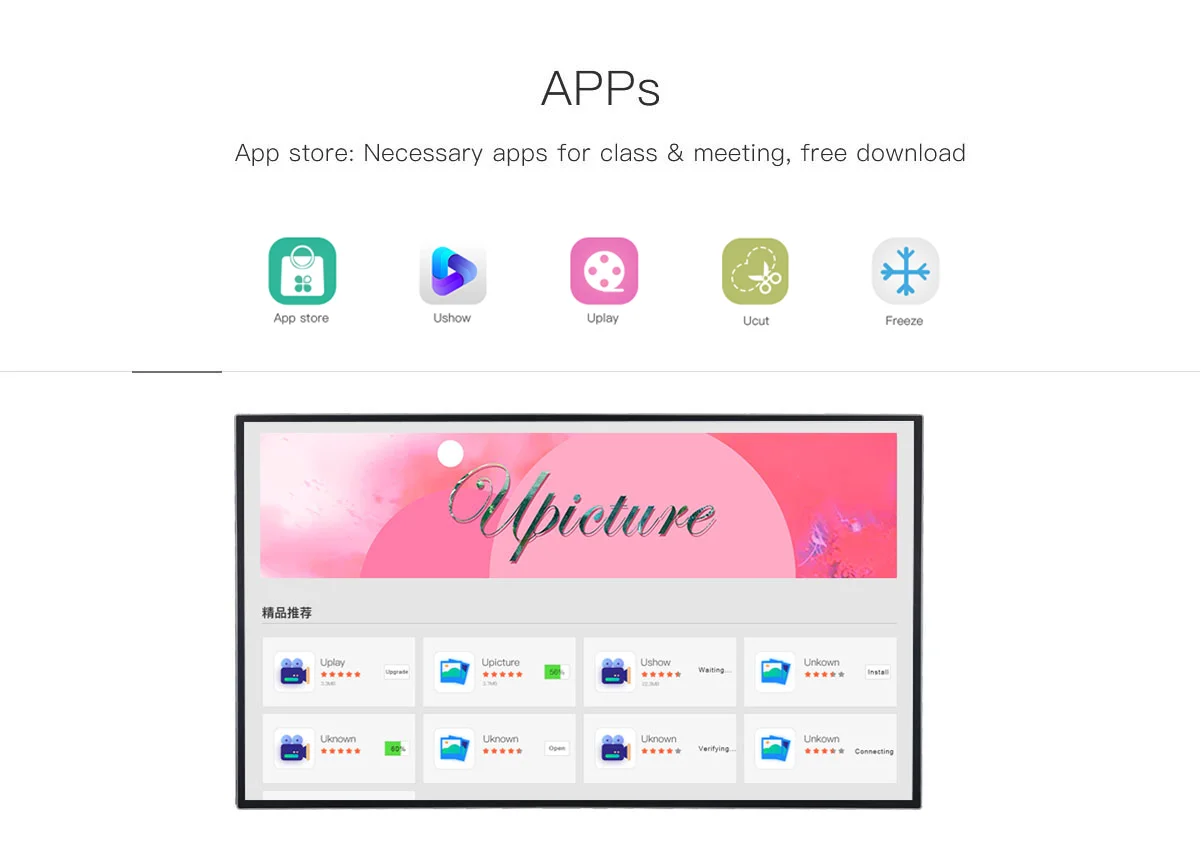

Software app | U mind, Ufile, Ushow, Ufreeze, Ucut, Ustore, OTA | |
Interfaces/Ports | ||
Type-C | 1 | |
HDMI 2.0 In | 1 | |
HDMI 2.0 (CEC & ARC) | 1 | |
Total HDMI 2.0 | 2 | |
HDMI 2.0 Out | 1 | |
VGA / DVI | Optional | |
Display Port | 1 | |
Audio Output Analog | 1 (3.5mm headphone Jack PJ3591 female) | |
Audio output digital | 1 (RCA Composite female) | |
RS232 control | 1 (Sub-D, 9 pins) | |
AV in | optional | |
USB touch port | 3(USB-B Female) | |
USB 2.0 | 2 | |
USB 3.0 | 1 | |
Wi-Fi for online updates | Yes | |
General information | ||
Power | 100-240 V (50/60Hz) | |
Power Consumption | <729W | |
Standby Power Consumption | ≤ 0.5 Watt | |
Gross Weight | 147(KG) | |
Net Weight | 102(KG) | |
Dimension(W x H x D) | 2257.0 MM * 1293.0 MM * 145.7 MM | |
Carton Size (W x H x D) | 2446.0 MM * 1428 MM * 235.0MM | |
Wall Mount Size | 1048MM*590MM | |
Warranty | 1 Years | |
Environmental conditions | ||
Operation temperature | 0°C - 38°C / 32 - 100°F | |
Storage temperature | -20°C - 60°C / -4 - 140°F | |
Storage humidity | 10% - 90% | |
Operation humidity | 10% - 90% | |
About Riotouch
Riotouch is a professional manufacturer in the interactive plat panel and whiteboard in China from 2009. We have our professional Sales team, strong Design, R&D, After-sale service team, to provide our super value products and service to our customers. We focus on smart interactive educational equipment, make lessons with more fun & joy, inspire the next generation to be more creative.

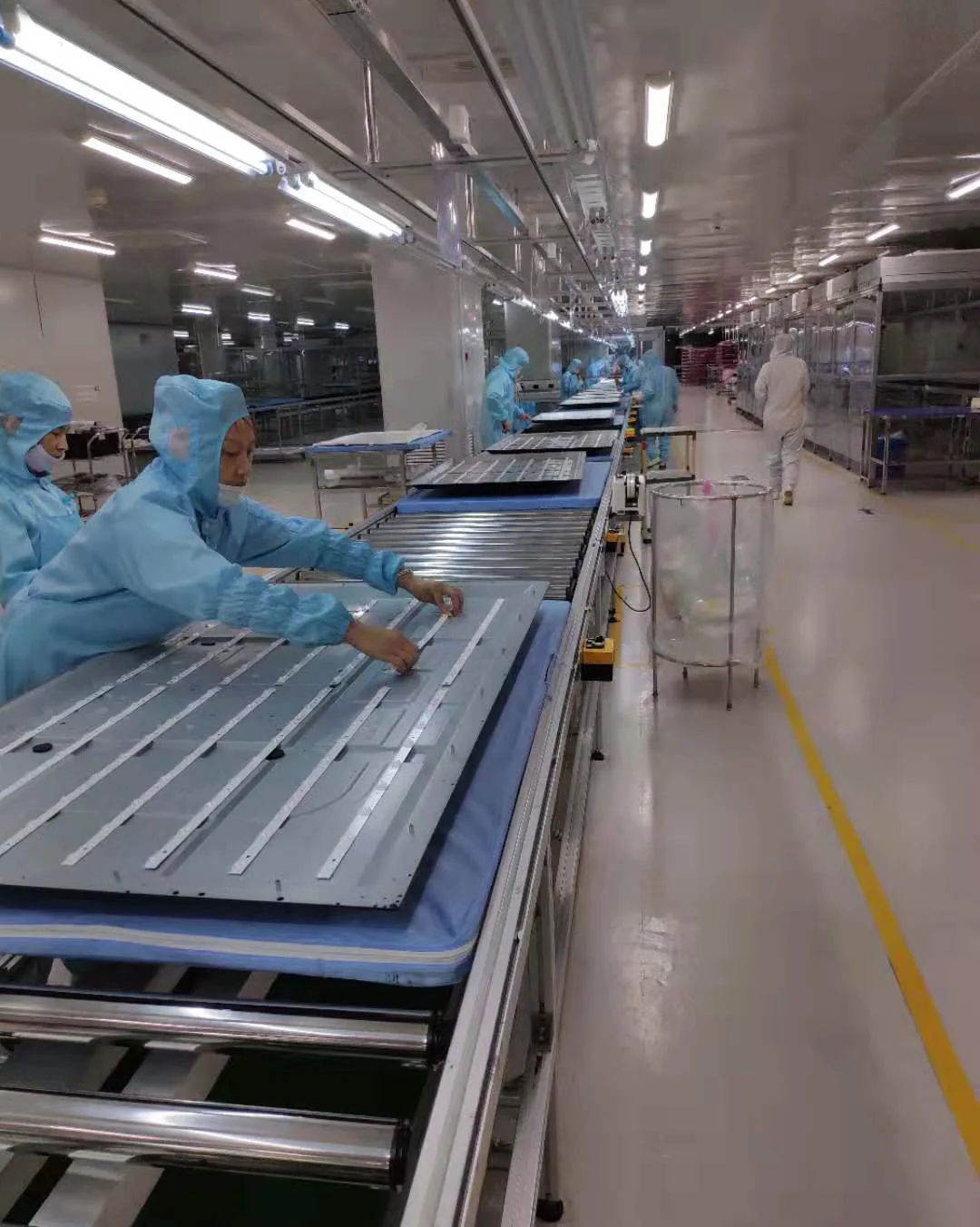

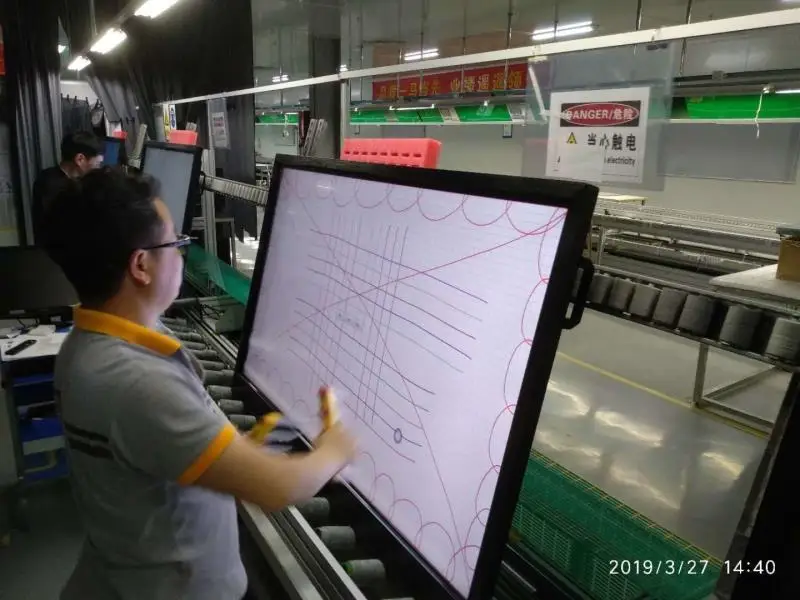

Riotouch Production Line

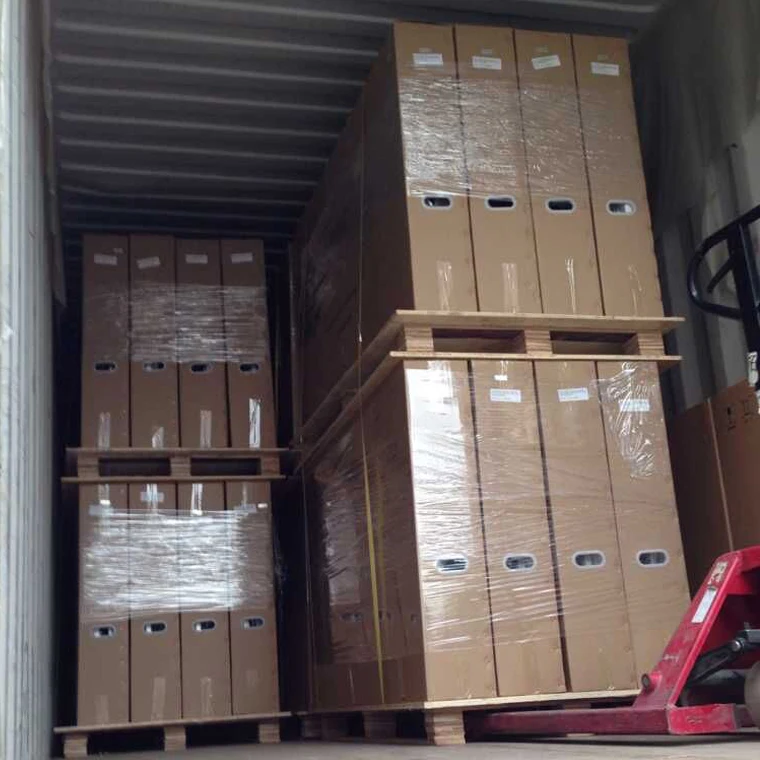

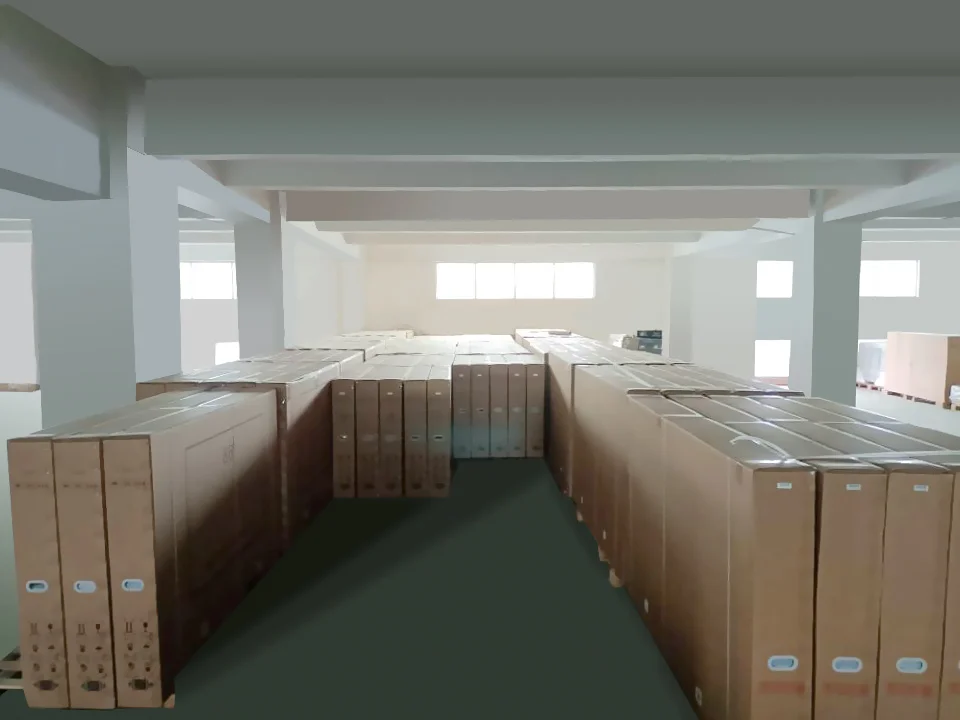

Packing & Shipping
Certifications
FAQ
1. Are you a Manufacture?
A: Yes, we are a manufacture of interactive whiteboard and interactive flat panel in China from 2009, located in Dongguan City, Welcome your visit.
2. What's your product quality control?
A: We have strict QC team, production meeting ISO9001 production system. Our products passed CE, RoHS, FCC certification.
3. What's your after-sale service?
A: We can offer 100% guarantee on our product. Our general warranty is 1 year. For bulk order, we will provide spare parts, If any problems, you will get our reply on line within 24 hours.
4. What's your MOQ?
A: Generally, our MOQ is 10pcs. But sample order is acceptable. More quantities enjoy better discount.
5. Could you offer the OEM service?
A: Yes, We provide OEM and ODM service and customized service. We also supply software and firmware OEM/ODEM, As we know that all the hardware designs are almost the same, firmware become very important to win more markets.
6. What is the payment way?
A：T/T，LC,.... Trade Assurance is welcomed!
7. How about the delivery?
A: The delivery would be with in 5-20 days according to the order quantity and size of the items.
