Маленький поршень MAL 50 мм 63 размер отверстия Airtac алюминиевый сплав мини-пневматический цилиндр сжатого

Маленький поршень MAL 50 мм 63 размер отверстия Airtac алюминиевый сплав мини-пневматический цилиндр сжатого

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

MAL Airtac Aluminum Alloy Mini Small Pneumatic Cylinder Small Piston 16mm 20mm 32mm 40mm 50mm 63mm Compressed Air Cylinder

Product Description

-Product Description.jpg

Ordering Code

MAL 32×50 - S - CA - FA

Series Bore x Stroke Built-in magnets Rear cover type Mounting type

MAL: Double-acting type Nil: Without CA: Single clevis type Nil: Basic type

MALD: Double rod type S: With CM: Round end type FA: Front flange type

MALJ: double rod type U: Flat end type FB:Rear flange type

MALC: With cushion LB: Foot bracket type

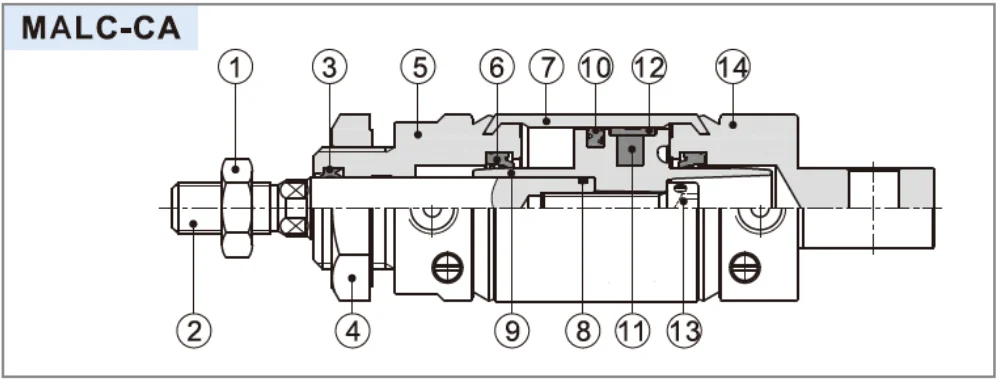

Inner structure and material of major parts:

NO	Item	Material
1	Rod nut	Carbon steel
2	Piston rod	Carbon steel with 20 µ mchrome plated
3	Front cover packing	NBR
4	Front cover nut	Carbon steel
5	Front cover	Aluminum alloy
6	Bumper	TPU
7	Barrel	Aluminum alloy
8	O-ring	NBR
9	Piston	Aluminum alloy
10	Piston seal	NBR
11	Magnet	Plastic
12	Wear ring	Wear resistant material
13	Bolt	Carbon steel
14	Back cover	Aluminum alloy

Specifications

Bore size		16	20	25	32	40	50	63
Acting type	MSAL/ MTAL	Single acting					-
	MAL/ MALD/ MALJ	Double acting
	MALC/ MALCD/ MALCJ	Double acting with cushion
Fluid		Air(to be filtered by 40 µm filter element)
Operating pressure	Double acting	0.15MPa~1.0MPa(22~145psi)(1.5~10.0bar)
	Single acting	0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature °C		-20~70
Speed range mm/s		Double acting: 30~800 Single acting: 50~800
Cushion type		MALC/ MALCD/ MALCJ Series: Adjustable cushion; Other Bumper
Port size		M5X0.8	1/8''				1/4''

Stroke

Product Details

-Product Details.jpg MAL Cylinder.jpg
