WELCOME TO HONGFA MACHINERY
HONGFA Light Weight AAC Block Factory(sand)
Model: HFAC10
Product Description
Autoclaved Aerated Concrete (AAC) Brick is a light weight, multi-cell new construction material; the features include lower density, heat insulation, possibility, fire and acoustical resistant properties. AAC is made from silicon material(silica sand, or recycled fly ash) and calcium material (lime, cement), mixing with foaming additive (aluminum powder),batching with, the reaction between aluminum and concrete causes microscopic hydrogen bubbles to from, expanding the concrete to about five times its original volume. It is made into the multi-cell silicate product by the processes of molding, pre-curing, cutting, evaporating and curing.
RAW MATERIALS

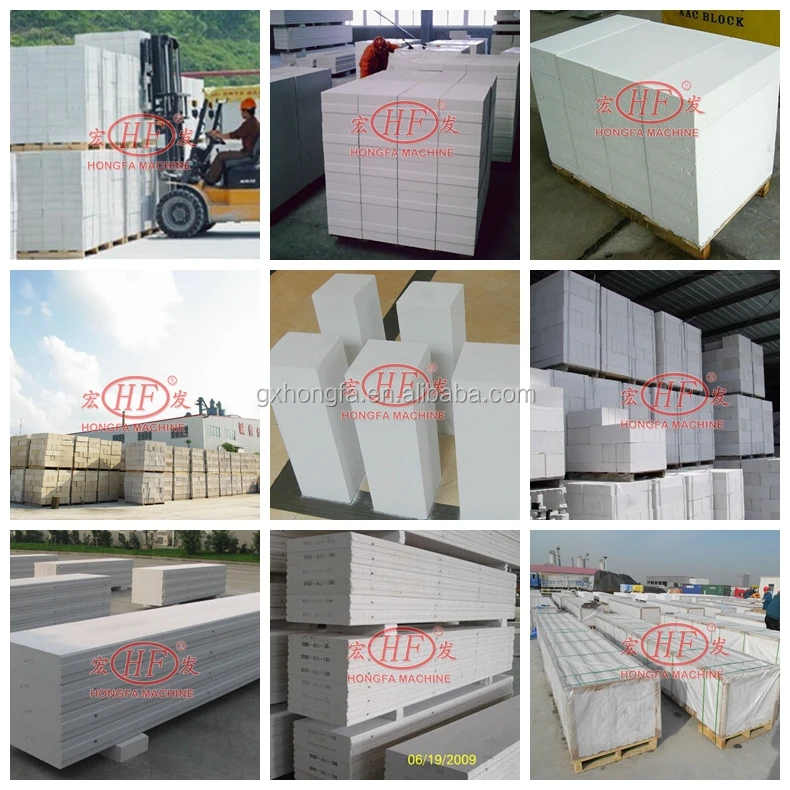

AAC Aerated Light Weight Concrete Block
1. Sound proof | Excellent sound Transmission class (STC) ,rating of 44. Result: Virtually Soundproof Interiors. |
2. Thermal Insulation | Highest thermal rating in the industry.R30! AAC reduces Air conditioning cost by 30%. |
3. Earthquake Resistant | Regions of high seismic activity like Japan exclusively use AAC. It has been proven to withstand wind loads of category 5 tropical storms. |
4. Floor Space Area | Use of thinner blocks (6" instead of 9" exterior walls) because of its excellent water barrier & insulation properties leads to an increase in floor space area between 3-5%. |
5. Cost saving | Being lightweight AAC drastically reduces the dead weight of building, resulting into reduction in steel (up to 27%) and cement (up to 20%) structural cost saving. |
6. Fire Resistant | Best in class fire rating of 4 hours. The melting point of AAC is over 1600 ºc, more than twice the typical temperature in a building fire of 650 ºc. |
7.Pest Resistant Termites hate AAC | Being made of inorganic minerals, it does not promote growth of molds. |
8. Water Barrier | Its structure does not allow for capillary action making it impervious to water. Its water barrier properties are further enhanced by adding silicone based additives. Strength to weight ratio, higher than even M150 concrete and far exceeds the Indian Building code requirements. |
9. Energy Efficient | AAC is 100% Green Building Material & is a walling material of choice in LEED certified buildings (ITC centre, the highest rated Green Building has been built using AAC). |

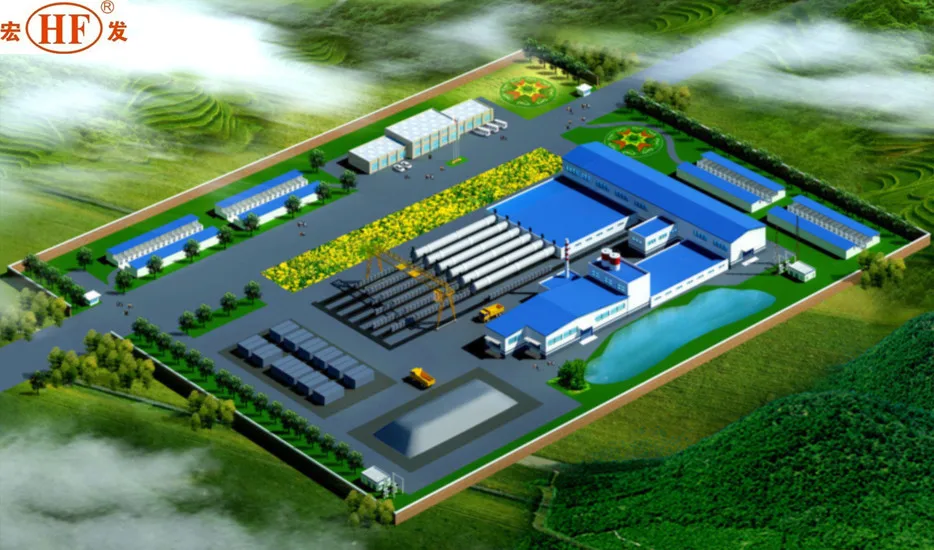

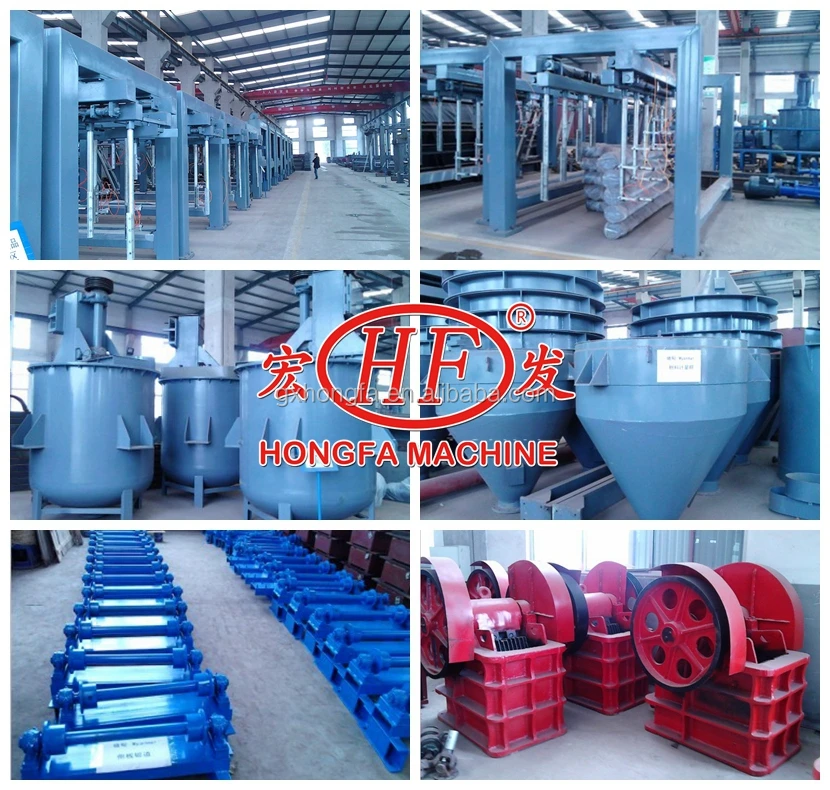

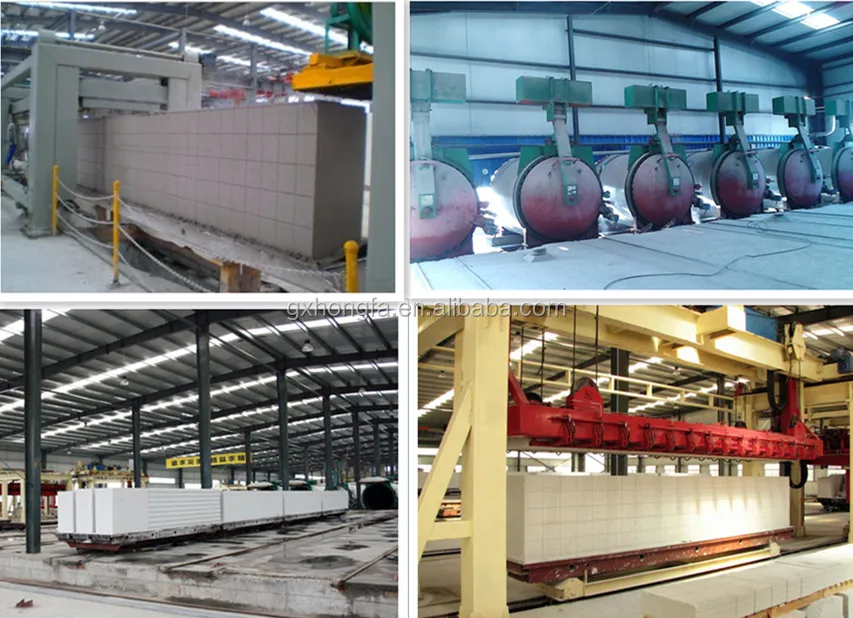

AAC Aerated Light Weight Concrete Block Making Machine
01 Bucket Elevator | 07 Ball Mill | 13 Grouping Conveyance Mechanism | 19 Autoclave |
02 Lump Lime Silo | 08 Slurry Storage Tank | 14 Cutting Machine | 20 Steam Distribution System |
03 Lime Powder Silo | 09 Batching System(PLC) | 15 Rolling-over table | 21 Production Conveyor Device and Production Hoist |
04 Cement Silo | 10 Mixing and Pouring Machine | 16 Side Plate | 22 Clamping and Conveying Mechanism for Finished Product |
05 Gypsum Powder Silo | 11 Pouring Ferry Trolley | 17 Turnover Conveyor Device and Tilting Hoist | 23 Conveying Mechanism for Wooden Pallets |
06 Belt Conveyor | 12 Mould | 18 Steam Generating System (Boiler) | 24 Roller Conveyor for Side Panel |
1. Product weight is according to 600kg/m3 to control. | 6. Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes. |
2. water and material rate 0.631
| 7.casting slurry temperature 38-42 degree |
3 .annual capacity 50,000 to 300,000M3. | 8 .body quiet stop. Time is 1.5-2.5housr, temperature 50-90 degree, after quiet stop body strength is 0.15-0.18Mpa |
4. one mould product 2.88M3 | 9 .Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours. |
5. Set raw material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste powder 350g/M3. | 10. Main Material:coal ash sand waste mine material coal stonestone dust and other silicon materials. |

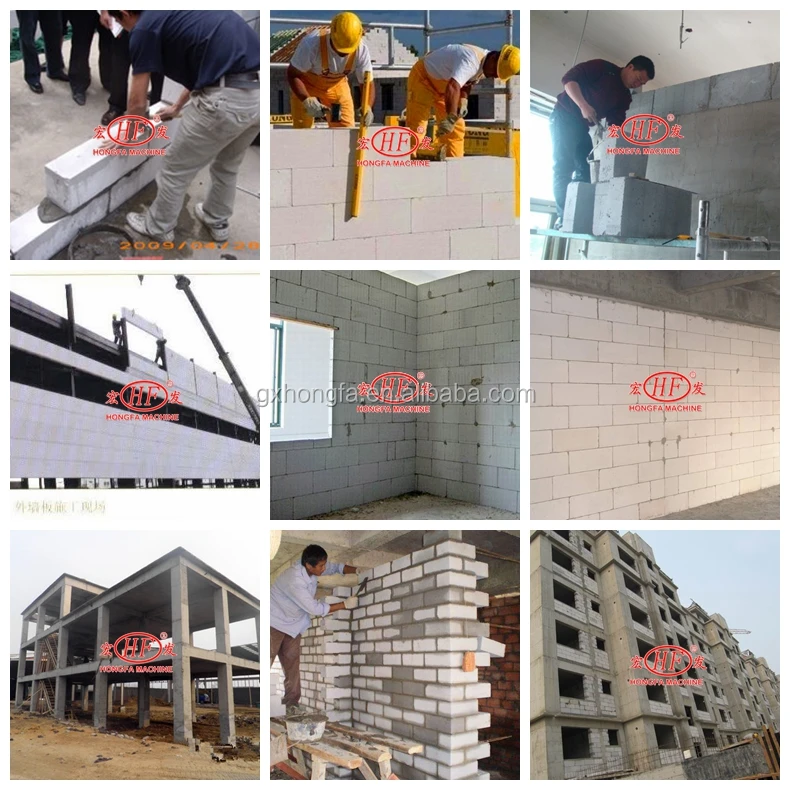

APPLICATIONS
Packaging & Shipping
Our Services
Pre-sales Service
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory,
feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
(6) Raw material sample testing support.
Sale
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale
(1) Training how to instal the machine, training how to use the machine.
(2) Engineers available to service machinery overseas.
(3) Recall clients regularly ,get feedback in time,keep well communication with each other
Company Information
1.How can I trust you?
1) More than 30 years manufacture experience.
2) The biggest and most famous supplier in China: total 4 factories with 353,000M2 and yearly selling above 100 Million USD.
3) Main products:
-concrete brick machine
-EPS wall panel machine
-AAC production line
-concrete batching plant
-concrete tile machine
-concrete pipe machine.
4) Ever exported to more than 100 countries and area.
5) Continues service and logistics system.
6) High quality products and competitive price.
Our machines have been checked and got the certification ISO9001 and CE, and always have a good reputation of its quality. What's more, every machine will be tested carefully before shipment, making sure all the machines operate perfectly when it comes to your hand.
2.How long is the guarantee?
Our warranty is one year after installation.
3.Can you help to make installation?
We could send one or two engineers to buyer's places to direct the installation and give the operation training.
The customers should pay for the cost of VISA, room and board, and the round-trip tickets for our engineers.
Welcome to visit us, establish a long-term cooperation with each other.
