220 В Вибрационный двигатель для машины
US $22.00-$45.00
Трехфазный 6 полюсов 220V/380V 1000/1200 об/мин 50/60HZ Вибрационный двигатель большой хоппера вибрации Вибратор переменного тока
- Категории: >>>
- Поставщик: Zhejiang,Guangling,Vibrating,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Three Phase 6 Poles 220V/380V 1000/1200rpm 50/60hz Waterproof Force Adjustable AC Industrial Vibrator Motor.
Used In Construction, Electric Power, Chemical Industry, Casting, Metallurgy, Mining, Coal, Food Machinery and Other Industries.
Used In Construction, Electric Power, Chemical Industry, Casting, Metallurgy, Mining, Coal, Food Machinery and Other Industries.
stator&rotor | cold rolled silicon steel 600 |
rotor | dynamic balance |
winding wire | 100% copper wire,Grade H,180℃ PTC , IP66,waterproof design |
bearing block | ductile iron |
shaft | heat treated,Strength is more than 45#steel |
bearing | C&U,NSK and SKF as requirement. |
mass | force can be adjustabled,mass with clear scale. |
housing | aluminum alloy,powder painting,spray painting. |
screw | alloy steel 10.9 |
junction box | filled with epoxy resin,terminal is brass |
force | true force,true power,competitive price. |
volt | AC-220/380V,110V/220V, DC-12v,24v |
HZ | 50/60hz |
Speed | 3000/3600rpm |
warrnty | 1 year warrnty, long service life. |
Quality Control | Raw material quality control,spare parts quality control,every work craft quality control, package quality control. |
Direction for use
使用说明
Noise<= 70 dB (A) Insulation Class: FProtection:IP66
Admitted Ambient Temperature: From -30?C to +40?.
s1 continuous duty
Description of application effect
使用效果描述
The vibration motor can be mounted in every position. The surface on which the vibrator is placed must be plane, with-out any
imperfection, which could preclude a correct fixing To bolt the vibration motor onto the structure always use new and high
resistant screws and nuts.
imperfection, which could preclude a correct fixing To bolt the vibration motor onto the structure always use new and high
resistant screws and nuts.
Detailed Images

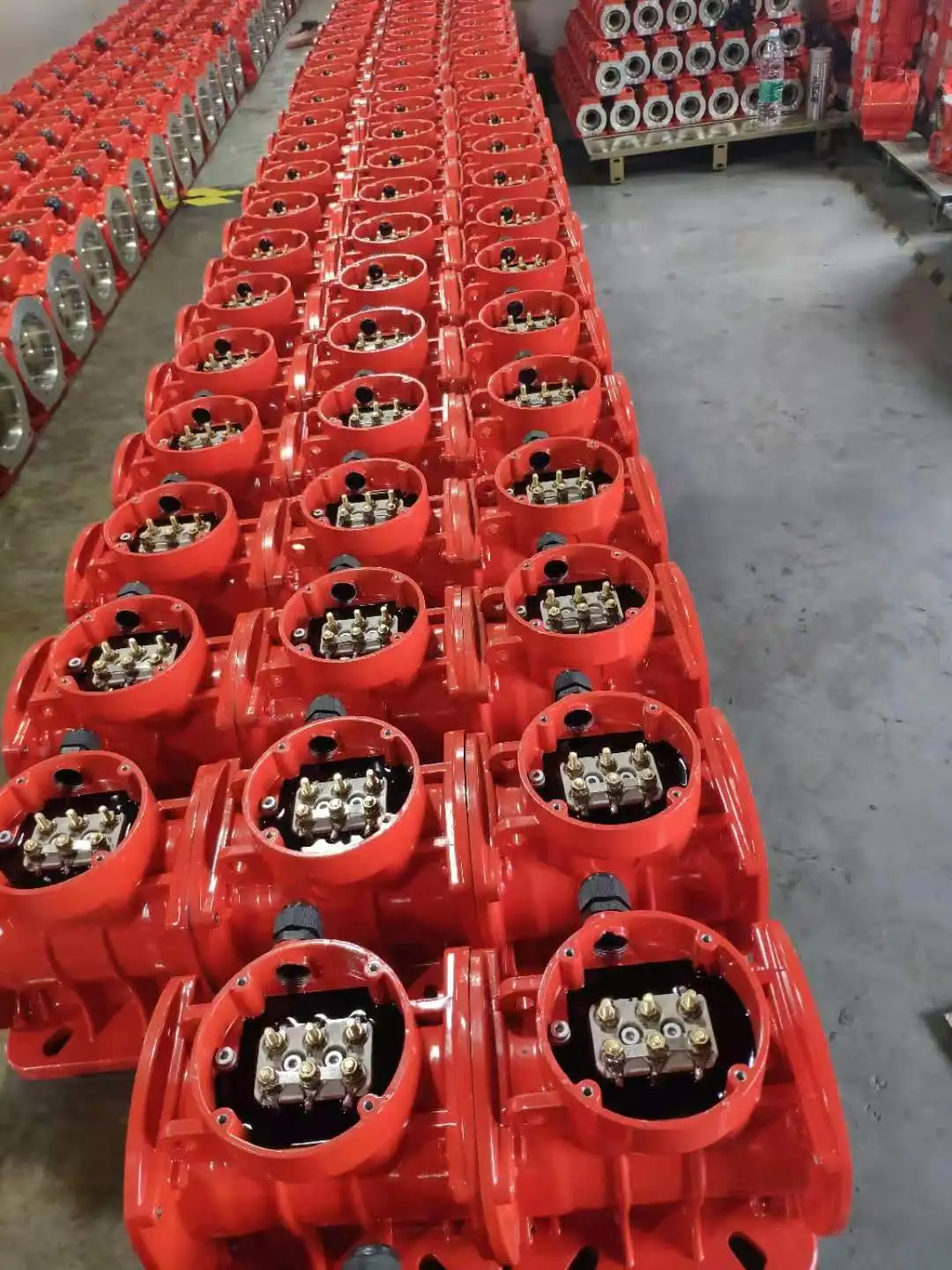

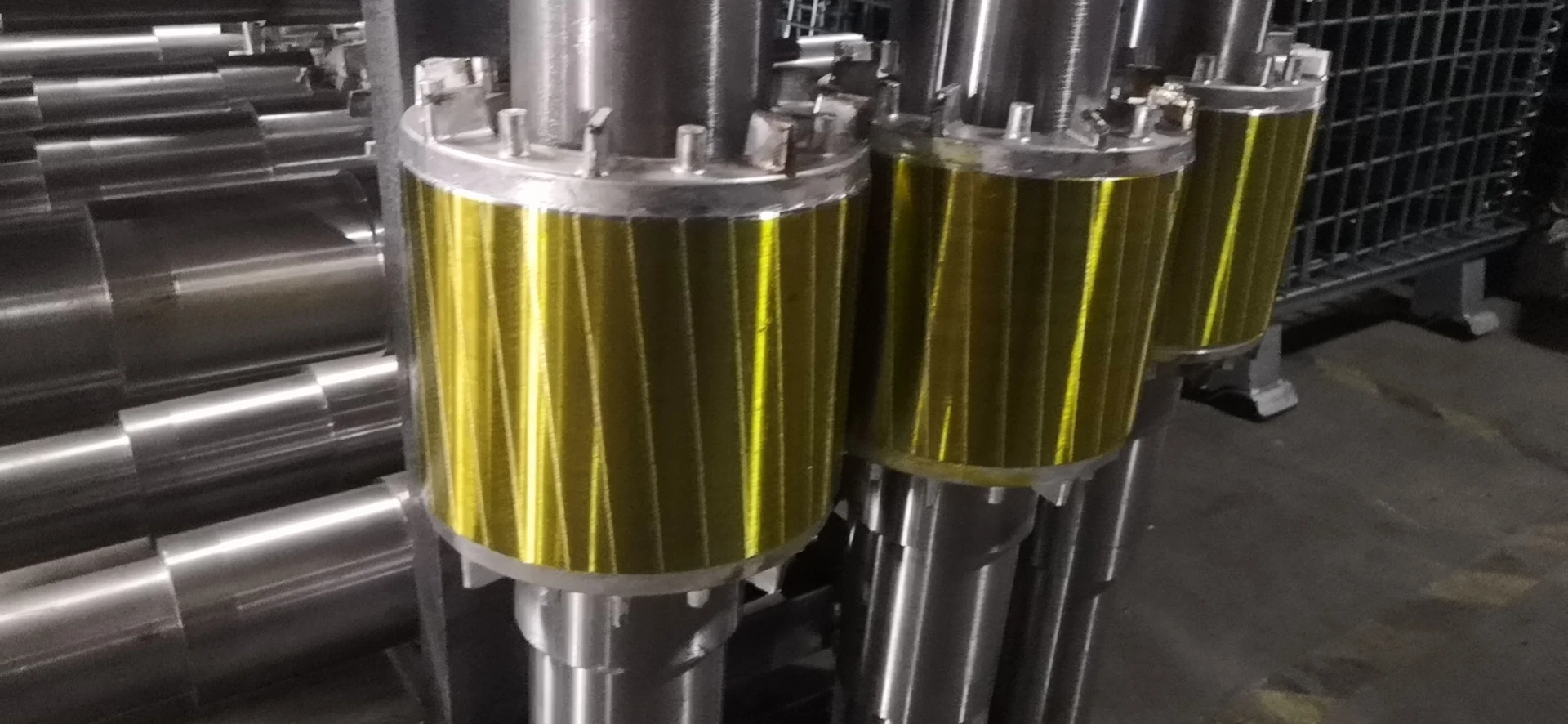

winding warehouse,balance rotor,Installation workshop

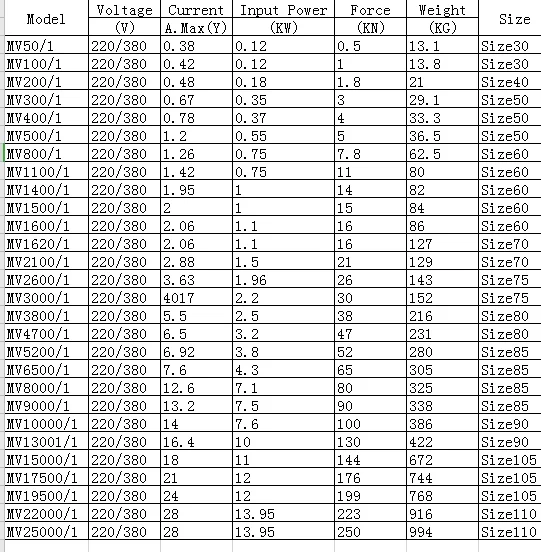

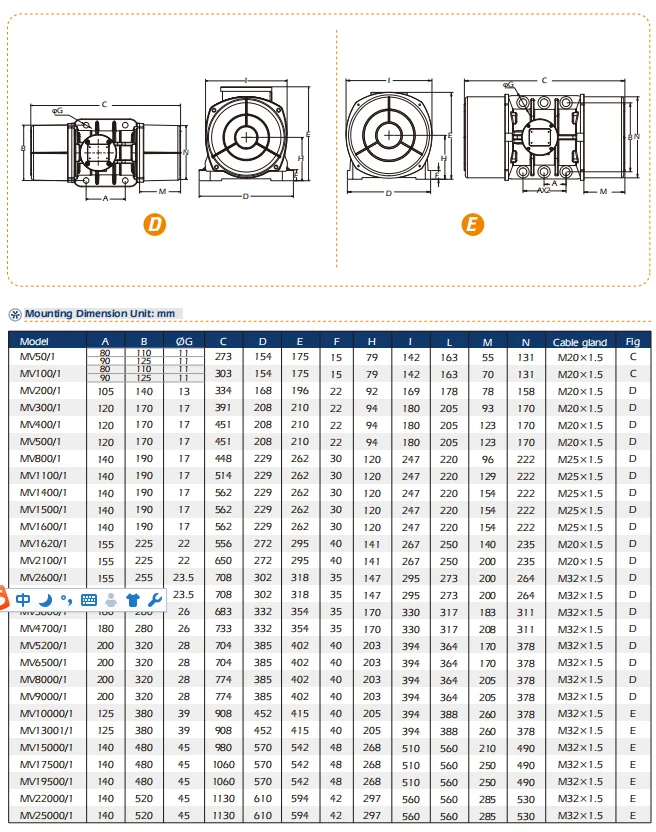

Size Information
Size Chart of This Design
MV 6 poles220/380v 1000/1200rpm 50/60hz models

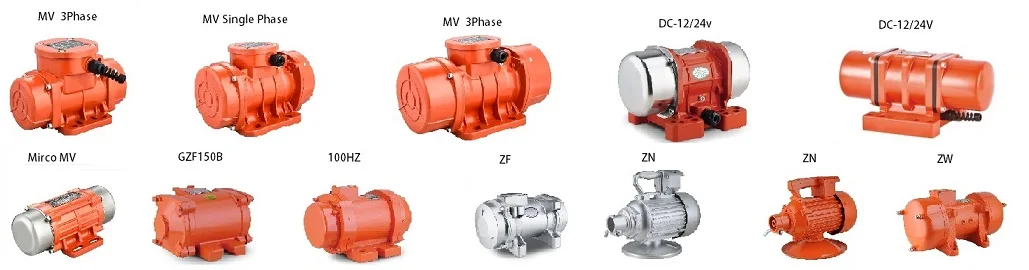

Related Products
Packing&Shipping
After Sales Service
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged
spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by
customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by
customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
Company Introduction
Zhejiang Guangling Vibrating Technology CO.,LTD.with 20 years’ manufacturing experience in vibrator motor,offer constant
reliability and long operating life with aesthetic design, solid raw material and strict quality control at each stage of
production.
Our company, by following the developments in the industry closely, manufactures the vibration motors needed in this area as more
economical, higher quality and more aesthetic products by using all the improving opportunities of technology. Superior quality
production is ensured through testing and meticulous quality control made by our experienced personnel at every stage of
production.
reliability and long operating life with aesthetic design, solid raw material and strict quality control at each stage of
production.
Our company, by following the developments in the industry closely, manufactures the vibration motors needed in this area as more
economical, higher quality and more aesthetic products by using all the improving opportunities of technology. Superior quality
production is ensured through testing and meticulous quality control made by our experienced personnel at every stage of
production.
Our Services & Strength
1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
FAQ
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make vibrator motor since 2000.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
4). Q: What are your payment terms?
A: 50% deposit by T/T in advance, pay 50% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make vibrator motor since 2000.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
4). Q: What are your payment terms?
A: 50% deposit by T/T in advance, pay 50% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
