Винтовой пресс машина для очистки бычьего навоза/сепаратор твердых жидкостей/сельскохозяйственное
- Категории: Приспособление для разделения >>>
- Поставщик: Xinxiang,Dongzhen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Size Information
Model | Motor (KW) | Capacity (m3/h) | Water Consume when Cleaning | Cleaning Frequency | Max cesspool depth | Feeding Method |
DZY-200 | 4 | 10 | 0.1m3 | Each 20-30 days | 3.5m | Hopper or pump |
DZY-280 | 5.5 | 20 | 0.1m3 | Each 20-30 days | 3.5m | Hopper or pump |
Raw Material | Capacity (Cubic meters)/Hour | ||
DZY-200 | DZY-280 | ||
Cow dung sludge | 10-12 | 15-20 | |
Pig dung sludge | 10-15 | 20-25 | |
Chicken dung sludge | 3-4 | 6-8 | |
Slaughterhouse waste water | 10-15 | 20-25 | |
Biogas waste | 7-9 | 10-15 | |
Hopper feeder
Tube feeder
Products Description
The machine receives the material to be separated and conveys it using the screw conveyor inside the separator casing. The liquid phase is separated through the mesh of the cylindrical screen which encloses the screw conveyor. Along its path toward the exit, the material gradually separates progressively the less linked liquid and then the more strongly linked liquid until a plug of almost dry material has formed before the outlet. The plug is continuously expelled through the outlet diaphragm.The machine will automatically find its balance of squeezing force depending on the material. Consequently, it can be used for a wide range of materials without the need for any manual adjustments.

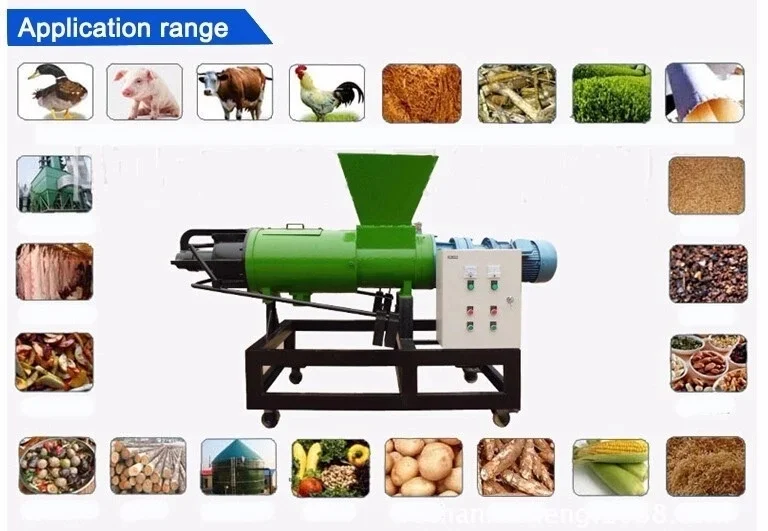

Application field
Application of Solid Liquid Separator
1.Animal wastes, such as pig manure, cow dung, poultry dung, horse excrement and other kinds of animal manure;
2.Biogas slurry,sludge gas and biogas fermentative residue;
3.Maniocwaste, tea slag, sweet potato waste, maize pulp, bagasse, medicine dregs, wppd pulp fiber, paper pulp fiber, bean dregs, coffee grounds and so on;
4.Any kinds of solid liquid separation.
4.Any kinds of solid liquid separation.

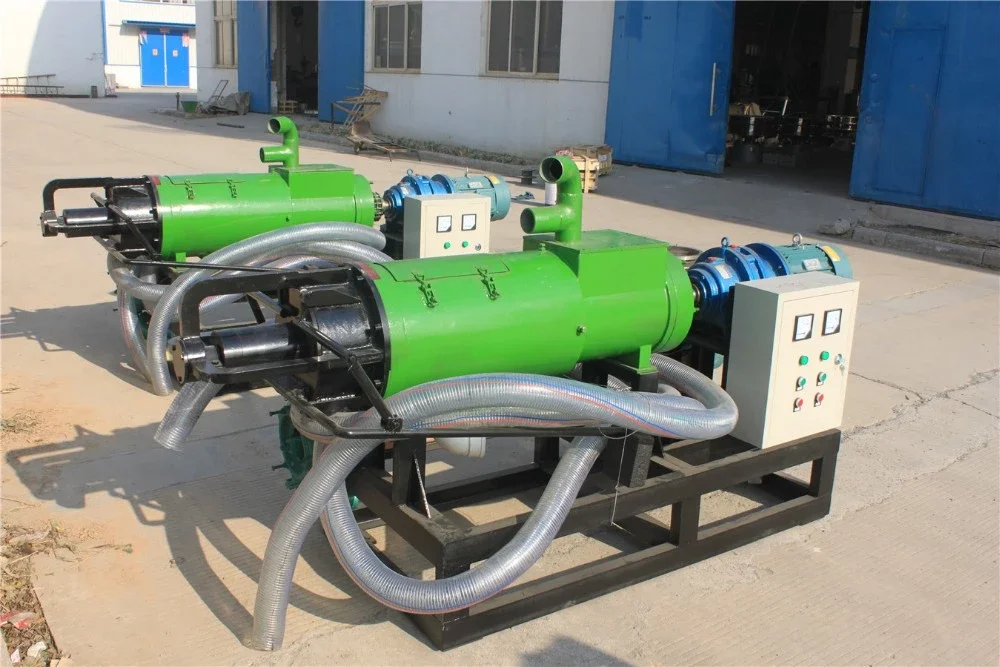

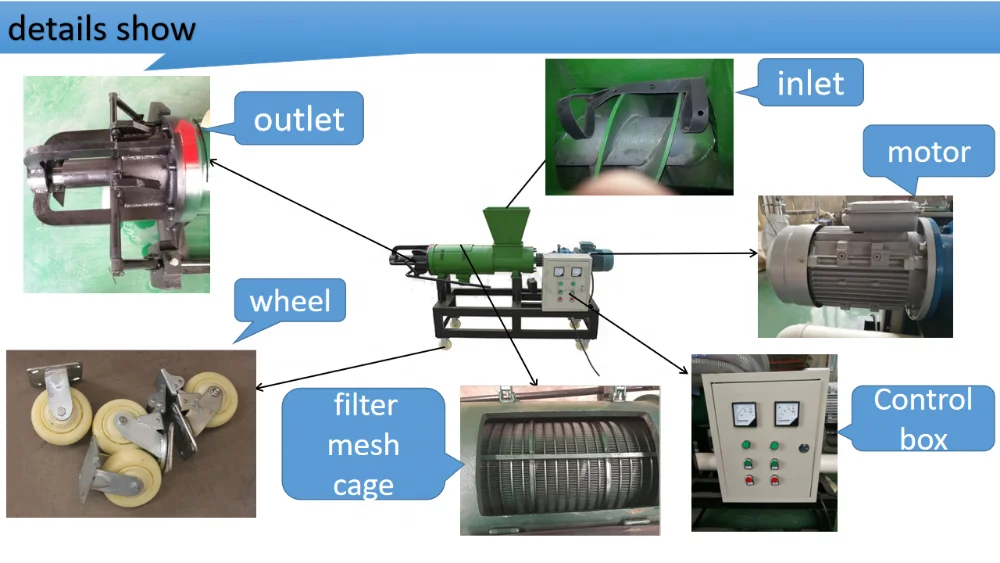

Detailed Images
Packing&Shipping
*Package:for the cow dung dewatering machine, we will pack the machine in plywood case package, to promise machine safety delivery on the sea.
*Delivery:Machine will be delivered within 15 working ways after get payment from customers
*Delivery:Machine will be delivered within 15 working ways after get payment from customers
After Sales Service
Basis service
1.Your sample material can be free analysis in our laboratory.
2.24 hours a week online & quick response within 12 hours.
3.Booking hotel and ticket for customers and Free transportation during visit our factory.
4. Production lead time and delivery time guaranteed.
Customized services
1.Professional R & D team to develop the new products as you requirements.
2.Help high-end customers to develop the local market 3.All packing and shipping can customized as per your requirements.
After-sale
services After customers received the goods,if have any questions or quality problems,Our customer service Dept. will be always available.
services After customers received the goods,if have any questions or quality problems,Our customer service Dept. will be always available.
Company Introduction
Dongzhen Machinery mainly produces products for sieving ,conveying,elevating,and cruching. Our company has strong technical force.With the strategy aiming to abtain enterprise reputation,be bold in innovative technology and provides good service,our company has become a well-known enterprise in the industry.
FAQ
Q:What factors I need to get a quotation?
A: Name of materials;Capacity per hour;Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we wouldwait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
