Touch/ Infrared induction pedestrian button with voice prompt

(Model: BBM-A03)



Features:

1. The integration of pedestrian crossing button and blind clock is a new pedestrian crossing request device independently developed by BBM Company,

 It is installed on both sides of the crosswalk, Pedestrians can trigger the signal to cross the street by touching button or using the infrared sensor.

2. After receiving the trigger signal of pedestrian's request to cross the road, the signal machine will change the status of the current signal light,

so as to achieve the purpose of letting pedestrians safely cross the road.

3. In addition to providing application function for pedestrians crossing the street, it further provides voice prompt and protection for pedestrians with visual impairment.

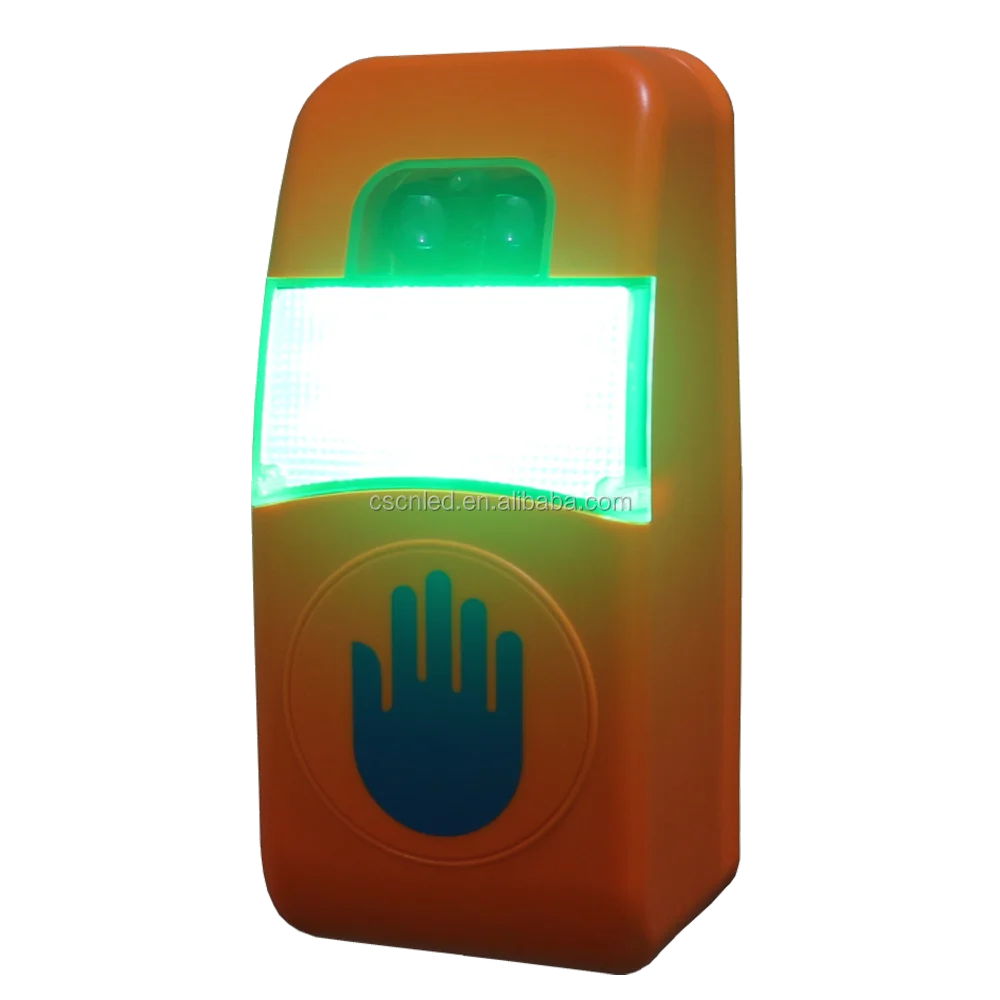

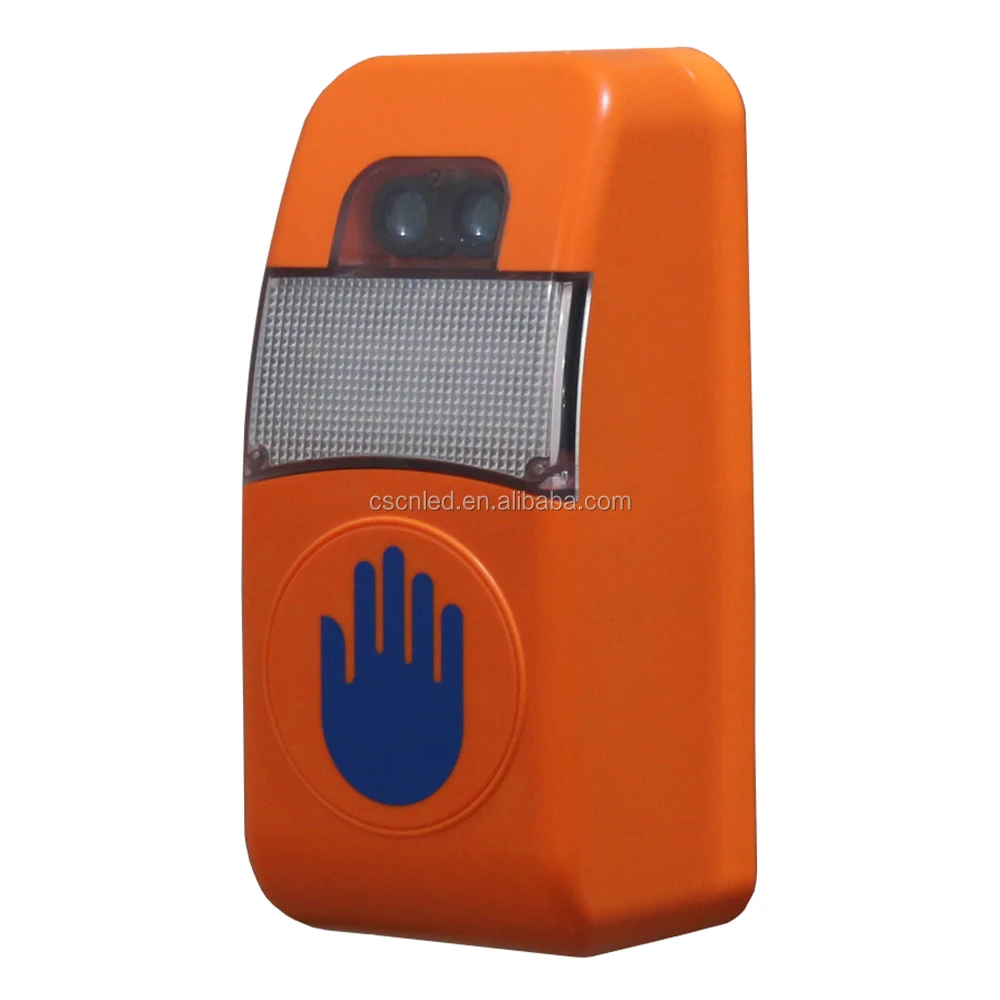

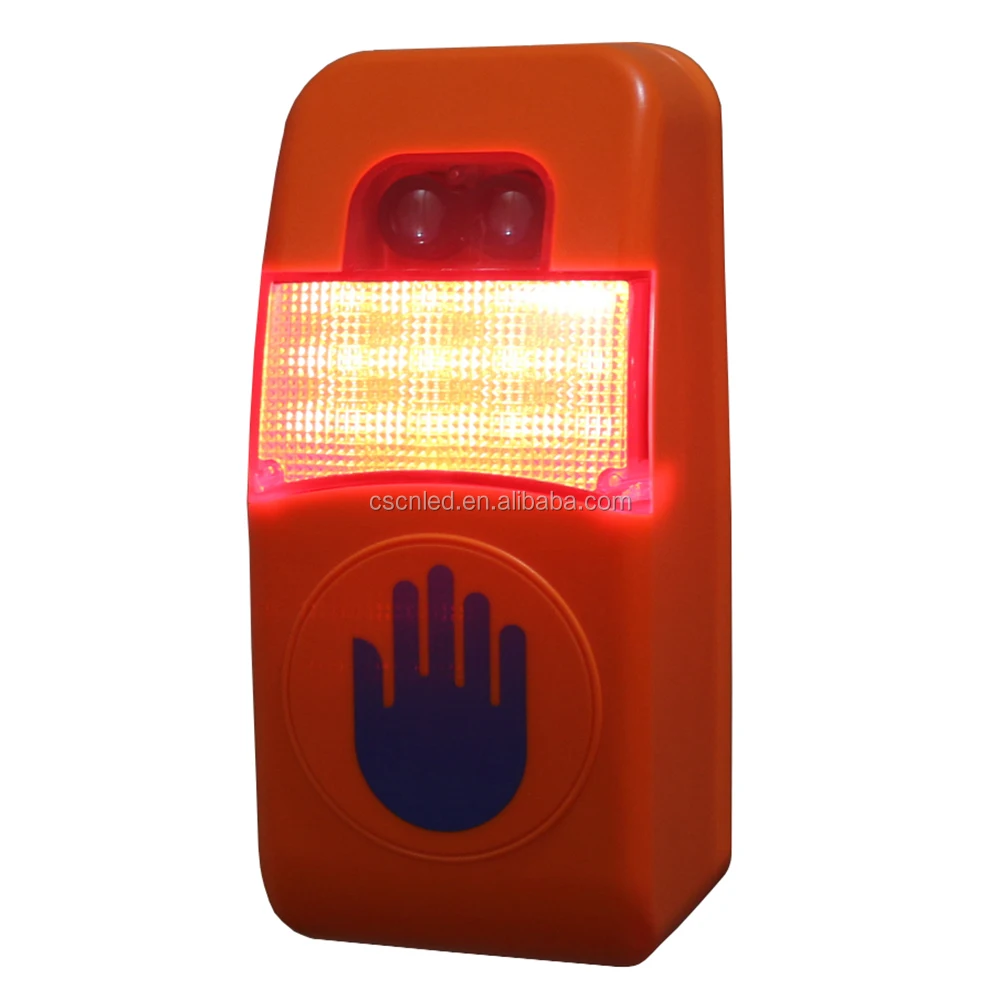

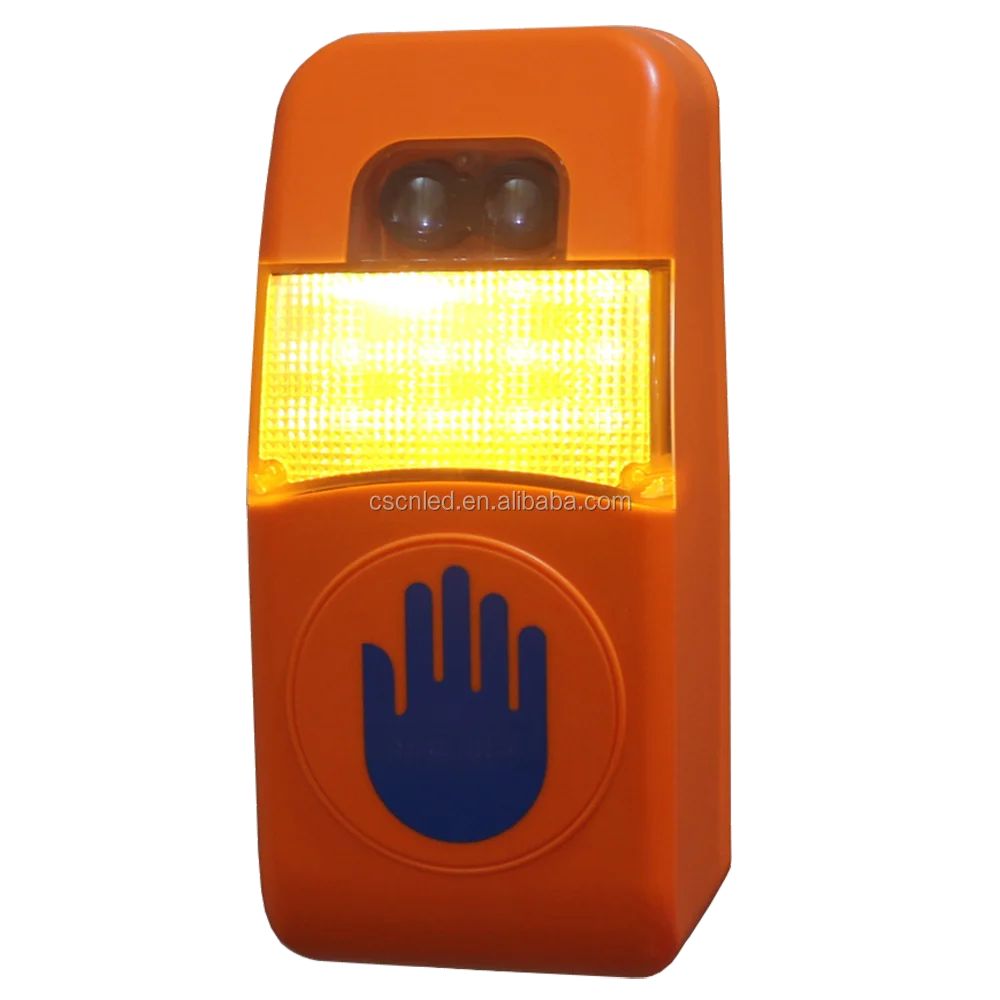

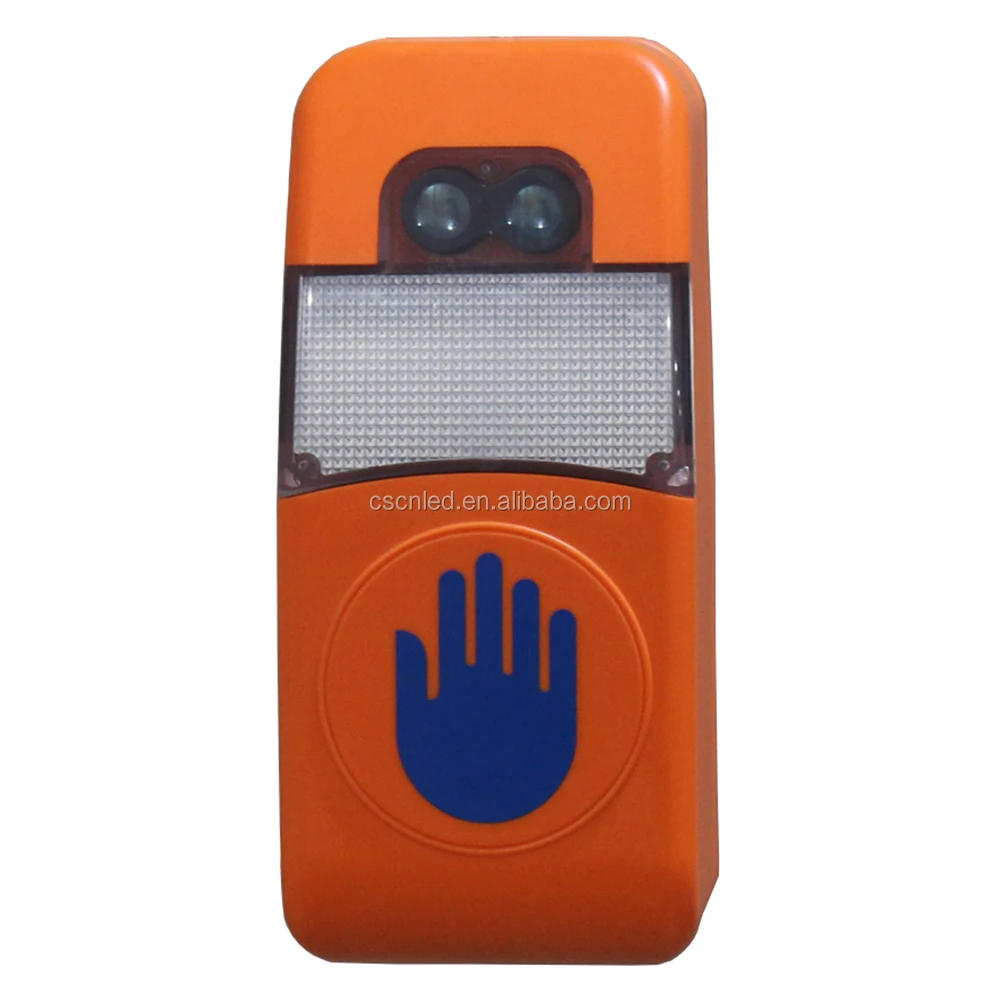

Product Photos:











Technical Parameter:

Size	222*101*86mm
Working voltage	Multi voltage optional (DC12,DC24,DC36,AC110,AC220)
Overall power consumption	<15W
Working temperature	-20℃~+70℃
Relative humidity	< 95%
Protection level	IP65

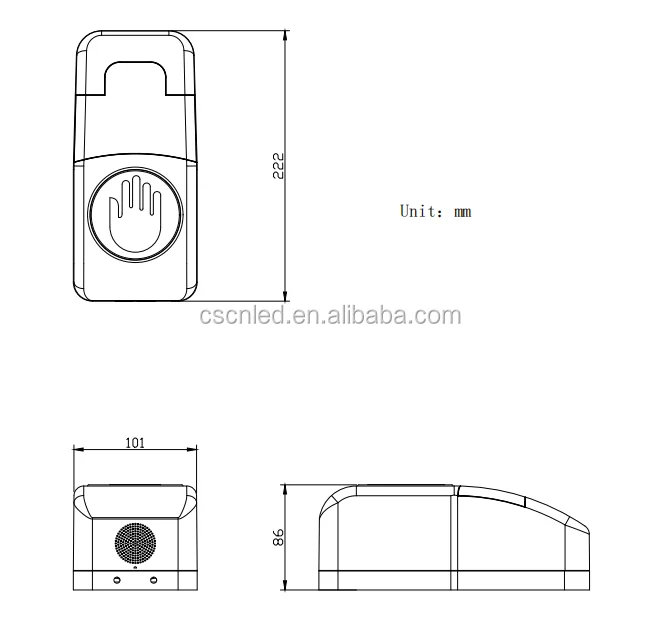

External size:





Functional characteristics:

1. Structure of independent property rights,use ABS / PC injection molding,Support customized shell color and silk screen color.

2. The blind clock and pedestrian application buttons are in one, with touch buttons and infrared sensing buttons available.

3. Multi voltage optional(DC12,DC24,DC36,AC110,AC220).A variety of voltage types are available.

4. Multi working mode optional(Learning style,Trigger type,Communication type).

5. Button :can be soak in water & Outdoor & touch type.

6. Centimeter level infrared sensing distance trigger button.

7. Intelligent multi period volume and language control.

8. Support different light color (red, green) tapping sound, voice prompt, voice countdown client-side.

9. Support customized many language voice prompt, default Chinese and English.
