Горячая распродажа! Больничные Дешевые Цена передовой цифровой 12-канальный электрокардиограф Портативный
- Категории: Аппарат с отражателем >>>
- Поставщик: Wuhan,Union,Medical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

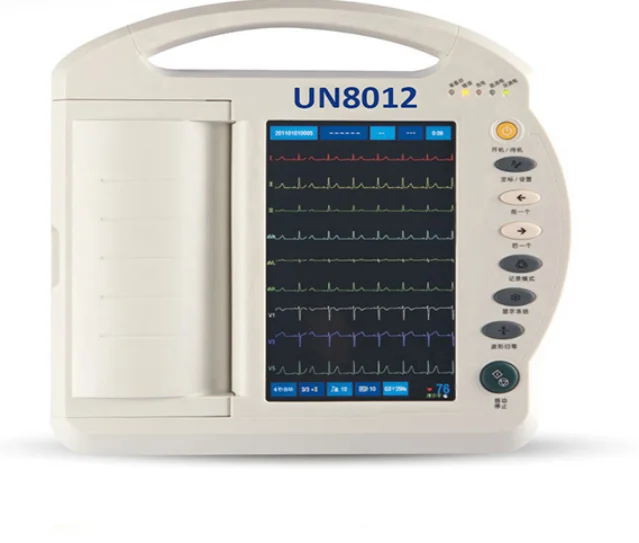

Product Description
Specification
LCD display | Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform simultaneously,Time,Heart-rate.ect,support patient name,Age,Sex and Hospital name input(Optional) | ||
Safety | IEC, Class I, type CF | ||
Leads | 12 STANDARD or CABRERA leads | ||
Input circuit | Floating,Defibrillation protection | ||
Patient Current Leakage | <10uA | ||
Input circuit current | ≤0.1μA | ||
CMRR | >100dB | ||
Noise Level | ≤15μVp-p | ||
Calibration Voltage | 1mV±2% | ||
Print Channels | 12 channels, Rhythem lead selectable | ||
Printing Output | 3+3 channel; 6 channel; 6+1 channel; 12 channel; 12+1 channel | ||
Operation Mode | automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart) | ||
Thermal paper | 216mm*20M thermal paper in Z-fold packers or in rolls | ||
Prining speed | 5; 6.25; 10; 12.5; 25; 50mm/s ± 3% | ||
Printing system | Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal),printing speed at 25mm/s | ||
Recording sensitivity | 1.25、2.5、5、10、20、40mm/mV±2% | ||
Input dynamics | ±500 mV | ||
Input impedance | ≥50Mohm | ||
Power Supply | 220V±10%, 50Hz±2%, 75VA | ||
14.8V 4400mA Li-poly rechargeable battery pack (DC) | |||
Frequency response | 0.05 to 150 Hz | ||
Time constant | ≥3.2s | ||
Data acquisition | 12 bits; 8000 samples/sec when printing, filtering and computing | ||
Fuse Specification | Φ5x20mm 3.15A 250V | ||

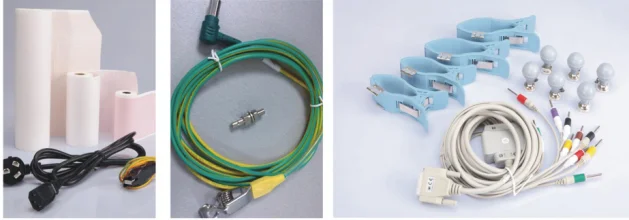

Patient Cable | standard 10 core | ||
Report storage | 200 reports in built-in memory, support external SD card | ||
report presentation,review and re-printing. | |||
Indicator | Lead-off detectoin | ||
Filter | Muscle filter: (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) | ||
AC filter: (50Hz or 60Hz, -20dB) | |||
Drift filter: (0.5Hz,-3dB) | |||
Machine weight | 3.9kg | ||
Gross weight | 6.4kg | ||
Carton size | 44*41*24CM(1pc) | ||

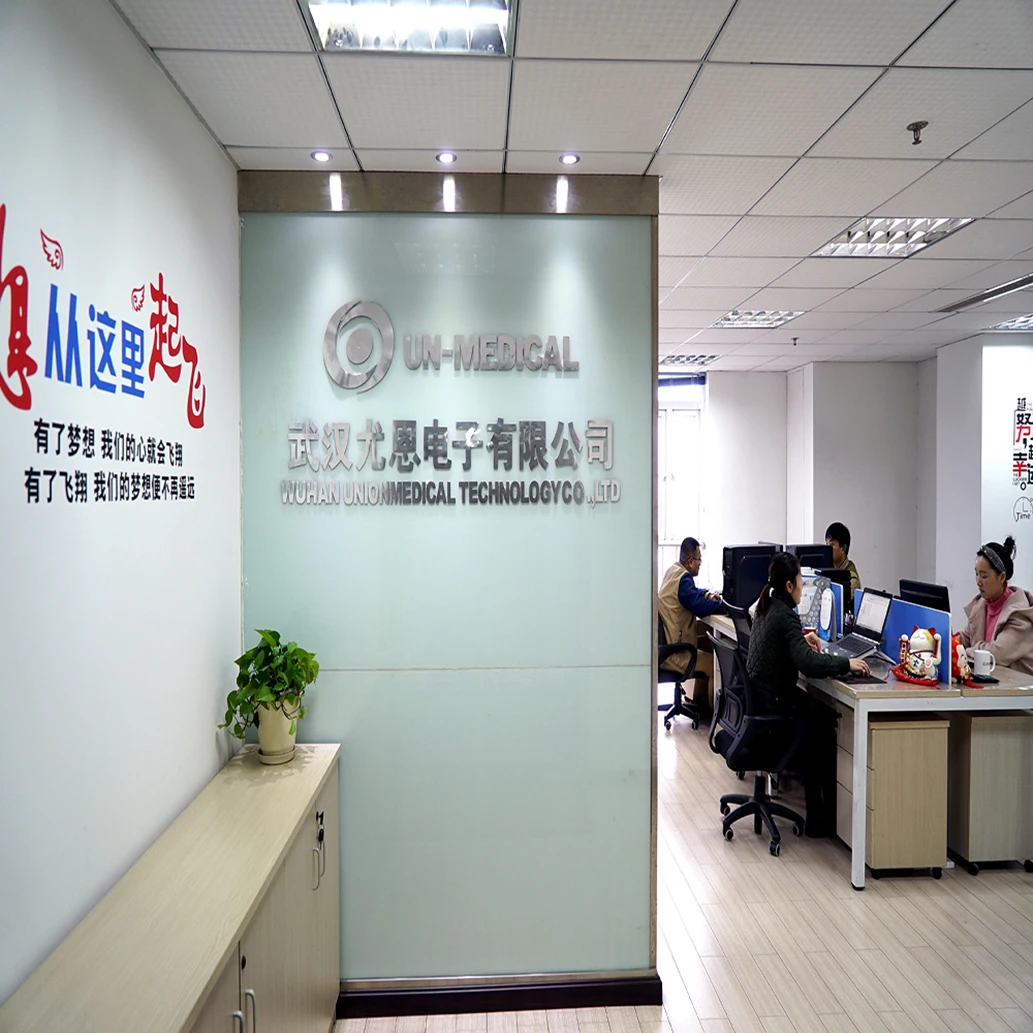

Company Profie
We,Wuhan Union Medical Technology CO.,Ltd,is a R&D company in patient monitoring solutions,which started in 2009 with leading engineers in China,and established in 2013.Union Medical is committed to the techniques and products of monitoring, diagnosing, supporting and treating the biological information; serving the society; improving human health.
Union Medical focused on the development of patient monitoring solutions with engineers who have experience in this area for more than 15 years.Our main solutions are about the non-invasive and invasive solutions for patients vital sign parameters,technologies as: algorithm for ECG diagnosis,pulse oxygen monitoring,respiration gas monitor, respiratory monitoring,electronic sphygmomanometer etc.Vital sign parameter modules:ECG module,SPO2 Module,NIBP Module,IBP Module,Six-parameter Module,Multigas Module etc.
We also produce our own final monitoring equipments,like ECG machines,patient monitors,vital sign monitors,pulse oximeters,ETCO2 monitors/Capnometer/Capnograph,Anesthesia Multigas monitors etc.
All our solutions/products are for improving the industry of human health.
Union Medical focused on the development of patient monitoring solutions with engineers who have experience in this area for more than 15 years.Our main solutions are about the non-invasive and invasive solutions for patients vital sign parameters,technologies as: algorithm for ECG diagnosis,pulse oxygen monitoring,respiration gas monitor, respiratory monitoring,electronic sphygmomanometer etc.Vital sign parameter modules:ECG module,SPO2 Module,NIBP Module,IBP Module,Six-parameter Module,Multigas Module etc.
We also produce our own final monitoring equipments,like ECG machines,patient monitors,vital sign monitors,pulse oximeters,ETCO2 monitors/Capnometer/Capnograph,Anesthesia Multigas monitors etc.
All our solutions/products are for improving the industry of human health.
