Products Description

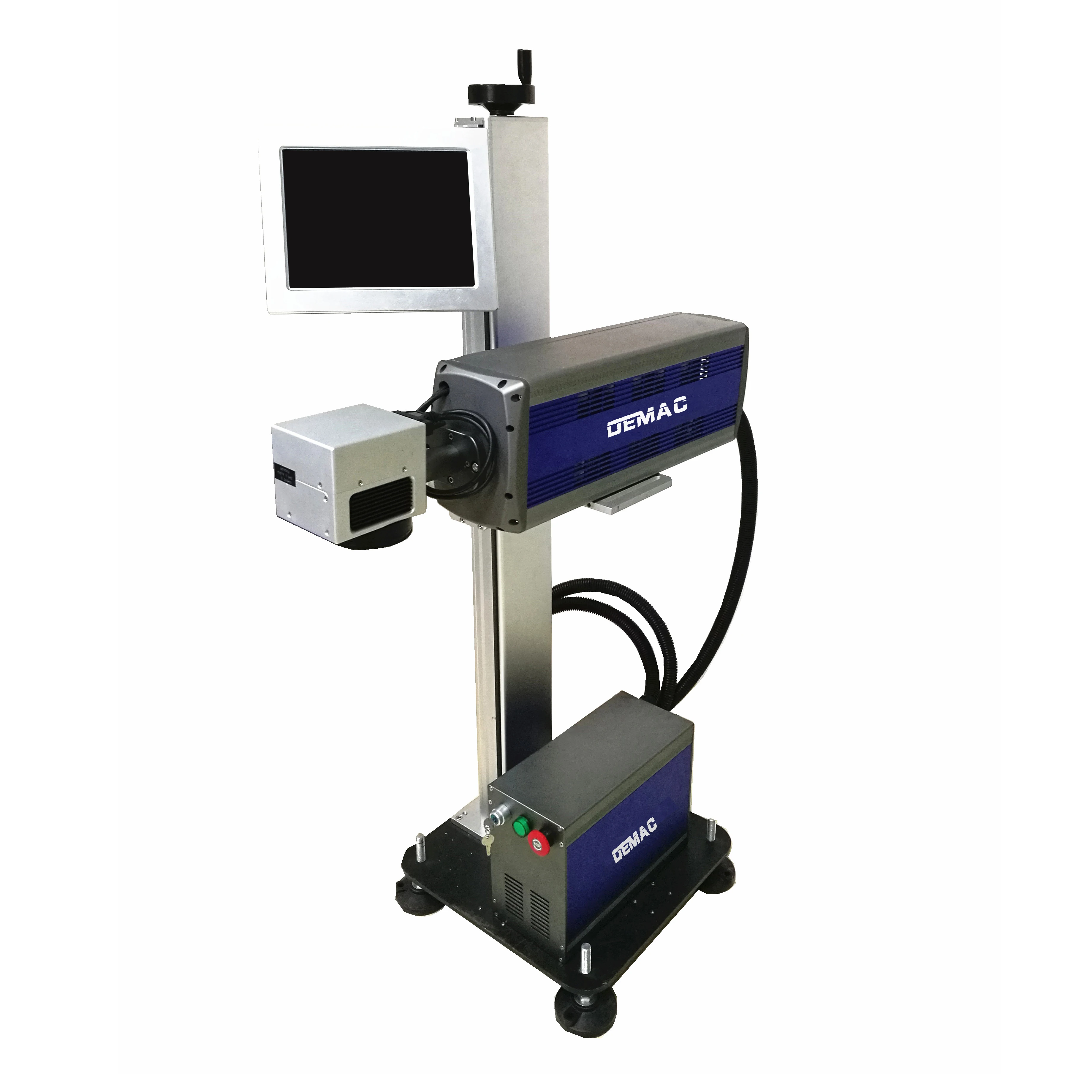

DM-C series CO2 Laser Coder is an online continuous printer applicable to high-speed packaging flow line. With the high reliable CO2 laser tube, the average life time is up to 30,000 hours without maintenance.
DM-C series CO2 Laser Coder can print clear and instantly dry production date, logo, text, figure, photo, QR code, bar code, batch No., serial number, on metal and plastic parts and tools, etc.
Features:
♦ Ultra-clear Printing—Marking lines are clear, it can withstands heavy wearing.
♦ High-precision Engraving & Fast Speed—Marking depth is controllable optionally.
♦ The Lowest Cost—No consumption and pollution
- ♦ Wide Application—It can mark most non-metals
♦ Superior Working Life—The average service life is up to 30000 hours without maintenance - ♦ Free Editing—English software works in Windows environment and it is compatible with many file formats, for instance, PLT, PCW, DXF, BMP and others saved by CORELDRAW, AUTOCAD, PHOTOSHOP and other software. Meanwhile, SHX and TTF can be imported into the software directly.
Specifications | ||
Model | DM-C10 / C30 / C60 | |
Laser Power | 10 W/ 30 W/ 60 W | |
Power Supply | 220 V,,AC 50/60 Hz,1 KW | |
Print speed | ≤13000 MM/S(depend on marking content and material) | |
Print frequency | ≤ 1000 times/min | |
Print Range | 70*70 mm,110*110 mm,300*300 mm,400*400 mm for option | |
Com interface | USB / RS232 / Internet | |

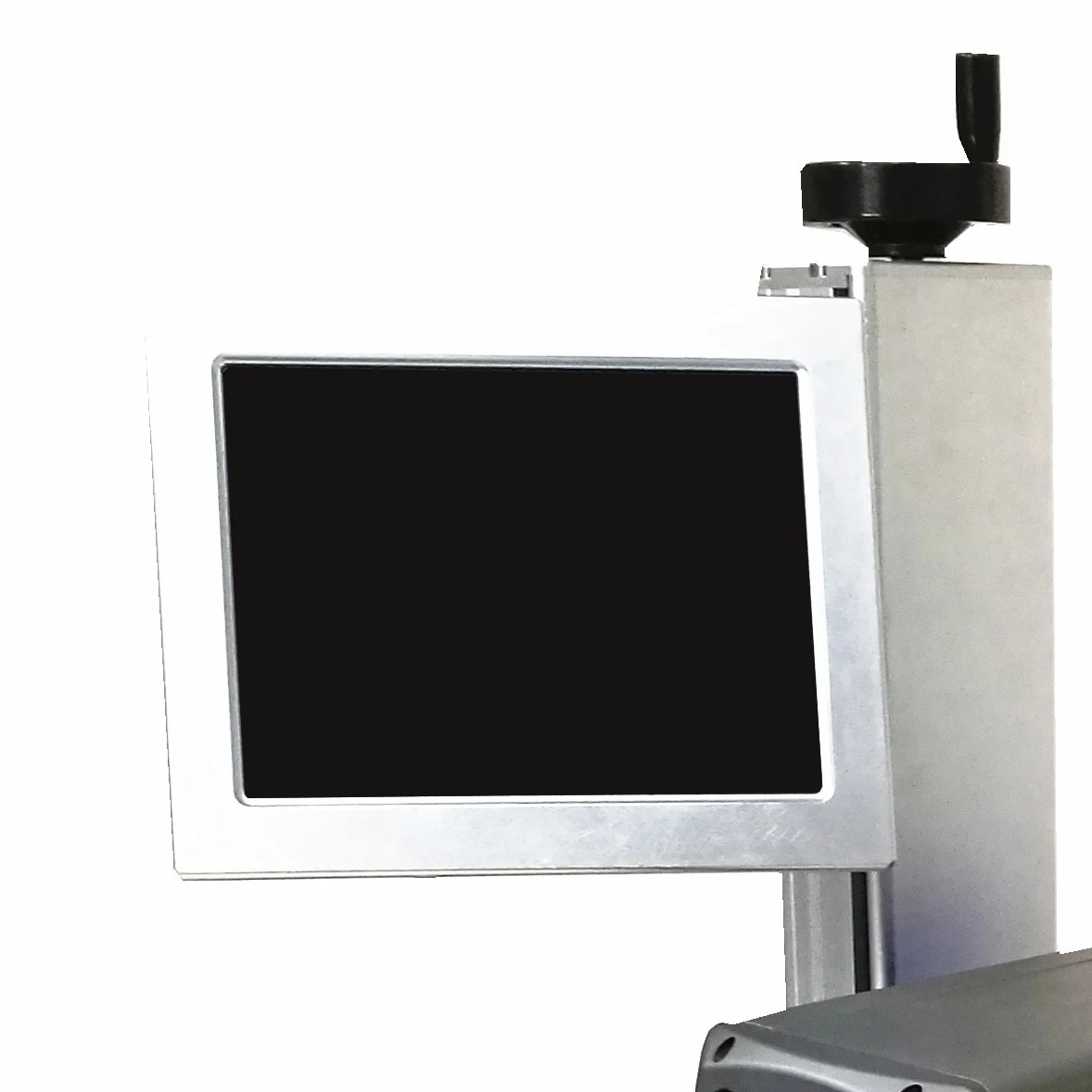

Operation Panel | 10 inch Touch Screen / PC | |
Application | Food packaging, Plastic, Medical packaging, Bottled water, Wood, etc. | |
Six Reasons for you to choose us!

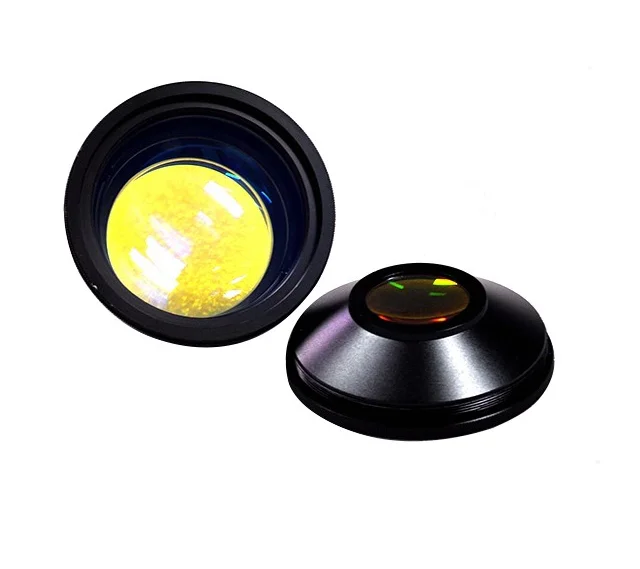

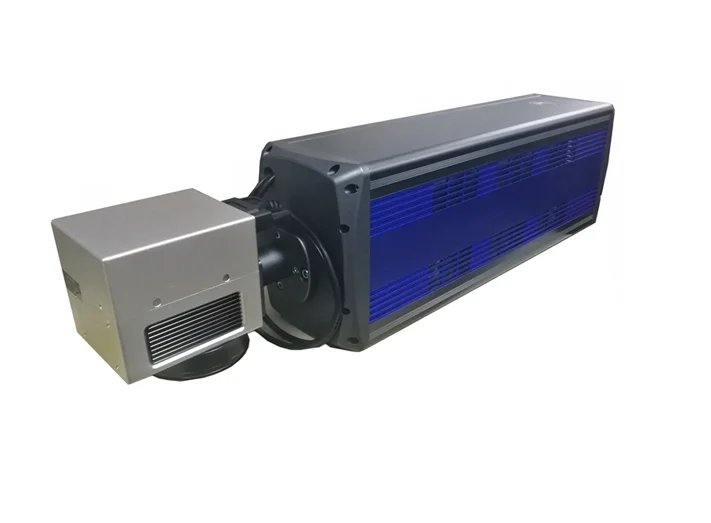

1. The machine takes CO2 glass laser tube as the light source. By 2D fast-speed scanning lens swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.
2. The CO2 laser marking machine has the longest application time and the most extensive usage areas and is the most mature technology at present.

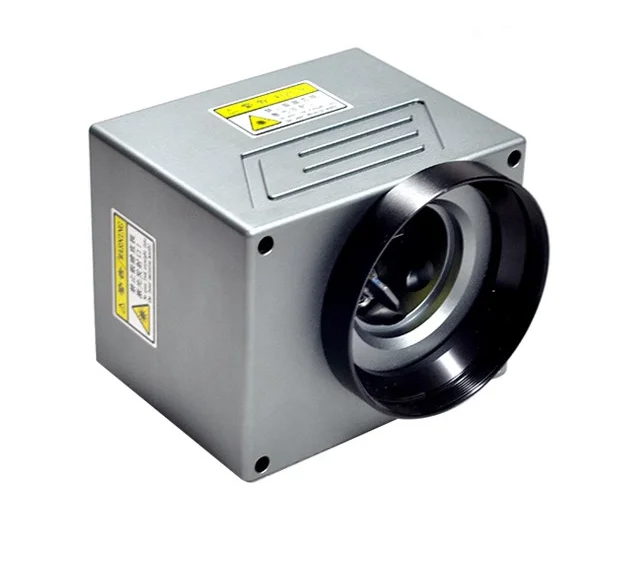

3. By using fast-speed scan lens, it can scan the graph in shortest time finish fine marking process.
4. It can configure auto clamp and baiting production line as user’ s requirements.
5. It can mark data, series number bar code automatically.
6. It is available for data communications, networking.
2. The CO2 laser marking machine has the longest application time and the most extensive usage areas and is the most mature technology at present.
3. By using fast-speed scan lens, it can scan the graph in shortest time finish fine marking process.
4. It can configure auto clamp and baiting production line as user’ s requirements.
5. It can mark data, series number bar code automatically.
6. It is available for data communications, networking.
Applications:
DM-C series CO2 Laser Coder can support Windows standard fonts, art fonts, handwriting, 1D/2D code, sequenced and changeable S/N, real-time prints, etc.
Suitable materials and fields:
* Craft work gifts, furniture, leather clothes, advertisement tablets, model preparation.
* Food packaging, electronic components, medicines packaging, printing plate making, outer nameplates, etc.
* Leather, cloth organic glass, epoxy resin,acrylic, polyester resin, etc.
* Food packaging, electronic components, medicines packaging, printing plate making, outer nameplates, etc.
* Leather, cloth organic glass, epoxy resin,acrylic, polyester resin, etc.
Print Samples
Certifications
Packing & Delivery
Shipping method: By sea, by air, by international express company.
Delivery time: 10 -15 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to customers all over the world, and can arrange shipment to destination port ,even to the door for customer.
We also accept forwarder agent of customer.
The goods are packed in foam, plastic and cartons to ensure a good condition during transportation.
Company Profile & Exhibitions
Shanghai Demac Machinery Equipment Co.,Ltd. is a technology-oriented manufacturer integrating independent research and development, production, sales, service and other businesses. It is committed to providing industrial code marking technology, inspection technology, system solutions of traceable products, and production and sales services for related equipment products.
High efficiency and professional service make our company have a good reputation in this industry.
With more than 15 years of experience, the company has provided the best product identification solutions for customers in more than 70 countries around the world.
Our company has dozens of dealers and partners in the world, and provides perfect and careful after-sales service and technical support for customers from local and surrounding markets.
Why Choose Us
Benefit from Our Competitive Strengths
We are committed to deliver your orders within the stipulated time, as it plays a vital role in establishing our company as a reliable brand. Our wide distribution network and flexibility in production and service enable us to meet your objectives.
Several factors have made us the preferred choice of our valued clients:
- ♦ Client-centric approach
- ♦ Assurance of optimum quality in our products
- ♦ OEM and customized service
- ♦ Ability to undertake bulk and urgent requirements
- ♦ Timely & ultra-fast deliveries
- ♦ Competitive pricing policy
- ♦ 1-year warranty
FAQ
- Q: What’s your product range?
A: Hot Ink Coder, Laser Coder, Thermal Transfer Overprinter (TTO),Laser Coder, Thermal Inkjet Coder (TIJ),
Code Inspection System, etc.
Office Consumables:TTO Ribbons, Hot Ink Roll, Hot Stamping Ribbon, Metal Types(steel & brass) Holder
Q: Are You a Manufacturer?
A: Yes, 15 years specialized in hot ink coder, hot stamp coder, thermal transfer overprinter (TTO),integrating independent research and development, production, sales, service and other businesses.
Q: What's the information Should be Offered if I Want to Get A quotation?
A:-For the hot coding foil: The width, the length, the color, the quantity and the type.
-For the hot ink roller: The outer diameter, the height, the color, the quantity and your printing temperature.
-For the coding machine: The type and the quantity.
-For the sealing machine:The type and the quantity.
-The destination port.
-The shipping term: By sea, by air or by courier.
Q:Do you provide custom barcode ribbons?
A: Yes, we could provide custom size even custom formulation per client request.
We have color ribbon in Gold, White,Silver,Yellow,Grey,Red,Blue,Green, etc.
Q:What's the Minimum Order Quantity and warranty?
A: MOQ: 1 set Warranty:12 months.
Q:How about your warranty?
A: We provide 12 months warranty against BL date, if any issues,please contact us for solution.We will response within 24 hours in the first time.
Q:What is your payment?
A:TT,LC,Western Union,Paypal,Money gram or negotiation payment etc.
Q:How do you ship the products?
A: -By sea
-By air
-By courier, DHL, FEDEX, TNT, UPS, EMS. etc.
Q: Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 15 years, and we can provide better after-sales service.
