Product Description









Hardware resolution 0.35M to 14M

USB2.0

Standard C-Mount

Ultra-FineTM color engine




EXCCD is an ExView HAD CCD camera and it adopts Sony ExView HAD CCD sensor as the image-picking device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. Jingtong uses EXCCD for simplicity. USB2.0 is used as the data transfer interface.


UCMOS is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.


UCMOS hardware resolutions ranges from 0.35M to 14M and comes with the Integrated zinc aluminum alloy compact housing. UCMOS comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The UCMOS can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.




    Features




  • Standard C-Mount with Aptina CMOS sensor

  • With hardware resolution among 0.35M to 14M

  • Integrated zinc aluminum alloy housing

  • USB2.0 interface ensuring high speed data transmission

  • Ultra-FineTM color engine with perfect color reproduction capability

  • With advanced video & image processing application

  • Providing Windows/Linux/Mac OS multiple platforms SDK

  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API






Specification















































































































Order Code



Sensor & Size(mm)



Pixel(μm)



G Sensitivity


Dynamic range


SNRmax



FPS/Resolution



Binning



Exposure



UCMOS14000KPA
TP614000A



14M/MT9F002(C)
1/2.3“(5.73x4.60)



1.4x1.4



0.724v/lux-sec


65.3dB


35.5dB



1.8@4096x3288
10@2048x1644
27@1024x822



1x1, 2x2, 4x4



0.4ms~2000ms



UCMOS10000KPA
TP610000A



10M/MT9J003(C)
1/2.3“ (5.98x4.59)



1.67x1.67



0.31v/lux-sec


65.2dB


34dB



1.9@3584x2748
8@1792x1374
27@896x684



1x1, 2x2, 4x4



0.4ms~2000ms



UCMOS09000KPB
TP609000B



9M/Special(C)
1/2.4“(5.83x4.37)



1.67x1.67



0.31v/lux-sec


65.2dB


34dB



1.9@3488x2616
8@1744x1308
27@872x654



1x1, 2x2, 4x4



0.4ms~2000ms



UCMOS08000KPB
TP608000B



8M/Special(C)
1/2.5“(5.45x4.09)



1.67x1.67



0.31v/lux-sec


65.2dB


34dB



1.9@3264x2448
8@1600x1200
27@800x600



1x1, 2x2, 4x4



0.4ms~2000ms



UCMOS05100KPA
TP605100A



5.1M/MT9P006(C)
1/2.5“ (5.70x4.28)



2.2x2.2



0.53 V/lux-sec


66.5dB


40.5dB



5@2592x1944
18@1280x960
60@640x480



1x1, 2x2, 4x4



0.294ms~2000ms



UCMOS03100KPA
TP603100A



3.1M/MT9T001(C)
1/2“ (6.55x4.92)



3.2x3.2



1.0 V/lux-sec


61dB


43dB



8@2048x1536
22@1024x768
43@680x510



1x1, 2x2, 3x3



0.244ms~2000ms



UCMOS02000KPB
TP602000B



2.0M/Special(C)
1/2.6“(5.12x3.84)



3.2x3.2



1.0 V/lux-sec


61dB


43dB



16@1600x1200
50@800x600



1x1, 2x2



0.128ms~2000ms



UCMOS01300KPA
TP601300A



1.23M/SC1235(C)
1/3“ (4.80x3.60)



3.75x3.75



4.5V/lux-sec


74dB


38dB



15@1280x960
15@1280x720



1x1,


1x1



0.14ms~2000ms



UCMOS01300KMA
TM601300A



1.3M/MT9M001(M)
1/2“ (6.66x5.32)



5.2x5.2



2.1 V/lux-sec


68.2dB


45dB



20@1280x1024



1x1



0.14ms~500ms



UCMOS00350KPA
TP600350A



0.35M/MT9V011(C)
1/4“ (3.58x2.69)



5.6x5.6



1.9V/lux-sec


60dB


45dB



30@640x480
80@320x240



1x1, 2x2



0.111ms~192ms




C: Color; M: Monochrome;
















































































Other Specification for UCMOS Camera



Spectral Range



380-650nm (with IR-cut Filter)



White Balance



ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor



Color Technique



Ultra-FineTM Color Engine/NA for Monochromatic Sensor



Capture/Control API



Native C/C++, C#/VB.NET, DirectShow, Twain and Labview



Recording System



Still Picture and Movie



Cooling System*



Natural



Operating Environment



Operating Temperature(in Centidegree)



-10~ 50



Storage Temperature(in Centidegree)



-20~ 60



Operating Humidity



30~80%RH



Storage Humidity



10~60%RH



Power Supply



DC 5V over PC USB Port



Software Environment



Operating System



Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)


OSx(Mac OS X)


Linux



PC Requirements



CPU: Equal to Intel Core2 2.8GHz or Higher



Memory:2GB or More



USB Port:USB2.0 High-speed Port



Display:17” or Larger



CD-ROM

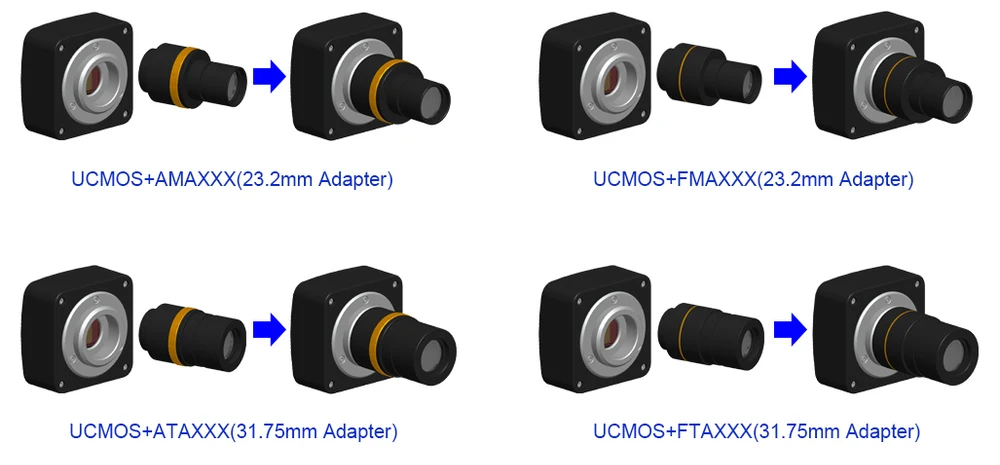

Extension of UCMOS with Microscope or Telescope Adapter























Extension






C-mount Camera



E3



Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;



Microscope Camera



4



Telescope Camera:









Product Details























XCAM1080PHA C-mount HDMI+USB CMOS CameraUCMOS 1




UCMOS Series Camera

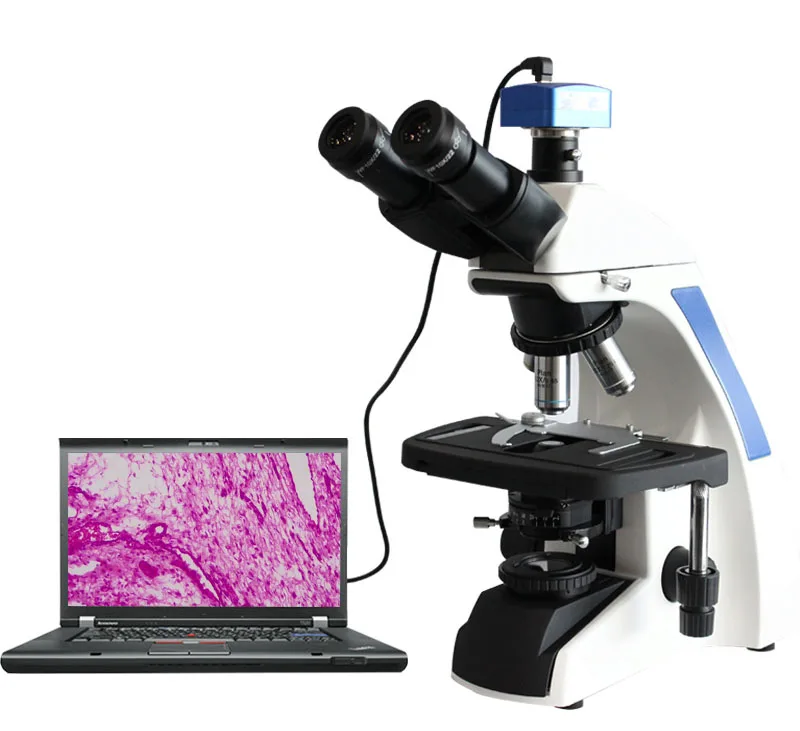

UCMOS Series Camera and Microscope






Dimension







The UCMOS body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.


XCAM1080PHA C-mount HDMI+USB CMOS Camera

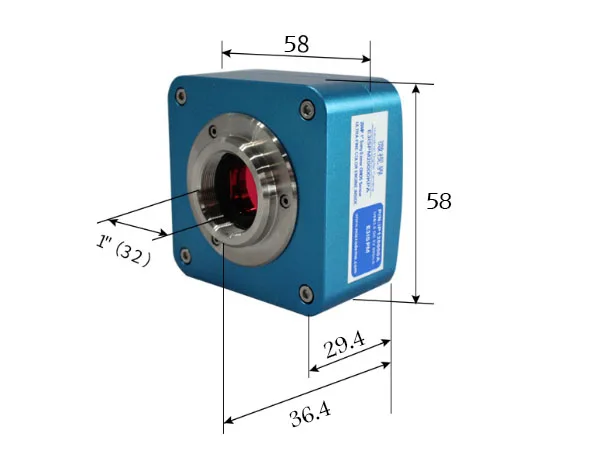

Dimension of UCMOS Sereis Camera

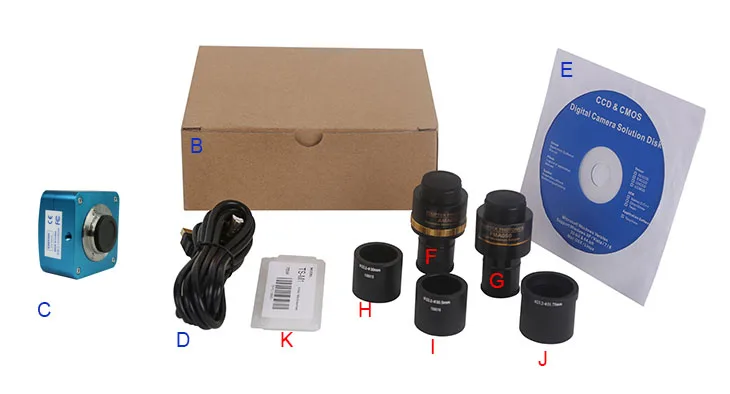

Packing List
















































































Standard Camera Packing List



A



Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo



B



Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box)



C



UCMOS series USB2.0 C-mount CMOS camera



D



High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m



E



CD (Driver & utilities software, Ø12cm)



Optional Accessory



F



Adjustable lens adapter



C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)



108001/AMA037
108002/AMA050
108003/AMA075



C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)



108008/ATA037
108009/ATA050
108010/ATA075



G



Fixed lens Adapter



C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)



108005/FMA037
108006/FMA050
108007/FMA075



C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)



108011/FTA037
108012/FTA050
108013/FTA075



Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;



H



108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube



I



108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube



J



108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube



K



Calibration kit



106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
