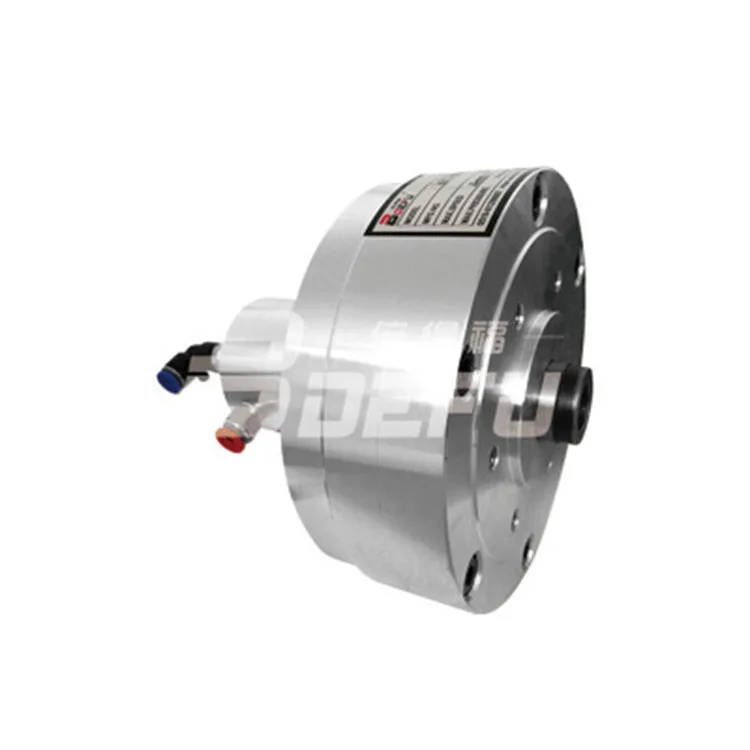

Rotary Actuator Three Vane Pneumatic Cylinder
1.Patented product, a rear pulling chuck and collet power source.
2.The connection method of the rotary cylinder is short cylindrical form,
without changes in the machine tool structure, and a flange matching
with the connecting convex (D1) can be installed at the tail of the
machine tool.
3.The product is made of aluminum alloy, with light weight, high speed,
fast operation and no leakage; it is an ideal power source of rear pulling
power chuck and collet, and can also be used as the power source of
other devices.

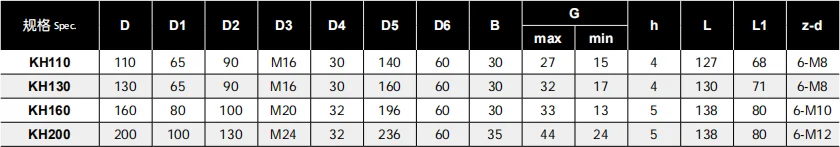

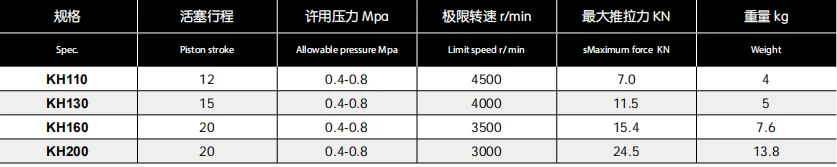

Size parameter:
The above data are the standard parameters, personalized customized solutions can be provided according to customer's requirement!!!

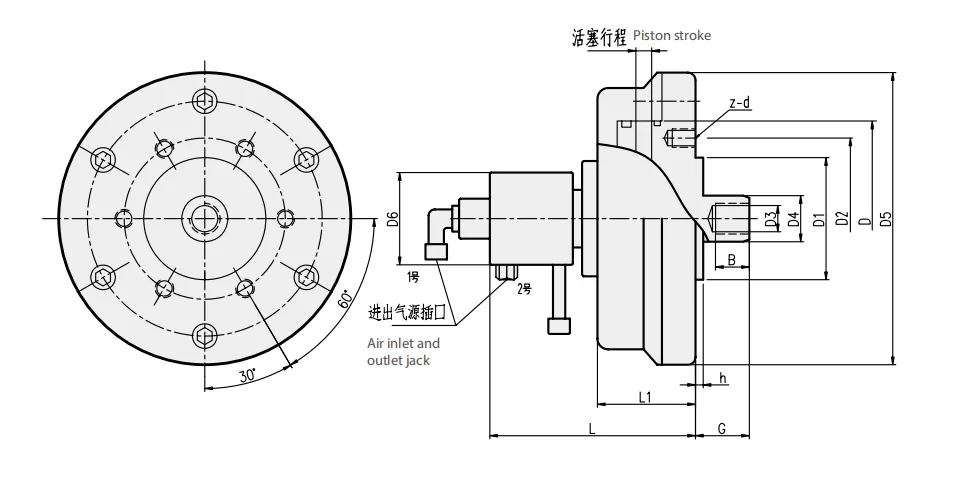

Structure diagram:

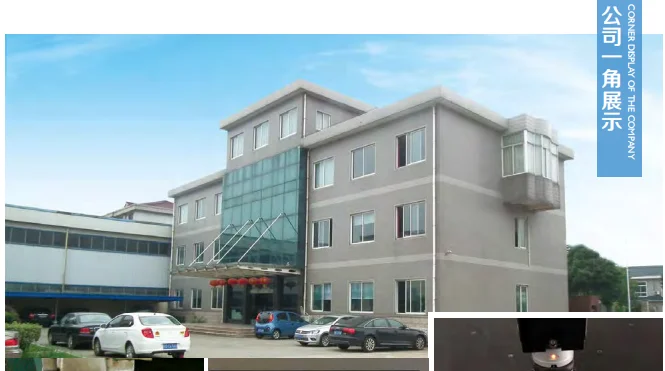

Bdefu Machinery Technology (Changzhou) Incorporated Corporation is a scientific and technological enterprise integrating research and development, production,sales and service together. The company has strong technical strength, advanced production equipment, and perfect quality system and strong production capacity, and warmly welcome new and old customers to come and give guidanceOur products cover hollow and solid pneumatic chuck, hydraulic chuck, vertical chuck, front-mounted chuck, index chuck, floating chuck, adjustable claw chuck, holder chuck, double action chuck, half-through-hole chuck, collet chuck, oil pressure rotary cylinder, gas pressure rotary cylinder, Self-centred steady rest, Synchronous clamp,
Special chuck for laser cutting machine, automatic clamp jaw, industry robot and so on.
All the products with "reasonable prices, reliable quality and excellent service" are praised by the majority of new and old customers, and are widely used in numerical control lathe, common lathe, machining center, milling and drilling machine, welding equipment, pipe threading machine, laser cutting equipment, flow line production equipment and automated control systems and so on.
The structures of the above products are of unique innovation, safe and reliable, with superior performance; they have obtained certification by the state certification authorities and passed ISO9001:2008 quality system certification, and have been granted several national patents and provincial high-tech product certificates. The company adheres to the principles of winning market share by high quality, creating brilliance by science and technology, seeking for development in good faith, and fully implementing quality management and providing zero-distance serves, to provide every customer with the most attentive service.
The company will continue to adhere to the "scientific and technological innovation, and high-quality manufacturing" business philosophy, and is devoted to becoming the most professional domestic manufacturing enterprise with the most superior service, the most reliable quality and the most excellent performance.
1, Are you factory or Trade Company?
We are Industry and trade integration.
2, Could you supply samples?
Yes, we can supply samples.
3, Where do you export?
The whole world.
4, Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.
5, What are the shipping ways?
By international express, by air, by sea are all ok.
