XLS Traffic light LED
XLS-type LED signal lights are used for ground light signals such as subways, tram stops, sections and entrances, exits, routes, protection, notice, shunting, hump, repeat, interrupt, pass and guide It is a new generation of color light signalling machine for railway transportation line. The signal is composed of a combined aluminum alloy mechanism, a matrix optical lens, an LED light source and a lighting unit. LED light-emitting tube is a new type of high-efficiency light-emitting device, which has the characteristics of low energy consumption and long life.
Different voltages, different prices,If you have needs welcome to contact with us.
Product advantages:
We do not make ordinary quality traffic lights！
1. All aluminum alloy structure, parts are die-casting, and the fasteners are made of stainless steel. And has the characteristics of compact structure, low energy consumption, long life, no need to focus.
2. It can be freely assembled into short-type two display, short-type three display and high-column two display, high-column three display color light signal mechanism as required.
3. It adopts honeycomb dot-matrix focusing with long display distance. The short type can reach more than 800 meters and the high column can reach more than 1200 meters. There is no need to adjust the focus, and the mold is used to ensure the focal length to meet the requirements of the display distance.
4. Imported original LED light-emitting tube, pure chromatogram, life expectancy of more than 100,000 hours.
The light efficiency is high, the light emitted by the LED light-emitting tube itself is used, without adding a color filter, the white transparent glass can be used, and the recognition is strong.
5. The component has a long life. The light source is made of semiconductor material, which has better shock resistance. The equipment is maintenance-free and less maintenance, and the maintenance cost is low.
6. Strong resistance to inductive electricity, can absorb 5W of inductive electricity energy level.
We do not make ordinary quality traffic lights！
1. All aluminum alloy structure, parts are die-casting, and the fasteners are made of stainless steel. And has the characteristics of compact structure, low energy consumption, long life, no need to focus.
2. It can be freely assembled into short-type two display, short-type three display and high-column two display, high-column three display color light signal mechanism as required.
3. It adopts honeycomb dot-matrix focusing with long display distance. The short type can reach more than 800 meters and the high column can reach more than 1200 meters. There is no need to adjust the focus, and the mold is used to ensure the focal length to meet the requirements of the display distance.
4. Imported original LED light-emitting tube, pure chromatogram, life expectancy of more than 100,000 hours.
The light efficiency is high, the light emitted by the LED light-emitting tube itself is used, without adding a color filter, the white transparent glass can be used, and the recognition is strong.
5. The component has a long life. The light source is made of semiconductor material, which has better shock resistance. The equipment is maintenance-free and less maintenance, and the maintenance cost is low.
6. Strong resistance to inductive electricity, can absorb 5W of inductive electricity energy level.
Product Description
Parameter | Data | ||||
Rated voltage | AC220V | AC110V | DC48V | ||
Rated power | ＜ 24W | ＜12W | ＜8W | ||
MTBF | ＞ 100,000 hours | ||||
MTTR | ＜0.5H | ||||
Operating temperature | -40-70 ℃ | ||||
Color | Yellow, green, red, white, blue (special shapes can be customized) | ||||
Show distance | 800M | ||||
Installation method | Standard installation, column type | ||||
Dimensions (three displays) | 245mm long 250mm high 720mm | ||||
Mounting size | 185 ～ 205mm | ||||
Enclosure rating | IP65 | ||||
Single light weight | 7.5kg | ||||
Canopy length | 100-500mm | ||||

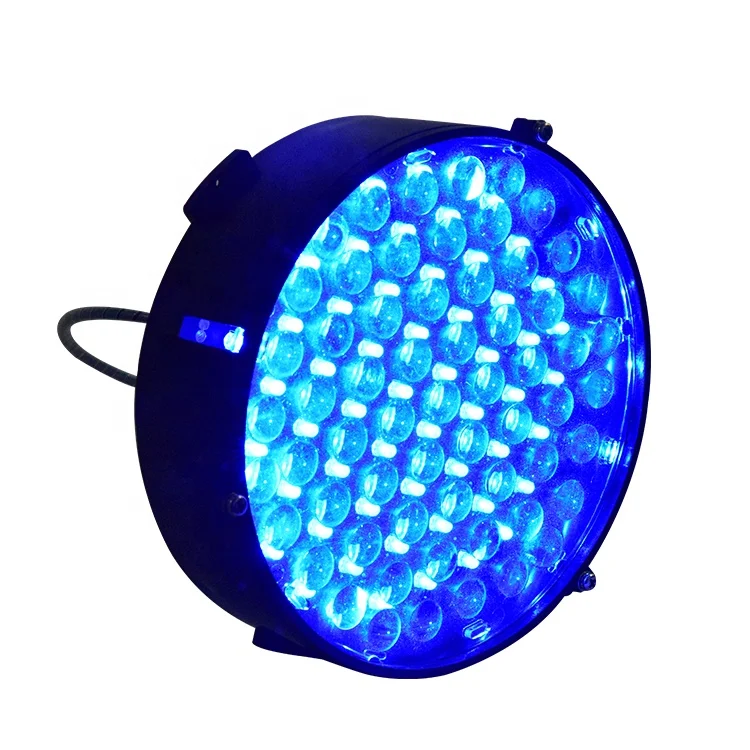

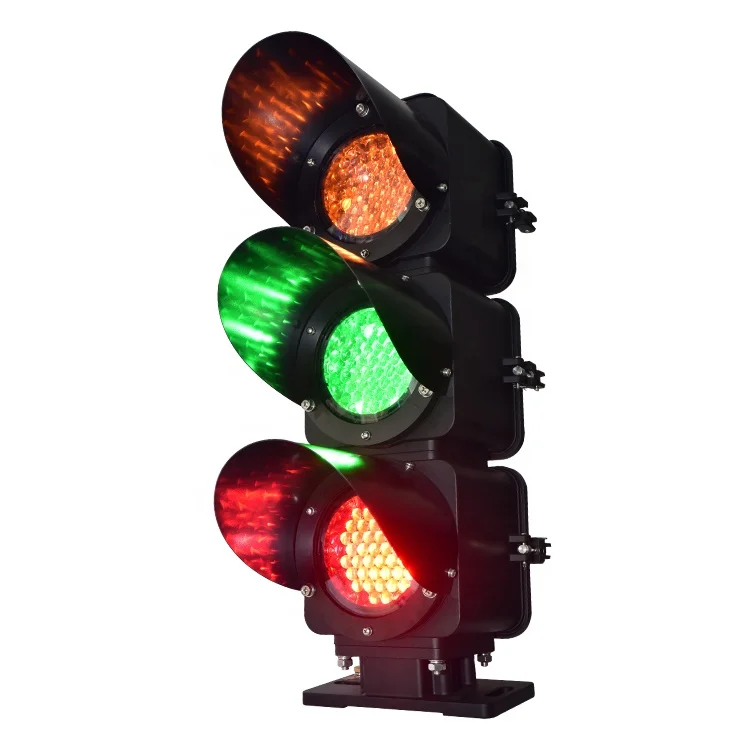

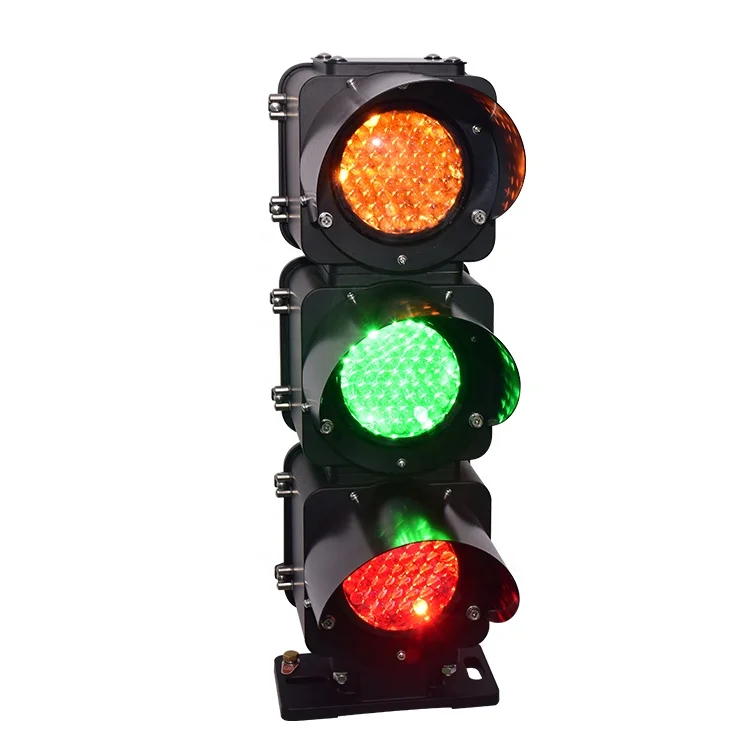

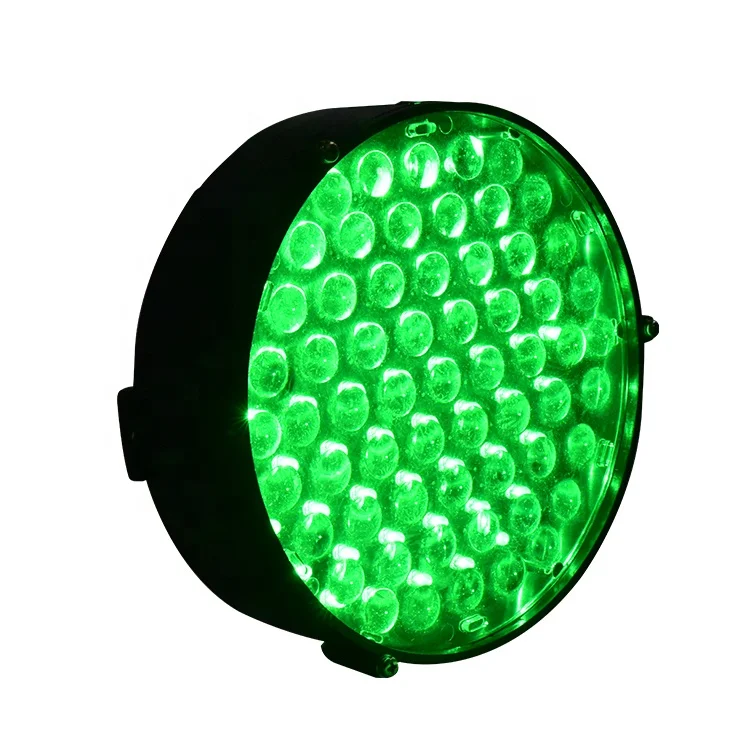

Detailed Images
Packing & Delivery
Packing with Strong Master Carton.
Delivery time usually 7-20days after payment.
