Металлический сенсорный переключатель LANBOO 19/22 мм со светодиодной двухцветной кондукцией мягкая Кнопка такта Водонепроницаемая IP68


Поделиться:

Цена:4,20 $ - 5,20 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


LANBOO 19mm touch button switch with led light concact control soft touch push button switch inductive switch waterproof IP68






Product Description


1.Touch switch, just touch it !


  2.Stepless Dimming Type: You can Click or Holding Touch the switch to control your lights


  3.Blue LED ring always light ON, make you quickly find the switch at night or in the dark

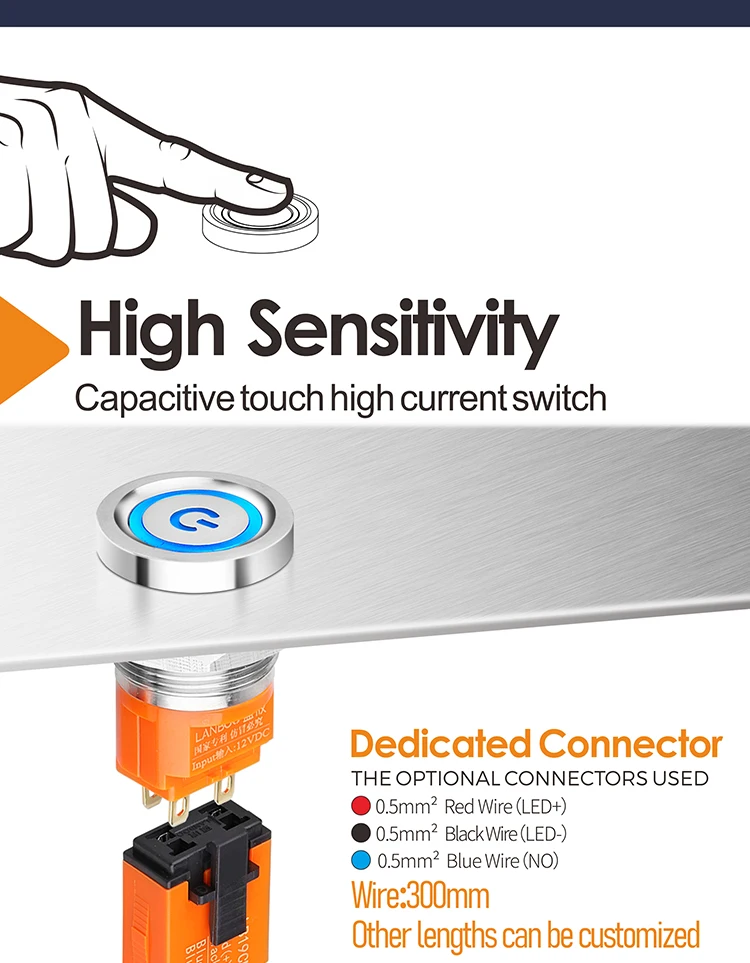

  4.Optional connector,To ensure contact performance,reduce waste of labor;


  5.Dimming Switch, normally be used to control the lights.


      Don't exceed the rating amps and volts, you can run it on your other projects.

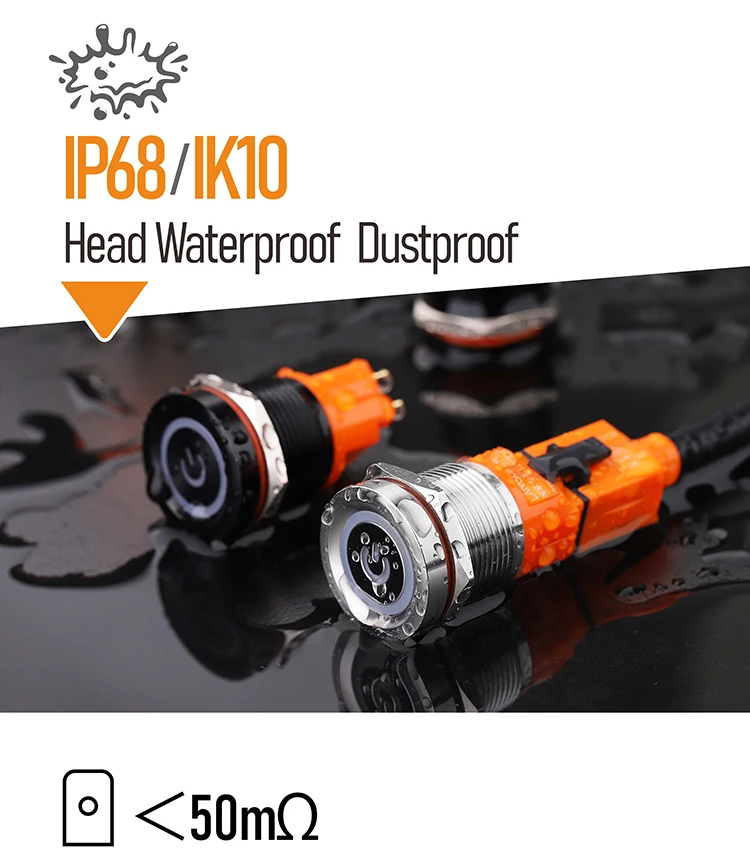

  6.Waterproof and dustproof grade up to IP68;


  7.Electrical life: 50,000 times,it can work at -30℃~ 70℃;


  8.1NO function,4pins,LED;


  9.It has applied of many patents ,CCC,CE approved;

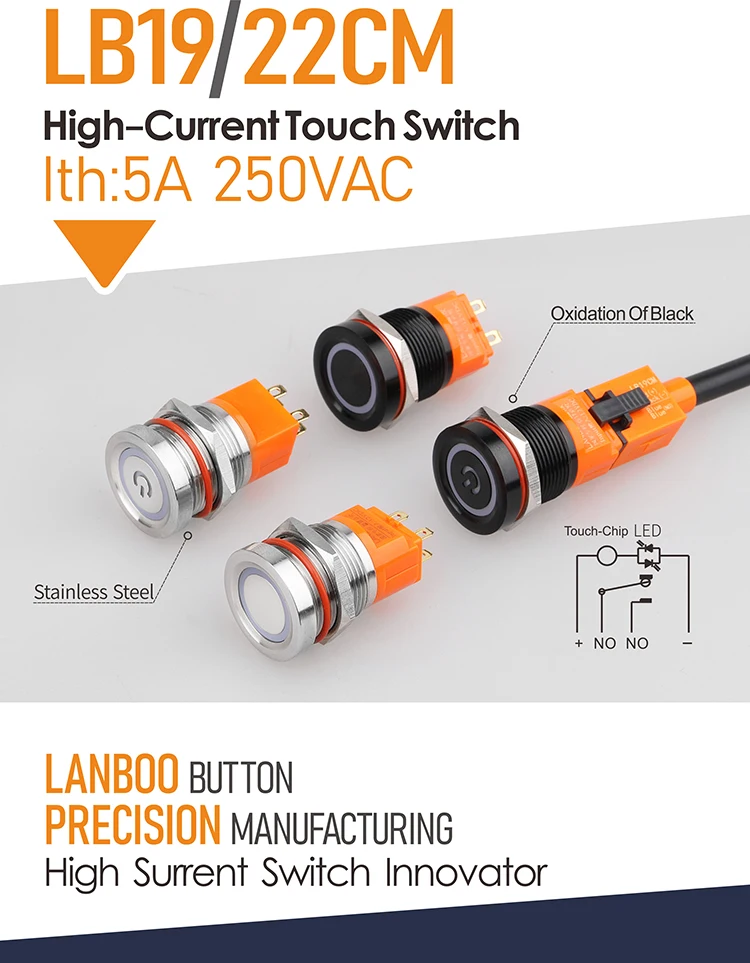

 10.19MM  2A IP68 waterproof Momentary Latching metal Dual color Touch switch.











-(1) (2) (3)19-22CM (1)19-22CM (2)19-22CM (3)19-22CM (4)19-22CM (5)19-22CM (6)19-22CM (7)19-22CM (8)19-22CM (9)19-22CM (10)





Specification
















































                               Model Description
  Model NO.                         LB19CM 22CM metal touch switch
  Mounting diameter            19/22mm
  Head shape                      Plat Head
  Switch Combination          1NO
  Operation type                 Momentary/Latchng
  Illuminating type               Ring LED/Ring+Symbol LED
  Illuminating color              red,blue bi-color LED
  Lamp voltage                    DC12V/24V
  Shell material                   304 Stainless Steel,6063 Aluminum oxide,









































































The Others Parameters
ProjectParameterProjectParameter
 Contact type  Slow moving single contact Actuation Time Delay time of 0.7 seconds
 Contact Resistance  ≤50mΩ Actuating Force about 6N
 Insulation  Resistance  ≥1000mΩ Mounting panel thickness ≤11mm
 Dielectric Strength  1000VAC min Nut torque 0.8~1.2N.m
 Ambient  Temperature  -30℃~+80℃

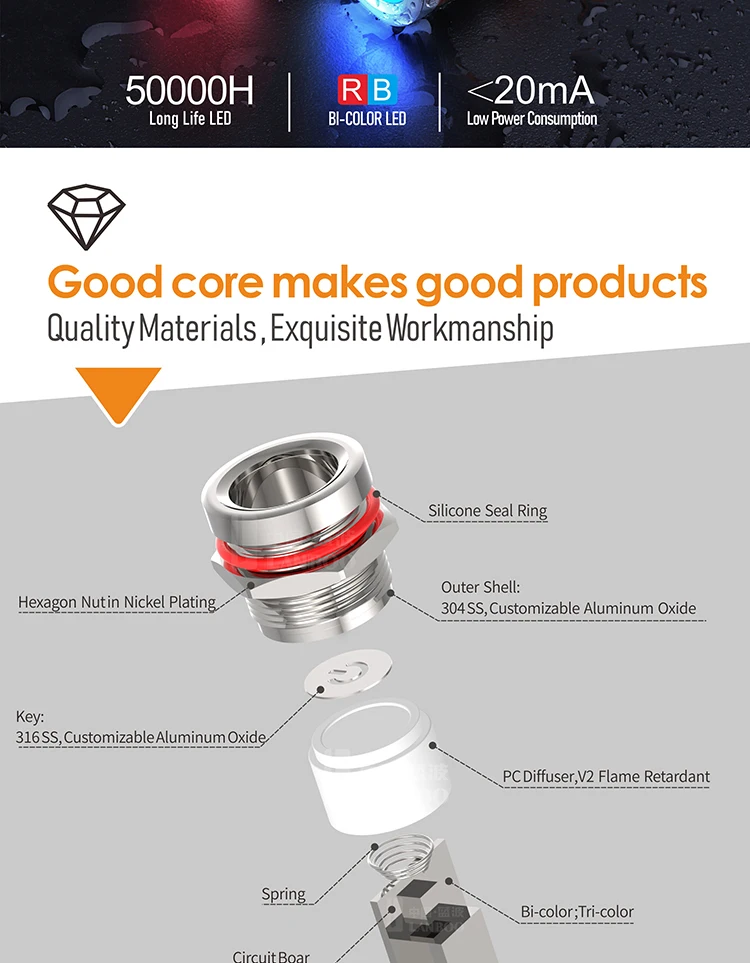

 Outshell/Press Key






304 Stainless Steel,6063 Aluminum oxide





 Protection Levels  IK10 Diffuser PC
 Electrical Life




Resistant load


AC220V/2A, DC24V/2A: 10,000 times



 Nut





 Base Seat/


 Bottom Seat



H57/59  Nickel plated brass








 PA66


 Mechanical Life

 100,000 times

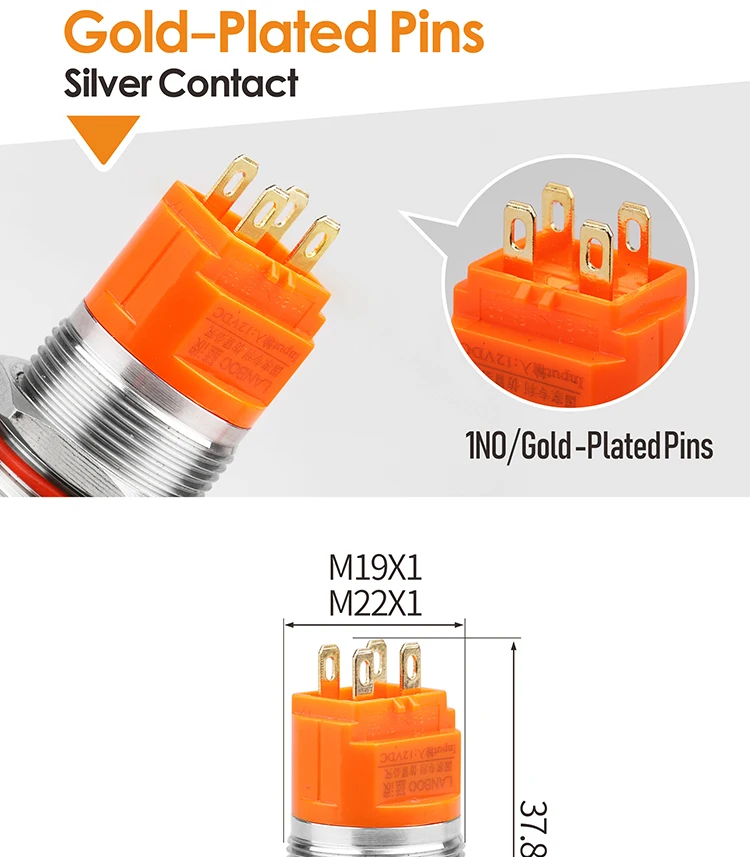

 Pins                      Contact


 PA66

 H65 Silver Plated


 Waterproof   IP68 Spring Improved steel wire

































Led Lamp Parameters
ProjectParameter
 Led type High Brightness LED lamp,cool

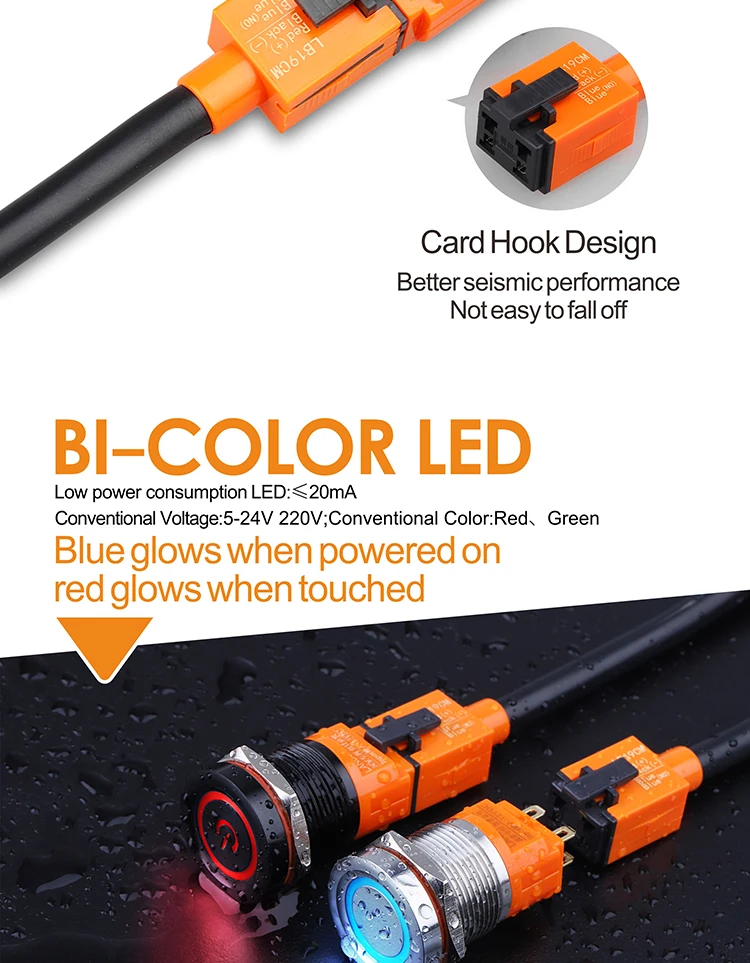

 Luminous color Red blue dual color, power on display blue LED , on display red LED
 Rated Voltage DC12V/24V
 Rated Current ≤20mA
 Reference Life 50,000hours





Product Detail

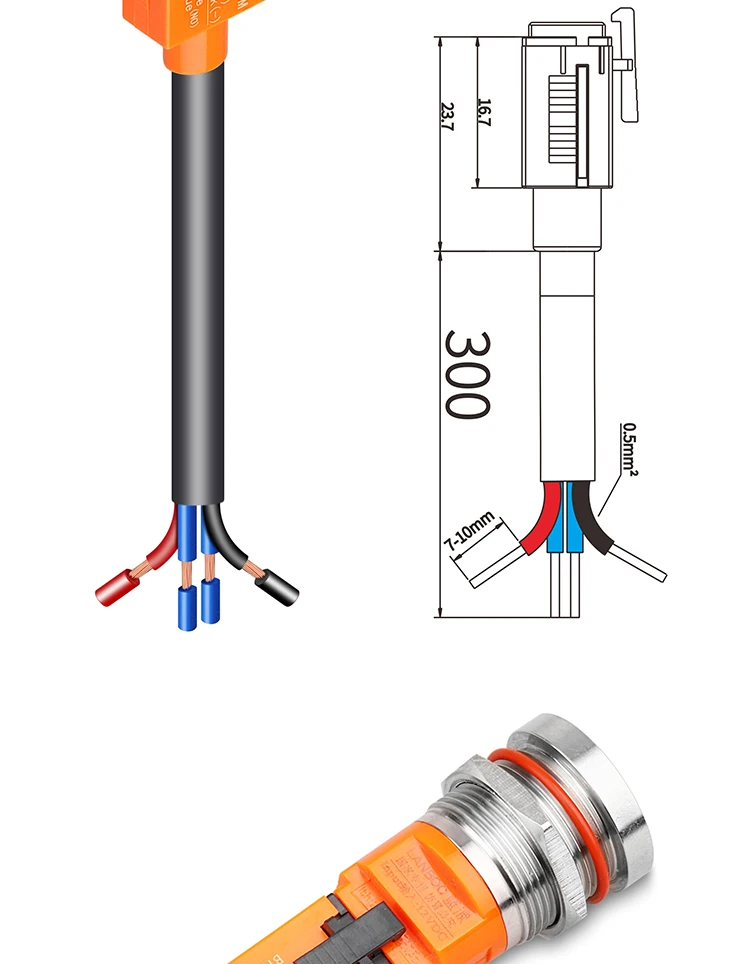

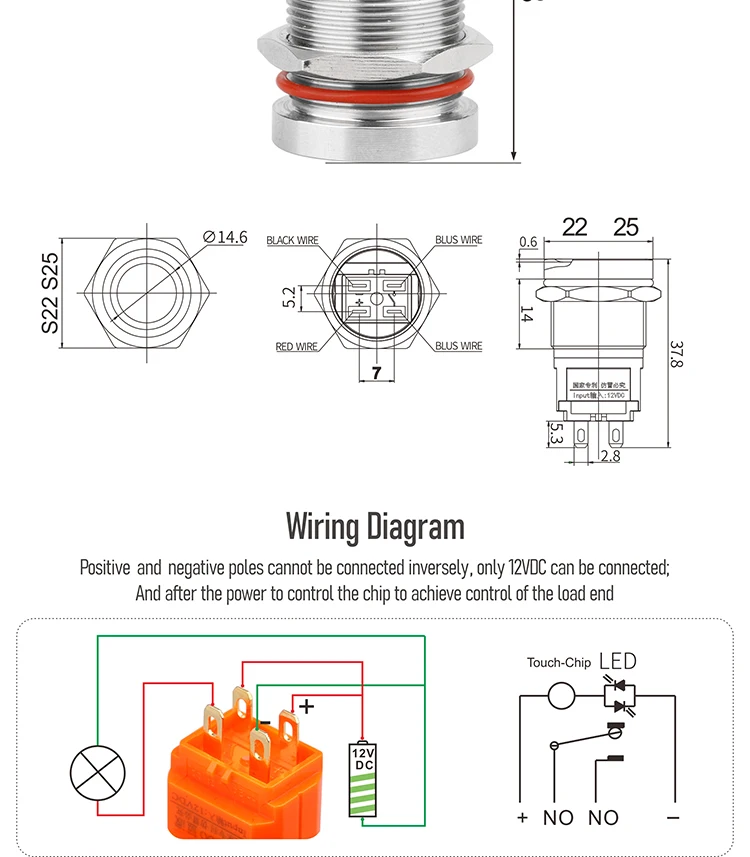

Dimension








Company Information








FAQ





Q1: What's the payment terms?
A1: We accept TT,Western Union,L/C,PAYPAL, 30% deposit and 70% balance against copy of BL.





Q2: How's the delivery time ?
A2: It rests with the quantity you need,1-30days usually





Q3: Tell me the standard of package?
A3: For the small capacity, small box and EPS as inner package and carton as delivery package. But also we can pack it according to your requirment.





Q4: How about the logo? Would you accept to use our logo ?
A4: Our logo is LANBOO. If your order has good quantity, it absolute no problem to do OEM. But you use our logo LANBOO will be high appreciated.








Q5: How do it know that you have sent the products out?


A5: Onece the products already finished ,We will send pictures ,video to you .Also a tracking number will be provided so that you can check where your goods at all time.





Q6: Could you offer Form A or C/O ?
A6: It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.








Q7: We want to know month capacity?
A7: It depends on which model.For example for 16mm metal button switch , month capacity can reach near 500,000pcs





Q8: Where is your market?
A8: Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.





Q9: What kind of certificate you have ?
A9: Our company already Obtained RoHS,CQC,CE,CCC,IP67,IK10 ,design and technical patents certificates


Q10: Can I ask for a sample?


A10: Of course ,my friends. It’s free for you .





Now pls feel free contact with us asap. J
