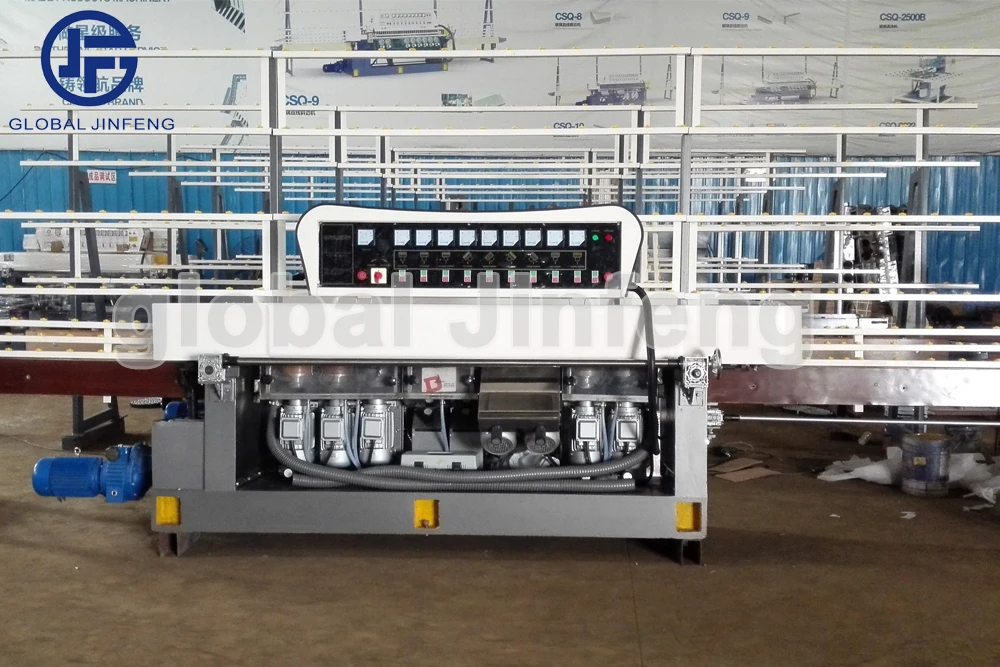

Машина для обработки кромок стекла JFE - 9243 с 9
Машина для обработки кромок стекла JFE - 9243 с 9
Машина для обработки кромок стекла JFE - 9243 с 9
Машина для обработки кромок стекла JFE - 9243 с 9
Машина для обработки кромок стекла JFE - 9243 с 9
Машина для обработки кромок стекла JFE - 9243 с 9
Машина для обработки кромок стекла JFE - 9243 с 9

Машина для обработки кромок стекла JFE - 9243 с 9


Поделиться:

Цена:8 800,00 $ - 9 200,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product details



            Glass straight line edge machine is suitable for grinding the straight edges and chamfer angle of flat glass of different sizes and thicknesses. Rough grinding, fine grinding and polishing can be finished in one time. It adopts mechanical stepless speed regulation with large adjustable range and stable shifting speed, which can change the feeding speed during the grinding process.


Max. Glass size
1500x2000mm
Min. Glass size
100x100mm
Glass thickness
3mm-25mm
Transmission speed
0.5-6m/min
Power
7.7Kw
Weight
800kg
Land occupation
3000x1000x1700mm

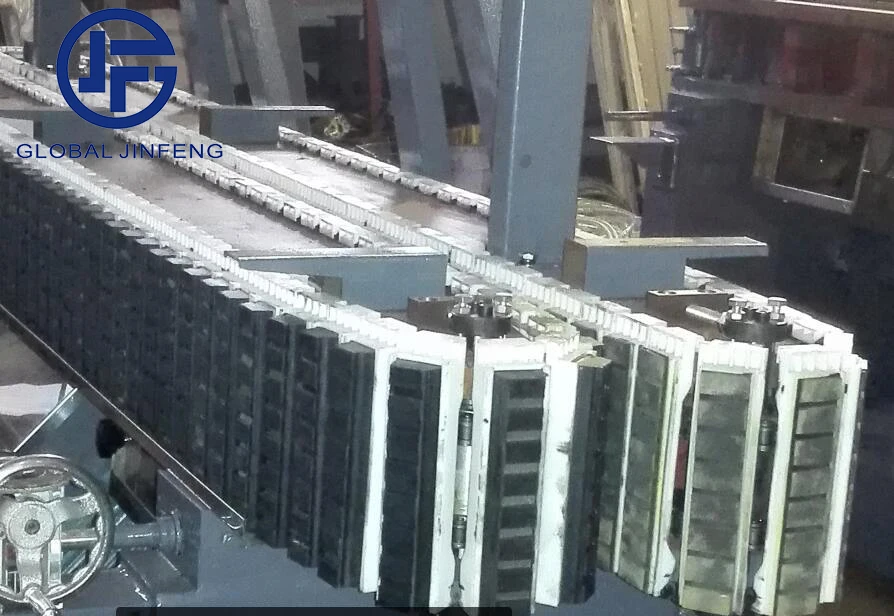

         Three stages of rotation: the independent conveyor chian at the input end and the output end, and a front and rear pad in the middle. The front pad is thicker, there are 100pcs; The rear pad is thin, with 102pcs; Plastic material is used for conventional machines.The pads are linked into chains, there are 4 in total, 2 on the front and the back



The input can adjust the overall lifting height by adding and manually adjusting the screw.When the input belt is adjusted downward, the amount of grinding will increase. Using this method to adjust the amount of grinding will be more convenient than adjusting the height of the wheels.



Synchronous belt drive: relatively expensive, if the synchronous belt is damaged, it needs to be replaced as a whole.

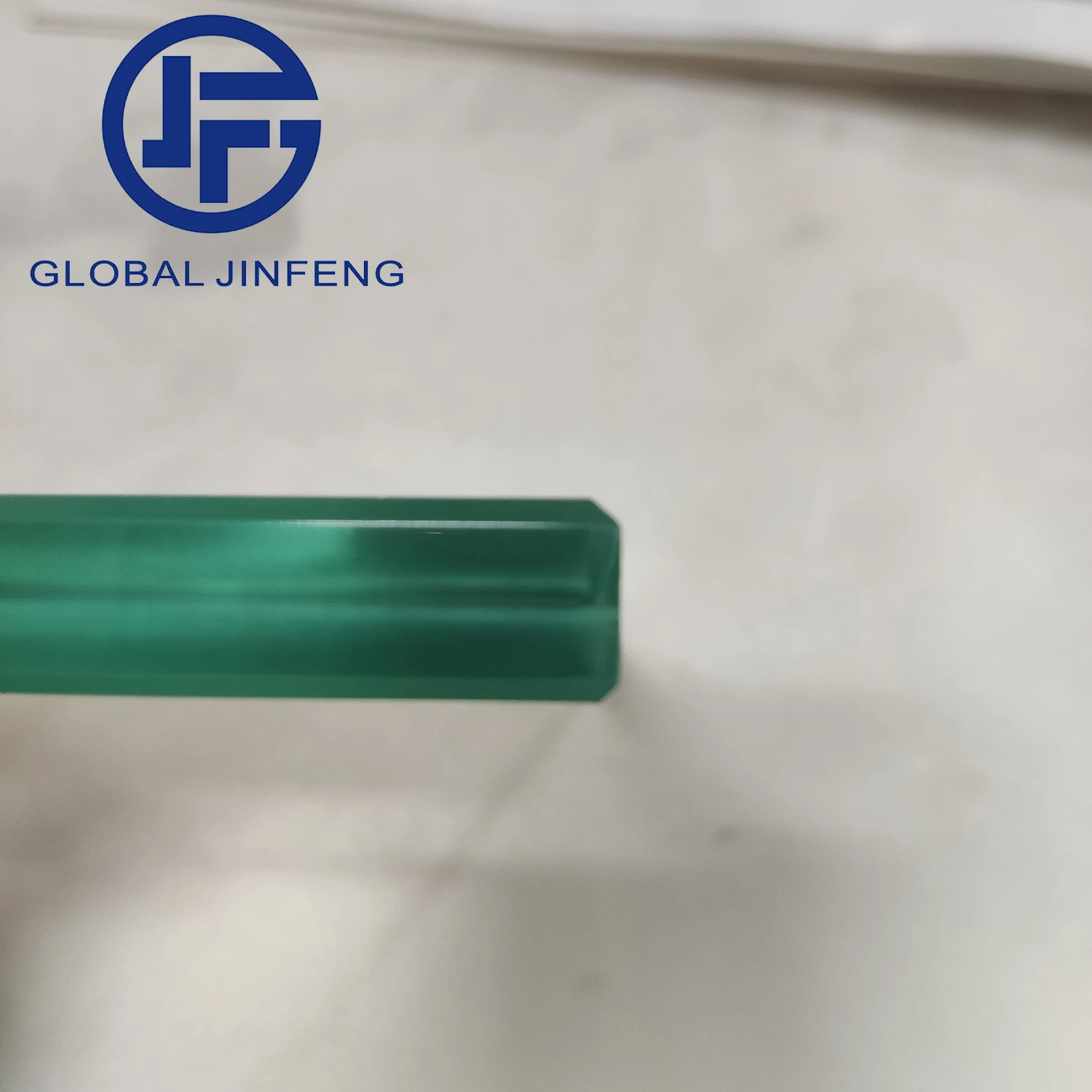

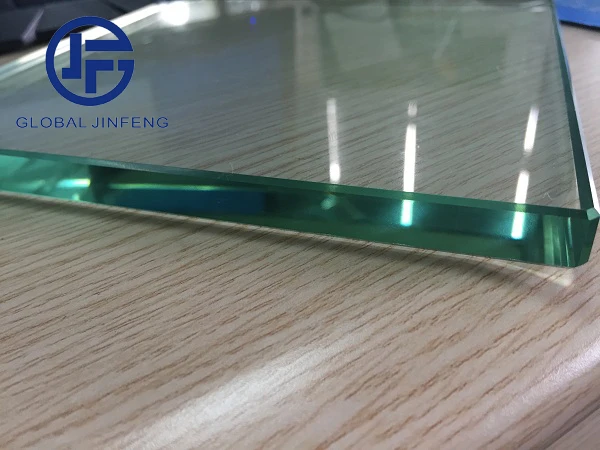

Glass effect




Classification by control panel


Common Control Panel
PLC Control Panel

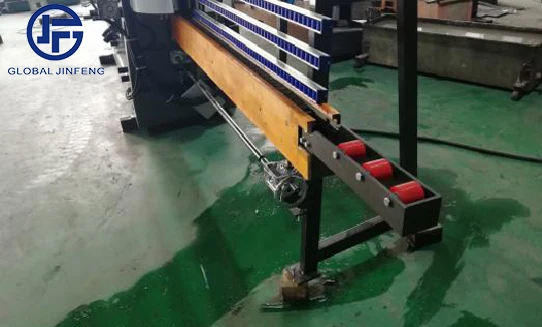

Wheel track is suitable for larger size glass, and its price is relatively favorable.

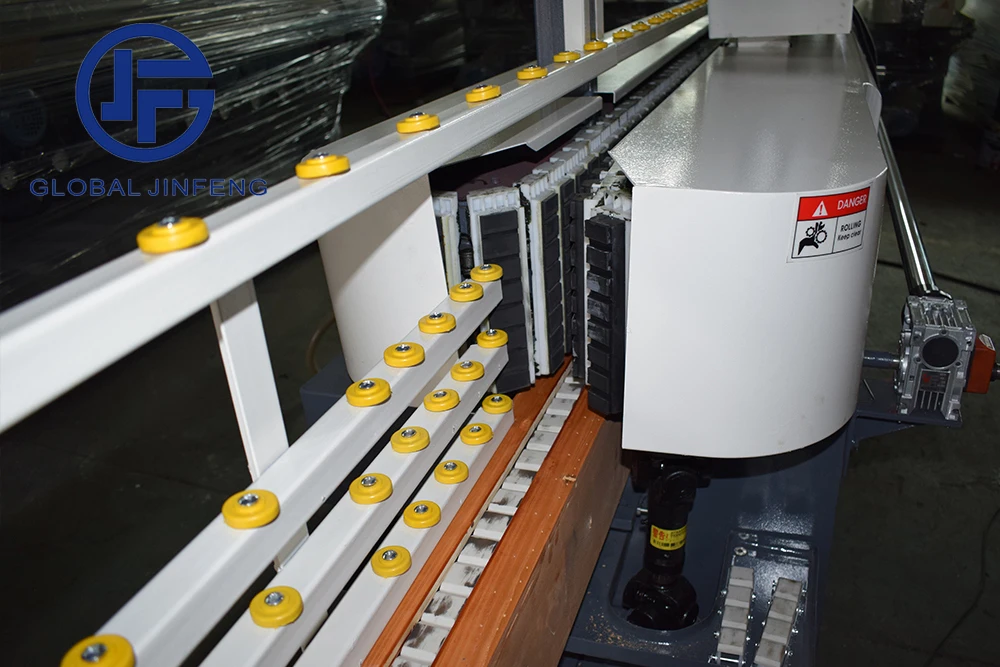

Roller track assists the belt to transport the glass. The lower roller is denser (it is convenient to transport small glass), and the upper roller is relatively sparse.


Product accessories


Item
Size
Pos.1 Diamond wheel
150x12x8x8mm
Pos.2 Diamond wheel
150x12x8x8mm
Pos.3 Resin wheel(Chamfer)
130x12x10x10mm
Pos.4 DLD Wheel
(Chamfer)
130x60x35mm 10S60
Pos.5 Resin wheel(Chamfer)
130x12x10x10mm
Pos.6 DLD Wheel
(Chamfer)
130x60x35 10S60(Made in China)
Pos.7 Resin wheel
150x12x10x10mm
Pos.8 DLD Wheel
150x70x40mm 10S40(Made in China)
Pos.9 DLD Wheel
150x70x40mm 10S60(import)


Aluminum plate
Numerical counter
Aluminum block


Product packaging


Wrap Film
Plywood case


Factory feedback from customers

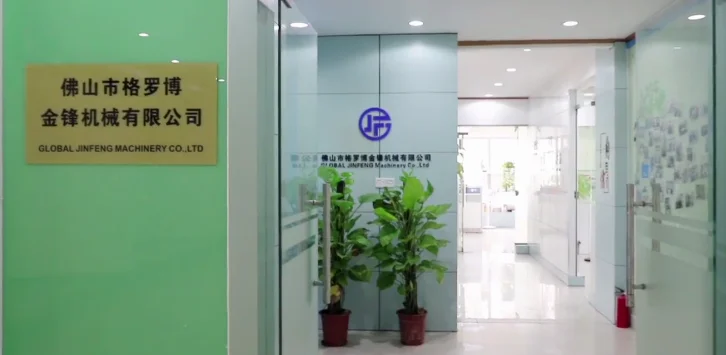

Our Company


Global Jinfeng Machinery Co., Ltd.
Global Jinfeng Machinery Co., Ltd. is a professional manufacturer and trading enterprise for glass machines and parts and some building materials, located in Foshan,Guangdong province south of China with convenient transportation access and close to Shenzhen and Hongkong seaport.We have 10 years of experience in glass processing machinery industry.
Our company mainly manufactures the glass processing machines, such as the glass tempering machine, glass cutting machine, glass grinding and polishing machine, and the glass washing machine for vertical and horizontal, the horizontal and vertical sandblast machines, drilling machines and sand belt machine, glass high temperature bending machine and the glass inner and outer round grinding beveling machine and so on.



Certifications




Exhibition


Beijing Exhibition
Mexico Exhibition
India Exhibition


Our service


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
